aston martin vanquish (2002) body structure parts diagram

7.1A1 - Body Structure

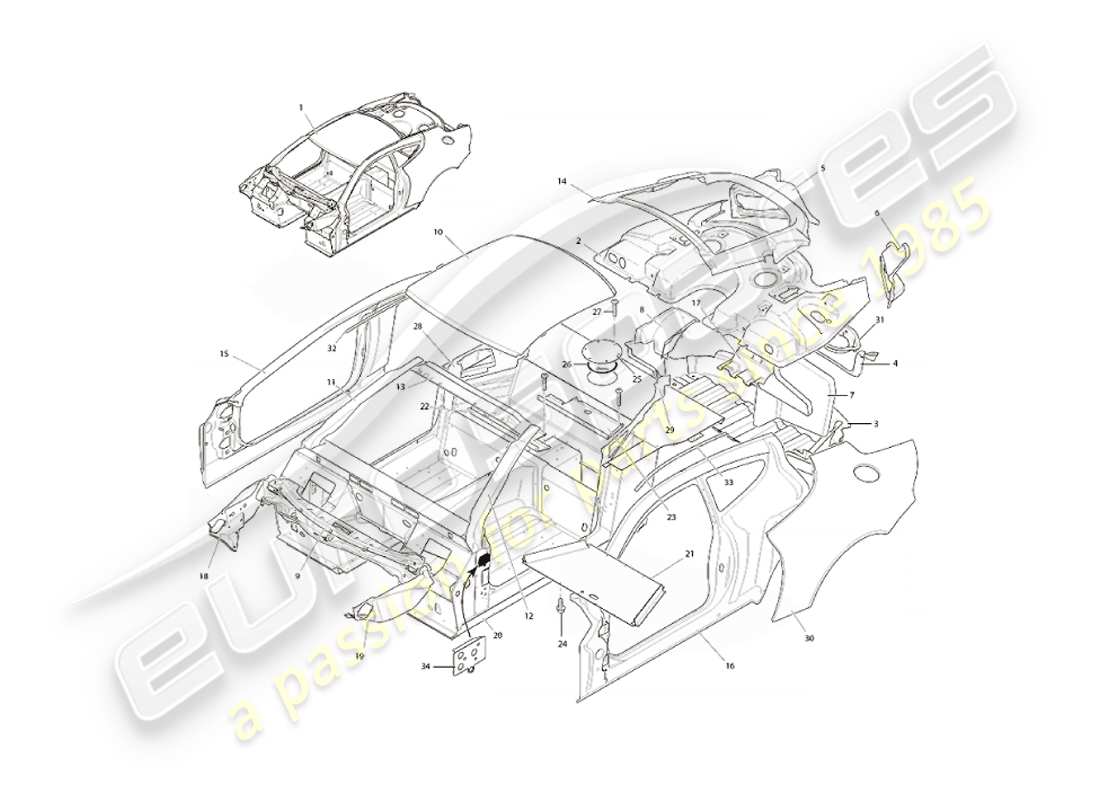

Aston Martin Vanquish (2002) Body Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # -
        MPN: 699283
        ADHESIVE-ASHLAND PLIOGRIP 7770/660, 660ML
        Vanquish crash structure, Structural Cat. A only
        from £100.26
        from £100.26
        ADHESIVE-ASHLAND PLIOGRIP 7770/660, 660ML Genuine Aston Martin - New (to order)
        # -
        MPN: 699302
        ADHESIVE BETAMATE 2700, 580ML
        Structural Cat. A only
        from £69.14
        from £69.14
        BETAMATE 2700 Genuine Aston Martin - New (to order)
        # -
        MPN: 699500
        BETACLEAN 3900, 1LTR
        from £29.02
        from £29.02
        BETACLEAN, 3900 Genuine Aston Martin - New (to order)
        # -
        MPN: 699501
        BETAPRIME 5404, 250ML
        Structural Cat. A only
        from £40.46
        from £40.46
        BETAPRIME, 5404 Genuine Aston Martin - New (to order)
        # -
        MPN: 700474
        DOW GS PRO FOAM CAN, 750ML
        Body cavity foam
        from £26.21
        from £26.21
        DOW GS PRO FOAM CAN, 750ML Genuine Aston Martin - New (to order)
        LH REAR HUB SHAFT Genuine Ferrari Part - New (to order)
        # -
        MPN: 700481
        SEALANT SIKAFLEX 221 UNIPAK, 400ML
        Body wipe sealant
        from £712.35
        from £712.35
        SEALANT SIKAFLEX 221 UNIPAK, 400ML Genuine Aston Martin - New (to order)
        LH REAR HUB Genuine Ferrari Part - New (to order)
        # -
        MPN: 700484
        MA300 STRUCTURAL PLEXUS ADHESIVE, 500ML
        Can be used for plastic repair
        from £38.37
        from £38.37
        MA300 STRUCTURAL PLEXUS ADHESIVE, 500ML Genuine Aston Martin - New (to order)
        # -
        MPN: 700774
        BETAMATE 2096 200ML CARTRIDGE , 200ML
        Structural Cat. A only
        from £313.08
        from £313.08
        BETAMATE 2096 200ML CARTRIDGE , 200ML Genuine Aston Martin - New (to order)
        # -
        MPN: 700784
        BETAWIPE VP 4604, 250ML
        from £27.77
        from £27.77
        BETAWIPE VPO 4604 Genuine Aston Martin - New (to order)
        # -
        MPN: 704076
        ADHESIVE 7222/9323, 150ML
        Structural aluminium adhesive, Structural Cat. A only
        from £169.08
        from £169.08
        ADHESIVE 7222/9323, 150ML Genuine Aston Martin - New (to order)
        # -
        MPN: 704966
        STORM BLACK TINTER
        Premixed, 2 ltr minimum order quantity
        STORM BLACK TINTER Genuine Aston Martin - New (to order)
        # -
        MPN: 8D33-M11B24-AA
        ZYMOL WAX Z503, 16OZ (473ML)
        Final finish product
        from £49.97
        from £49.97
        ZYMOL WAX Z503, 16OZ (473ML) Genuine Aston Martin - New (to order)
        # -
        MPN: 8D33-M11B2502-AA
        ZYMOL FIELD GLAZE CS1993, 8OZ
        Final finish product
        from £104.46
        from £104.46
        ZYMOL FIELD GLAZE CS1993, 8OZ Genuine Aston Martin - New (to order)
        # 1
        MPN: 1R12-60-10372
        BODY STRUCTURE, BUILT TO SERVICE LEVEL
        C/W roof, rr wings, doors & boot lid, Structural Cat. A only
        from £81,903.36
        from £81,903.36
        BODY STRUCTURE, BUILT TO SERVICE LEVEL Genuine Aston Martin - New (to order)
        # 2
        MPN: 1R12-161458-AH
        UPPER CARGO DECK ASSY
        Up to (V) 500515+500522-525,Structural Cat. A only
        UPPER CARGO DECK ASSEMBLY Genuine Aston Martin - New (to order)
        # 2
        MPN: 3R12-165668-AA
        UPPER CARGO DECK ASSY
        From (V) 500516-21+526on, up to (V) 501285, Structural Cat. A only
        UPPER CARGO DECK ASSEMBLY Genuine Aston Martin - New (to order)
        # 2
        MPN: 4R12-165668-AB
        UPPER CARGO DECK ASSY
        From (V) 500286, Structural Cat. A only
        UPPER CARGO DECK ASSEMBLY Genuine Aston Martin - New (to order)
        # 2
        MPN: 6R12-165668-AA
        UPPER CARGO DECK ASSY
        06MY from (V) 501949, Structural Cat. A only
        UPPER CARGO DECK ASSEMBLY Genuine Aston Martin - New (to order)
        # 3
        MPN: 1R12-162965-AH
        LOWER CARGO DECK ASSY
        Structural Cat. A only
        from £3,699.16
        from £3,699.16
        LOWER CARGO DECK ASSEMBLY Genuine Aston Martin - New (to order)
        # 3
        MPN: 5R13-47000-AA
        LOWER CARGO DECK ASSY, CANADA
        Vanquish S from (V) 501506, Structural Cat. A only
        from £2,136.12
        from £2,136.12
        LOWER CARGO DECK ASSEMBLY, CANADA Genuine Aston Martin - New (to order)
        # -
        -
        INFILL, LOWER CARGO DECK
        Structural Cat. A only
        # -
        -
        BLANKING GROMMET, 32MM
        # 4
        MPN: 1R12-161055-AF
        SEAL CARRIER, UPPER CARGO DECK
        Structural Cat. A only
        SEAL CARRIER, UPPER CARGO DECK Genuine Aston Martin - New (to order)
        # 5
        MPN: 3R12-165690-AA
        LAMP REINFORCEMENT, RH
        Structural Cat. A only
        from £859.19
        from £859.19
        LAMP REINFORCEMENT, RH Genuine Aston Martin - New (to order)
        # 6
        MPN: 3R12-165691-AA
        LAMP REINFORCEMENT, LH
        Structural Cat. A only
        from £866.44
        from £866.44
        LAMP REINFORCEMENT, LH Genuine Aston Martin - New (to order)
        # 7
        MPN: 1R12-161056-AC
        COVER, FILLER PIPE, TRUNK
        Structural Cat. A only
        from £203.61
        from £203.61
        COVER, FILLER PIPE, TRUNK Genuine Aston Martin - New (to order)
        # 8
        MPN: 1R12-162371-AE
        BRACE, REAR SCREEN SURROUND
        Up to (V) 501285, Structural Cat. A only
        from £375.53
        from £375.53
        BRACE, REAR SCREEN SURROUND Genuine Aston Martin - New (to order)
        # 8
        MPN: 4R12-162371-AA
        BRACE, REAR SCREEN SURROUND
        From (V) 501286, Structural Cat. A only
        BRACE, REAR SCREEN SURROUND Genuine Aston Martin - New (to order)
        # 9
        MPN: 1R12-632310-AP
        PLENUM CHAMBER ASSY
        Structural Cat. A only
        from £2,697.32
        from £2,697.32
        PLENUM CHAMBER ASSEMBLY Genuine Aston Martin - New (to order)
        # 10
        MPN: 1R12-634587-AA
        ROOF PANEL ASSY
        Structural Cat. A only
        from £475.93
        from £475.93
        ROOF PANEL ASSEMBLY, WITH AERIAL Genuine Aston Martin - New (to order)
        # 10
        MPN: 1R12-634587-AA
        ROOF PANEL ASSY, WITH AERIAL
        Vanquish S from (V) 501506, Structural Cat. A only
        from £475.93
        from £475.93
        ROOF PANEL ASSEMBLY, WITH AERIAL Genuine Aston Martin - New (to order)
        # 11
        MPN: 1R12-212100-AC
        REINFORCEMENT, A PILLAR, RH
        NSS
        REINFORCEMENT, A PILLAR, RH Genuine Aston Martin - New (to order)
        # 12
        MPN: 1R12-212101-AC
        REINFORCEMENT, A PILLAR, LH
        NSS
        REINFORCEMENT, A PILLAR, LH Genuine Aston Martin - New (to order)
        # 13
        MPN: 1R12-210663-AF
        REINFORCEMENT, FRONT HEADER
        Structural Cat. A only
        from £1,175.65
        from £1,175.65
        REINFORCEMENT, FRONT HEADER Genuine Aston Martin - New (to order)
        # 14
        MPN: 5R13-42200-AA
        SURROUND ASSY, REAR SCREEN (REWORK)
        Vanquish S from (V) 501506, Structural Cat. A only
        SURROUND ASSEMBLY, REAR SCREEN (REWORK) Genuine Aston Martin - New (to order)
        # 14
        MPN: 1R12-213357-AG
        SURROUND ASSY, REAR SCREEN
        Structural Cat. A only
        from £1,042.71
        from £1,042.71
        SURROUND ASSEMBLY, REAR SCREEN Genuine Aston Martin - New (to order)
        # 15
        MPN: 1R12-630092-AT
        BODY SIDE ASSY, RH
        Structural Cat. A only
        from £1,854.22
        from £1,854.22
        BODY SIDE ASSEMBLY, RH Genuine Aston Martin - New (to order)
        # 16
        MPN: 1R12-630091-AT
        BODY SIDE ASSY, LH
        Structrual Cat. A only
        from £1,854.22
        from £1,854.22
        BODY SIDE ASSEMBLY, LH Genuine Aston Martin - New (to order)
        # 17
        MPN: 1R12-162366-AB
        BRACE, LOWER CARGO DECK, REAR
        Structural Cat. A only
        BRACE, LOWER CARGO DECK, REAR Genuine Aston Martin - New (to order)
        # 18
        MPN: 1R12-631206-AJ
        PANEL APRON, RH
        Structural Cat. A only
        PANEL APRON, RH Genuine Aston Martin - New (to order)
        # 19
        MPN: 1R12-631207-AJ
        PANEL APRON, LH
        Structural Cat. A only
        PANEL APRON, LH Genuine Aston Martin - New (to order)
        # 20
        MPN: 1R12-160332-AJ
        BONDED MONOCOQUE ASSY
        Up to V 500515+500522-525, Structural Cat. A only
        BONDED MONOCOQUE ASSEMBLY Genuine Aston Martin - New (to order)
        # 20
        MPN: 3R12-165714-AA
        BONDED MONOCOQUE ASSY
        From V 500516-21+526 on, up to (V) 500820, Structural Cat. A only
        BONDED MONOCOQUE ASSEMBLY Genuine Aston Martin - New (to order)
        # 20
        MPN: 3R12-165714-AB
        BONDED MONOCOQUE ASSY
        From V 500821 up to TBA, Structural Cat. A only
        BONDED MONOCOQUE ASSEMBLY Genuine Aston Martin - New (to order)
        # 20
        MPN: 3R12-165714-AC
        BONDED MONOCOQUE ASSY
        From V TBA up to (V) 501400, Structural Cat. A only
        BONDED MONOCOQUE ASSEMBLY Genuine Aston Martin - New (to order)
        # 20
        MPN: 3R12-165714-AD
        BONDED MONOCOQUE ASSY
        From V 501401, Structural Cat. A only
        BONDED MONOCOQUE ASSEMBLY Genuine Aston Martin - New (to order)
        # 21
        MPN: 1R12-160584-AE
        PANEL ASSY TANK SHEAR
        Structural Cat. A only
        PANEL ASSEMBLY TANK SHEAR Genuine Aston Martin - New (to order)
        # 22
        MPN: 1R12-160590-AF
        PANEL UNDERSEAT SHEAR, RH
        Structural Cat. A only
        from £158.62
        from £158.62
        PANEL, UNDERSEAT SHEAR, RHS Genuine Aston Martin - New (to order)
        # 23
        MPN: 1R12-160591-AF
        PANEL UNDERSEAT SHEAR, LH
        Structural Cat. A only
        from £158.62
        from £158.62
        PANEL, UNDERSEAT SHEAR, LHS Genuine Aston Martin - New (to order)
        # 24
        MPN: 700170
        SCREW, FLG, M8 X 16
        Structural Cat. A only
        SCREW, FLANGE , M8 X 16 Genuine Aston Martin - New (to order)
        # 25
        MPN: 1R12-161115-AB
        PANEL, TANK SENDER ACCESS
        from £17.64
        from £17.64
        PANEL, TANK SENDER ACCESS Genuine Aston Martin - New (to order)
        # 26
        MPN: 1R12-161114-AA
        SEAL, TANK SENDER ACCESS
        from £3.42
        from £3.42
        SEAL, TANK SENDER ACCESS Genuine Aston Martin - New (to order)
        # 28
        MPN: 1R12-630288-AK
        PANEL, REAR QUARTER INNER, RH
        Structural Cat. A only
        from £220.81
        from £220.81
        PANEL, REAR QUARTER INNER, RH Genuine Aston Martin - New (to order)
        # 29
        MPN: 1R12-630289-AK
        PANEL, REAR QUARTER INNER, LH
        Structural Cat. A only
        from £220.81
        from £220.81
        PANEL, REAR QUARTER INNER, LH Genuine Aston Martin - New (to order)
        # 30
        MPN: 1R12-631029-AC
        PANEL ASSY, REAR QUARTER OUTER, LH
        Structural Cat. A only
        from £4,196.14
        from £4,196.14
        PANEL ASSEMBLY, REAR QUARTER OUTER, LH Genuine Aston Martin - New (to order)
        # 31
        -
        FUEL FILLER BOWL
        Pt of panel asy, rear qtr outer, LH, Structural Cat. A only
        # -
        -
        PANEL, REAR QUARTER OUTER, RH
        Structural Cat. A only
        # 32
        MPN: 1R12-784198-AA
        MOULDING, ROOF SIDE, RH
        Structural Cat. A only
        MOULDING, ROOF SIDE, RH Genuine Aston Martin - New (to order)
        # 33
        MPN: 1R12-784199-AA
        MOULDING, ROOF SIDE, LH
        Structural Cat. A only
        MOULDING, ROOF SIDE, LH Genuine Aston Martin - New (to order)
        # 34
        MPN: 1R12-161128-AE
        Nutplate, Door Hinge Upper, RH
        Structural Cat. A only
        from £46.70
        from £46.70
        Nutplate, Door Hinge Upper, RH Genuine Aston Martin - New (to order)
        # 34
        MPN: 1R12-161129-AE
        Nutplate, door hinge upper, LH
        Structural Cat. A only
        from £46.70
        from £46.70
        Nutplate, door hinge upper, LH Genuine Aston Martin - New (to order)
