2.6B - Fuel Pipes

Aston Martin Vanquish (2003) Fuel Pipes Parts Diagram

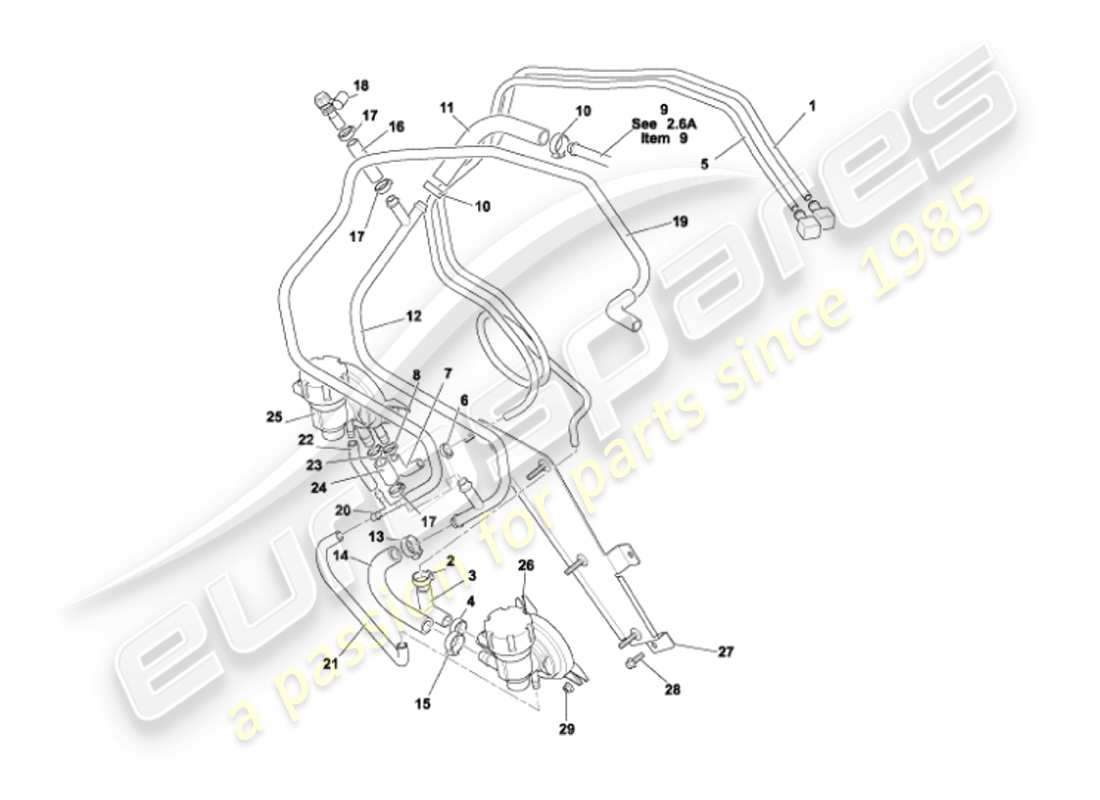

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 1R12-343318-AB
HOSE, VMV TO PLENUM ASSY, RH
from £128.42
from £128.42
HOSE, VMV TO PLENUM ASSEMBLY, RH Genuine Aston Martin - New (to order)
# 2
MPN: 1R12-342074-AA
CLIP, HOSE, 13/8
from £4.27
from £4.27
CLIP - HOSE 13/8 Genuine Aston Martin - New (to order)
# 3
MPN: 1R12-342442-AA
ELBOW, VMV
ELBOW, VMV Genuine Aston Martin - New (to order)
# 4
MPN: 1R12-342075-AA
CLIP, HOSE, 15/8
from £1.32
from £1.32
CLIP, HOSE, 15/8 Genuine Aston Martin - New (to order)
# 5
MPN: 1R12-343319-AB
HOSE, VMV TO PLENUM ASSY, LH
from £108.82
from £108.82
HOSE, VMV TO PLENUM ASSEMBLY, LH Genuine Aston Martin - New (to order)
# 6
MPN: 1R12-342074-AA
CLIP, HOSE, 13/8
from £4.27
from £4.27
CLIP - HOSE 13/8 Genuine Aston Martin - New (to order)
# 7
MPN: 1R12-342442-AA
ELBOW, VMV
ELBOW, VMV Genuine Aston Martin - New (to order)
# 8
MPN: 1R12-342075-AA
CLIP, HOSE, 15/8
from £1.32
from £1.32
CLIP, HOSE, 15/8 Genuine Aston Martin - New (to order)
# 9
MPN: 1R12-340701-AH
PIPE, CONNECTOR TO BULKHEAD
from £148.25
from £148.25
PIPE, CONNECTOR TO BULKHEAD Genuine Aston Martin - New (to order)
# 10
MPN: 1R12-342075-AA
CLIP, HOSE, 15/8
from £1.32
from £1.32
CLIP, HOSE, 15/8 Genuine Aston Martin - New (to order)
# 11
MPN: 1R12-340704-AE
HOSE, CANISTER PIPE TO VMVS
from £239.36
from £239.36
HOSE, CANISTER PIPE TO VMVS Genuine Aston Martin - New (to order)
# 12
MPN: 1R12-342868-AB
PIPE, CANISTER PIPE TO VMVS
PIPE, CANISTER PIPE TO VMVS Genuine Aston Martin - New (to order)
# 13
MPN: 1R12-344443-AA
CLIP
CLIP Genuine Aston Martin - New (to order)
# 14
MPN: 1R12-343298-AA
HOSE, VMV TO VMV
HOSE, VMV TO VMV Genuine Aston Martin - New (to order)
# 15
MPN: 1R12-344561-AA
CLIP, HOSE, 16/8
CLIP, HOSE, 16/8 Genuine Aston Martin - New (to order)
# 16
-
SLEEVE
# 17
MPN: 1R12-342075-AA
CLIP, HOSE, 15/8
from £1.32
from £1.32
CLIP, HOSE, 15/8 Genuine Aston Martin - New (to order)
# 18
-
SERVICE PORT
# 19
MPN: 1R12-340702-AD
HOSE, VACUUM VALVE TO PLENUM
from £66.43
from £66.43
HOSE, VACUUM VALVE TO PLENUM Genuine Aston Martin - New (to order)
# 20
-
T PIECE, VMV
# 21
-
VACUUM HOSE
# 22
-
VACUUM HOSE
# 23
MPN: 1R12-344561-AA
CLIP, HOSE, 16/8
CLIP, HOSE, 16/8 Genuine Aston Martin - New (to order)
# 25
MPN: 1R12-34-10017
VALVE, VMV, RH
from £324.09
from £324.09
VALVE, VMV, RH Genuine Aston Martin - New (to order)
# 26
MPN: 1R12-34-10231
VALVE, VMV, LH
from £83.79
from £83.79
VALVE, VMV, LH Genuine Aston Martin - New (to order)
# 27
MPN: 1R12-341716-AE
BRACKET, VMV'S
from £59.91
from £59.91
BRACKET, VMV'S Genuine Aston Martin - New (to order)
# 28
MPN: 699881
SCREW, FLG, M6X16
SCREW, M6 x 16 Genuine Aston Martin - New (to order)
# 29
MPN: 700142
NUT, FLG, LOCK, M6
from £1,979.25
from £1,979.25
NUT, FLANGE , M6 LOCK Genuine Aston Martin - New (to order)
