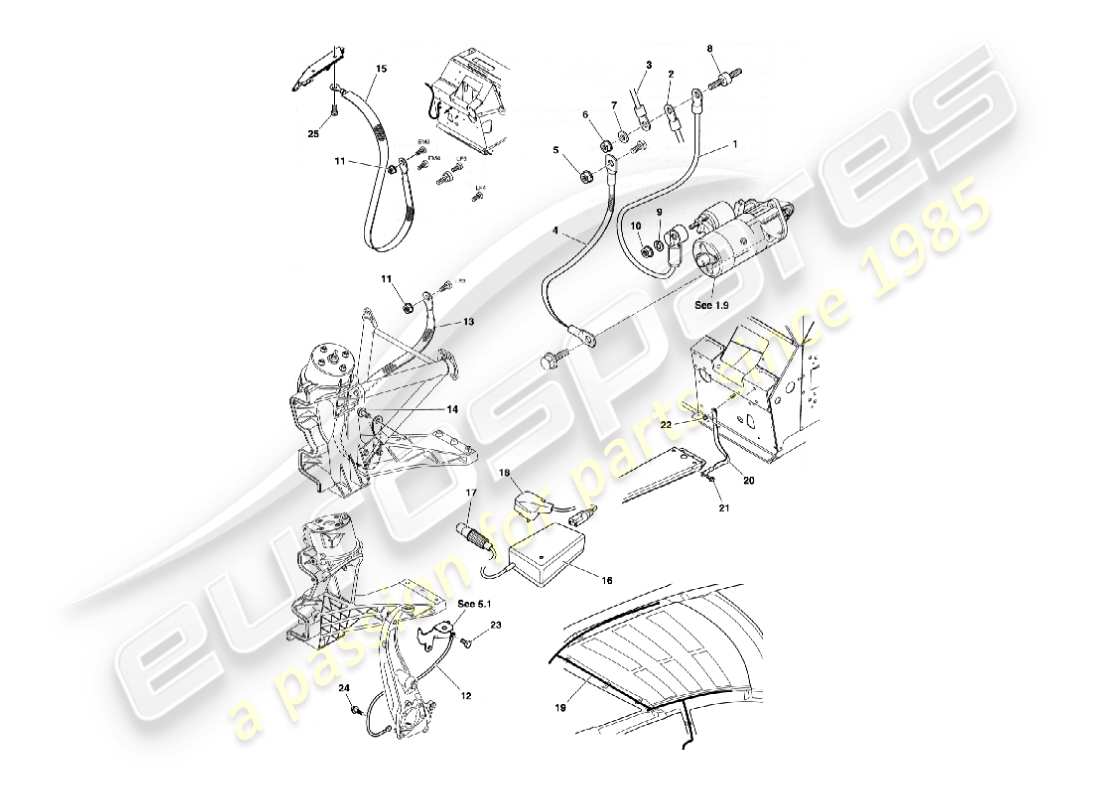

6.7A - Battery & Cables
Aston Martin Vanquish (2003) Battery & Cables Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 4R13-14A120-AC
CABLE ASSY, BULKHEAD STUD TO STARTER
from £117.24
from £117.24
# 2
MPN: 4R13-10K337-AA
CABLE ASSY, BULKHEAD STUD TO ALTERNATOR
# 3
MPN: 1R12-371719-AA
CABLE, BULKHEAD TO JUMP START TERMINAL
# 4
MPN: 1R12-371718-AD
CABLE, ENGINE EARTH
from £24.64
from £24.64
# 5
MPN: 702429
NUT, FLG NYLOC, M6
from £0.47
from £0.47
# 6
MPN: 697418
NUT, M8
from £0.47
from £0.47
# 7
MPN: 697164
WASHER, M8
from £0.47
from £0.47
# 8
MPN: 37-81863
TERMINAL POST ASSY
from £12.19
from £12.19
# 9
MPN: 697164
WASHER, M8
from £0.47
from £0.47
# 10
MPN: 697418
NUT, M8
from £0.47
from £0.47
# 11
MPN: 702429
NUT, FLG NYLOC, M6
from £0.47
from £0.47
# 12
MPN: 1R12-37-10180
EARTH LEAD, HUB TO CHASSIS
from £4.29
from £4.29
# 12
MPN: 4R12-376276-AA
LINK LEAD, ABS SENSOR (SVO OPTION)
For Uprated Brakes
from £97.44
from £97.44
# 13
MPN: 1R12-371730-AB
BRAID, ENGINE CRADLE
# 14
MPN: 700167
BOLT, FLG, M8X12
# 15
MPN: 1R12-371754-AC
BRAID, BONNET EARTH
from £16.58
from £16.58
# 15
MPN: 700126
SCREW, FLG, M6X20
Earth lead attach
from £1.77
from £1.77
# 15
MPN: 692066
WASHER, SPR, M6
Earth lead attach
from £0.47
from £0.47
# 15
MPN: 697820
NUT, FLG, M6
Earth lead attach
# 16
MPN: 4G43-10C650-AA
BATTERY CONDITIONER - PLUG I 230-240V 50-60HZ
Australia, New Zealand
# 16
MPN: 4G43-10C650-BA
BATTERY CONDITIONER - PLUG G 230-240V 50-60HZ
UK, Eire, Hong Kong
# 16
MPN: 4G43-10C650-CA
BATTERY CONDITIONER - PLUG C 230-240V 50-60HZ
RoW
# 16
MPN: 4G43-10C650-DA
BATTERY CONDITIONER - PLUG A 100-120V 50-60HZ
USA, Canada, Japan
# 17
MPN: 37-124124-AA
LINK LEAD, BATTERY CONDITIONER
from £14.52
from £14.52
# 18
-
SUPPLY LEAD, BATTERY CONDITIONER
Not req'd for latest conditioner
# 19
MPN: 1R12-374780-AA
EARTH BRAID ASSY, ROOF/CANTRAIL
from £53.90
from £53.90
# 20
MPN: 1R12-371730-AD
EARTH BRAID ASSY, ENGINE CRADLE
from £14.29
from £14.29
# 21
MPN: 700167
SCREW, FLG, M8X12
# 22
MPN: 700983
NUT, FLG NYLOC, M6
# 23
MPN: 700250
BOLT, M6X16
# 24
MPN: 700608
SCREW, FLG, M5X12
# 25
MPN: 1R12-644421-AA
SCREW AND WASHER ASSY, M8X25
from £0.52
from £0.52
