6.6A - Instruments & Controls

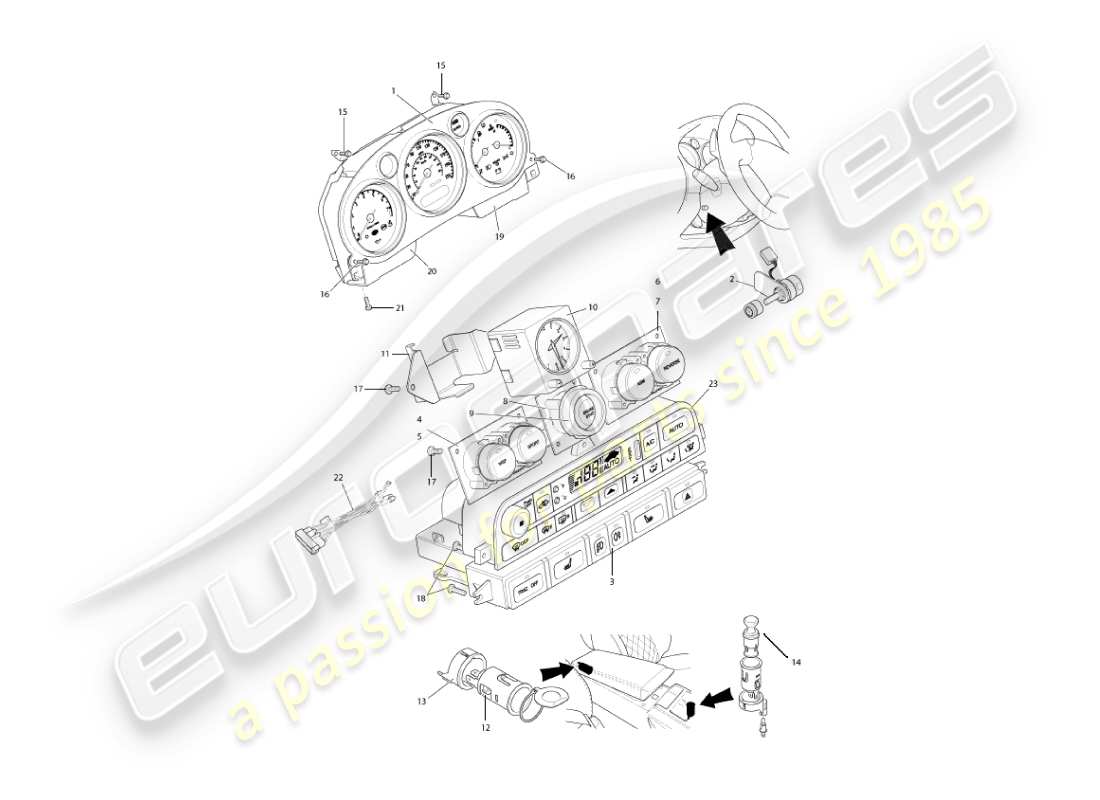

Aston Martin Vanquish (2006) Instruments & Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 1R12-370202-AC
INSTRUMENT PACK, MPH
Up to (V) 501285
# 1
MPN: 4R12-370202-AA
INSTRUMENT PACK, MPH
From (V) 501286
# 1
MPN: 1R12-370203-AC
INSTRUMENT PACK, KMH
Up to (V) 501285
# 1
MPN: 4R12-370203-AA
INSTRUMENT PACK, KMH
From (V) 501286
Supersession
Supersession
# -
-
SCREW, M5X16
# -
-
SCREW, FLG, M5X12
# 2
-
DIMMER SWITCH ( PART OF LOWER STEERING COWEL)
-N/A
# 2
MPN: 77-84981
FOAM STRIP, ANTI RATTLE
# 3
MPN: 1R12-37-10030
SWITCH MODULE, CENTRE CONSOLE, (FOG)
# 3
MPN: 1R12-37-10031
SWITCH PACK, CENTRE CONSOLE, NON-HEATED SEATS
from £142.64
from £142.64
# -
-
SCREW, NO.6X21 ST PAN POSI
# -
-
CLIP, SPIRE, NO.6
# 4
MPN: 1R12-374096-AB
BUTTON ASSEMBLY, RHD LS
RHD
from £619.14
from £619.14
# 5
MPN: 1R12-374097-AB
BUTTON ASSEMBLY, LHD RS
LHD
from £631.50
from £631.50
# 6
MPN: 1R12-374098-AB
BUTTON ASSEMBLY, RHD RS
RHD
# 7
MPN: 1R12-374099-AB
BUTTON ASSEMBLY, LHD LS
LHD
# -
-
REVERSE SWITCH, ASM ONLY
Vanquish S From (V) 501506
# -
-
SWITCH, ASM MODE
Vanquish S From (V) 501506
# -
-
CORPORATE SWITCH, SPORT MODE
Vanquish S From (V) 501506
# -
-
CORPORATE SWITCH, WSP MODE
Vanquish S From (V) 501506
# 8
MPN: 1R12-374100-AB
BUTTON ASSEMBLY, STARTER, ILLUMINATED
Up to (V) 501285 See next line
# -
-
KIT, STARTER BUTTON, INCLUDES LATEST SWITCH
Replaces 1R12-374100-AB
# -
-
BRACKET, STARTER BUTTON SWITCH
From (V) 501286
# -
-
STARTER SWITCH
From (V) 501286
# 9
MPN: 1R12-374101-AB
BEZEL RING
Up to (V) 501285
from £67.37
from £67.37
# -
-
SCREW, ST, 2.9X9.5 PAN HD
# -
-
SCREW, SF
# 10
MPN: 1R12-372207-AA
CLOCK
from £244.73
from £244.73
# 11
MPN: 1R12-834614-AB
BRACKET, CLOCK
from £22.68
from £22.68
# -
-
SEAL
# -
-
SCREW, M4X8
# -
-
HOUSING CIGAR LIGHTER, (MODIFIED)
# 12
MPN: 37-122791-AA
AUXILIARY SOCKET ASSY
from £51.84
from £51.84
# 13
MPN: 1R12-834821-AA
CLAMPING BRACKET, AUXILIARY SOCKET
Up to (V) 500515 + 500522-525
from £11.00
from £11.00
# -
-
LINK LEAD, AUXILIARY SOCKET
Up to (V) 500515 + 500522-525
# 14
MPN: 98AG-15052-CB
ELEMENT, CIGAR LIGHTER
# -
-
CIGAR LIGHTER SOCKET
# 15
MPN: 700256
SCREW, FLG, M5X8
# 16
MPN: 700109
SCREW, M5X16
from £0.78
from £0.78
# 17
MPN: 700160
SCREW, M4X8 PAN
# 18
MPN: 700100
SCREW, M4X12 PAN
from £0.47
from £0.47
# 19
MPN: 1R12-372110-AA
CABLE COVER, INSTRUMENT PANEL, RH
from £5.05
from £5.05
# 20
MPN: 1R12-372111-AA
CABLE COVER, INSTRUMENT PANEL, LH
from £5.05
from £5.05
# 21
MPN: 700110
SCREW, NO.6X3/8
from £2.07
from £2.07
# 22
MPN: 1R12-372200-AB
HARNESS, ASM SWITCHES
from £95.14
from £95.14
# 22
MPN: 697274
TIE STRAP, SECURE EARTH BREAK OUTS
RHD
from £0.49
from £0.49
# 23
MPN: 1R12-37-10272
PANEL, AIR CON CONTROL, NON HEATED FRONT SCREEN
from £1,438.83
from £1,438.83
# 23
MPN: 1R12-37-10273
PANEL, AIR CON CONTROL, HEATED FRONT SCREEN
from £2,333.41
from £2,333.41
# -
-
SWITCH PANEL, DRIVERS DOOR
# -
-
SWITCH PANEL, PASSENGERS DOOR
# -
-
SEAL, UPPER IP FACIA
