8.3 - Control Modules

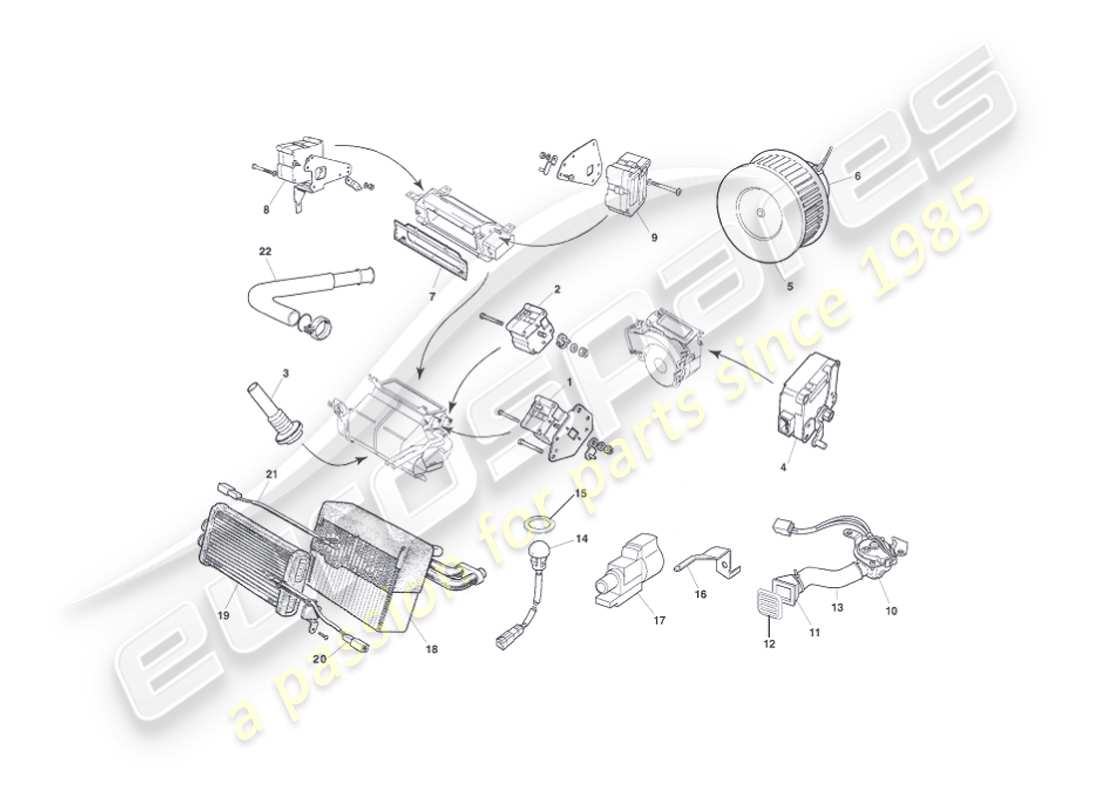

Aston Martin Vanquish (2006) Control Modules Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: MLA6440AE
SERVO MOTOR
# 2
MPN: 1R12-89-10386
BYPASS SERVO MOTOR
from £277.93
from £277.93
# 3
MPN: MJA6510AA
CONDENSATE DRAIN TUBE ASSY
# 4
MPN: 1R12-89-10387
SERVO MOTOR, BLOWER MOTOR, RH
# 4
MPN: 1R12-89-10388
SERVO MOTOR, BLOWER MOTOR, LH
# 5
MPN: 1R12-89-10389
FAN, BLOWER MOTOR, RH
# 5
MPN: 1R12-89-10390
FAN, BLOWER MOTOR, LH
# 6
MPN: 1R12-89-10391
MOTOR, BLOWER FAN, RH
# 6
MPN: 1R12-89-10392
MOTOR, BLOWER FAN, LH
# 7
MPN: MJA6670AA
AIR DUCT, FACE LEVEL CENTRE
# 8
MPN: 1R12-89-10393
SERVO MOTOR, DEFROST VENT
# 9
MPN: 1R12-89-10394
SERVO MOTOR, FACE VENT
from £319.09
from £319.09
# 10
MPN: 1R12-89-10042
ASPIRATOR MOTOR
from £320.98
from £320.98
# 11
MPN: 1R12-89-10038
HOUSING IN CAR TEMPERATURE SENSOR
from £104.68
from £104.68
# 12
MPN: 1R12-89-10045
ASPIRATOR GRILLE
from £3.10
from £3.10
# 13
MPN: 3R12-895852-AA
TUBE, ASPIRATOR REWORK
# 13
MPN: 1R12-89-10039
DRAIN TUBE, ASPIRATOR MOTOR
from £1.98
from £1.98
# 13
MPN: 3R12-895857-AA
EXTENSION HOSE, ASPIRATOR MOTOR
from £1.33
from £1.33
# 14
MPN: 1R12-89-10040
SENSOR, SOLAR
from £32.11
from £32.11
# 15
MPN: 1R12-89-10041
BEZEL, SOLAR SENSOR
from £6.41
from £6.41
# 16
MPN: 1R12-89-10395
BRACKET, SENSOR MOUNTING
from £2.09
from £2.09
# 17
MPN: 1R12-89-10482
In car sensor, ambient air temp
from £20.44
from £20.44
# 18
MPN: 1R12-89-10360
EVAPORATOR, AIR CONDITIONING
from £1,205.25
from £1,205.25
# 19
MPN: 1R12-89-10361
CORE ASSY, HEATER
from £337.68
from £337.68
# 20
MPN: 1R12-89-10362
THERMISTER, HEATER CORE OUTLET
# 21
MPN: 1R12-89-10363
THERMISTER, EVAPORATOR OUTLET
# 22
MPN: 1R12-89-10364
OUTLET PIPE KIT
