aston martin vanquish (2007) front brakes parts diagram

5.2 - Front Brakes

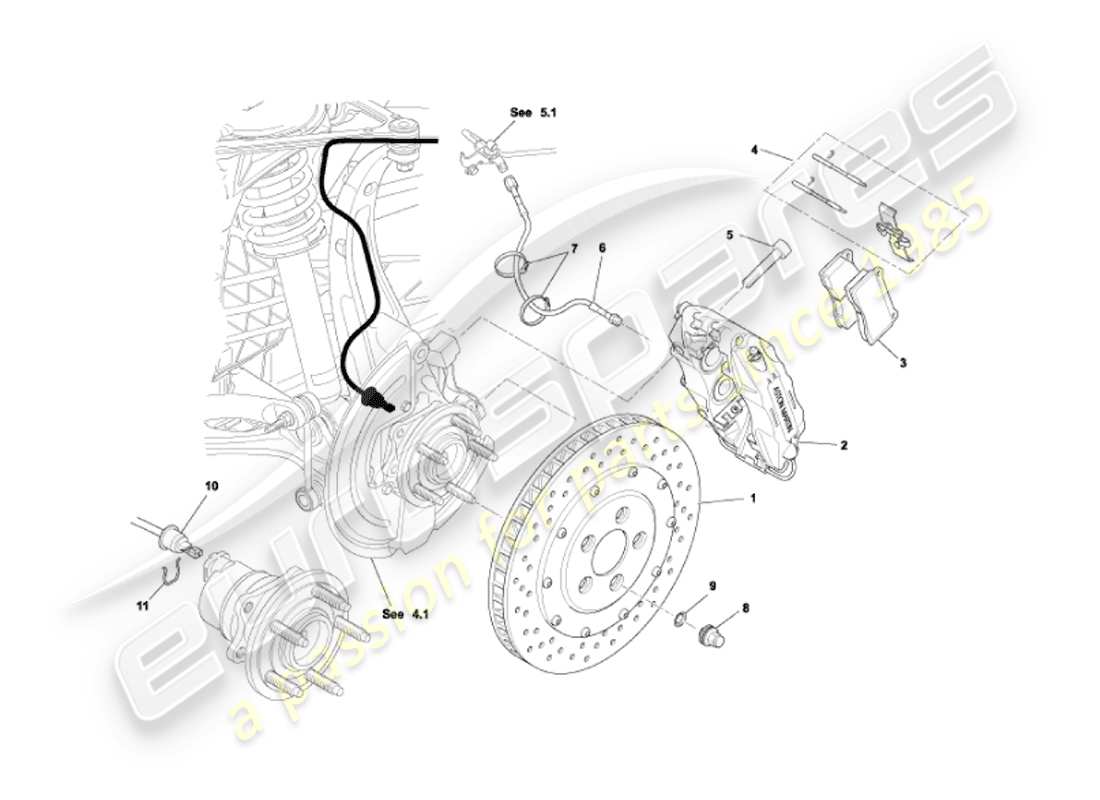

Aston Martin Vanquish (2007) Front Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 1R12-28-10764
            KIT, BRAKE DISCS, VENTILATED, FRONT, LH AND RH
            Up to (V) 501285 - Kit includes both Front discs
            from £1,334.36
            from £1,334.36
            BRAKE DISC SET-FRONT Genuine Aston Martin - New (to order)
            # -
            -
            DISC ASSY, VENTILATED, FRONT, LH
            From (V) 501286
            # -
            -
            DISC ASSY, VENTILATED, FRONT, LH (SVO OPTION)
            For Uprated Brakes
            # -
            -
            DISC ASSY, FRONT, (520 HP) LH
            Vanquish S From (V) 501506
            # -
            -
            DISC ASSY, VENTILATED, FRONT, RH
            From (V) 501286
            # -
            -
            DISC ASSY, VENTILATED, FRONT, RH (SVO OPTION)
            For Uprated Brakes
            # -
            -
            DISC ASSY, FRONT, (520 HP) RH
            Vanquish S From (V) 501506
            # 2
            MPN: 1R12-280459-AF
            CALIPER ASSY, FRONT - LH
            Up to (V) 501285
            from £515.47
            from £515.47
            CALIPER ASSEMBLY, FRONT - LH Genuine Aston Martin - New (to order)
            # -
            -
            CALIPER ASSY, FRONT - LH
            From (V) 501286
            # -
            -
            CALIPER ASSY, FRONT - LH GREY (SVO OPTION)
            For Uprated Brakes - Vanquish S From (V) 501506
            # -
            -
            CALIPER ASSY, FRONT - LH, BLACK
            Up to (V) 501285
            # -
            -
            CALIPER ASSY, FRONT - LH, BLACK
            From (V) 501286
            # -
            -
            CALIPER ASSY, FRONT - LH BLACK (SVO OPTION)
            For Uprated Brakes - Vanquish S From (V) 501506
            # -
            -
            CALIPER ASSY, FRONT - LH, GOLD
            Up to (V) 501285
            # -
            -
            CALIPER ASSY, FRONT - LH, GOLD
            From (V) 501286
            # -
            -
            CALIPER ASSY, FRONT - LH GOLD (SVO OPTION)
            For Uprated Brakes
            # -
            -
            CALIPER ASSY, FRONT - LH, RED
            Up to (V) 501285
            # -
            -
            CALIPER ASSY, FRONT - LH, RED
            From (V) 501286
            # -
            -
            CALIPER ASSY, FRONT - LH RED (SVO OPTION)
            For uprated brakes/Vanquish S From (V) 501506
            # -
            -
            CALIPER ASSY, FRONT - LH SILVER (520 HP)
            Vanquish S From (V) 501506
            # -
            -
            CALIPER ASSY, FRONT - RH
            Up to (V) 501285
            # -
            -
            CALIPER ASSY, FRONT - RH
            From (V) 501286
            # -
            -
            CALIPER ASSY, FRONT - RH GREY (SVO OPTION)
            For Uprated Brakes - Vanquish S From (V) 501506
            # -
            -
            CALIPER ASSY, FRONT - RH, BLACK
            Up to (V) 501285
            # -
            -
            CALIPER ASSY, FRONT - RH, BLACK
            From (V) 501286
            # -
            -
            CALIPER ASSY, FRONT - RH BLACK (SVO OPTION)
            For Uprated Brakes - Vanquish S From (V) 501506
            # -
            -
            CALIPER ASSY, FRONT - RH, GOLD
            Up to (V) 501285
            # -
            -
            CALIPER ASSY, FRONT - RH, GOLD
            From (V) 501286
            # -
            -
            CALIPER ASSY, FRONT - RH GOLD (SVO OPTION)
            For Uprated Brakes
            # -
            -
            CALIPER ASSY, FRONT - RH, RED
            Up to (V) 501285
            # -
            -
            CALIPER ASSY, FRONT - RH, RED
            From (V) 501286
            # -
            -
            CALIPER ASSY, FRONT - RH RED (SVO OPTION)
            For Uprated Brakes - Vanquish S From (V) 501506
            # -
            -
            CALIPER ASSY, FRONT - RH SILVER (520 HP)
            Vanquish S From (V) 501506
            # 3
            MPN: 1R12-285403-AA
            BRAKE PAD ASSY, FRONT, RH
            Up to (V) 501285
            BRAKE PAD ASSEMBLY, FRONT, RH Genuine Aston Martin - New (to order)
            # -
            -
            BRAKE PAD ASSY, FRONT, LH
            Up to (V) 501285
            # -
            -
            KIT, BRAKE PAD ASSY, FRONT
            From (V) 501286
            # -
            -
            BRAKE PAD ASSY, FRONT
            For Uprated Brakes - Vanquish S
            # 4
            MPN: 28-85451
            CLIP AND PIN KIT
            For Standard Brake Pads
            from £38.86
            from £38.86
            CLIP AND PIN KIT Genuine Aston Martin - New (to order)
            # 5
            MPN: 1R12-284577-AA
            BOLT, M12X65 CAP HEAD
            BOLT, M12X65 CAP HEAD Genuine Aston Martin - New (to order)
            # 5
            MPN: 3R12-285956-AA
            BOLT, CAP HEAD, M12 X 80 - 12.9 (SVO OPTION)
            For Uprated Brakes - Vanquish S From (V) 501506
            from £10.88
            from £10.88
            BOLT, CAP HEAD, M12 X 80 - 12.9 (SVO OPTION) Genuine Aston Martin - New (to order)
            # -
            -
            LOCTITE 242
            # 6
            MPN: 1R12-280464-AE
            BRAKE HOSE ASSY, FRONT
            from £63.28
            from £63.28
            BRAKE HOSE ASSEMBLY, FRONT Genuine Aston Martin - New (to order)
            # 6
            MPN: 4R12-286132-AA
            BRAKE HOSE ASSY, FRONT, (SVO OPTION)
            For uprated brakes/Vanquish S From (V) 501506
            from £179.93
            from £179.93
            BRAKE HOSE ASSEMBLY, FRONT, (SVO OPTION) Genuine Aston Martin - New (to order)
            # 8
            MPN: 1R12-36-10006
            WHEEL NUT, M12X1.5
            WHEEL NUT, M12X1.5 Genuine Aston Martin - New (to order)
            # -
            -
            WHEEL NUT, M14X2
            Vanquish S From (V) 501506
            # 9
            MPN: 699878
            RETAINER, NUT, M12
            from £6.11
            from £6.11
            RETAINER, NUT, M12 Genuine Aston Martin - New (to order)
            # 10
            MPN: 1R12-90-10109
            SENSOR ASSY, FRONT BRAKE ANTI-LOCK
            SENSOR ASSEMBLY, FRONT BRAKE ANTI-LOCK Genuine Aston Martin - New (to order)
            # -
            -
            SENSOR, ABS FRONT (SVO OPTION)
            For Uprated Brakes - Vanquish S From (V) 501506
            # 11
            MPN: 1R12-282419-AA
            CLIP, FRONT ABS SENSOR CABLE
            from £0.77
            from £0.77
            CLIP, FRONT ABS SENSOR CABLE Genuine Aston Martin - New (to order)
            # -
            -
            SCREW, M5X12 SENSOR ATTACH (SVO OPTION)
            For Uprated Brakes - Vanquish S From (V) 501506
