5.3 - Rear Brakes

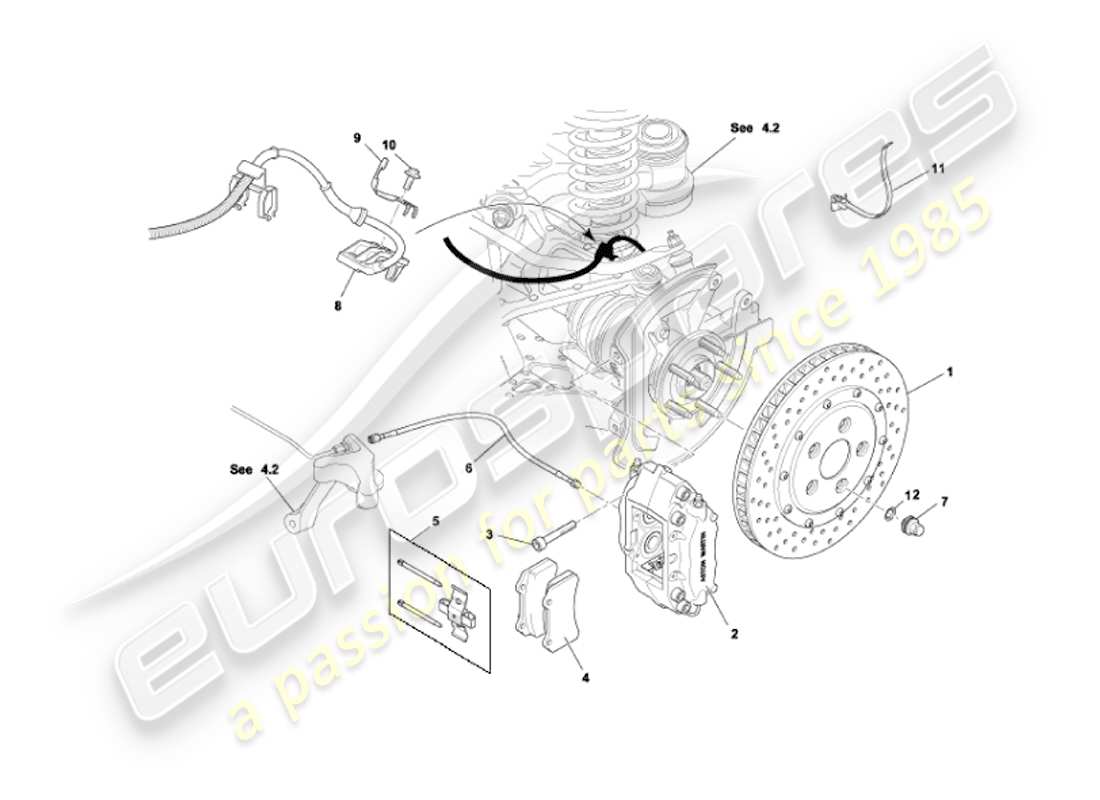

Aston Martin Vanquish (2007) Rear Brakes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 1R12-28-10765
KIT, BRAKE DISCS, VENTILATED, REAR, LH AND RH
Up to (V) 501285-Kit includes both Front discs
from £1,448.87
from £1,448.87
# -
-
DISC ASSY, VENTILATED, REAR, LH
From (V) 501286
# -
-
DISC ASSY, VENTILATED, REAR, LH (SVO OPTION)
For Uprated Brakes
# -
-
DISC ASSY, VENTILATED, REAR, (520 HP) LH
Vanquish S From (V) 501506
# -
-
DISC ASSY, VENTILATED, REAR, RH
From (V) 501286
# -
-
DISC ASSY, VENTILATED, REAR, RH (SVO OPTION)
For Uprated Brakes
# -
-
DISC ASSY, VENTILATED, REAR, (520 HP) RH
Vanquish S From (V) 501506
# -
-
SCREW, M8X16, DISC RETAINING
Vanquish S From (V) 501506
# 2
MPN: 1R12-280469-AD
CALIPER ASSY, REAR, LH
Up to (V) 501285
from £519.20
from £519.20
# -
-
CALIPER ASSY, REAR, LH
From (V) 501286
# -
-
CALIPER ASSY, REAR, LH, GREY (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
# -
-
CALIPER ASSY, REAR, LH, BLACK
Up to (V) 501285
# -
-
CALIPER ASSY, REAR, LH, BLACK
From (V) 501286
# -
-
CALIPER ASSY, REAR, LH, BLACK (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
# -
-
CALIPER ASSY, REAR - LH, GOLD
Up to (V) 501285
# -
-
CALIPER ASSY, REAR - LH, GOLD
From (V) 501286
# -
-
CALIPER ASSY, REAR, LH, GOLD (SVO OPTION)
For Uprated Brakes
# -
-
CALIPER ASSY, REAR - LH, RED
Up to (V) 501285
# -
-
CALIPER ASSY, REAR - LH, RED
From (V) 501286
# -
-
CALIPER ASSY, REAR, LH, RED (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
# -
-
CALIPER ASSY, REAR, LH, SILVER (520 HP)
Vanquish S From (V) 501506
# -
-
CALIPER ASSY, REAR, RH
Up to (V) 501285
# -
-
CALIPER ASSY, REAR, RH
From (V) 501286
# -
-
CALIPER ASSY, REAR, RH, GREY (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
# -
-
CALIPER ASSY, REAR - RH, BLACK
Up to (V) 501285
# -
-
CALIPER ASSY, REAR - RH, BLACK
From (V) 501286
# -
-
CALIPER ASSY, REAR, RH, BLACK (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
# -
-
CALIPER ASSY, REAR - RH, GOLD
Up to (V) 501285
# -
-
CALIPER ASSY, REAR - RH, GOLD
From (V) 501286
# -
-
CALIPER ASSY, REAR, RH, GOLD (SVO OPTION)
For Uprated Brakes
# -
-
CALIPER ASSY, REAR - RH, RED
Up to (V) 501285
# -
-
CALIPER ASSY, REAR - RH, RED
From (V) 501286
# -
-
CALIPER ASSY, REAR, RH, RED (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
# -
-
CALIPER ASSY, REAR, RH, SILVER (520 HP)
Vanquish S From (V) 501506
# 3
MPN: 1R12-283578-AA
BOLT, M12X67 CALIPER TO KNUCKLE
from £21.63
from £21.63
# -
-
BOLT, M12X60 CALIPER TO KNUCKLE (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
# -
-
LOCTITE 242
# 4
MPN: 1R12-285405-AA
BRAKE PAD ASSY, REAR, RH
Up to (V) 501285
# 4
MPN: 1R12-285404-AA
BRAKE PAD ASSY, REAR, LH
Up to (V) 501285
# 4
MPN: 4R12-28-10401-PK
KIT, BRAKE PAD ASSY, REAR
From (V) 501286
from £494.03
from £494.03
# 4
MPN: 5R13-2M007-AA
BRAKE PAD ASSY, REAR
For uprated brakes/Vanquish S
# 5
MPN: 28-85456
CLIP AND PIN KIT, REAR
For Standard Brake Pads
from £28.58
from £28.58
# 6
MPN: 1R12-280465-AH
BRAKE HOSE ASSY, REAR
from £38.14
from £38.14
# -
-
WASHER, COPPER (SVO OPTION)
For Uprated Brakes
# 7
MPN: 1R12-36-10006
WHEEL NUT, M12X1.5
# -
-
WHEEL NUT, M14X2
Vanquish S From (V) 501506
# 8
MPN: 3W43-2C216-AA
SENSOR ASSY, REAR BRAKE ANTI-LOCK, LH
# 8
MPN: 3W43-2C190-AA
SENSOR ASSY, REAR BRAKE ANTI-LOCK, RH
# 9
MPN: 1R12-282323-AA
BRACKET, REAR ABS SENSOR CABLE, LH
from £75.13
from £75.13
# 9
MPN: 1R12-282322-AA
BRACKET, REAR ABS SENSOR CABLE, RH
from £11.99
from £11.99
# 10
MPN: 700126
SCREW, FLG, M6X20
from £1.77
from £1.77
# 11
MPN: 697398
CABLE TAB, RELEASABLE
from £0.84
from £0.84
# 12
MPN: 699878
RETAINER, NUT, M12
from £6.11
from £6.11
