aston martin vanquish (2013) ancillary parts, coupe, page 2 parts diagram

01-0110-04-2 - Ancillary Parts, Coupe, page 2

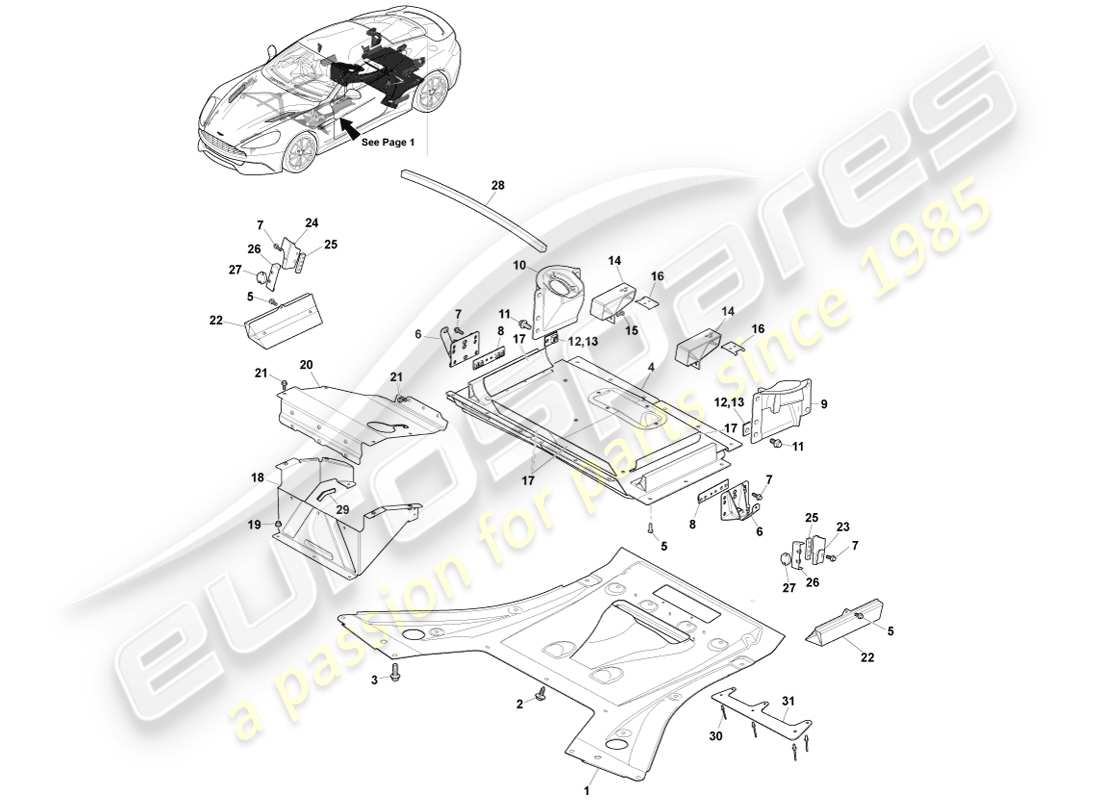

Aston Martin Vanquish (2013) Ancillary Parts, Coupe, page 2 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: AD33-L17C857-BB
                                            SHIELD, REAR BUMPER OPENING
                                            Up to 15MY
                                            SHIELD, REAR BUMPER OPENING Genuine Aston Martin - New (to order)
                                            # 1
                                            MPN: FD33-L17C857-AA
                                            SHIELD, REAR BUMPER OPENING
                                            FROM 15MY
                                            from £477.53
                                            from £477.53
                                            SHIELD, REAR BUMPER OPENING Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: 7G33-108256-AA
                                            SCREW, M8X21
                                            from £0.49
                                            from £0.49
                                            M8 X 21 HEX PLA PIL Genuine Aston Martin - New (to order)
                                            REAR UNDERTRAY BOLTS Genuine Ferrari Part - New (to order)
                                            # 3
                                            MPN: 702210-PK
                                            BOLT, M10X30
                                            Pack of 10
                                            from £7.26
                                            from £7.26
                                            This part replaces part number 702210
                                            BOLT-M10X30 PACK 10 Genuine Aston Martin - New (to order)
                                            VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
                                            # 4
                                            MPN: FD33-38580-AA
                                            PANEL ASSY, FUEL TANK COMPARTMENT, LOWER
                                            PANEL, FUEL TANK COMPARTMENT, LOWER Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: 703121
                                            SCREW, M8X20, HEX FLANGE HEAD
                                            from £0.47
                                            from £0.47
                                            SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: 6G33-5D022-AD
                                            BRACKET, REAR SUBFRAME STABILISER
                                            from £37.70
                                            from £37.70
                                            BRACKET REAR SB/FR STAB Genuine Aston Martin - New (to order)
                                            # 7
                                            MPN: W500624-S442
                                            BOLT, M8X25, HEX FLANGE HEAD
                                            BOLT, M8X25, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: 6G33-5N394-AB
                                            NUTPLATE BRACKET, REAR SUBFRAME STABILISER, UPPER
                                            from £9.82
                                            from £9.82
                                            NUTPLATE BRACKET REAR SBF Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: 6G33-18A001-AD
                                            MEMBER, REAR SHOCK ABSORBER MOUNTING, LH
                                            from £306.96
                                            from £306.96
                                            MBR REAR SHOCK ABS MTNG Genuine Aston Martin - New (to order)
                                            MBR REAR SHOCK ABS MTNG Genuine Aston Martin - Used In stock
                                            # 10
                                            MPN: 6G33-18A000-AD
                                            MEMBER, REAR SHOCK ABSORBER MOUNTING, RH
                                            from £306.96
                                            from £306.96
                                            MBR REAR SHOCK ABS MTNG Genuine Aston Martin - New (to order)
                                            MBR REAR SHOCK ABS MTNG Genuine Aston Martin - Used In stock
                                            # 11
                                            MPN: W500443-S442
                                            SCREW, M12X35, HEX FLANGE HEAD
                                            SCREW, M12X35, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                                            # 12
                                            MPN: 6G33-80997-AA
                                            NUTPLATE, M12, REAR DAMPER MOUNTING, FRONT
                                            from £3.78
                                            from £3.78
                                            NUTPLATE REAR DMPR MNT Genuine Aston Martin - New (to order)
                                            # 13
                                            MPN: 703074
                                            RIVET, 4.65X 3.8, BLIND DOME HEAD
                                            RIVET, 4.65X13.8 Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: 4G43-C114B10-AB
                                            BRACKET, REAR CHILD SEAT OUTER
                                            from £25.52
                                            from £25.52
                                            BRACKET, REAR CHILD SEAT OUTER Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: 703172-PK
                                            SCREW, M8X25, PAN HEAD
                                            Pack of 10
                                            from £3.13
                                            from £3.13
                                            SCREW-M8X25 PAN (10) Genuine Aston Martin - New (to order)
                                            VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
                                            # 16
                                            MPN: 4G43-612C58-AA
                                            PLATE, CHILD SEAT ATTACHMENT
                                            from £6.87
                                            from £6.87
                                            PLATE, CHILD SEAT ATTACHMENT Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: 4G43-9N070-AB
                                            INSULATION, FUEL TANK SUPPORT
                                            from £1.55
                                            from £1.55
                                            INSULATION, FUEL TANK SUPPORT Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: CD33-67518-AB
                                            PANEL, REAR SEAT HEEL BOARD
                                            from £186.44
                                            from £186.44
                                            PAN REAR ST HL BD RH Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: ED33-67518-AA
                                            PANEL, REAR SEAT HEEL BOARD
                                            14.5MY
                                            from £162.38
                                            from £162.38
                                            PAN REAR ST HL BD RH Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: 703169
                                            NUT, M6, HEX FLANGE HEAD
                                            from £0.71
                                            from £0.71
                                            This part replaces part number 703168
                                            NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: CD33-10N660-AB
                                            PANEL, BATTERY COVER
                                            from £220.81
                                            from £220.81
                                            PANEL, BATTERY COVER Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: ED33-10N660-AA
                                            PANEL, BATTERY COVER
                                            14.5MY
                                            from £98.48
                                            from £98.48
                                            PANEL, BATTERY COVER Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 703265
                                            SCREW, M6X16, HEX HD
                                            from £0.47
                                            from £0.47
                                            SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                            # 22
                                            MPN: GOCD33-10230-AA
                                            REINFORCEMENT EXTRUSION, REAR FLOOR SIDE
                                            from £35.23
                                            from £35.23
                                            REINFORCEMENT EXTRUSION, REAR FLOOR SIDE Genuine Aston Martin - New (to order)
                                            # 23
                                            MPN: GOCD33-20E801-AC
                                            BODY MOUNT CATCHER, LH
                                            BODY MOUNT CATCHER, LH Genuine Aston Martin - New (to order)
                                            # 23
                                            MPN: GOED33-20E801-AA
                                            BODY MOUNT CATCHER, LH
                                            14.5MY
                                            BODY MOUNT CATCHER, LH Genuine Aston Martin - New (to order)
                                            # 24
                                            MPN: GOCD33-20E800-AC
                                            BODY MOUNT CATCHER, RH
                                            BODY MOUNT CATCHER, RH Genuine Aston Martin - New (to order)
                                            # 24
                                            MPN: GOED33-20E800-AA
                                            BODY MOUNT CATCHER, RH
                                            14.5MY
                                            BODY MOUNT CATCHER, RH Genuine Aston Martin - New (to order)
                                            # 25
                                            MPN: CD33-393126-AC
                                            MOUNTING PLATE, CATCHER
                                            MOUNTING PLATE, CATCHER Genuine Aston Martin - New (to order)
                                            # 26
                                            MPN: DG43-393126-AA
                                            NUTPLATE ASSEMBLY, STRIKER
                                            from £37.54
                                            from £37.54
                                            NUTPLATE, STRIKER M8 Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: AD43-F16346-BB
                                            SPACER
                                            11.5mm
                                            from £10.17
                                            from £10.17
                                            SPACER Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: AD43-F16347-BB
                                            SPACER
                                            10.5mm
                                            from £10.17
                                            from £10.17
                                            SPACER Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: AD43-F16348-BB
                                            SPACER
                                            9.5mm
                                            from £10.17
                                            from £10.17
                                            SPACER Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: AD43-F16349-BB
                                            SPACER
                                            8.5mm
                                            from £10.17
                                            from £10.17
                                            SPACER Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: AD43-F16350-BB
                                            SPACER
                                            7.5mm
                                            from £10.17
                                            from £10.17
                                            SPACER Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: AD43-F16351-BB
                                            SPACER
                                            6.5mm
                                            from £9.27
                                            from £9.27
                                            SPACER, LATCH STRIKER Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: DG43-F16352-BB
                                            SPACER
                                            5.5mm
                                            from £12.94
                                            from £12.94
                                            SPACER, LATCH STRIKER Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: DG43-F16353-BB
                                            SPACER
                                            4.5mm
                                            from £12.69
                                            from £12.69
                                            SPACER, LATCH STRIKER Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 32-85306
                                            SEAL, RADIATOR UPPER
                                            from £9.99
                                            from £9.99
                                            SEAL-RADIATOR UPPER Genuine Aston Martin - New (to order)
                                            # 29
                                            MPN: 4G43-18K261-AB
                                            EDGE PROTECTION STRIP
                                            from £3.78
                                            from £3.78
                                            EDGE PROTECTION STRIP Genuine Aston Martin - New (to order)
                                            # 30
                                            MPN: 6G33-37949-AA
                                            RIVET, BLIND 4.8X13.9
                                            S' models
                                            from £0.47
                                            from £0.47
                                            RIV 4.8 X 13.9 BLND Genuine Aston Martin - New (to order)
                                            # 31
                                            MPN: HD33-44210-AA
                                            SPOILER ASSY, REAR
                                            S' models
                                            from £250.03
                                            from £250.03
                                            SPOILER ASSEMBLY, REAR Genuine Aston Martin - New (to order)
