aston martin vanquish (2013) torque tube assembly, 8 spd parts diagram

05-0102-03 - Torque Tube Assembly, 8 spd

Aston Martin Vanquish (2013) Torque Tube Assembly, 8 spd Parts Diagram

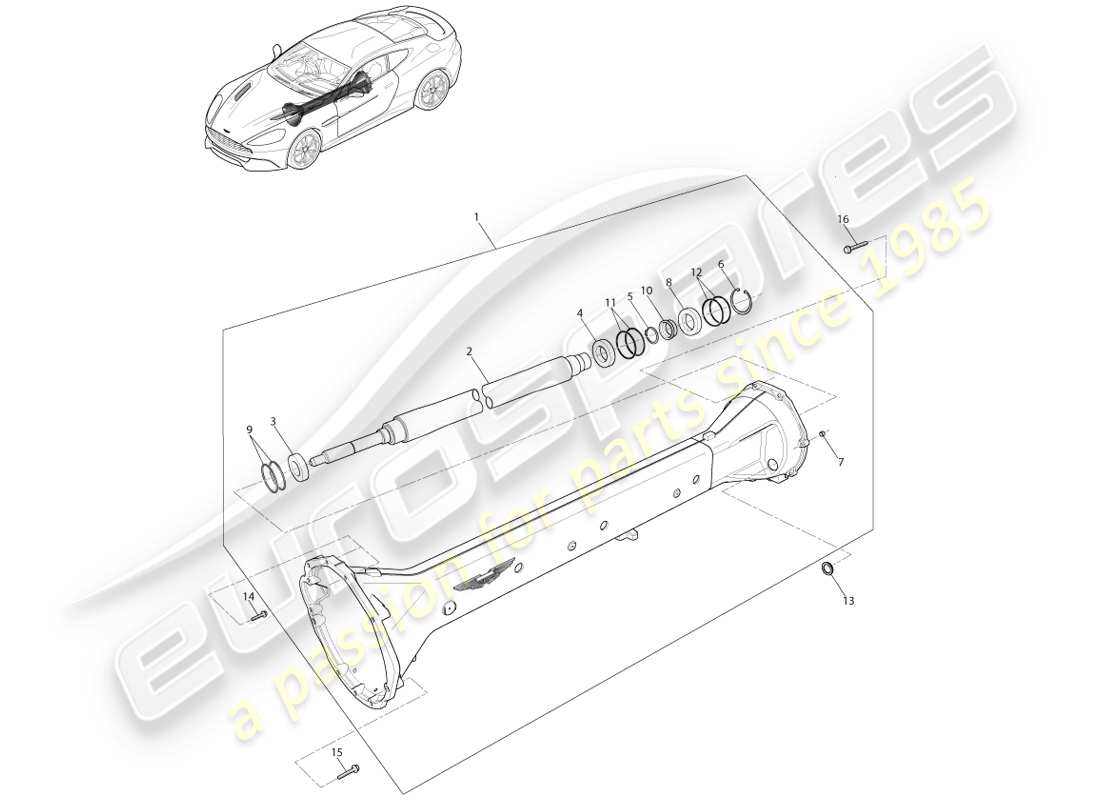

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: FD33-4500-BA
                    TORQUE TUBE AND PROPSHAFT ASSY
                    FROM 15MY
                    TORQUE TUBE AND PROPSHAFT ASSEMBLY Genuine Aston Martin - New (to order)
                    # 1
                    MPN: HD33-4500-BA
                    TORQUE TUBE AND PROPSHAFT ASSY
                    From 17MY Vanquish 'S'
                    from £5,379.25
                    from £5,379.25
                    TORQUE TUBE AND PROPSHAFT ASSEMBLY Genuine Aston Martin - New (to order)
                    # 2
                    MPN: AD23-4602-AB
                    Driveshaft Assembly
                    FROM 15MY
                    from £4,227.14
                    from £4,227.14
                    DRIVESHAFT ASSEMBLY MNUAL Genuine Aston Martin - New (to order)
                    # 3
                    -
                    BEARING, DRIVESHAFT FRONT
                    Supplied with item 2
                    # 4
                    -
                    BEARING, DRIVESHAFT, REAR INNER
                    Supplied with item 2
                    # 5
                    -
                    CIRCLIP, REAR INNER
                    Supplied with item 2
                    # 6
                    MPN: 704572
                    CIRCLIP, REAR OUTER
                    from £2.42
                    from £2.42
                    CIRCLIP Genuine Aston Martin - New In stock
                    # 7
                    MPN: 4G43-6397-AA
                    DOWEL, LOCATING
                    To Transmission
                    DOWEL, LOCATING Genuine Aston Martin - New (to order)
                    # 8
                    MPN: HY53-4378-AA
                    BEARING, DRIVESHAFT, REAR OUTER
                    from £121.09
                    from £121.09
                    BEARING, DRIVESHAFT, REAR OUTER Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 707206
                    O RING, 62 X 2.5, FRONT
                    from £36.47
                    from £36.47
                    O RING, 62 X 2.5, FRONT Genuine Aston Martin - New (to order)
                    # 10
                    MPN: FD33-4K355-AA
                    SLEEVE, BEARING, REAR OUTER
                    from £321.90
                    from £321.90
                    SLEEVE, BEARING, REAR OUTER Genuine Aston Martin - New (to order)
                    # 11
                    -
                    O RING, 75X2.5, REAR INNER
                    # 12
                    -
                    O RING, 80X2.5, REAR OUTER
                    # 13
                    MPN: 4G43-42-10021
                    PLUG, TORQUE CONVERTER ACCESS
                    FROM 15MY
                    from £3.90
                    from £3.90
                    PLUG-T/CONV ACCESS Genuine Aston Martin - New (to order)
                    # 14
                    MPN: 703195
                    SCREW, M8X40, HEX FLANGE HEAD
                    from £0.47
                    from £0.47
                    SCREW M8X40 FLANGE 8 Genuine Aston Martin - New (to order)
                    # 15
                    MPN: 703191
                    SCREW, M10X65, HEX FLANGE HEAD
                    from £0.56
                    from £0.56
                    BOLT-M10X1.5X65 FLANGE Genuine Aston Martin - New (to order)
                    # 16
                    MPN: 703159
                    BOLT, M10X45 HEX FLANGE HEAD
                    from £0.47
                    from £0.47
                    SCREW M10X45 FLNG 8 Genuine Aston Martin - New (to order)
