aston martin vanquish (2014) door hinge assembly parts diagram

01-0304-01 - Door Hinge Assembly

Aston Martin Vanquish (2014) Door Hinge Assembly Parts Diagram

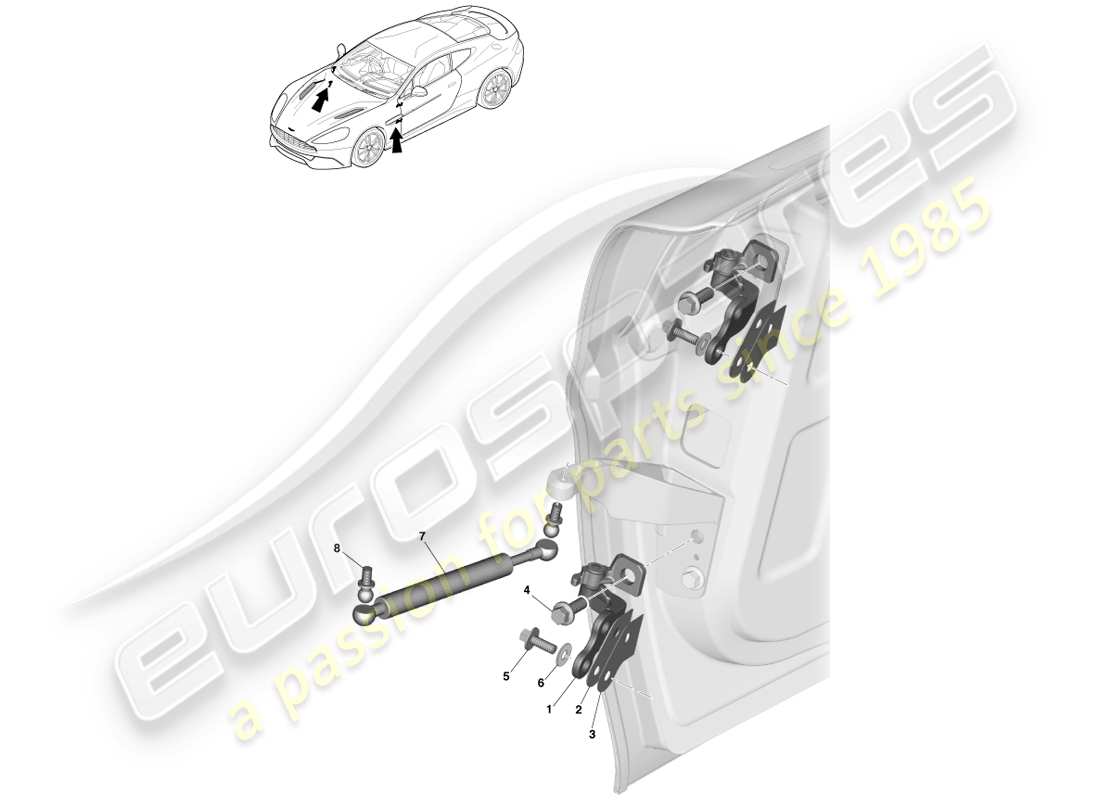

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 4G43-65-10055
                HINGE ASSY, FRONT DOOR, RH
                from £10.65
                from £10.65
                DOOR HINGE-FRONT RH Genuine Aston Martin - New (to order)
                DOOR HINGE-FRONT RH Genuine Aston Martin - Used In stock
                # 1
                MPN: 4G43-65-10056
                HINGE ASSY, FRONT DOOR, LH
                from £10.65
                from £10.65
                DOOR HINGE-FRONT LH Genuine Aston Martin - New (to order)
                DOOR HINGE-FRONT LH Genuine Aston Martin - Used In stock
                # 2
                MPN: DD33-22817-AA
                SHIM, DOOR HINGE, 1.2MM
                from £18.10
                from £18.10
                SHIM, DOOR HINGE, 1.2MM Genuine Aston Martin - New (to order)
                # 3
                MPN: DD33-22816-AA
                SHIM, DOOR HINGE, 0.6MM
                from £18.10
                from £18.10
                SHIM, DOOR HINGE, 0.6MM Genuine Aston Martin - New (to order)
                # 4
                MPN: 702210-PK
                BOLT, M10 X 30, HEX FLANGE HEAD
                Pack of 10
                from £7.26
                from £7.26
                This part replaces part number 702210
                BOLT-M10X30 PACK 10 Genuine Aston Martin - New (to order)
                VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
                # 4
                MPN: FD33-500120-AA
                BOLT, M10 X 40, HEX FLANGE HEAD
                FROM 15MY
                from £2.04
                from £2.04
                BOLT, M10 X 40, HINGE TO DOOR Genuine Aston Martin - New (to order)
                # 5
                MPN: DG43-201262-AA
                SCREW/WASHER, M8 X 25
                from £1.62
                from £1.62
                SCREW/WASHER, M8 X 25 Genuine Aston Martin - New (to order)
                # 6
                MPN: 697452
                WASHER, M8 X 24
                from £4.39
                from £4.39
                WASHER M8 LARGE OD Genuine Aston Martin - New (to order)
                # 7
                MPN: 4G43-23504-AB
                CHECK ARM, FRONT DOOR
                from £18.38
                from £18.38
                Door Support Strut Genuine Aston Martin - New (to order)
                Door Support Strut Genuine Aston Martin - Used In stock
                # 8
                MPN: 1R12-640101-AA
                BALL STUD
                from £3.28
                from £3.28
                BALL STUD Genuine Aston Martin - New (to order)
