01-0508-01 - Load Compartment Trim, Volante

Aston Martin Vanquish (2014) Load Compartment Trim, Volante Parts Diagram

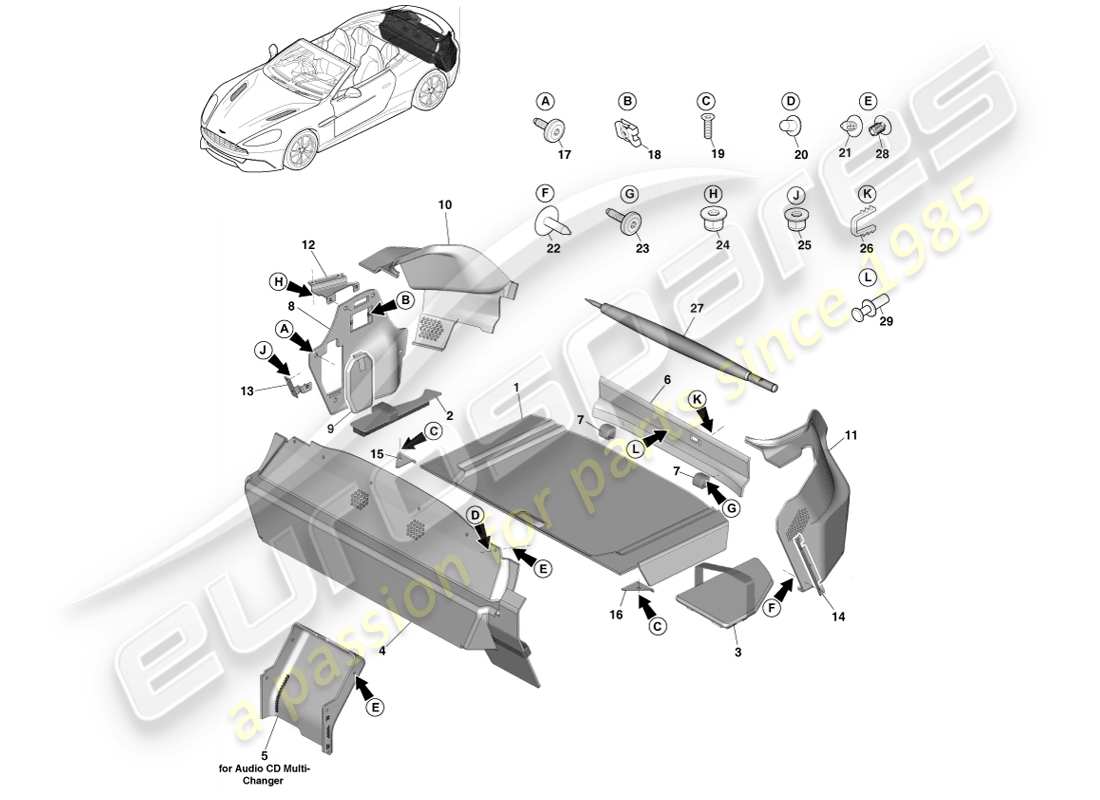

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: ED33-44866-ABW
                                            FLOOR CARPET, LOAD COMPARTMENT, REAR
                                            Less CD Multichanger
                                            from £794.55
                                            from £794.55
                                            FLOOR CARPET, LOAD COMPARTMENT, REAR Genuine Aston Martin - New (to order)
                                            # 1
                                            MPN: ED33-44866-BCW
                                            FLOOR CARPET, LOAD COMPARTMENT, REAR
                                            With CD Multichanger
                                            from £974.57
                                            from £974.57
                                            FLOOR CARPET, LOAD COMPARTMENT, REAR Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: ED33-13152-AAW
                                            TRIM ASSEMBLY, SIDE FLOOR PANEL, RH
                                            from £567.04
                                            from £567.04
                                            TRIM ASSEMBLY, SIDE FLOOR PANEL, RH Genuine Aston Martin - New (to order)
                                            # 3
                                            MPN: ED33-13153-AAW
                                            TRIM ASSEMBLY, SIDE FLOOR PANEL, LH
                                            from £567.04
                                            from £567.04
                                            TRIM ASSEMBLY, SIDE FLOOR PANEL, LH Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: ED33-130A60-ACW
                                            LOADSPACE CARPET, FRONT BULKHEAD
                                            Less CD Multichanger
                                            from £397.27
                                            from £397.27
                                            LOADSPACE CARPET, FRONT BULKHEAD Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: ED33-130A60-BCW
                                            LOADSPACE CARPET, FRONT BULKHEAD
                                            With CD Multichanger
                                            from £584.42
                                            from £584.42
                                            LOADSPACE CARPET, FRONT BULKHEAD Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: ED33-19C191-ACW
                                            CARPET, LOAD COMPARTMENT AUDIO COVER
                                            With CD Multichanger
                                            from £202.83
                                            from £202.83
                                            CARPET, LOAD COMPARTMENT AUDIO COVER Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: ED33-100A86-AAW
                                            CARPET ASSEMBLY, LATCH BRACKET
                                            CARPET ASSEMBLY, LATCH BRACKET Genuine Aston Martin - New (to order)
                                            # 7
                                            MPN: ED33-0936-ABW
                                            RETAINER, UMBRELLA
                                            from £141.87
                                            from £141.87
                                            RETAINER, UMBRELLA Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: ED33-454K65-BCW
                                            TRIM ASSEMBLY, LOAD COMPARTMENT, SIDE PANEL REAR, RH
                                            TRIM ASSEMBLY, LOAD COMPARTMENT, SIDE PANEL REAR, RH Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: ED33-45702-AAW
                                            DOOR AND STRAP ASSEMBLY, RH
                                            DOOR AND STRAP ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: ED33-454K65-ACW
                                            TRIM ASSEMBLY, SIDE PANEL, RH
                                            from £182.19
                                            from £182.19
                                            TRIM ASSEMBLY, SIDE PANEL, RH Genuine Aston Martin - New (to order)
                                            # 11
                                            MPN: ED33-454K64-ADW
                                            TRIM ASSEMBLY, SIDE PANEL, LH
                                            from £182.19
                                            from £182.19
                                            TRIM ASSEMBLY, SIDE PANEL, LH Genuine Aston Martin - New (to order)
                                            # 12
                                            MPN: ED33-423A34-AB
                                            BRACKET ASSEMBLY, LOAD COMPARTMENT SIDE PANEL REAR, RH
                                            from £36.16
                                            from £36.16
                                            BRACKET ASSEMBLY, LOAD COMPARTMENT SIDE PANEL REAR, RH Genuine Aston Martin - New (to order)
                                            # 13
                                            MPN: ED33-423A35-AB
                                            BRACKET ASSEMBLY, ANGLE, RH
                                            BRACKET ASSEMBLY, ANGLE, RH Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: CD33-423A35-AB
                                            BRACKET ASSEMBLY, ANGLE, LH
                                            from £19.68
                                            from £19.68
                                            BRACKET ASSEMBLY, ANGLE, LH Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: CD33-17B048-AB
                                            FLOOR BRACKET, RH
                                            FLOOR BRACKET, RH Genuine Aston Martin - New (to order)
                                            # 16
                                            MPN: CD33-17B049-AB
                                            FLOOR BRACKET, LH
                                            from £19.68
                                            from £19.68
                                            FLOOR BRACKET, LH Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: 6G33-FA0115-AB-PK
                                            SCREW, M6 X 20, TORX HEAD
                                            Pack of 20
                                            from £12.75
                                            from £12.75
                                            This part replaces part number 6G33-FA0115-AB
                                            SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: 701448
                                            NUT, U TYPE
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 697565
                                            NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                                            SPLITTER NUTS Genuine Ferrari Part - New (to order)
                                            # 19
                                            MPN: 703738
                                            SCREW, M6 X 20, CSK TORX SCREW
                                            from £0.85
                                            from £0.85
                                            SCREW-M6X20 FLAT HD Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: 702212
                                            SNAPSAC, 6.8MM
                                            from £0.47
                                            from £0.47
                                            SNAPSAC 6.8MM PUSHON Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 703742
                                            FASTENER, PUSH IN, 6.5 X 6.0
                                            Less CD Multichanger
                                            from £0.47
                                            from £0.47
                                            FASTENER 6.5 X 6.0 Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 703742
                                            FASTENER, PUSH IN, 6.5 X 6.0
                                            With CD Multichanger
                                            from £0.47
                                            from £0.47
                                            FASTENER 6.5 X 6.0 Genuine Aston Martin - New (to order)
                                            # 22
                                            MPN: 4G43-STC3710-AA-PK
                                            FASTENER, FIR TREE, 8MM
                                            Pack of 20
                                            Supersession
                                            Supersession
                                            Genuine Aston Martin (no longer available to order)
                                            # 23
                                            MPN: 5R13-FA0036-AA
                                            SCREW, M6 X 28
                                            from £1.78
                                            from £1.78
                                            SCREW - M6 X 28 Genuine Aston Martin - New (to order)
                                            # 24
                                            MPN: 703163
                                            NUT, M6
                                            from £0.47
                                            from £0.47
                                            NUT M6 FLANGE LOCKING Genuine Aston Martin - New (to order)
                                            # 25
                                            MPN: 703165
                                            NUT, M5, HEX FLANGE HEAD
                                            from £0.47
                                            from £0.47
                                            NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                                            # 26
                                            MPN: 4G43-N623361-AA
                                            CLIP, U TYPE, EMERGENCY HANDLE
                                            from £0.72
                                            from £0.72
                                            CLIP U TYPE Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: 7G43-700712-BB
                                            UMBRELLA, BLACK STANDARD
                                            Supersession
                                            Supersession
                                            Genuine Aston Martin (no longer available to order)
                                            # 28
                                            MPN: 6G33-29012-AA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Obsidian Black
                                            from £2.73
                                            from £2.73
                                            FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 6G33-29012-BA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Ivory
                                            from £11.70
                                            from £11.70
                                            FIR TREE ASSY-IVORY Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 6G33-29012-CA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Tailors Grey
                                            from £2.73
                                            from £2.73
                                            FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 6G33-29012-DA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Shark Blue
                                            from £2.70
                                            from £2.70
                                            FASTENER, FIR TREE, SHARK BLUE Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 6G33-29012-EA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Absynthe Green
                                            from £2.70
                                            from £2.70
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 6G33-29012-FA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Arctic Blue
                                            from £2.70
                                            from £2.70
                                            FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 6G33-29012-GA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Chancellor Red
                                            from £2.70
                                            from £2.70
                                            FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 6G33-29012-HA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Blue Haze
                                            from £2.70
                                            from £2.70
                                            FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 6G33-29012-JA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Moon shadow
                                            from £2.70
                                            from £2.70
                                            FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 6G33-29012-KA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Light Tan
                                            from £2.83
                                            from £2.83
                                            FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 6G33-29012-LA
                                            FASTENER, FIR TREE, ALCANTARA TRIMMED
                                            Bitter Chocolate
                                            from £11.70
                                            from £11.70
                                            FIR TREE ASSY-B/CHCK Genuine Aston Martin - New (to order)
                                            # 29
                                            MPN: 4G43-2705-AA
                                            RIVET, PLASTIC
                                            Black
                                            from £0.47
                                            from £0.47
                                            RIVET, PLASTIC Genuine Aston Martin - New (to order)
