aston martin vanquish (2014) applied parts parts diagram

01-1206-02 - Applied Parts

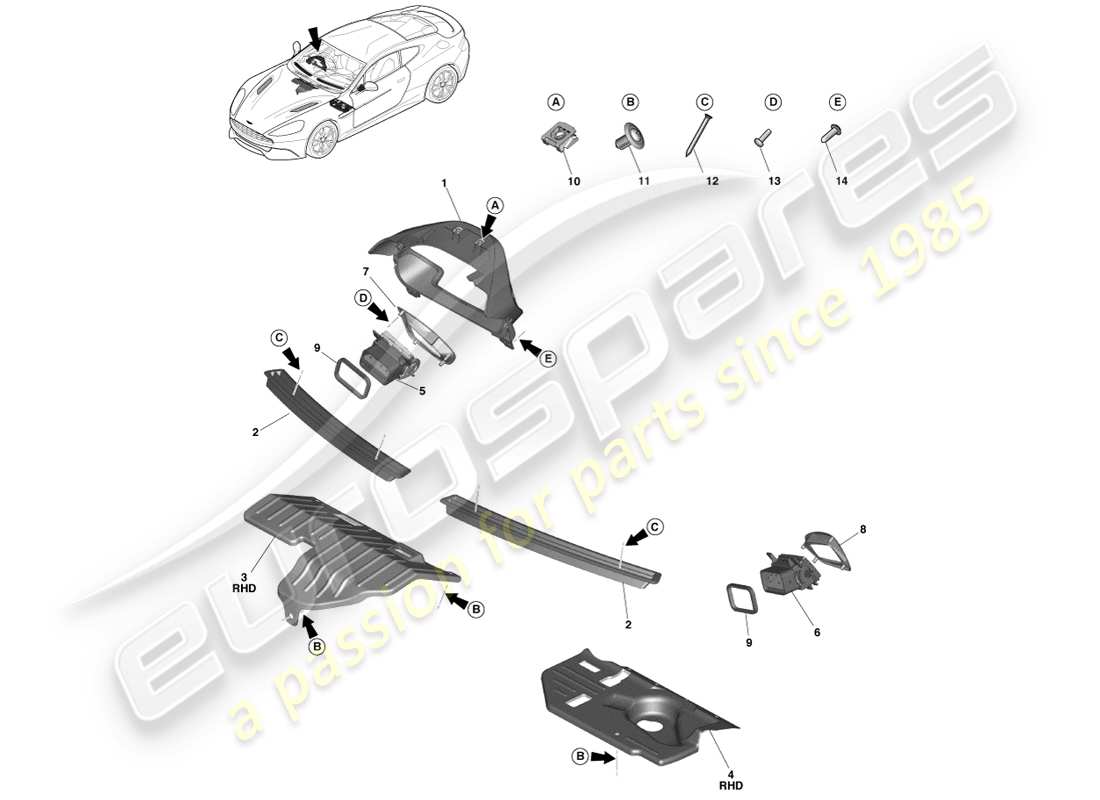

Aston Martin Vanquish (2014) Applied Parts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: DD33-04815-AA
                      BEZEL, IP CLUSTER OPENING, BLACK
                      Includes Item 10
                      from £216.15
                      from £216.15
                      BEZEL, IP CLUSTER OPENING, BLACK Genuine Aston Martin - New (to order)
                      # 1
                      MPN: DD33-04815-BA
                      BEZEL, IP CLUSTER OPENING, IRIDIUM
                      Includes Item 10
                      from £156.70
                      from £156.70
                      BEZEL, IP CLUSTER OPENING, IRIDIUM Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 4G43-18C491-AJ
                      GRILLE, WINDOW DEFROST
                      from £356.03
                      from £356.03
                      GRILLE, WINDOW DEFROST Genuine Aston Martin - New (to order)
                      # 3
                      MPN: DD33-016C46-BA
                      PANEL ASSEMBLY, HUSH, RH, RHD
                      PANEL ASSEMBLY, HUSH, RH, RHD Genuine Aston Martin - New (to order)
                      # 3
                      MPN: DD33-016C47-AA
                      PANEL ASSEMBLY, HUSH, LH, LHD
                      PANEL ASSEMBLY, HUSH, LH, LHD Genuine Aston Martin - New (to order)
                      # 4
                      MPN: DD33-016C47-BA
                      PANEL ASSEMBLY, HUSH, LH, RHD
                      PANEL ASSEMBLY, HUSH, LH, RHD Genuine Aston Martin - New (to order)
                      # 4
                      MPN: DD33-016C46-AA
                      PANEL ASSEMBLY, HUSH, RH, LHD
                      PANEL ASSEMBLY, HUSH, RH, LHD Genuine Aston Martin - New (to order)
                      # 5
                      MPN: CD33-046B30-AB
                      Register Assembly, IP, Air Con, RH
                      from £46.34
                      from £46.34
                      RGSTR ASSEMBLY IPNL A/C Genuine Aston Martin - New (to order)
                      # 6
                      MPN: CD33-046B31-AB
                      Register Assembly, IP Air Con, LH
                      from £64.49
                      from £64.49
                      RGSTR ASSEMBLY IPNL A/C Genuine Aston Martin - New (to order)
                      # 7
                      MPN: ED33-043C38-AA
                      BEZEL, OUTER AIR REGISTER, RH
                      Satin Chrome
                      BEZEL, OUTER AIR REGISTER, RH Genuine Aston Martin - New (to order)
                      # 7
                      MPN: ED33-043C38-BA
                      BEZEL, OUTER AIR REGISTER, RH
                      DARK CHROME
                      from £148.45
                      from £148.45
                      BEZEL, OUTER AIR REGISTER, RH Genuine Aston Martin - New (to order)
                      # 8
                      MPN: ED33-043C39-AA
                      BEZEL, OUTER AIR REGISTER, LH
                      Satin Chrome
                      from £200.49
                      from £200.49
                      BEZEL, OUTER AIR REGISTER, LH Genuine Aston Martin - New (to order)
                      # 8
                      MPN: ED33-043C39-BA
                      BEZEL, OUTER AIR REGISTER, LH
                      DARK CHROME
                      from £148.45
                      from £148.45
                      BEZEL, OUTER AIR REGISTER, LH Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 4G43-18D404-CA
                      FOAM SEAL, AIR DISTRIBUTION DUCTS
                      from £1.44
                      from £1.44
                      FOAM SEAL - AIR DIST Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 4G43-015371-AA
                      U NUT, M4, LOCKING
                      from £2.24
                      from £2.24
                      CAPTIVE U NUT M4 Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 1R12-642790-AA-PK
                      SCRIVET, 8MM
                      Pack of 5
                      from £3.78
                      from £3.78
                      SCRIVET-PACK OF 5 Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 6G33-79231-AC
                      SCREW, M3.5 X 38, FLAT HD CSK
                      from £0.47
                      from £0.47
                      SCREW M3.5 X 38 Genuine Aston Martin - New (to order)
                      # 13
                      MPN: 701447
                      SCREW, M4 X 12, PAN HEAD, TORX SCREW
                      from £0.47
                      from £0.47
                      SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                      # 14
                      MPN: 705464
                      SCREW, 4.2 X 16
                      from £0.47
                      from £0.47
                      SCREW 4.2 X 16 ST Genuine Aston Martin - New (to order)
