aston martin vanquish (2015) fuel distribution, 15my on parts diagram

10-0102-02 - Fuel Distribution, 15MY on

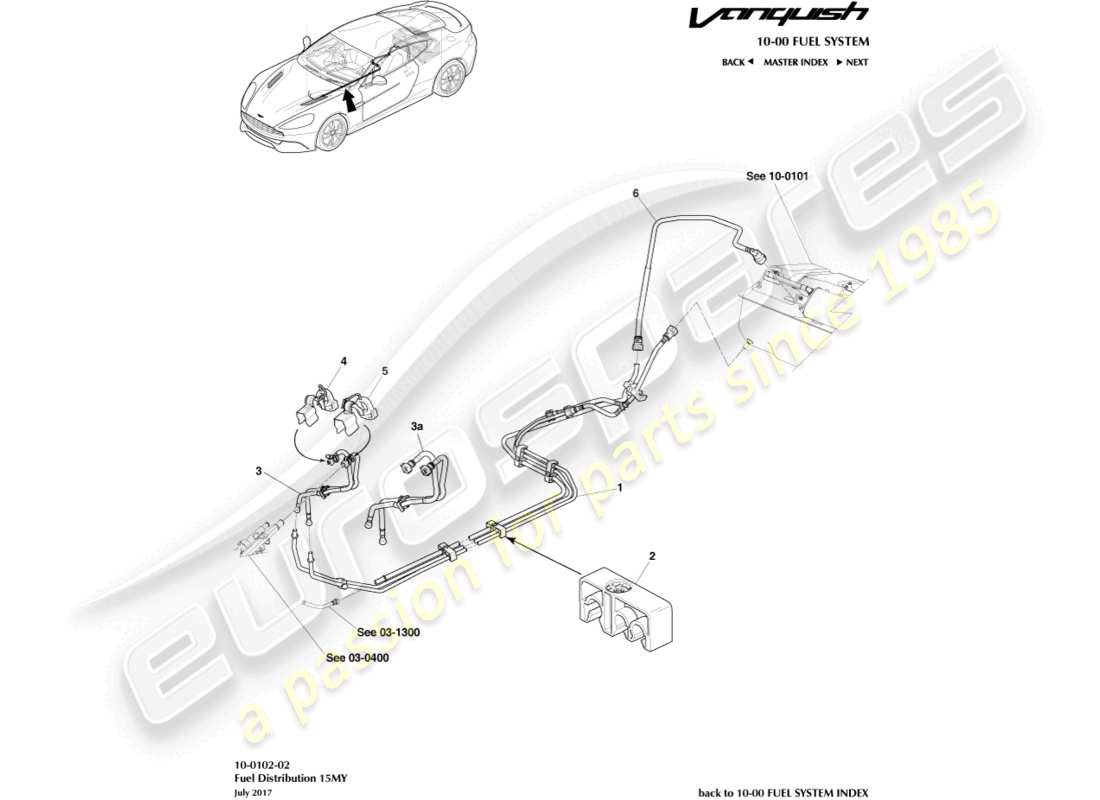

Aston Martin Vanquish (2015) Fuel Distribution, 15MY on Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: FD33-9S284-AB
          TUBE ASSEMBLY, FUEL SUPPLY AND VAPOUR
          Up TO 17MY. Includes Item 2
          from £156.76
          from £156.76
          TUBE ASSEMBLY, FUEL SUPPLY AND VAPOUR Genuine Aston Martin - New (to order)
          # 1
          MPN: FD33-9S284-AC
          TUBE ASSEMBLY, FUEL SUPPLY AND VAPOUR
          From 17MY. Includes Item 2
          TUBE ASSEMBLY, FUEL SUPPLY AND VAPOUR Genuine Aston Martin - New (to order)
          # 2
          MPN: 4G43-9294-AA
          CLIP, FUEL LINE
          from £1.93
          from £1.93
          CLP FUL LN TO ENG Genuine Aston Martin - New (to order)
          # 3
          MPN: 7G43-9F911-AA
          PIPE ASSEMBLY, FUEL RAIL INLET
          Up to September 2017
          PIPE ASSEMBLY, FUEL RAIL INLET Genuine Aston Martin - New (to order)
          # 3a
          MPN: 7G43-9F911-AB
          PIPE ASSEMBLY, FUEL RAIL INLET
          From September 2017
          from £257.42
          from £257.42
          PIPE ASSEMBLY, FUEL RAIL INLET Genuine Aston Martin - New (to order)
          # 4
          MPN: 6F23-9294-AA
          CLIP & CLAMP, 9.5 X 15MM, WITH TETHER
          CLIP AND CLAMP Genuine Aston Martin - New (to order)
          # 5
          MPN: 7X43-9294-AA
          CLIP & CLAMP, 12.5 X 15MM, WITH TETHER
          from £2.20
          from £2.20
          CLIP&CLAMP-12.5MMX15 Genuine Aston Martin - New (to order)
          # 6
          MPN: FD33-9D667-BC
          VAPOUR LINE TO CANISTER
          from £39.42
          from £39.42
          VAPOUR LINE TO CANISTER Genuine Aston Martin - New (to order)
