01-1201-02 - IP Cross Beam

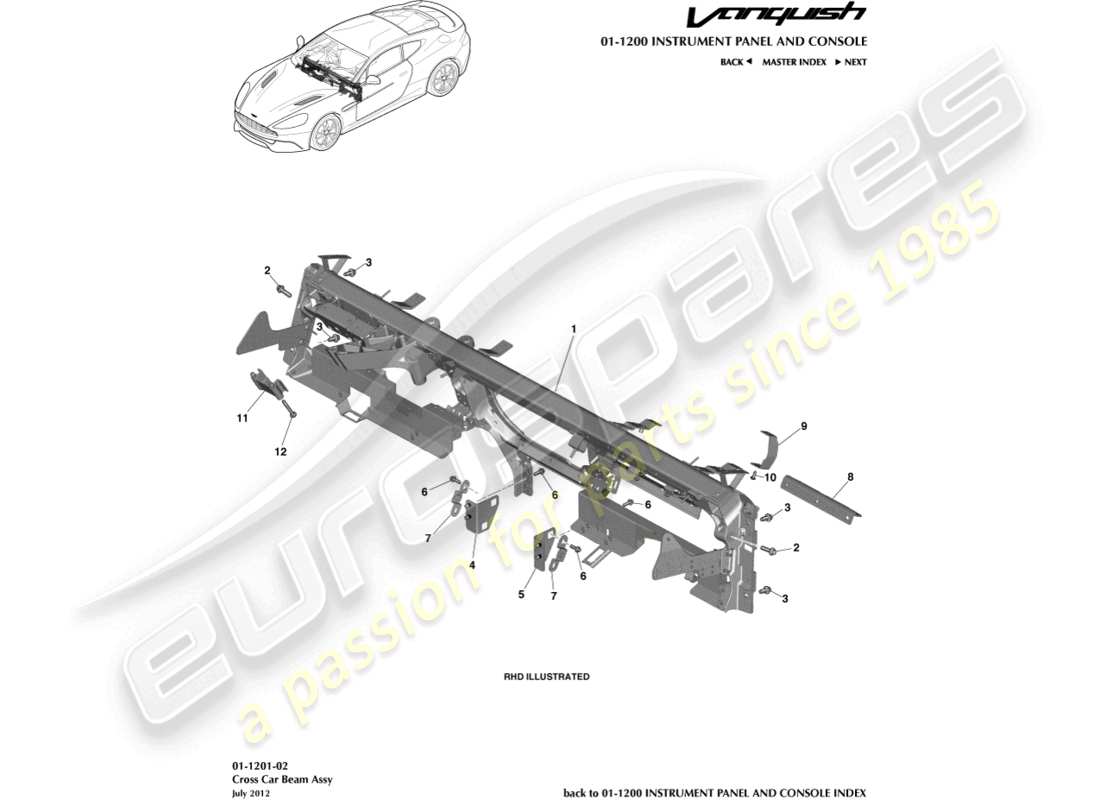

Aston Martin Vanquish (2016) IP Cross Beam Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: DD33-044B52-BA
                        CROSS CAR BEAM ASSEMBLY, RHD
                        CROSS CAR BEAM ASSEMBLY, RHD Genuine Aston Martin - New (to order)
                        # 1
                        MPN: DD33-044B51-BA
                        CROSS CAR BEAM ASSEMBLY, LHD
                        CROSS CAR BEAM ASSEMBLY, LHD Genuine Aston Martin - New (to order)
                        # 1
                        MPN: ED33-044B51-BA
                        CROSS CAR BEAM ASSEMBLY, FEDERAL
                        CROSS CAR BEAM ASSEMBLY, FEDERAL Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 703193
                        BOLT, M8 X 55, HEX FLG HD
                        from £0.47
                        from £0.47
                        BOLT M8X55 HEX FLANGE 8 Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 703187
                        BOLT, M8 X 25, HEX FLANGE HEAD
                        from £0.47
                        from £0.47
                        SCREW M8 X 25 HEX Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 6G33-AWR3369-AA
                        BRACKET, CROSS CAR BEAM MOUNTING, RH
                        from £31.54
                        from £31.54
                        BRACKET XCB TNL RHS Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 6G33-AWR3368-AA
                        BRACKET, CROSS CAR BEAM MOUNTING, LH
                        from £31.54
                        from £31.54
                        BRACKET XCB TNL LHS Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 700607
                        SCREW, M6 X 20, HEX FLG HD
                        from £0.47
                        from £0.47
                        SCREW M6X20 HEX FLANGE Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 9D33-19080-AA
                        BRACKET, SPEAKER
                        from £10.35
                        from £10.35
                        SPEAKER BRACKET Genuine Aston Martin - New (to order)
                        # 8
                        MPN: DD33-4073A-AA
                        CLAMP, PASSENGER AIRBAG DOOR
                        from £29.74
                        from £29.74
                        CLAMP, PASSENGER AIRBAG DOOR Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 8G43-27946-AA
                        BRACKET, CCB SUPPORT, RHD
                        from £9.65
                        from £9.65
                        BRACKET, CCB SUPPORT, RHD Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 8G43-27947-AA
                        BRACKET, CCB SUPPORT, LHD
                        from £9.65
                        from £9.65
                        CCB SUPPORT BRACKET LHD Genuine Aston Martin - New (to order)
                        # 10
                        MPN: W502670-S442
                        SCREW
                        from £0.47
                        from £0.47
                        SCR4 - 8X16 Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 9G43-044C32-BA
                        BRACKET, IP TO COWL
                        from £7.86
                        from £7.86
                        BRACKET I/PNL CWL TOP Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 703196-PK
                        BOLT, M6 X 55, HEX FLANGE HEAD
                        Pack of 10
                        from £4.38
                        from £4.38
                        BOLT-M6X55 HEX (10) Genuine Aston Martin - New (to order)
