aston martin vanquish (2016) torque tube assembly, 8 spd parts diagram

05-0102-03 - Torque Tube Assembly, 8 spd

Aston Martin Vanquish (2016) Torque Tube Assembly, 8 spd Parts Diagram

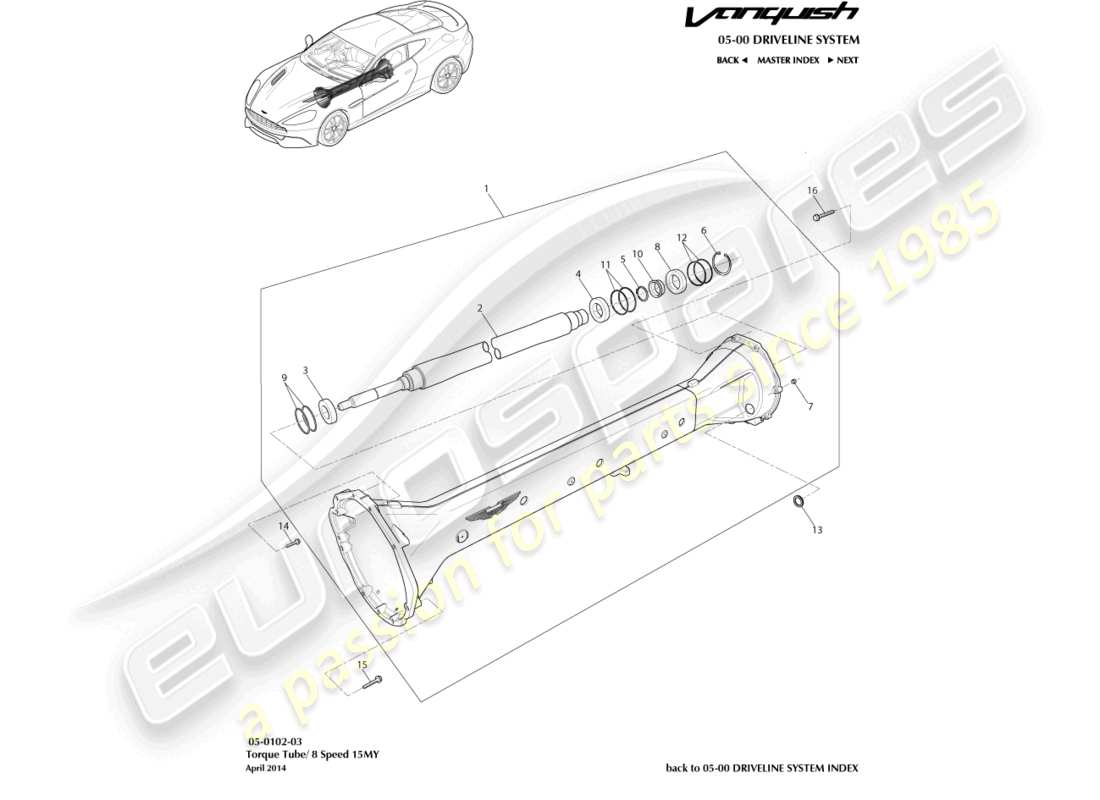

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: FD33-4500-BA
                TORQUE TUBE AND PROPSHAFT ASSY
                FROM 15MY
                TORQUE TUBE AND PROPSHAFT ASSEMBLY Genuine Aston Martin - New (to order)
                # 1
                MPN: HD33-4500-BA
                TORQUE TUBE AND PROPSHAFT ASSY
                From 17MY Vanquish 'S'
                from £5,379.25
                from £5,379.25
                TORQUE TUBE AND PROPSHAFT ASSEMBLY Genuine Aston Martin - New (to order)
                # 2
                MPN: AD23-4602-AB
                Driveshaft Assembly
                FROM 15MY
                from £4,227.14
                from £4,227.14
                DRIVESHAFT ASSEMBLY MNUAL Genuine Aston Martin - New (to order)
                # 6
                MPN: 704572
                CIRCLIP, REAR OUTER
                from £2.42
                from £2.42
                CIRCLIP Genuine Aston Martin - New In stock
                # 7
                MPN: 4G43-6397-AA
                DOWEL, LOCATING
                To Transmission
                DOWEL, LOCATING Genuine Aston Martin - New (to order)
                # 8
                MPN: HY53-4378-AA
                BEARING, DRIVESHAFT, REAR OUTER
                from £121.09
                from £121.09
                BEARING, DRIVESHAFT, REAR OUTER Genuine Aston Martin - New (to order)
                # 9
                MPN: 707206
                O RING, 62 X 2.5, FRONT
                from £36.47
                from £36.47
                O RING, 62 X 2.5, FRONT Genuine Aston Martin - New (to order)
                # 10
                MPN: FD33-4K355-AA
                SLEEVE, BEARING, REAR OUTER
                from £321.90
                from £321.90
                SLEEVE, BEARING, REAR OUTER Genuine Aston Martin - New (to order)
                # 13
                MPN: 4G43-42-10021
                PLUG, TORQUE CONVERTER ACCESS
                FROM 15MY
                from £3.90
                from £3.90
                PLUG-T/CONV ACCESS Genuine Aston Martin - New (to order)
                # 14
                MPN: 703195
                SCREW, M8X40, HEX FLANGE HEAD
                from £0.47
                from £0.47
                SCREW M8X40 FLANGE 8 Genuine Aston Martin - New (to order)
                # 15
                MPN: 703191
                SCREW, M10X65, HEX FLANGE HEAD
                from £0.56
                from £0.56
                BOLT-M10X1.5X65 FLANGE Genuine Aston Martin - New (to order)
                # 16
                MPN: 703159
                BOLT, M10X45 HEX FLANGE HEAD
                from £0.47
                from £0.47
                SCREW M10X45 FLNG 8 Genuine Aston Martin - New (to order)
