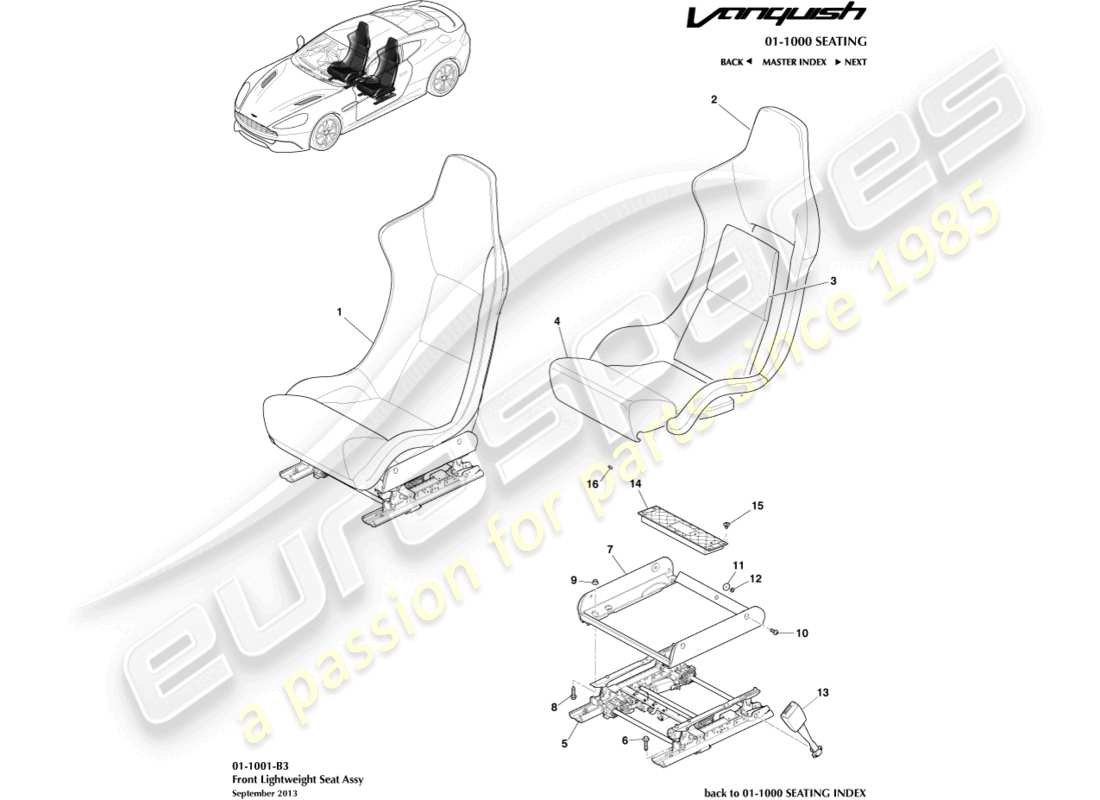

01-1001-B3 - Front Lightweight Seats

Aston Martin Vanquish (2017) Front Lightweight Seats Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: ED33-60008-AAW
                        FRONT SEAT ASSEMBLY COMPLETE, TRIMMED, RH
                        from £6,397.08
                        from £6,397.08
                        FRONT SEAT ASSEMBLY COMPLETE, TRIMMED, RH Genuine Aston Martin - New (to order)
                        # 1
                        MPN: ED33-60009-AAW
                        FRONT SEAT ASSEMBLY COMPLETE, TRIMMED, LH
                        from £6,397.08
                        from £6,397.08
                        FRONT SEAT ASSEMBLY COMPLETE, TRIMMED, LH Genuine Aston Martin - New (to order)
                        # 1
                        MPN: CG43-600C14-AA
                        FRONT SEAT AND TRACK ASSEMBLY, NOT TRIMMED
                        from £6,275.55
                        from £6,275.55
                        FRONT SEAT ASSEMBLY, COMPLETE, NOT TRIMMED Genuine Aston Martin - New (to order)
                        # 2
                        MPN: ED33-64572-AAW
                        COVER ASSEMBLY, SEAT OUTER
                        from £2,039.62
                        from £2,039.62
                        COVER ASSEMBLY, SEAT OUTER Genuine Aston Martin - New (to order)
                        # 3
                        MPN: ED33-60136-AAW
                        SQUAB ASSEMBLY, TRIMMED
                        Includes Foam
                        SQUAB ASSEMBLY, TRIMMED Genuine Aston Martin - New (to order)
                        # 4
                        MPN: ED33-60050-AAW
                        CUSHION ASSEMBLY, TRIMMED
                        Includes Foam
                        CUSHION ASSEMBLY, TRIMMED Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 4G43-74-10116
                        TRACK ASSEMBLY, FRONT LIGHTWEIGHT SEAT
                        from £1,385.87
                        from £1,385.87
                        HEIGHT ADJUSTER-6WAY Genuine Aston Martin - New (to order)
                        HEIGHT ADJUSTER-6WAY Genuine Aston Martin - Used In stock
                        Driver side
                        # 6
                        MPN: W500224-S303
                        BOLT, M8 X 25, HEX FLANGE HEAD
                        SCREW M8 X 25 HF Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 8D33-617B94-AD
                        BRACKET ASSEMBLY, FRONT SEAT ADAPTOR
                        from £331.66
                        from £331.66
                        BRACKET ASSEMBLY, FRONT SEAT ADAPTOR Genuine Aston Martin - New (to order)
                        # 8
                        MPN: W500624-S303
                        BOLT, M8 X 25, HEX FLANGE HEAD
                        BOLT, M8X25, HEX FLANGE HD Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 701342-PK
                        NUT, M8, HEX HEAD
                        Pack of 5
                        from £7.67
                        from £7.67
                        NUT M8 HEX PT PLS8(5) Genuine Aston Martin - New (to order)
                        # 10
                        MPN: W505593-S307
                        SCREW, M8 X 20, PAN HEAD
                        SCREW, M8X20, PAN HEAD Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 703266
                        SCREW, M6 X 10, PAN HEAD TORX TYPE
                        from £0.51
                        from £0.51
                        SCREWM6X10 PAN HEAD Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 4G43-613K22-BD
                        BUCKLE ASSEMBLY, FRONT SEATBELT
                        Includes Fixings
                        from £166.87
                        from £166.87
                        BKLE ASSEMBLY FRONT BEL Genuine Aston Martin - New (to order)
                        # 14
                        MPN: CD33-14C249-AE
                        ECU, FRONT SEAT
                        Supersession
                        Supersession
                        Genuine Aston Martin (no longer available to order)
                        # 15
                        MPN: 701581
                        CLIP, FIR TREE, FLAT HEAD
                        FLAT HEAD FIR TREE Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 8D33-60302-BB
                        CLIP, FIR TREE, FLAT HEAD
                        from £0.48
                        from £0.48
                        EDGE CLIP Genuine Aston Martin - New (to order)
                        # -
                        -
                        FOAM STRIP, ANTI RATTLE
                        Pack of 10
