aston martin vanquish (2017) electronic engine control parts diagram

03-1400-01 - Electronic Engine Control

Aston Martin Vanquish (2017) Electronic Engine Control Parts Diagram

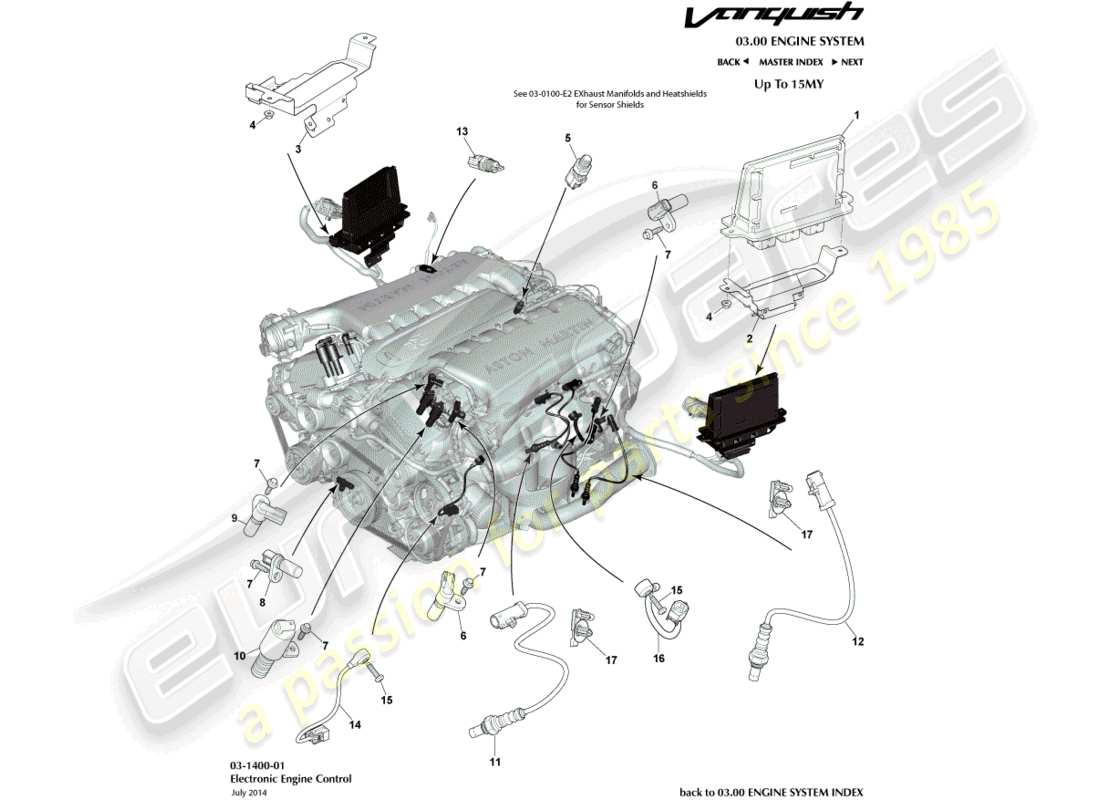

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: CD33-39-10018
                                ENGINE MANAGEMENT, SPANISH OAK, AM11
                                Up to 15MY
                                from £2,859.53
                                from £2,859.53
                                ENGINE MANAGEMENT, SPANISH OAK, AM11 Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 4G43-12B696-AH
                                SHIELD, PCM, LH
                                from £91.67
                                from £91.67
                                SHIELD, PCM, LH Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 4G43-12B695-AH
                                SHIELD, PCM, RH
                                from £91.67
                                from £91.67
                                SHIELD, PCM, RH Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 703749
                                NUT, M6 HEX FLANGE HEAD
                                from £0.47
                                from £0.47
                                This part replaces part number 699877
                                NUT-M6 HEX FLANGE GRD 8 Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 6U5T-9278-DB
                                SWITCH, OIL PRESSURE
                                SWITCH, OIL PRESSURE Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 4G43-39-10014
                                SENSOR, CRANK TIMING
                                from £354.32
                                from £354.32
                                This part replaces part number 07-85754
                                SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 702542
                                BOLT, M6 X 20
                                from £0.74
                                from £0.74
                                BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 1R12-39-10475
                                SENSOR, CRANK TIMING
                                from £25.56
                                from £25.56
                                SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 07-85755
                                SENSOR ASSY, CRANKSHAFT TIMING
                                from £160.02
                                from £160.02
                                SENSOR CID LH Genuine Aston Martin - New (to order)
                                # 10
                                MPN: CM5E-6B297-CB
                                SOLENOID, VCT
                                AM11, Up To 15MY
                                SOLENOID, VCT Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 1R12-39-10174
                                SENSOR, HEGO, REAR
                                from £86.56
                                from £86.56
                                This part replaces part number 39-85391 - and 1 more. Click to view details
                                SENSOR, HEGO, REAR Genuine Aston Martin - New (to order)
                                SENSOR, HEGO, REAR Genuine Aston Martin - Used In stock
                                # 12
                                MPN: 1R12-39-10175
                                SENSOR ASSY, CATALYST MONITOR
                                from £85.51
                                from £85.51
                                This part replaces part number 39-85392 - and 2 more. Click to view details
                                CAT.MONITOR SENSOR Genuine Aston Martin - New (to order)
                                CAT.MONITOR SENSOR Genuine Aston Martin - Used In stock
                                # 13
                                MPN: 6G43-08-10064
                                SENSOR, AIR TEMPERATURE
                                SENSOR, AIR CHARGING TEMPERATURE Genuine Aston Martin - New (to order)
                                # 14
                                MPN: CD33-12A699-AA
                                SENSOR ASSY, ENGINE KNOCK
                                from £39.86
                                from £39.86
                                SENSOR ASSEMBLY, ENGINE KNOCK Genuine Aston Martin - New (to order)
                                # 15
                                MPN: W505595-S437
                                SCREW, M8 X 30, PAN HEAD
                                SCREW, M8 X 30, PAN HEAD Genuine Aston Martin - New (to order)
                                # 16
                                MPN: CD33-12A699-BA
                                SENSOR ASSY, ENGINE KNOCK
                                from £44.37
                                from £44.37
                                SENSOR ASSEMBLY, ENGINE KNOCK Genuine Aston Martin - New (to order)
                                # 17
                                MPN: ED23-110005-AA
                                HARNESS RETENTION CLIP
                                from £1.22
                                from £1.22
                                HARNESS RETENTION CLIP Genuine Aston Martin - New (to order)
