aston martin vanquish (2018) front wheel arch liners parts diagram

01-0804-01 - Front Wheel Arch Liners

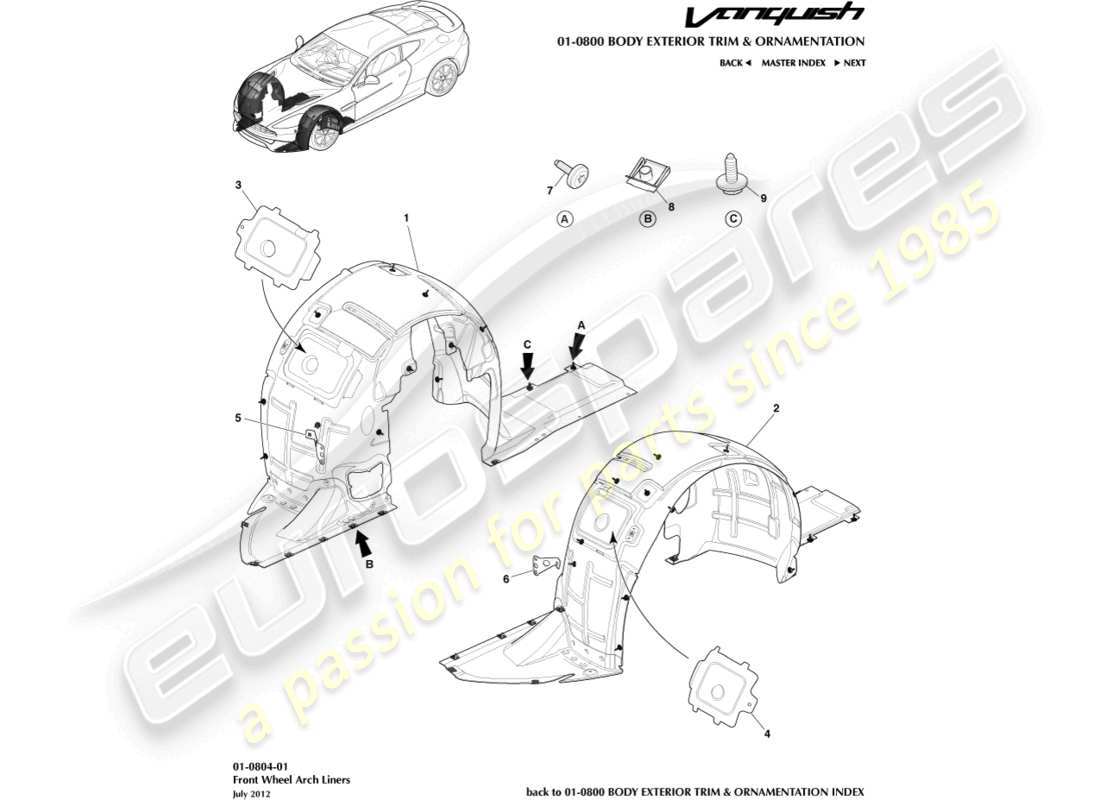

Aston Martin Vanquish (2018) Front Wheel Arch Liners Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: CD33-166562-AE
        WHEEL ARCH LINER, FRONT, RH
        from £278.07
        from £278.07
        WHEEL ARCH LINER, FRONT, RH Genuine Aston Martin - New (to order)
        # 1
        MPN: CD33-166562-AE
        WHEEL ARCH LINER, FRONT, RH
        14.5MY
        from £278.07
        from £278.07
        WHEEL ARCH LINER, FRONT, RH Genuine Aston Martin - New (to order)
        # 2
        MPN: CD33-166563-AD
        WHEEL ARCH LINER, FRONT, LH
        Supersession
        Supersession
        Genuine Aston Martin (no longer available to order)
        # 2
        MPN: CD33-166563-AE
        WHEEL ARCH LINER, FRONT, LH
        14.5MY
        from £278.07
        from £278.07
        This part replaces part number CD33-166563-AD
        WHEEL ARCH LINER, FRONT, LH Genuine Aston Martin - New (to order)
        # 5
        MPN: 8D33-166572-AA
        BRACKET, FRONT WHEEL ARCH LINER, RH
        from £23.31
        from £23.31
        BRACKET FRONT W/ARCH Genuine Aston Martin - New (to order)
        # 6
        MPN: 8D33-166573-AA
        BRACKET, FRONT WHEEL ARCH LINER, LH
        from £23.31
        from £23.31
        BRACKET FRONT W/ARCH Genuine Aston Martin - New (to order)
        # 7
        MPN: 6G33-FA0115-AB-PK
        SCREW, M6 X 20, SKT HD
        Pack of 20
        from £12.00
        from £12.00
        This part replaces part number 6G33-FA0115-AB
        SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
        # 8
        MPN: 7G43-10609E-AA-PK
        CLIP, U TYPE, 1.5-4.0, BLK
        Pack of 10
        from £5.08
        from £5.08
        CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
        FRONT UNDERTRAY CLIP Genuine Ferrari Part - New (to order)
        # 9
        MPN: 703268
        SCREW, M8 X 21
        from £1.22
        from £1.22
        SCREW M8X1.25X21 Genuine Aston Martin - New (to order)
