aston martin vanquish (2018) amplifiers, b&o, volante parts diagram

15-0302-02 - Amplifiers, B&O, Volante

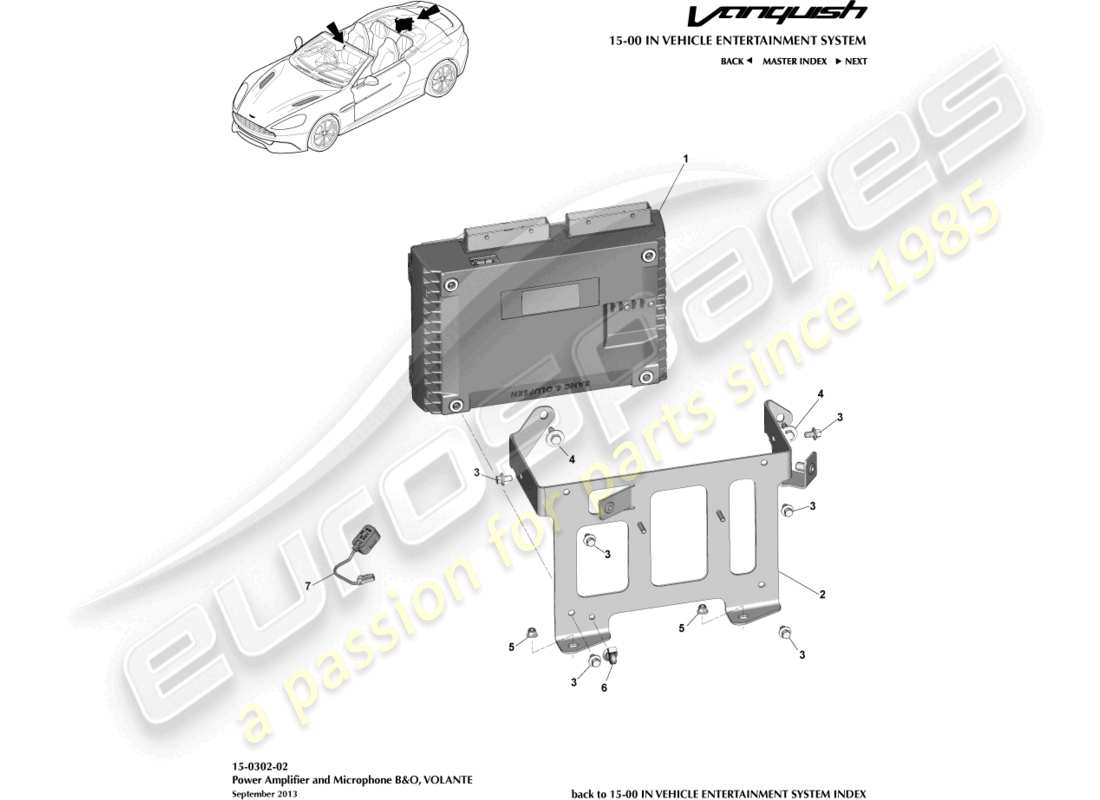

Aston Martin Vanquish (2018) Amplifiers, B&O, Volante Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: CD33-18C808-AG
              AMPLIFIER, P3
              Supersession
              Supersession
              Genuine Aston Martin (no longer available to order)
              # 2
              MPN: ED33-19C126-AB
              BRACKET, AMPLIFIER
              from £60.84
              from £60.84
              BRACKET, AMPLIFIER Genuine Aston Martin - New (to order)
              # 3
              MPN: 703278
              BOLT, M6X10, HEX FLANGE HEAD
              from £0.47
              from £0.47
              BOLT M6X10 HEX FLNG Genuine Aston Martin - New (to order)
              # 4
              MPN: 703152-PK
              SCREW AND WASHER, M6X20, HEX FLANGE HEAD
              Pack of 10
              from £3.17
              from £3.17
              SCREW/WSHR M6X20(10) Genuine Aston Martin - New (to order)
              # 5
              MPN: 703165
              NUT, M5, HEX FLANGE HEAD
              from £0.47
              from £0.47
              NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
              # 6
              MPN: 704092
              BODY CLIP CABLE TIE
              from £1.83
              from £1.83
              BODY CLIP CABLE TIE Genuine Aston Martin - New (to order)
              # 7
              MPN: 4G43-18B804-AB
              MICROPHONE
              from £40.91
              from £40.91
              MICROPHONE Genuine Aston Martin - New (to order)
              MICROPHONE Genuine Aston Martin - Used In stock
