aston martin vanquish (2018) battery cables parts diagram

18-0108-06 - BATTERY CABLES

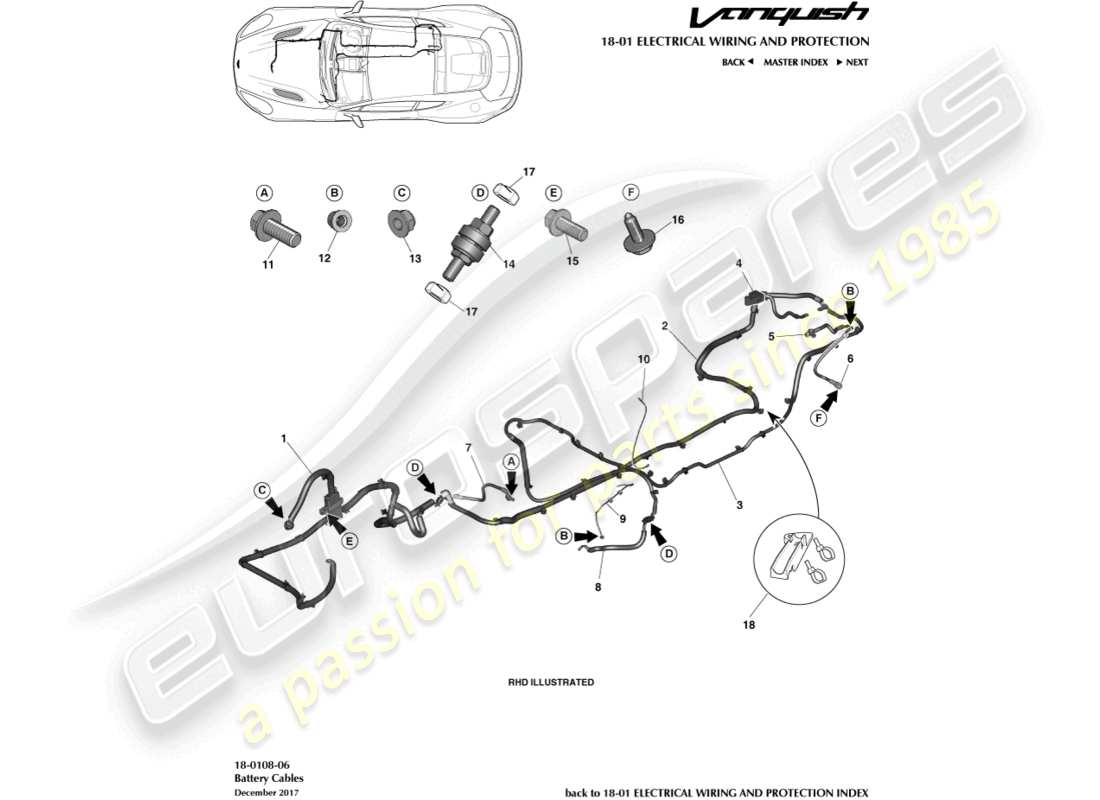

Aston Martin Vanquish (2018) Battery Cables Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: DG43-10C310-AB
                                      CABLE, TRANSFER STUD TO STARTER ALTERNATOR
                                      from £514.25
                                      from £514.25
                                      TRANS STUD TO STRTR Genuine Aston Martin - New (to order)
                                      # 2
                                      MPN: CD33-14305-AB
                                      Cable, BDS to Bulkhead Stud Dirty Feed
                                      from £843.46
                                      from £843.46
                                      HARNESS ASSEMBLY, BDS TO BULKHEAD STUD, DIRTY FEED Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: CD33-14B278-MB
                                      CABLE, BDS TO BULKHEAD STUD/CEM, RHD
                                      from £109.47
                                      from £109.47
                                      CABLE, BDS TO BULKHEAD STUD/CEM, RHD Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: CD33-14B278-LB
                                      CABLE, BDS TO BULKHEAD STUD/CEM, LHD
                                      from £109.47
                                      from £109.47
                                      CABLE, BDS TO BULKHEAD STUD/CEM, LHD Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 4G43-14300-AD
                                      CABLE ASSEMBLY, BATTERY TO BDS
                                      from £134.68
                                      from £134.68
                                      CABLE ASSEMBLY BATT BDS Genuine Aston Martin - New (to order)
                                      CABLE ASSEMBLY BATT BDS Genuine Aston Martin - Used In stock
                                      # 5
                                      MPN: 4G43-14301-AD
                                      CABLE ASSEMBLY, BATTERY TO GND
                                      from £21.58
                                      from £21.58
                                      CABLE ASSY-BATT GND Genuine Aston Martin - New (to order)
                                      CABLE ASSY-BATT GND Genuine Aston Martin - Used In stock
                                      # 6
                                      MPN: DD33-14A280-AB
                                      EARTH BRAID, TRANSMISSION TO BODY
                                      from £50.64
                                      from £50.64
                                      EARTH BRAID, TRANSMISSION TO BODY Genuine Aston Martin - New (to order)
                                      # 7
                                      MPN: 6G43-14A280-AA
                                      EARTH STRAP, ENGINE
                                      from £15.02
                                      from £15.02
                                      ENGINE EARTH STRAP Genuine Aston Martin - New (to order)
                                      ENGINE EARTH STRAP Genuine Aston Martin - Used In stock
                                      # 8
                                      MPN: 4G43-14B278-DD
                                      Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box
                                      from £18.79
                                      from £18.79
                                      CABLE ASSEMBLY B/HEAD TO Genuine Aston Martin - New (to order)
                                      CABLE ASSEMBLY B/HEAD TO Genuine Aston Martin - Used In stock
                                      # 9
                                      MPN: 4G43-14A280-DD
                                      EARTH STRAP, BONNET
                                      from £12.18
                                      from £12.18
                                      EARTH STRAP, BONNET Genuine Aston Martin - New (to order)
                                      # 10
                                      MPN: AG43-13N850-AA
                                      LINK LEAD, RFI
                                      from £9.65
                                      from £9.65
                                      RFI LINK Genuine Aston Martin - New (to order)
                                      # 11
                                      MPN: 703200
                                      SCREW, M10X25MM, HEX FLG HD
                                      from £0.47
                                      from £0.47
                                      SCREW M10X25 HEX FLANGE Genuine Aston Martin - New (to order)
                                      # 12
                                      MPN: 702840
                                      NUT & WASHER, M6, HEX FLANGE HEAD
                                      from £0.47
                                      from £0.47
                                      NUT/WASHER ASSEMBLY M6 Genuine Aston Martin - New (to order)
                                      # 13
                                      MPN: 703739
                                      NUT, M8, HEX HD
                                      from £0.70
                                      from £0.70
                                      NUT-M8 HEX FLANGE Genuine Aston Martin - New (to order)
                                      # 14
                                      MPN: 9G43-10A752-AA
                                      TERMINAL POST ASSY
                                      from £5.69
                                      from £5.69
                                      TERMINAL POST ASSEMBLY Genuine Aston Martin - New (to order)
                                      # -
                                      -
                                      M8 HALF NUT HEX BRASS
                                      # 15
                                      MPN: 703203
                                      SCREW, M6X20MM, HEX FLANGE HEAD
                                      from £0.47
                                      from £0.47
                                      SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                      LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                      # 16
                                      MPN: 7G33-108256-AA
                                      SCREW, M8X21MM, HEX FLANGE HEAD
                                      from £0.49
                                      from £0.49
                                      M8 X 21 HEX PLA PIL Genuine Aston Martin - New (to order)
                                      REAR UNDERTRAY BOLTS Genuine Ferrari Part - New (to order)
                                      # 17
                                      MPN: 9G43-E820201-AA
                                      NUT HEX BRASS M8 BINX
                                      from £1.63
                                      from £1.63
                                      NUT M8 BINX Genuine Aston Martin - New (to order)
                                      # 18
                                      MPN: GD33-37-10114
                                      ROUTING BLOCK KIT
                                      Up to VIN J02846 Coupe, VIN K00921 to K02152 Volante
                                      from £9.11
                                      from £9.11
                                      ROUTING BLOCK KIT Genuine Aston Martin - New (to order)
