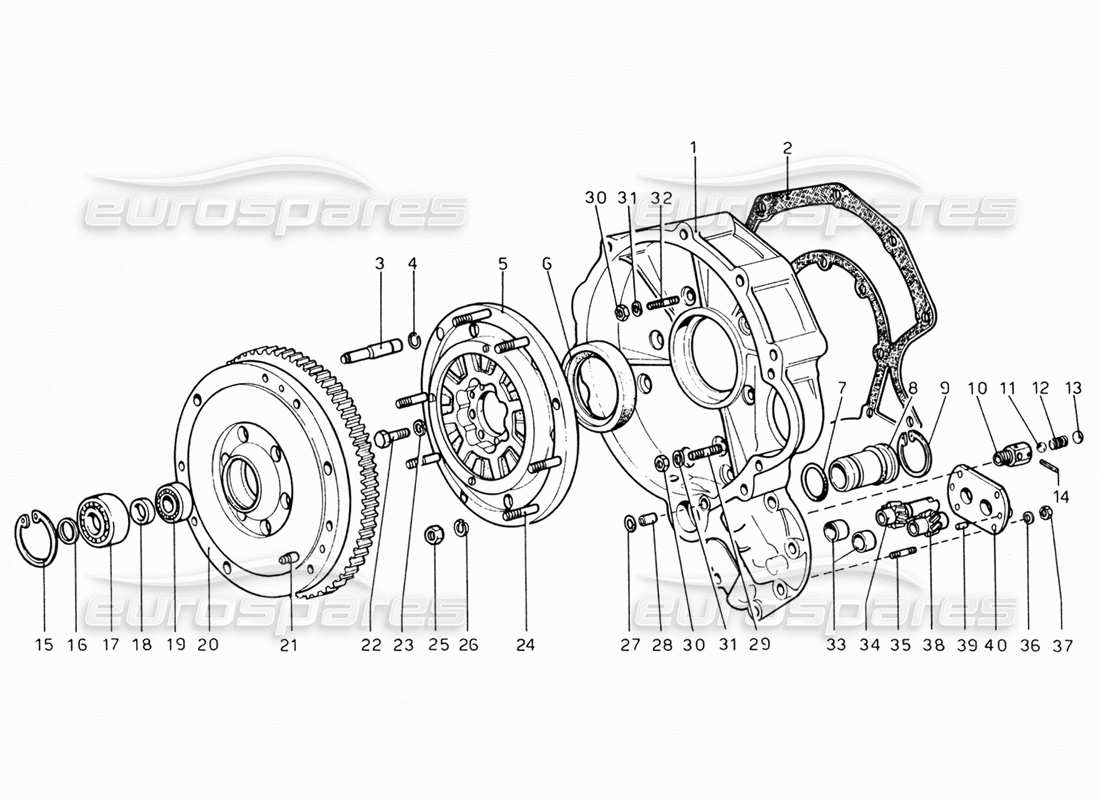

004 - Flywheel and Iritermediate Gear Box Housing
Ferrari 206 GT Dino (1969) Flywheel and Iritermediate Gear Box Housing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 500508

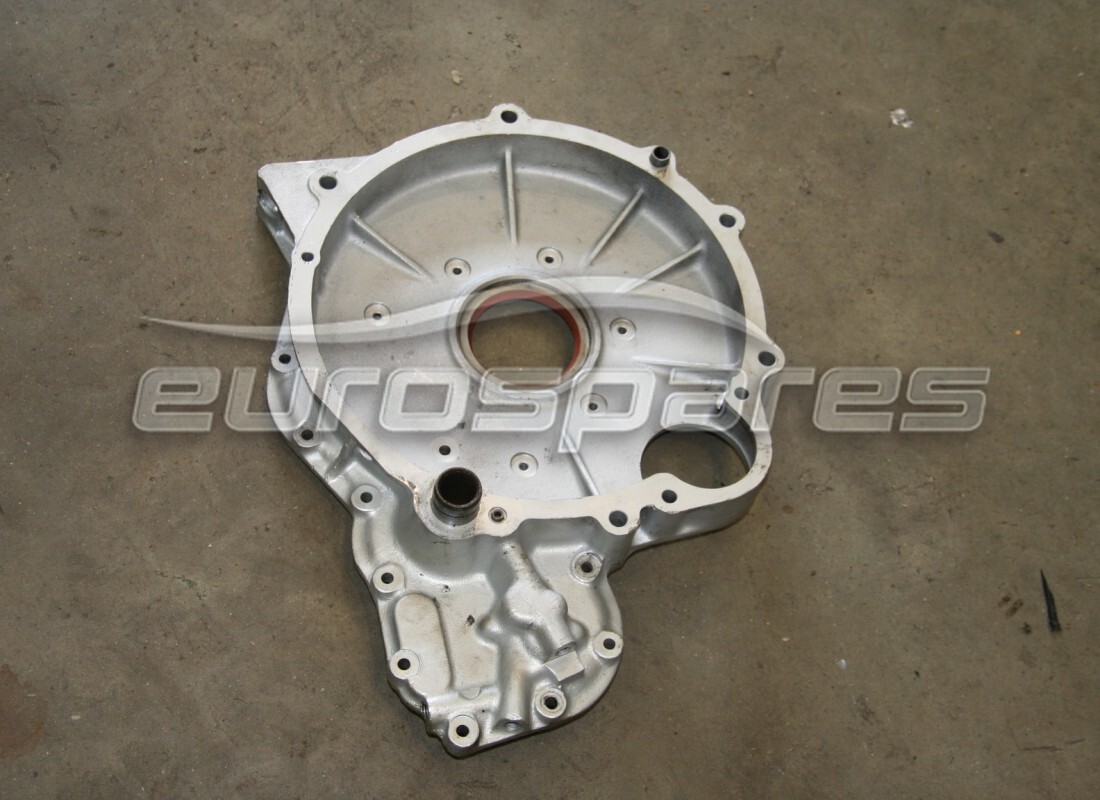

CORPO INTERMEDIO
from £1,992.87
from £1,992.87
# 002
MPN: 500466
GASKET OR SEAL
from £86.11
from £86.11
# 003
MPN: 500480
LOCATING DOWEL
from £17.73
from £17.73
# 004
MPN: 500479
SEEGER RING
from £0.93
from £0.93
# 005
MPN: 50046002
DAMPER JOINT ASSEMBLY
from £44.09
from £44.09
# 006
MPN: 80x100x10
SEALING RING
GALLITAL
# 007
MPN: 3137
SEALING RING
OR
# 008
MPN: 522504
CENTERING DOWEL
# 009
MPN: AA45 i UNI 3654
SEEGER RING
OEB
# 010
MPN: 55785
VALVE BODY . . .
508 E
# 011
MPN: 90142011
Sfera per valvola (F 11/32)
RIV
# 012
MPN: 55786
SPRING
508 E
from £2.45
from £2.45
# 013
MPN: 94770
WASHER
from £6.75
from £6.75
# 014
MPN: 2 x 16
PIN
CONNEX
# 015
MPN: AA 47 1
SEEGER RING
OEB
# 016
MPN: 500484
SPACER
from £7.69
from £7.69
# 017
MPN: BLN17(14x47x14)
Cuscinetto sull'albero rinviol
RIV
# 018
MPN: 500468
SPACER
# 019
MPN: 10L17(17x35x10)
Cuscinetto sull'albero rinvio'
RIV
# 020
MPN: 12668
ENGINE FLYWHEEL AND CROWN ASSEMBLY
236 B
from £1,818.40
from £1,818.40
# 021
MPN: 4111201
DOWEL
Fiat1248000
# 022
MPN: 95133
BOULLONE FISS. SMORZATORE AFL'ALBERO MOTORE
# 023
MPN: SIREA 10x19
WASHER
Onduflex B
# 024
MPN: P 2
THREADED STUD
8x40
Supersession
Supersession
# 025
MPN: Bxt UNI 5588
NUT
LOBO 8 G
# 027
MPN: 2037
SEALING RING
OR
# 028
MPN: 500450
WHEAT PASSED WITH OIL
# 028
MPN: REG. 8
WASHER
OEB
Supersession
Supersession
# 029
MPN: 1/35415/21 - Tab. 10219
STUD
FIAT
# 030
MPN: 15896211
NUT
FIAT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 031
MPN: 11197777
WASHER
FIAT
from £0.52
from £0.52
# 032
MPN: 13541421
STUD (TAB. 10219) .
FIAT
Supersession
Supersession
# 033
MPN: 522501
BOCCOLINE PER INGRANAGGI
from £9.42
from £9.42
# 034
MPN: 522502
INGRANAGGIO CONDUTTORE POMPA OLIO
from £81.36
from £81.36
# 035
MPN: P1
THREADED STUD
5x10
Supersession
Supersession
# 036
MPN: REO 5
WASHER
OEB
# 037
MPN: 5x0,8 - UNI 5588
NUT
LOBO 8 G
# 038
MPN: 522513
PUMP DRIVEN GEAR! OIL
from £132.20
from £132.20
# 039
MPN: 93338
DOWEL
from £13.72
from £13.72
# 040
MPN: 522471
COVER
from £70.81
from £70.81
