005 - timing control

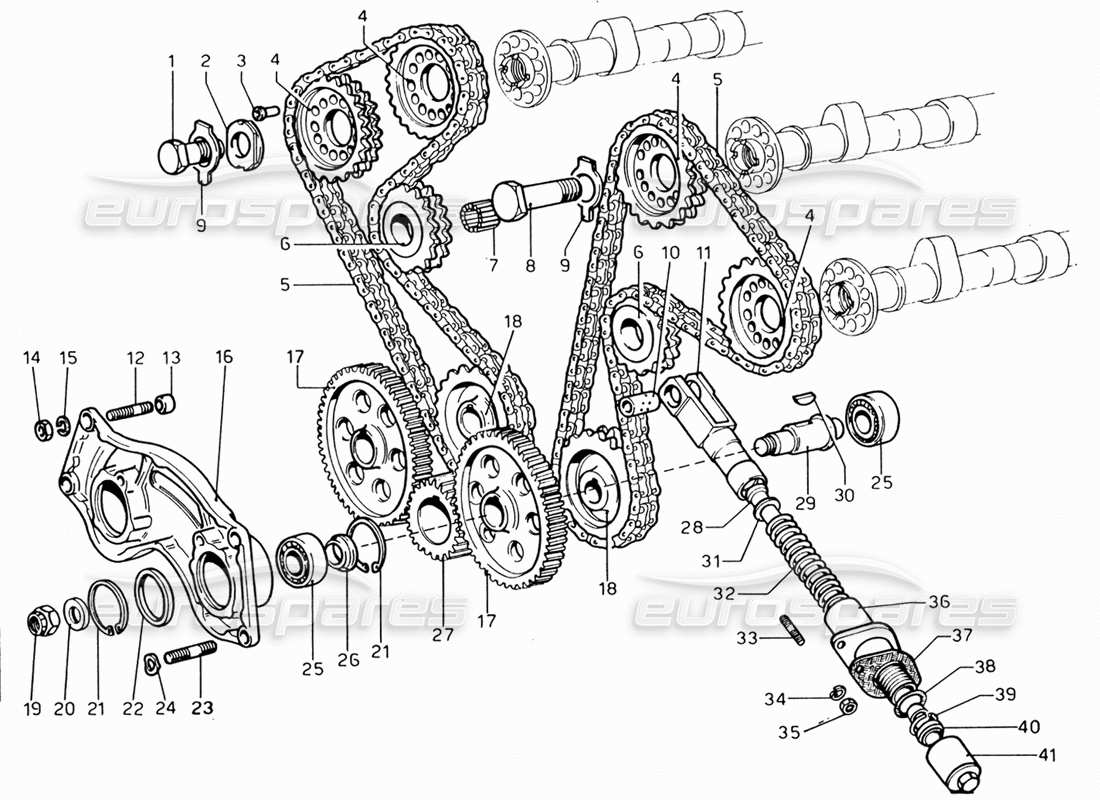

Ferrari 206 GT Dino (1969) Timing Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4146779
SCREW
FIAT
from £10.68
from £10.68
# 002
MPN: 4146764
WASHER
FIAT
from £28.72
from £28.72
# 003
MPN: 102827
DOWEL
from £38.09
from £38.09
This part replaces part number 22448
# 004
MPN: 4146757
INGRANAGGIO
FIAT
from £194.29
from £194.29
# 005
MPN: 4181156
CATENA COMANDO DISTRIBU ZIONE
FIAT
from £185.65
from £185.65
This part replaces part number 4146754
# 006
MPN: 4181158
CHAIN TENSIONER GEAR
FIAT
from £476.90
from £476.90
# 007
MPN: 28044380
GEAR ROLLER
FIAT
from £0.47
from £0.47
# 008
MPN: 4146765
SCREW
FIAT
from £35.73
from £35.73
# 009
MPN: 102777
PLATE
FIAT
from £7.84
from £7.84
This part replaces part number 4146781
# 010
MPN: 4160884
PIVOT
FIAT
from £39.72
from £39.72
# 011
MPN: 4195781
SUPPORT
FIAT
from £144.40
from £144.40
# 012
MPN: 4146766
THREADED STUD
FIAT
from £1.52
from £1.52
# 013
MPN: 4146789
CENTERING DOWEL
FIAT
Supersession
Supersession
# 014
MPN: 16102411
NUT
FIAT
# 015
MPN: 11198077
WASHER
# 016
MPN: 4182708
SUPPORT
FIAT
from £155.41
from £155.41
# 017
MPN: 9220751
DRIVEN GEAR
FIAT
from £308.19
from £308.19
# 018
MPN: 4146753
INGRANAGGIO DI COMANDO
FIAT
# 019
MPN: 16109221
SELF LOCKING NUT
FIAT
from £0.61
from £0.61
# 020
MPN: 4177555
WASHER
FIAT
from £11.44
from £11.44
# 021
MPN: 11059475
SEEGER RING
FIAT
Supersession
Supersession
# 022
MPN: 4182710
WASHER
FIAT
Supersession
Supersession
# 023
MPN: 4146767
THREADED STUD
FIAT
# 024
MPN: 12601570
WASHER
FIAT
from £0.84
from £0.84
# 025
MPN: 121145
CUSCINETTO A SFERE
from £8.01
from £8.01
This part replaces part number 101617 - and 1 more. Click to view details
# 026
MPN: 4146780
SPACER
FIAT
from £12.98
from £12.98
# 027
MPN: 12830
GEAR ON THE CRANKSHAFT
FIAT
from £325.82
from £325.82
This part replaces part number 4146749
# 028
MPN: 4195791
ASTA PER TENDICATENA
FIAT
from £21.46
from £21.46
# 029
MPN: 4177554
GEAR SHAFT
FIAT
from £102.63
from £102.63
# 030
MPN: 12834
Key
from £6.43
from £6.43
# 031
MPN: 4195785
WASHER
FIAT
from £0.79
from £0.79
# 032
MPN: 4195784
SPRING
FIAT
from £40.00
from £40.00
# 033
MPN: 13540921
THREADED STUD
FIAT
Supersession
Supersession
# 034
MPN: 11197777
WASHER
FIAT
from £0.53
from £0.53
# 035
MPN: 15896211
NUT
FIAT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 036
MPN: 4195783
CORPO TENDICATENA
FIAT
from £117.90
from £117.90
# 037
MPN: 4195788
GASKET
FIAT
from £3.20
from £3.20
# 038
MPN: 4195786
SEALING RING
FIAT
from £2.88
from £2.88
# 039
MPN: 4195790
RING
FIAT
from £2.99
from £2.99
# 040
MPN: 4195789
ROD STOPPING CONE
FIAT
from £23.05
from £23.05
# 041
MPN: 4195782
TENDICATENA COMPLETO
FIAT
# 041
MPN: 4195787
NUT
FIAT
from £8.75
from £8.75
