007 - Fuel Tanks -and Pipes

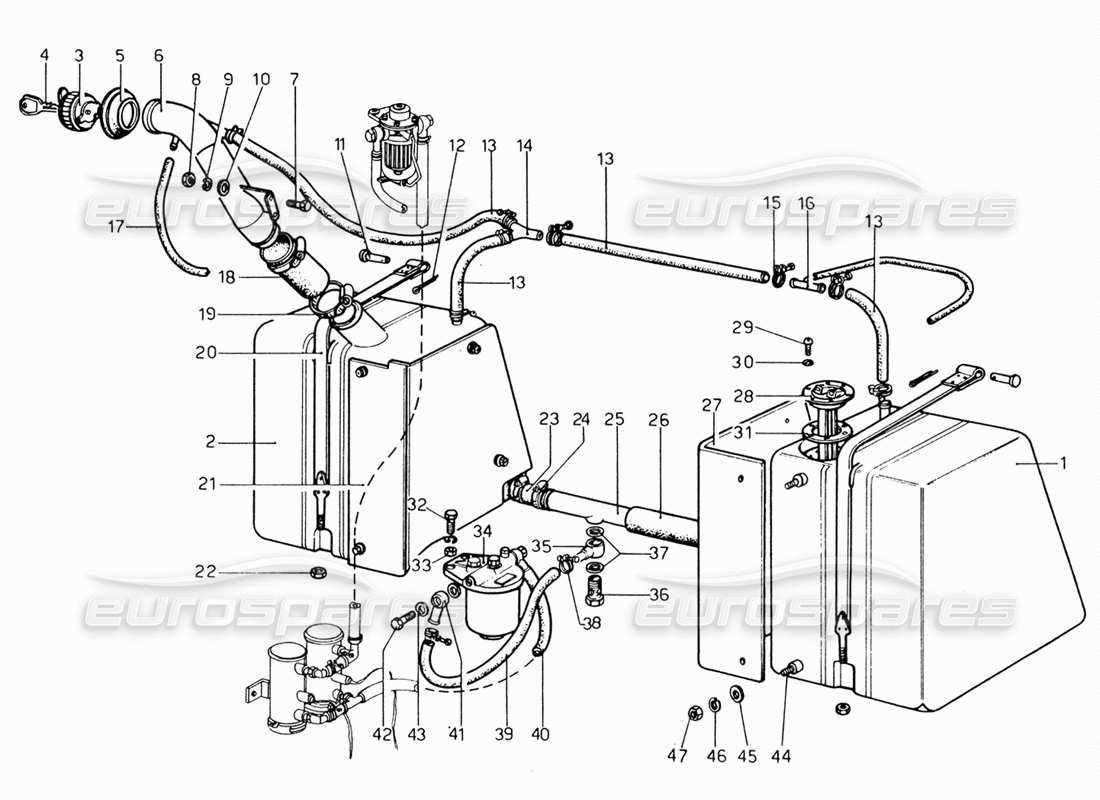

Ferrari 206 GT Dino (1969) Fuel Tanks -and Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 820728
SERBATULC DESTRO
# 002
MPN: E20729
SERBATOIO SINISTRO
# 003
MPN: tipo 2106/F
LOADING CAP
CAMA
# 004
-
CAP KEY
# 005
MPN: 101465
RUBBER COLLAR
from £45.30
from £45.30
This part replaces part number 241-20-600-00 - and 7 more. Click to view details
# 006
MPN: 820765
FUEL LOADING HOSE
from £98.12
from £98.12
# 007
MPN: 6x8-UNI 5739
BOLT
LOBO BG
# 008
MPN: 6x1-UN15566
NUT
LOBO BG
# 009
MPN: 6 R 4
WASHER
Supersession
Supersession
# 010
MPN: C4T03
WASHER
# 011
MPN: 830241
PIVOT
from £25.03
from £25.03
# 012
MPN: C1
SPLIT PIN
1,8x20
Supersession
Supersession
# 013
MPN: BENZO RES
Tubo per sfiato (F 16 X 22 mt. 2)
PIRELLI
# 014
MPN: 101464
UNION 3-WAY
from £26.03
from £26.03
# 015
MPN: Tipo A-F21/22
Vent hose clamp
ANGST-PH.
# 016
MPN: 820570
UNION
from £26.33
from £26.33
# 017
MPN: 0 Sx9x1120
TUBO PER SFIATO
RESIVITE
# 018
MPN: 95110
SLEEVE
# 019
MPN: 95028
FASCETTA (CHENEY 51-70)
# 020
MPN: 820732
BELT ASSEMBLY
# 021
MPN: 820750
PARATIA SINISTRA
# 022
MPN: 95900603
NUT
from £0.77
from £0.77
# 023
MPN: 114277
SLEEVE
from £68.56
from £68.56
This part replaces part number 101468 - and 1 more. Click to view details
# 024
MPN: 95026
FASCETTA (CHENEY) 162/S-29/41
Supersession
Supersession
# 025
MPN: 820730
CONNECTING HOSE
from £95.00
from £95.00
# 026
MPN: RADIOR 35x41
TUBO PROTEZIONE (MT. 0,30)
PIRELLI
# 027
MPN: 820749
PARATIA DESTRA
# 028
MPN: 678033
INDICATORE LIVELLO CARBURANTE
BORLETTI
# 029
MPN: 4 VR 4x10
SCREW
OEB
# 030
-
WASHER
# 031
MPN: 101462
GASKET
from £13.47
from £13.47
This part replaces part number 820925 - and 1 more. Click to view details
# 031
MPN: 10263160
GASKET
from £0.53
from £0.53
This part replaces part number 92930
# 032
MPN: 10x30-UNI 5740
BOLT
LOBO 8G
# 033
MPN: 1100.25 M
NUT
US. N/70
# 034
MPN: 107486
FUEL FILTER ASSEMBLY
from £396.84
from £396.84
This part replaces part number 103401
# 035
MPN: 95367
UNION
# 036
MPN: 95252
UNION
from £95.96
from £95.96
# 038
MPN: Tipo C. 15/16
Fuel hose clamps
ANGST-PH
# 039
MPN: Aeroquip - mm. 350
Hose from the tank connection to the filter
2556/6 - Fi 3/8 x
# 040
MPN: Aeroquip - mm. 180
HOSE CONNECTING FROM THE FILTER TO THE PUMPS
2556/6 - Fi 3/8 x
# 041
MPN: 95368
UNION
from £21.65
from £21.65
# 042
MPN: 95253
UNION
from £8.55
from £8.55
# 043
MPN: 14GR2
GASKET
# 044
MPN: 95313
THREADED STUD
# 045
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 046
MPN: REG - 6
WASHER
OEB
# 047
MPN: 101239
NUT
from £1.60
from £1.60
This part replaces part number 92310
