008 - Feeding Pumps and Pipes

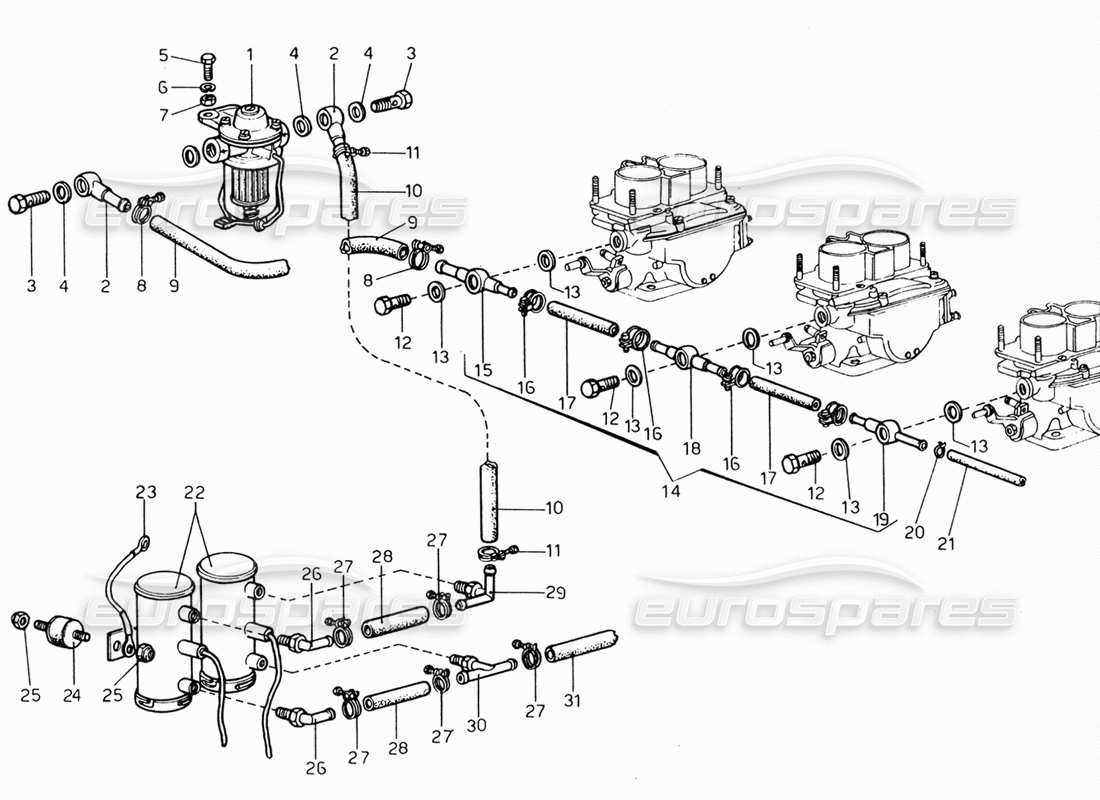

Ferrari 206 GT Dino (1969) Feeding Pumps and Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 95340001
FISPA FUEL PRES/REG/FILTER ASSY
from £295.00
from £295.00
This part replaces part number 3064.02
# 002
MPN: 95369
RING
from £6.13
from £6.13
# 003
MPN: 94660
UNION
Supersession
Supersession
# 004
MPN: 93353
GASKET OR SEAL
Supersession
Supersession
# 005
MPN: M6x16-UNI 5739
BOLT
LOBO 8G
# 006
MPN: REG - 6
WASHER
OEB
# 007
MPN: 6 x 1 - UNI 5588
NUT
LOBO 8G
# 008
MPN: tipo C 0 13-14
HOSE CLAMP .
ANGST-PH
# 009
MPN: Aeroquip - x mm. 450
RUBBER HOSE FROM FILTER REGULATOR TO CARBURETORS
2556/6 - F i 3/8
# 010
MPN: Aeroquip - x mm. 500
PIPE FROM BENDIX PUMPS TO FILTER REGULATOR
2556/6 - F i 3/8
# 011
MPN: tipo C 0 13-14
JUBILEE CLIP
ANGST-PH
# 012
MPN: 10181711
UNION
FIAT
from £4.07
from £4.07
# 013
MPN: 41530.001
GASKET OR SEAL
FIAT
from £1.24
from £1.24
This part replaces part number 10281285 - and 1 more. Click to view details
# 014
MPN: 9180841
CARBURETTOR FEED HOSE ASSEMBLY
236 B
# 015
MPN: 180902
RING
236 B
# 016
MPN: 10168590
JUBILEE CLIP
FIAT
Supersession
Supersession
# 017
MPN: 0.16.022
SLEEVE
FIAT
# 018
MPN: 0.16.013
RING
FIAT
# 019
MPN: 180840
AN,ELLO A 2 VIE COMPLETO
236 B
from £35.63
from £35.63
# 020
MPN: 94951
SPRING
# 021
MPN: PRESS - x mm. 750
RUBBER HOSE FROM THE FUEL HOSE TO THE FUEL TANK
CARBO - 5 x 12
# 022
MPN: Mod.476087
Fuel pumps
1 BENDIXI2V
# 023
MPN: 34403
BRAID FOR MASS
Supersession
Supersession
# 024
MPN: 102947
SUPPORT
from £6.92
from £6.92
This part replaces part number 102007 - and 14 more. Click to view details
# 025
MPN: 106M
SELF LOCKING NUT
# 026
MPN: 95228
UNION
Supersession
Supersession
# 027
MPN: Tipo C. 15/16
JUBILEE CLIP
ANGST-PH
# 028
MPN: Aeroquip
RUBBER SLEEVE FI 3/8 X 55
2556/6
# 029
MPN: 95385
UNION
# 030
MPN: 95381
UNION
# 031
MPN: Aeroquip - mm. 180
RUBBER HOSE FROM THE MAIN FILTER TO THE PUMPS
2556/6 - FI 3/8
