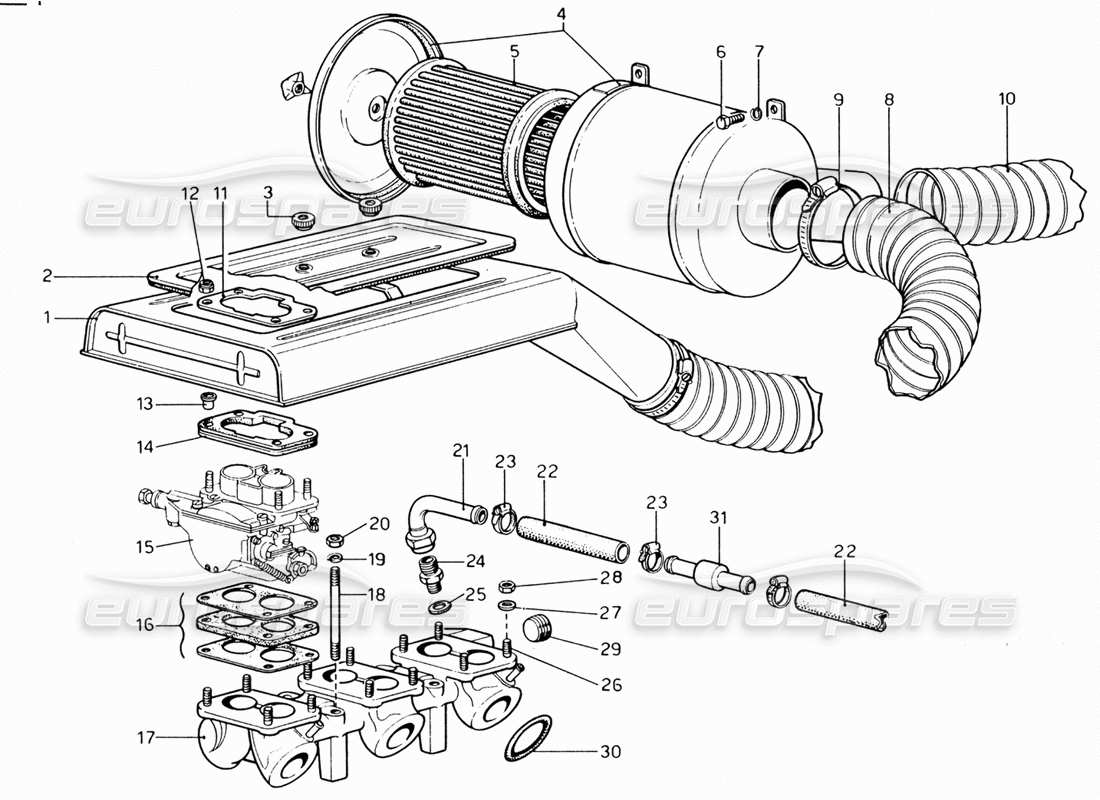

009 - air filter and manifolds
Ferrari 206 GT Dino (1969) Air Filter and Manifolds Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 1808779
Presa aria per carburatore Weber 40 DCN F/1
236 B
# 002
MPN: 180780
COVER
236 B
# 003
MPN: FISPA
NUT
FISPA
# 004
MPN: 180781
CONTENITORE CARTUCCIA
236 B
from £43.72
from £43.72
# 005
-
AIR FILTER CARTRIDGE
# 006
MPN: 8 x 14 UNI5739
BOLT
LOBO 843
# 007
MPN: 8R4
WASHER
Supersession
Supersession
# 008
MPN: COMFORT - Flessibile F 100
TUBO FRA PRESA ARIA E CONTENITORE (M. 0,40)
THERMO - TUBO
# 009
MPN: 450/s 5 Q 5
Fascetta stringitubo 89 X 108
CHENEY
# 010
MPN: COMFORT - Flessibile F 100
Tubo portata aria esterna al comenitore (m. 0,40)
THERMO - TUBO
# 011
MPN: 4153760
PIASTRA PER FITTRO ARIA
FIAT
# 012
MPN: 105 MA
NUT
US/N 70
# 013
MPN: 4153761
TUBETTO DISTANZIALE
FIAT
# 014
MPN: 4153759

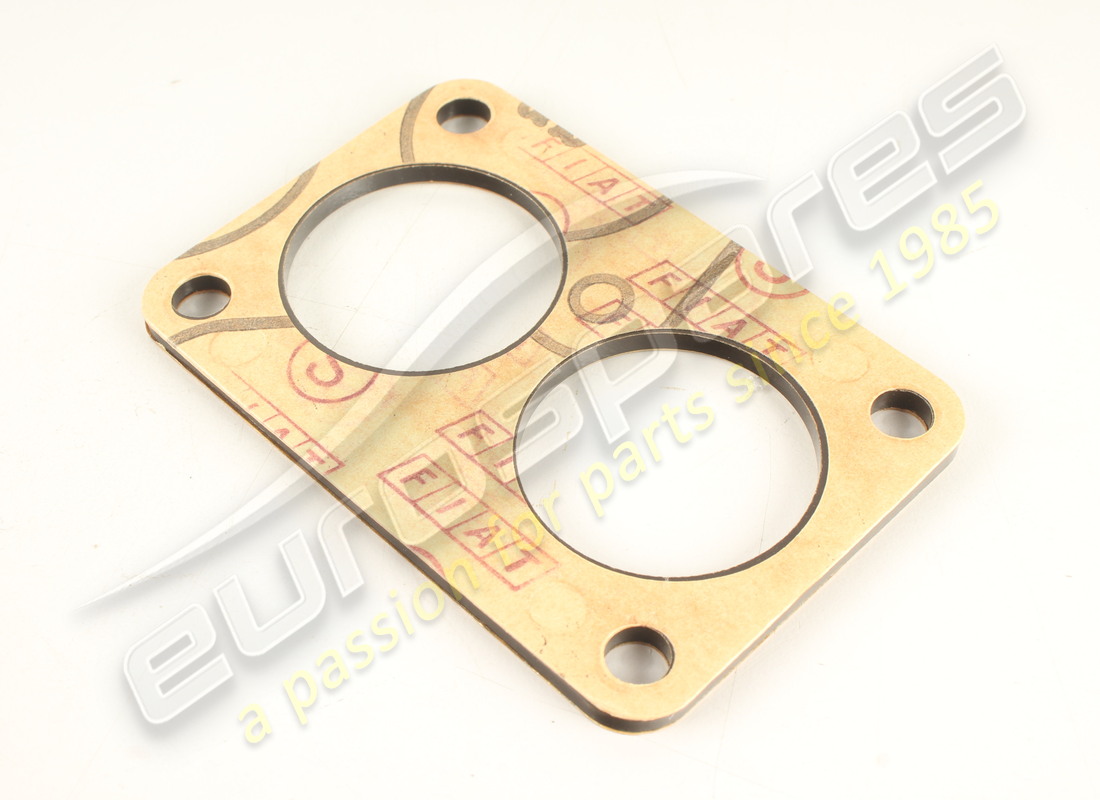

GASKET
FIAT
from £64.54
from £64.54
# 015
MPN: 4177735
CARBURATORE WEBER 40 DCNF/1
FIAT
# 016
MPN: 103786
SPACER
from £61.90
from £61.90
This part replaces part number 4185358
# 017
MPN: 4166269

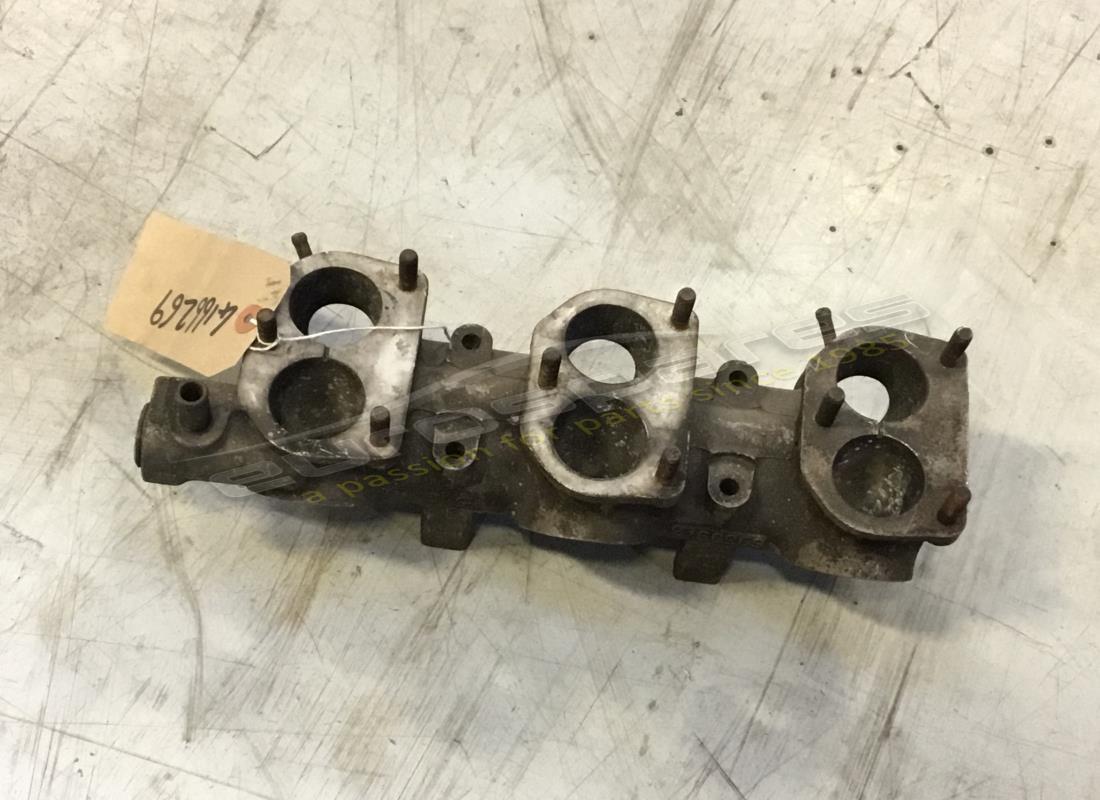

ASSIEME CONDOTTO ASPIRAZIONE
FIAT Coupe 2.0 Dino (3 bolt Carb fixing)
from £341.25
from £341.25
# 017
MPN: 4177744
ASSIEME CONDOTTO ASPIRAZIONE
FIAT (4 bolt Carb fixing)
# 018
MPN: 13545021
THREADED STUD
FIAT
# 019
MPN: 11198077
WASHER
# 020
MPN: 16100824
NUT
from £0.51
from £0.51
This part replaces part number 16100814 - and 1 more. Click to view details
# 021
MPN: 9180845

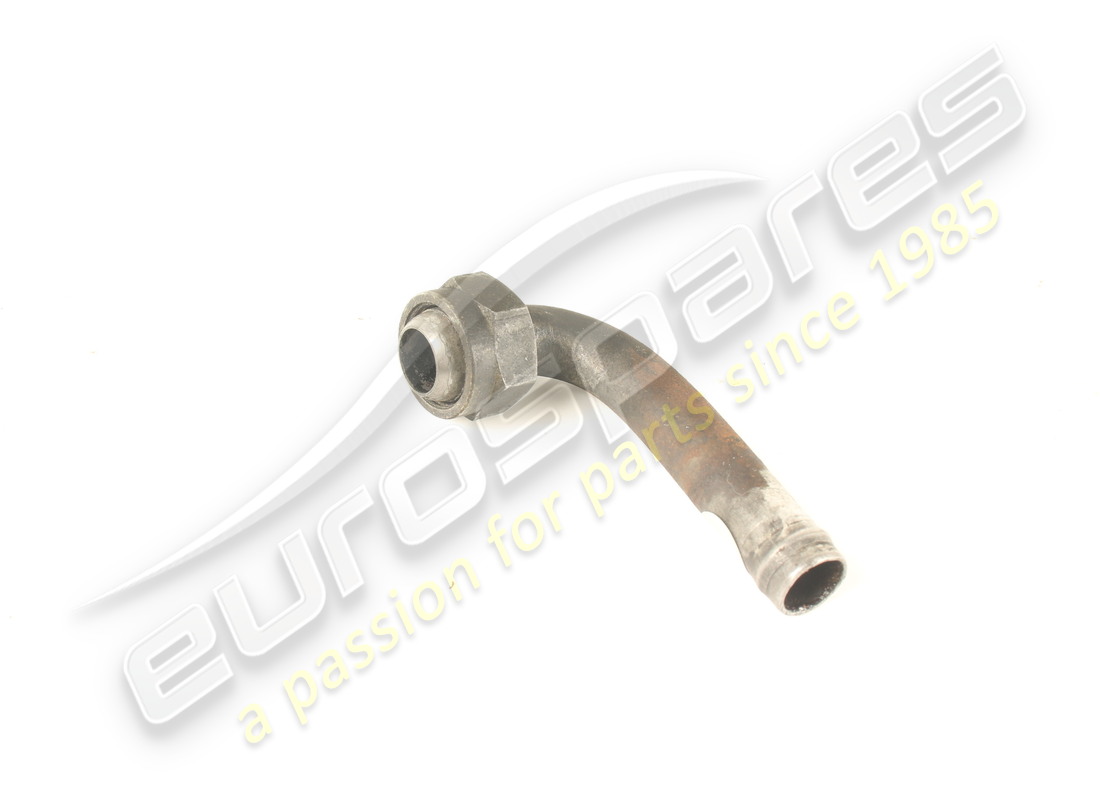

PIPE
from £46.31
from £46.31
# 022
MPN: PH
Tubo gomma dal collettore aspirazione al servofreno (m. 4)
ANGST-
# 023
MPN: 087/S 16/22
CLAMP(95023)
CHENEY
# 024
MPN: 95331
UNION
# 025
MPN: 95108
GASKET
Supersession
Supersession
# 026
MPN: 13517021
THREADED STUD
FIAT
from £2.80
from £2.80
# 027
MPN: 11198077
WASHER
# 028
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 029
MPN: 10269950
CONICAL THREADED CAP
FIAT
Supersession
Supersession
This part replaces part number 95124
# 030
MPN: 100049
SEALING RING
FIAT
from £2.37
from £2.37
This part replaces part number 4159110
# 031
MPN: BONALOI
VALVOLA DI NON RITORNO
BONALOI
