ferrari 206 gt dino (1969) weber 40 dcnf-1 carburettor parts diagram

010 - Weber 40 DCNF-1 Carburettor

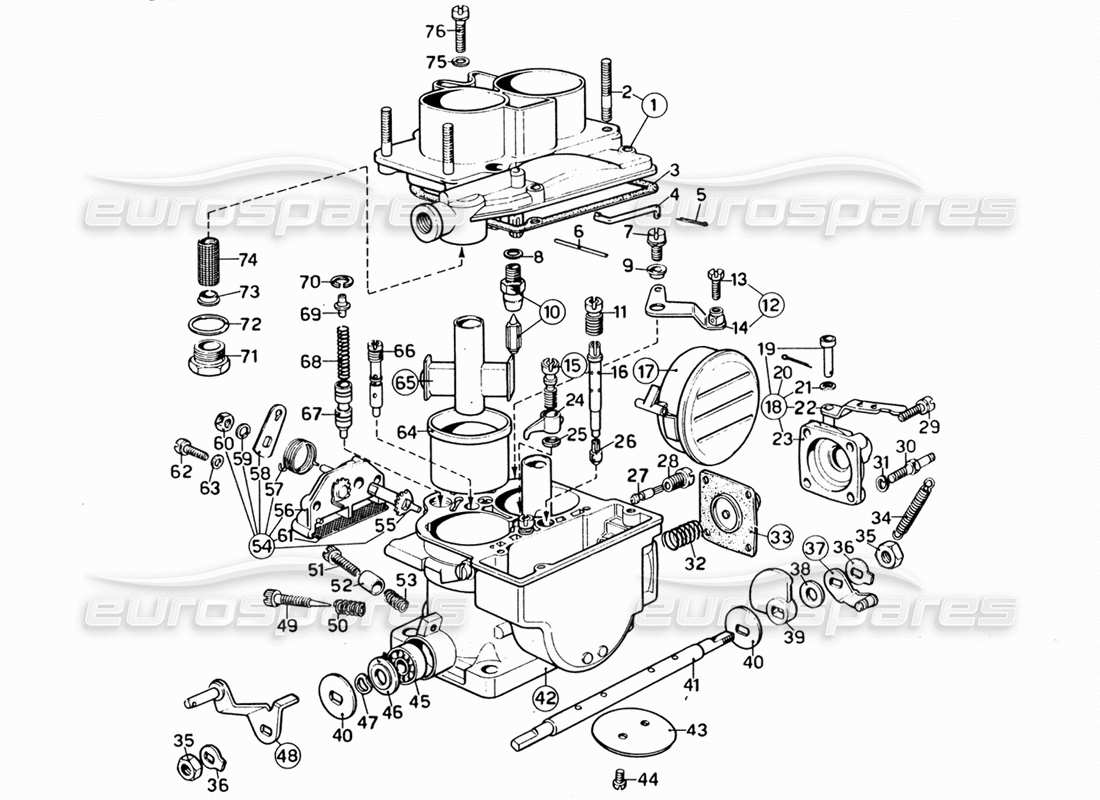

Ferrari 206 GT Dino (1969) Weber 40 DCNF-1 Carburettor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                            #
                                                                                                                                            Part number
                                                                                                                                            Description
                                                                                                                                            Price
                                                                                                                                            # 000
                                                                                                                                            MPN: K775SE
                                                                                                                                            CARBURETTOR REBUILD GASKET SET
                                                                                                                                            40DCNF
                                                                                                                                            from £254.17
                                                                                                                                            from £254.17
                                                                                                                                            # 001
                                                                                                                                            MPN: 9918767
                                                                                                                                            COVER
                                                                                                                                            # 002
                                                                                                                                            MPN: 9909525
                                                                                                                                            SCREW
                                                                                                                                            # 003
                                                                                                                                            MPN: 9918747
                                                                                                                                            GASKET OR SEAL
                                                                                                                                            # 004
                                                                                                                                            MPN: 9918748
                                                                                                                                            Tirantino comando avviamento
                                                                                                                                            # 005
                                                                                                                                            MPN: 9914495
                                                                                                                                            SPLIT PIN
                                                                                                                                            # 006
                                                                                                                                            MPN: 9904710
                                                                                                                                            PIVOT FASTENING
                                                                                                                                            # 007
                                                                                                                                            MPN: 9908650
                                                                                                                                            SCREW
                                                                                                                                            # 008
                                                                                                                                            MPN: 9906837
                                                                                                                                            GASKET OR SEAL
                                                                                                                                            # 009
                                                                                                                                            MPN: 9916275
                                                                                                                                            BUSH
                                                                                                                                            # 010
                                                                                                                                            MPN: 9917872
                                                                                                                                            VALVOLA A SPILLO
                                                                                                                                            # 011
                                                                                                                                            MPN: 9918749
                                                                                                                                            JET
                                                                                                                                            # 013
                                                                                                                                            MPN: 9914500
                                                                                                                                            SCREW
                                                                                                                                            # 014
                                                                                                                                            MPN: 9918750
                                                                                                                                            LEVER
                                                                                                                                            45.096.019
                                                                                                                                            # 015
                                                                                                                                            MPN: 9916276
                                                                                                                                            VALVE
                                                                                                                                            # 016
                                                                                                                                            MPN: 9918751
                                                                                                                                            TUBETTO EMULSIONATORE
                                                                                                                                            # 017
                                                                                                                                            MPN: 9918752
                                                                                                                                            FLOAT
                                                                                                                                            # 018
                                                                                                                                            MPN: 32486.013
                                                                                                                                            COVER
                                                                                                                                            # 019
                                                                                                                                            MPN: 9916302
                                                                                                                                            PIVOT
                                                                                                                                            # 020
                                                                                                                                            MPN: 9914495
                                                                                                                                            COPPIGLIA
                                                                                                                                            # 021
                                                                                                                                            MPN: 9916334
                                                                                                                                            WASHER
                                                                                                                                            # 022
                                                                                                                                            MPN: 9916335
                                                                                                                                            LEVER
                                                                                                                                            # 023
                                                                                                                                            MPN: 9916336
                                                                                                                                            COVER
                                                                                                                                            # 024
                                                                                                                                            MPN: 9916287
                                                                                                                                            JET
                                                                                                                                            # 025
                                                                                                                                            MPN: 9904983
                                                                                                                                            GASKET OR SEAL
                                                                                                                                            # 026
                                                                                                                                            MPN: 9918753
                                                                                                                                            JET
                                                                                                                                            # 027
                                                                                                                                            MPN: 9918754
                                                                                                                                            JET
                                                                                                                                            # 028
                                                                                                                                            MPN: 9907257
                                                                                                                                            PORTAGETTO MINIMO
                                                                                                                                            # 029
                                                                                                                                            MPN: 9909139
                                                                                                                                            SCREW
                                                                                                                                            64700-004
                                                                                                                                            # 030
                                                                                                                                            MPN: 9916337
                                                                                                                                            PIVOT
                                                                                                                                            # 031
                                                                                                                                            MPN: 9907260
                                                                                                                                            WASHER
                                                                                                                                            # 032
                                                                                                                                            MPN: 9914510
                                                                                                                                            SPRING
                                                                                                                                            # 033
                                                                                                                                            MPN: 9916280
                                                                                                                                            MEMBRANA POMPA
                                                                                                                                            # 034
                                                                                                                                            MPN: 9916338
                                                                                                                                            SPRING
                                                                                                                                            # 035
                                                                                                                                            MPN: 9905045
                                                                                                                                            NUT
                                                                                                                                            34.710.003
                                                                                                                                            # 036
                                                                                                                                            MPN: 9911674
                                                                                                                                            WASHER
                                                                                                                                            # 037
                                                                                                                                            MPN: 9916339
                                                                                                                                            LEVER
                                                                                                                                            # 038
                                                                                                                                            MPN: 9916340
                                                                                                                                            WASHER
                                                                                                                                            # 039
                                                                                                                                            MPN: 9916341
                                                                                                                                            CAMMA COMANDO POMPA
                                                                                                                                            # 040
                                                                                                                                            MPN: 9916342
                                                                                                                                            WASHER
                                                                                                                                            # 041
                                                                                                                                            MPN: 9918755
                                                                                                                                            ALBERINO
                                                                                                                                            # 042
                                                                                                                                            -
                                                                                                                                            CORPO CARBURATORE
                                                                                                                                            non ha ricambic
                                                                                                                                            # 043
                                                                                                                                            MPN: 9917875
                                                                                                                                            VALVOLA A FARFALLA
                                                                                                                                            64.005.020
                                                                                                                                            # 044
                                                                                                                                            MPN: 9917876
                                                                                                                                            SCREW
                                                                                                                                            64.520.027
                                                                                                                                            # 045
                                                                                                                                            MPN: 9911682
                                                                                                                                            CUSCINETTO A SFERE
                                                                                                                                            # 046
                                                                                                                                            MPN: 9916346
                                                                                                                                            SCODELLINO PREMI CUSCINETTO
                                                                                                                                            # 047
                                                                                                                                            MPN: 9916347
                                                                                                                                            WASHER
                                                                                                                                            # 048
                                                                                                                                            MPN: 9918756
                                                                                                                                            LEVER
                                                                                                                                            # 049
                                                                                                                                            MPN: 9918757
                                                                                                                                            SCREW
                                                                                                                                            # 050
                                                                                                                                            MPN: 9904577
                                                                                                                                            MOIIA
                                                                                                                                            # 051
                                                                                                                                            MPN: 9904616
                                                                                                                                            SCREW
                                                                                                                                            # 052
                                                                                                                                            MPN: 9916352
                                                                                                                                            BUSH
                                                                                                                                            # 053
                                                                                                                                            MPN: 9904577
                                                                                                                                            MOIIA
                                                                                                                                            # 054
                                                                                                                                            MPN: 32556.013
                                                                                                                                            COVER
                                                                                                                                            from £11.86
                                                                                                                                            from £11.86
                                                                                                                                            # 055
                                                                                                                                            MPN: 9911693
                                                                                                                                            SHAFT
                                                                                                                                            # 056
                                                                                                                                            MPN: 9918758
                                                                                                                                            COVER
                                                                                                                                            # 057
                                                                                                                                            MPN: 9914788
                                                                                                                                            SPRING
                                                                                                                                            # 058
                                                                                                                                            MPN: 9917859
                                                                                                                                            LEVER
                                                                                                                                            # 059
                                                                                                                                            MPN: 9911865
                                                                                                                                            WASHER
                                                                                                                                            # 060
                                                                                                                                            MPN: 9904660
                                                                                                                                            NUT
                                                                                                                                            # 061
                                                                                                                                            MPN: 9911692
                                                                                                                                            ELEMENTO FILTRANTE
                                                                                                                                            # 062
                                                                                                                                            MPN: 9909139
                                                                                                                                            SCREW
                                                                                                                                            E4700.004
                                                                                                                                            # 063
                                                                                                                                            MPN: 9904923
                                                                                                                                            WASHER
                                                                                                                                            # 064
                                                                                                                                            MPN: 9916353
                                                                                                                                            DIFFUSER
                                                                                                                                            # 065
                                                                                                                                            MPN: 9916354
                                                                                                                                            CENTRATORE
                                                                                                                                            # 066
                                                                                                                                            MPN: 9918760
                                                                                                                                            JET
                                                                                                                                            # 067
                                                                                                                                            MPN: 9918761
                                                                                                                                            VALVOLA AVVIAMENTO
                                                                                                                                            # 068
                                                                                                                                            MPN: 9918762
                                                                                                                                            SPRING
                                                                                                                                            # 069
                                                                                                                                            MPN: 9918763
                                                                                                                                            BUSH
                                                                                                                                            # 070
                                                                                                                                            MPN: 9918764
                                                                                                                                            ANELTO ELASTICO DI RITEGNO
                                                                                                                                            # 071
                                                                                                                                            MPN: 9907813
                                                                                                                                            FILTER CAP
                                                                                                                                            # 072
                                                                                                                                            MPN: 99078014
                                                                                                                                            GASKET OR SEAL
                                                                                                                                            # 073
                                                                                                                                            MPN: 9917874
                                                                                                                                            TAPPO PER ELEMENTO FILTRANTE
                                                                                                                                            # 074
                                                                                                                                            MPN: 9917873
                                                                                                                                            ELEMENTO FILTRANTE
                                                                                                                                            # 075
                                                                                                                                            MPN: 9904941
                                                                                                                                            WASHER
                                                                                                                                            # 076
                                                                                                                                            MPN: 9904687
                                                                                                                                            SCREW
