023 - Outside Gear Box Controls

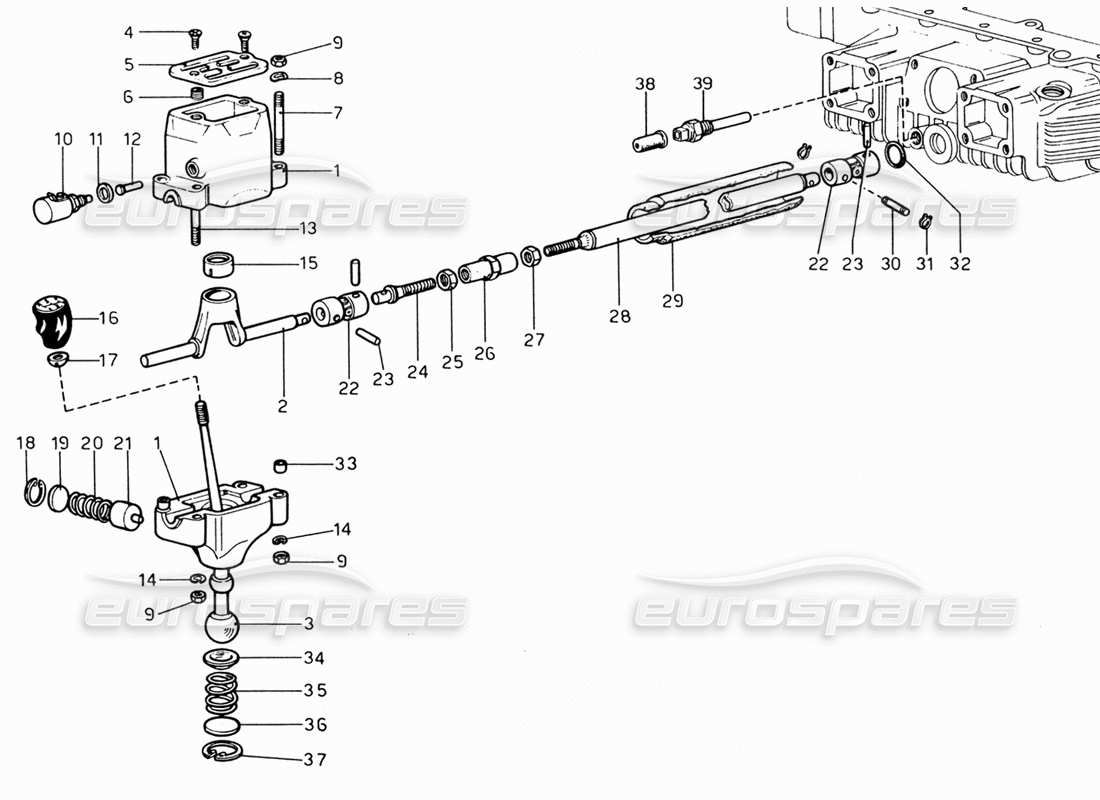

Ferrari 206 GT Dino (1969) Outside Gear Box Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 522444

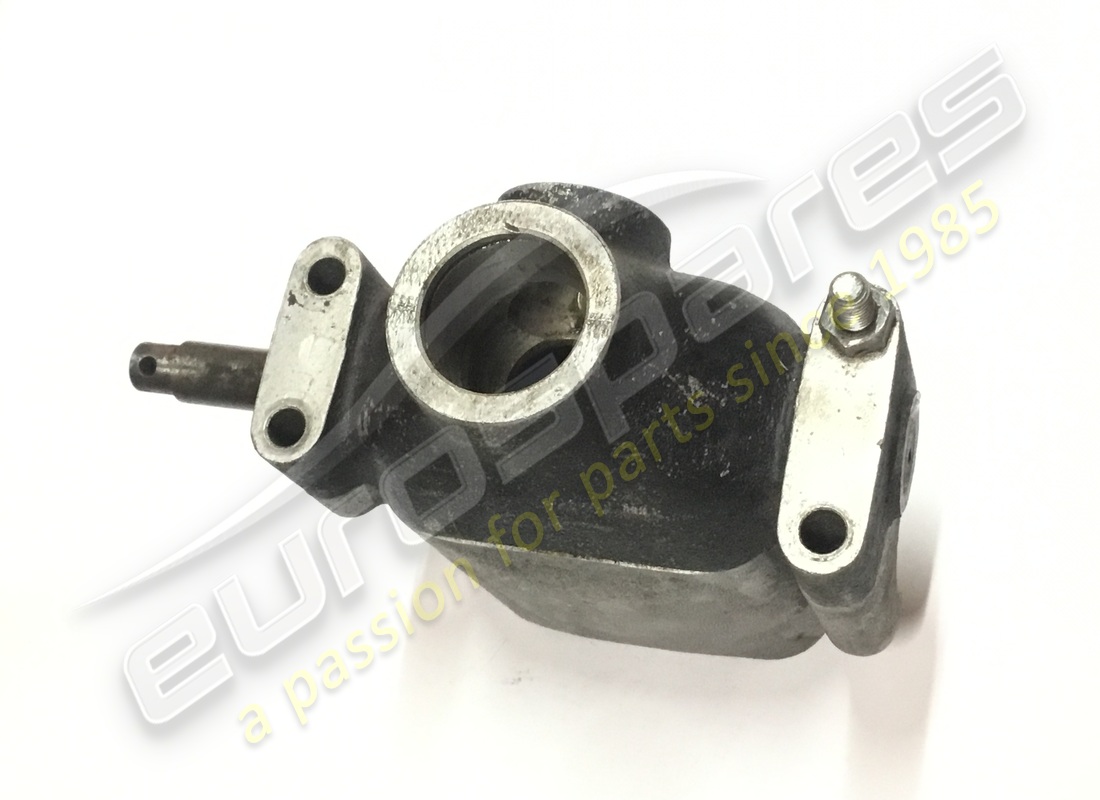

ASSIEME SCATOLA COMANDO CAMBIO (SCAT. INF. E SUP.)
# 001
MPN: 522445
ASSIEME SCATOLA COMANDO CAMBIO (SCAT. INF. E SUP.)
from £1,464.75
from £1,464.75
# 002
MPN: 522469
PIVOT JOINT
Supersession
Supersession
# 003
MPN: 522470
LEVER
from £218.69
from £218.69
# 004
MPN: 5z0,8z12 - UNI 274
SCREW
SIREA .
# 005
MPN: 522499
SELETTORE
# 006
MPN: 5 X 0,8 x 7,5
BUSH
HELI-COIL
# 007
MPN: 522658
THREADED STUD
from £3.94
from £3.94
# 008
MPN: REO - 8
WASHER
OEB
Supersession
Supersession
# 009
MPN: 8x1.25 UNI 5588
NUT
LOBO 8 G
# 010
MPN: 522749
INTERRUTTORE
# 011
MPN: RC 10
WASHER
OEB
# 012
MPN: 522497
PIVOT
Supersession
Supersession
# 013
MPN: 522657
THREADED STUD
from £3.15
from £3.15
# 014
MPN: REG. 8
WASHER
OEB
Supersession
Supersession
# 015
MPN: 103313
SPACER
from £24.73
from £24.73
# 016
MPN: 522432
KNOB FOR LEVER
# 017
MPN: 53203
CONTRODADO PER POMELLO
from £119.54
from £119.54
# 018
MPN: AA231
SEEGER RING
OEB
# 019
MPN: 522515
DISCHETTO RITEGNO MOLLA
Supersession
Supersession
# 020
MPN: 522483
SPRING
Supersession
Supersession
# 021
MPN: 522514
PUNTALINO
Supersession
Supersession
# 022
MPN: 103189
GIUNTO
from £91.02
from £91.02
This part replaces part number 524508 - and 1 more. Click to view details
# 023
MPN: N 5x26
PIN
SPIROL
# 024
MPN: 523075
PIVOT
# 025
MPN: 520465
NUT
565 C
# 026
MPN: 521362
TIE ROD
Supersession
Supersession
# 027
MPN: 12D2
NUT
# 028
MPN: 522484
TUBO COMANDO CAMBIO
from £76.20
from £76.20
# 029
MPN: 522722
SOFFIETTO
from £68.77
from £68.77
# 030
MPN: 521542
PIN
from £14.48
from £14.48
# 031
MPN: AA5e
SEEGER RING
OEB
# 032
MPN: 95860065
SEALING RING
from £1.59
from £1.59
# 032
MPN: OR 3081
SEALING RING
not as spare part - use part number: 95860065
# 033
MPN: 100041
CENTERING DOWEL
from £4.66
from £4.66
# 034
MPN: 522517
LEVER LOWER BACKPACK
Supersession
Supersession
# 035
MPN: 522482
SPRING
Supersession
Supersession
# 036
MPN: 522516
DISCHETTO RITEGNO MOLLA
Supersession
Supersession
# 037
MPN: AA 32 i
SEEGER RING
OEB
# 038
MPN: 400410
GOMMINO DI PROTEZIONE
# 039
MPN: 4159681
ENGINE SUMP OIL TEMPERATURE SENSOR THERMISTOR
FIAT
Supersession
Supersession
