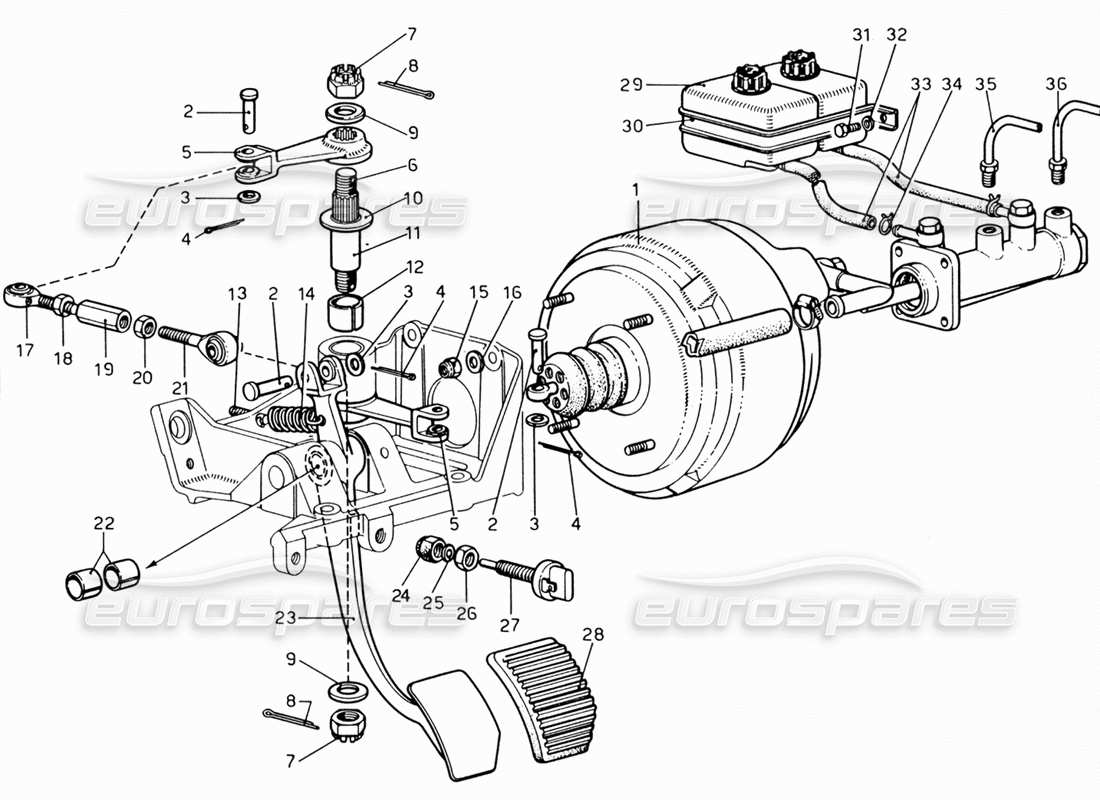

026 - Brake Hydraulic Control
Ferrari 206 GT Dino (1969) Brake Hydraulic Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 14-05920
BRAKE SERVO BONALDI
Master-VAC
# 002
MPN: 660723
PIVOT
from £7.44
from £7.44
# 003
MPN: 10 R 2
WASHER
# 004
MPN: C1
SPLIT PIN
1.8 x 20
Supersession
Supersession
# 005
MPN: 660719
LEVER
# 006
MPN: 660720
PIVOT
from £50.38
from £50.38
# 007
MPN: 95309
NUT
# 008
MPN: C1
SPLIT PIN
2.7 x 28
Supersession
Supersession
# 009
MPN: 660724
WASHER
from £12.23
from £12.23
# 010
MPN: 660727
WASHER
from £21.12
from £21.12
# 011
MPN: 660725
SPACER
from £79.38
from £79.38
# 012
MPN: 660722
BUSH
Supersession
Supersession
# 013
MPN: 94969
PIVOT
# 014
MPN: 660343
SPRING
Supersession
Supersession
# 015
MPN: 208 MA
NUT
us/B70
# 016
MPN: RC 8
WASHER
OEB
# 017
MPN: SMG 10
CUSCINETTO SFERICO
UNIBAL
# 018
MPN: M10x1,5 UNI 5588
LOCKNUT
LOBO 8 G
# 019
MPN: 660547
REGISTRO
from £17.80
from £17.80
# 020
MPN: 95250
CONTRODADO (FILETTO SINISTRO)
# 021
MPN: SMLG 10
Cuscinetto sferico (filetto sinistro)
UNIBAL
# 022
MPN: 660728
BUSH
# 023
MPN: 660716
LEVER
# 024
MPN: 660523
NUT
Supersession
Supersession
# 025
MPN: 660525
WASHER
# 026
MPN: 660524
NUT
Supersession
Supersession
# 027
MPN: 101663
STOP LIGHT SWITCH (2 TERMINALS)
from £23.05
from £23.05
This part replaces part number 4177124 - and 13 more. Click to view details
# 028
MPN: 660737
GOMMA PROTEZIONE PEDALE
Supersession
Supersession
# 029
MPN: 4099978
VASCHETTA OLIO PER FRENI
FIAT
# 030
MPN: 660687
SUPPORT
# 031
MPN: M6x14-UNI 5739
BOLT
LOBO 8 G
# 032
MPN: 6 R 4
WASHER
Supersession
Supersession
# 033
MPN: 95388
TUBO GOMMA (MM. 1100)
# 034
MPN: 94951
SPRING
# 035
MPN: 680610
HOSE FROM BRAKE SERVO TO 3 FRONT WAY
from £3.00
from £3.00
# 036
MPN: 680614
TUBETTO DAL SERVOFRENO AL DEPRESSORE
