032 - Front Suspension - Shock Absorber

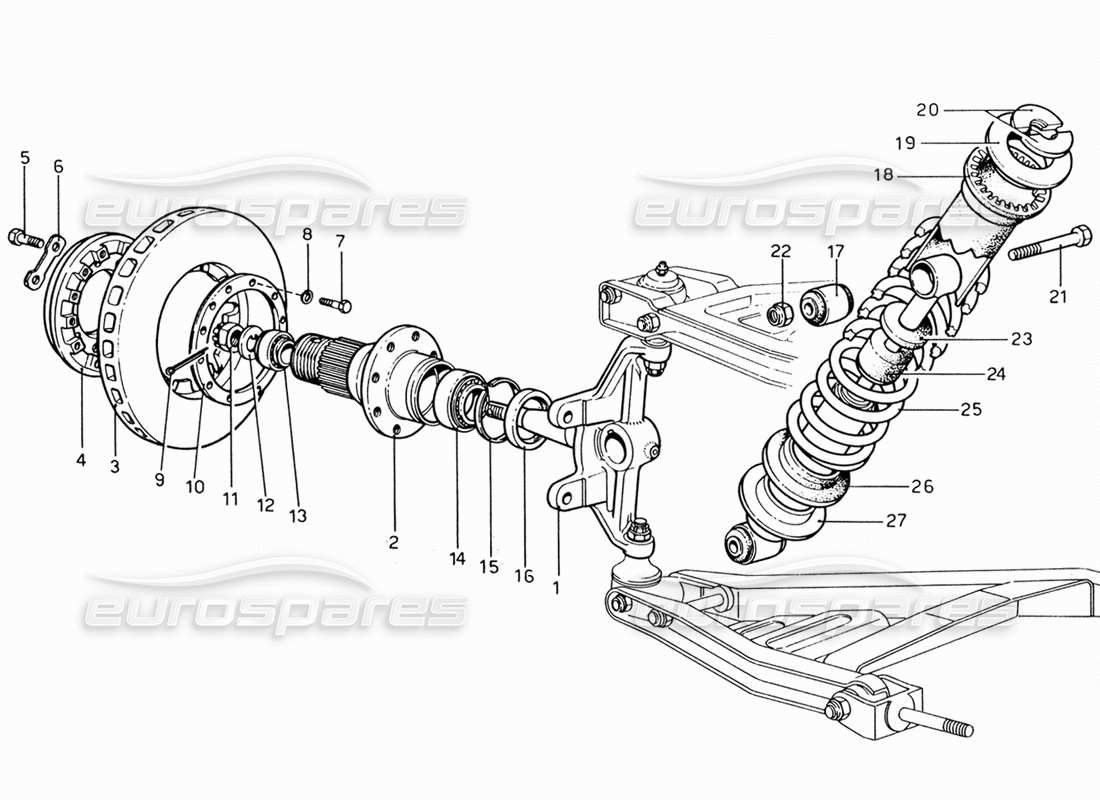

Ferrari 206 GT Dino (1969) Front Suspension - Shock Absorber Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 640837
R KNEE
from £402.99
from £402.99
# 001
MPN: 640838
L. KNEE
from £423.14
from £423.14
# 002
MPN: 700456
MOZZO DESTRO (FIAT 4149523 D)
from £249.81
from £249.81
# 002
MPN: 700457
MOZZO SINISTRO (FIAT 4149524 S)
from £28.12
from £28.12
# 003
MPN: 680627
DISCO FRENO
solid disc
# 003

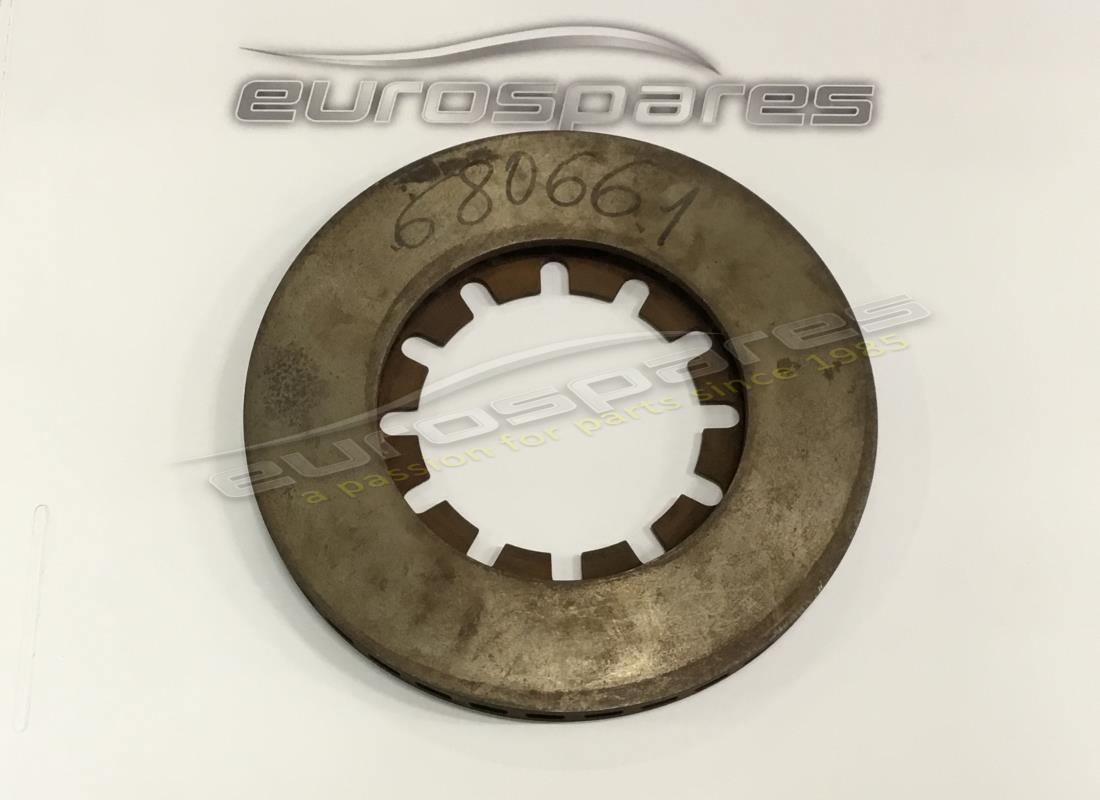

MPN: 680661
DISCO FRENO
vented disc
from £446.25
from £446.25
# 004
MPN: 680535
BELL FOR BRAKE DISCS
# 005
MPN: 4149836
BULFONE
FIAT
from £1.24
from £1.24
# 006
MPN: 4149837
PLATE
FIAT
from £1.65
from £1.65
# 007
MPN: M5x16UNI5738
BOLT
LOBO 8 G
# 008
MPN: REG 5
WASHER
OEB
# 009
MPN: C1
SPLIT PIN
3,7x35
Supersession
Supersession
# 010
MPN: 680536
FLANGIA
from £30.59
from £30.59
# 011
MPN: 10724621
NUT
FIAT
Supersession
Supersession
# 011
MPN: 11638021
NUT
FIAT
Supersession
Supersession
# 012
MPN: 52397
WASHER
FIAT
# 013
MPN: 4096104
CUSCINETTO ESTERNO
FIAT
Supersession
Supersession
# 014
MPN: 4096587
CUSCINETTO INTERNO
FIAT
Supersession
Supersession
# 015
MPN: 4117800
SPACER
FIAT 135
from £1.44
from £1.44
# 016
MPN: 4117801
SEALING RING
FIAT 135
from £10.55
from £10.55
# 017
MPN: 100809
ESTENDBLOC (RIV. 89.800.985)
(replaces: 640429)
from £13.06
from £13.06
This part replaces part number 101051 - and 1 more. Click to view details
# 017
MPN: 640429
ESTENDBLOC (RIV 89.800.985)
not as spare part - use part number: 100809
Supersession
Supersession
# 018
MPN: 105223
DISTANZIALE SUPERIORE
from £19.31
from £19.31
# 019
MPN: 640500
SCODELLINO
# 020
MPN: 640499
SEMIANELLI
# 021
MPN: 12x70-UNI-5736
BOLT
LOBO BGM
# 022
MPN: 212x1,25
NUT
US/1370
Supersession
Supersession
# 023
MPN: 601562
SPACER
from £9.23
from £9.23
# 024
MPN: 101049
TAMPONE
from £26.99
from £26.99
This part replaces part number 640835
# 025
MPN: 640879
SPRING
from £167.94
from £167.94
# 026
MPN: 640423
DISTANZIALE INFERIORE
Supersession
Supersession
# 027
MPN: 641422
FRONT SHOCK ABSORBER
from £245.12
from £245.12
This part replaces part number 640811 - and 2 more. Click to view details
# 027
MPN: 641422
FRONT SHOCK ABSORBER
from £245.12
from £245.12
This part replaces part number 640811 - and 2 more. Click to view details
