035 - Rear Suspension - Levers

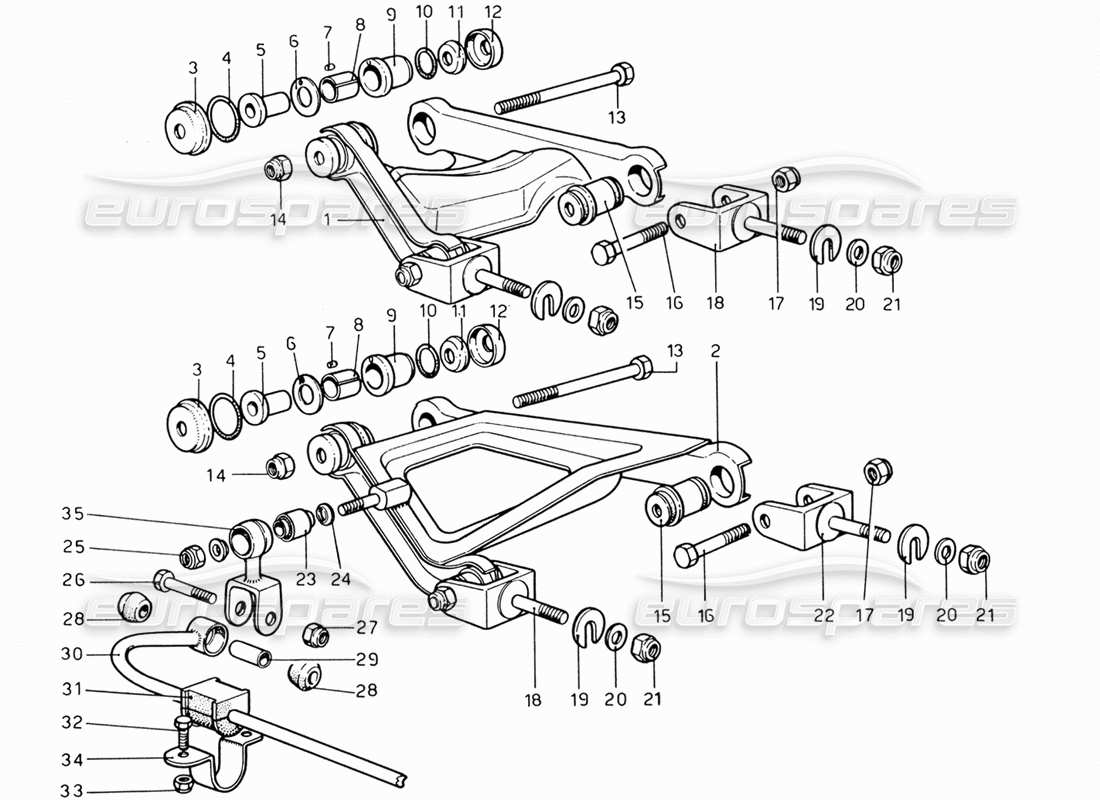

Ferrari 206 GT Dino (1969) Rear Suspension - Levers Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 24611005
OUTER WISHBONE BUSH (SINGLE)
The Ferrari original design includes a very high tolerance bush and pin arrangement that removes all play in the suspension joint and allows the vehicles tracking to be set very accurately
from £89.25
from £89.25
OUTER WISHBONE BUSH (SINGLE) Genuine Ferrari Part - New (other) In stock
The Ferrari original design includes a very high tolerance bush and pin arrangement that removes all play in the suspension joint and allows the vehicles tracking to be set very accurately
The Ferrari original design includes a very high tolerance bush and pin arrangement that removes all play in the suspension joint and allows the vehicles tracking to be set very accurately
# 000
MPN: 24611005KIT
OUTER WISHBONE BUSH KIT (PER CORNER)
Includes 4X Outer Bushes
# 001
MPN: 601346
LEVER
Supersession
Supersession
# 002
MPN: 601326
LEVER
# 003
MPN: 101014
SUSPENSION BUSH DUST COVER
from £5.84
from £5.84
This part replaces part number 600957
# 004
MPN: 101044
SEALING RING
(replaces: OR 3150)
from £0.70
from £0.70
This part replaces part number 3150
# 004
MPN: 101044
SEALING RING
from £0.70
from £0.70
This part replaces part number 3150
# 005
MPN: 600740
BOOCOLA INTERNA
from £34.95
from £34.95
# 006
MPN: 101009
RING
from £6.68
from £6.68
This part replaces part number 600771
# 007
MPN: 100796
GRANO PER BOCCOLA
from £2.23
from £2.23
This part replaces part number 94943
# 008
MPN: 100787
BUSH
from £5.76
from £5.76
This part replaces part number 101315 - and 1 more. Click to view details
# 009
MPN: 600739
BUSH
from £46.95
from £46.95
# 010
MPN: 101043
RING
(replaces: OR 4106)
from £1.04
from £1.04
This part replaces part number 4106
# 010
MPN: 101043
RING
from £1.04
from £1.04
This part replaces part number 4106
# 011
MPN: 101016
WASHER
from £8.43
from £8.43
This part replaces part number 10730721 - and 1 more. Click to view details
# 012
MPN: 101011
SCODELLINO PARA ACQUA
from £8.41
from £8.41
# 013
MPN: 95183
BOLT
Supersession
Supersession
# 014
MPN: 212x1,25
NUT
US B/70
Supersession
Supersession
# 015
MPN: 154536
BUSH
from £58.25
from £58.25
This part replaces part number 103170 - and 1 more. Click to view details
# 016
MPN: M12x70-UNI 5738
BOLT
LOBO 8 G
# 017
MPN: 212x1,25
NUT
US/B70
Supersession
Supersession
# 018
MPN: 640812
FORK
from £85.72
from £85.72
# 019
MPN: 600831
WASHER
Supersession
Supersession
# 020
MPN: 14 R1
WASHER
# 021
MPN: 95900611
NUT
US/B70
Supersession
Supersession
# 022
MPN: 601412
FORK
from £99.96
from £99.96
# 023
MPN: 100773
SILENTBLOK (RIV-68-109-541)
from £19.44
from £19.44
This part replaces part number 60220 - and 1 more. Click to view details
# 024
MPN: 601405
DISTANZIALE PER SILENTBLOK
Supersession
Supersession
# 025
MPN: 212 MB
NUT
US B/70
# 027
MPN: 212x1,25
NUT
US/B 70
Supersession
Supersession
# 028
MPN: 100984
GOMMINO PER BISCOTTINO
from £6.40
from £6.40
This part replaces part number 126097 - and 1 more. Click to view details
# 029
MPN: 100985
TUBO DISTANZIALE
340 MM
from £21.06
from £21.06
This part replaces part number 64431
# 030
MPN: 601373
ANTI - ROLL BAR
# 031
MPN: 601404
TAMPONE TENUTA BARRA
Supersession
Supersession
# 032
MPN: M10x20UN1-5740
BOLT
LOBO B G
# 033
MPN: 210x1,25
NUT
US/B 70
Supersession
Supersession
# 034
MPN: 104417
PLATE
340 MM
from £20.83
from £20.83
This part replaces part number 64429 - and 5 more. Click to view details
# 035
MPN: 104420
ANTI ROLL BAR LINK
508 B
from £377.69
from £377.69
This part replaces part number 64543 - and 1 more. Click to view details
# 046
MPN: M12x70UN1-573
BOLT
LOBO lG
