ferrari 275 (pininfarina coachwork) gruppo rivestinento anteriore parts diagram

002 - Gruppo Rivestinento Anteriore

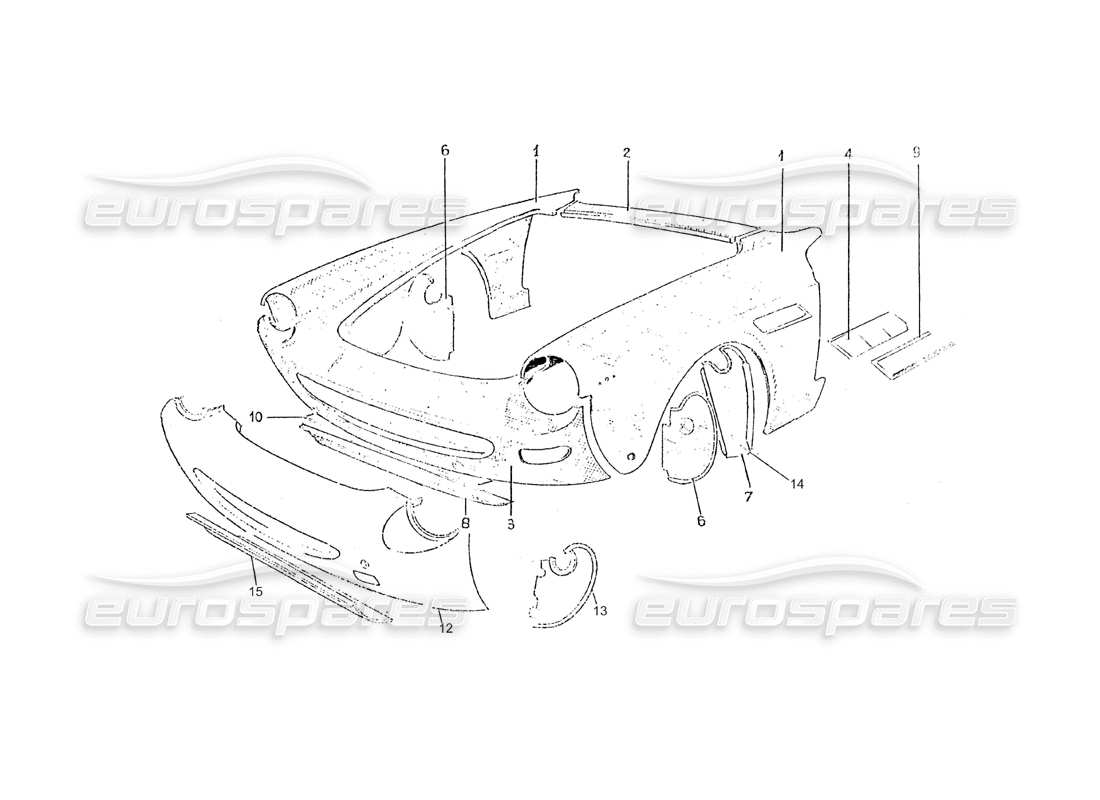

Ferrari 275 (Pininfarina Coachwork) Gruppo Rivestinento Anteriore Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price

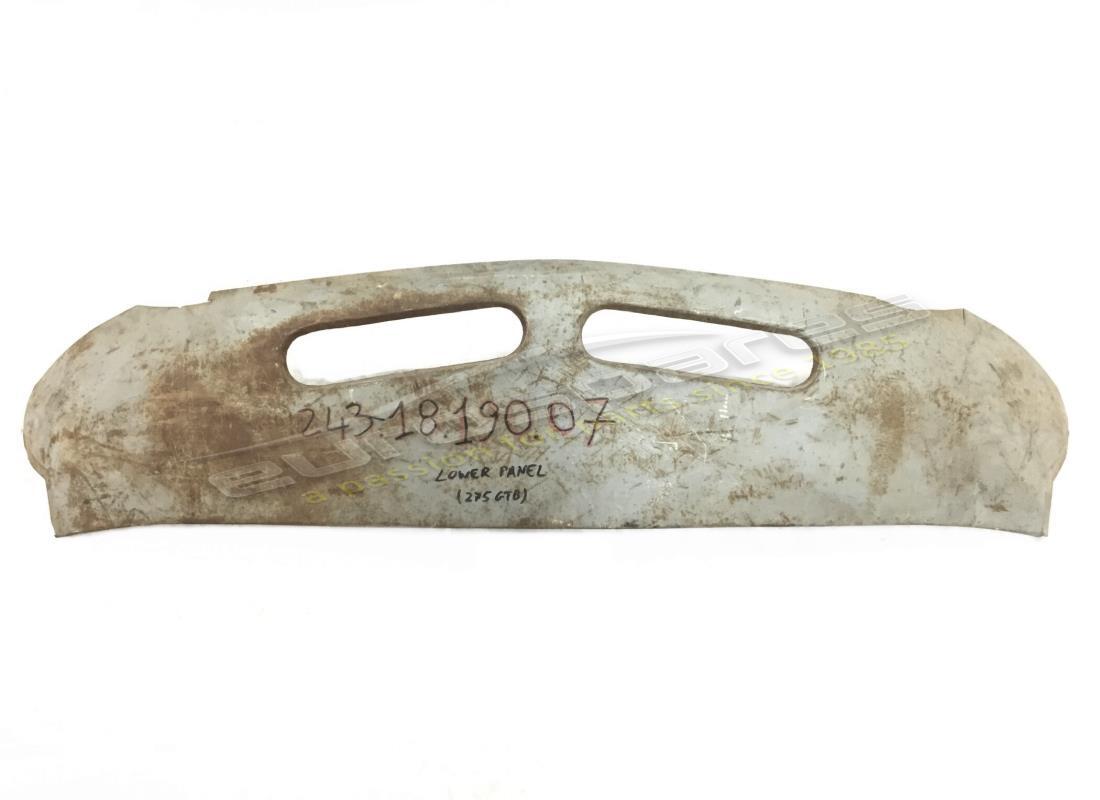

      # 000
      MPN: 243-18-190-07
      FRONT VALANCE
      Valid For 275 GTB
      from £2,310.00
      from £2,310.00

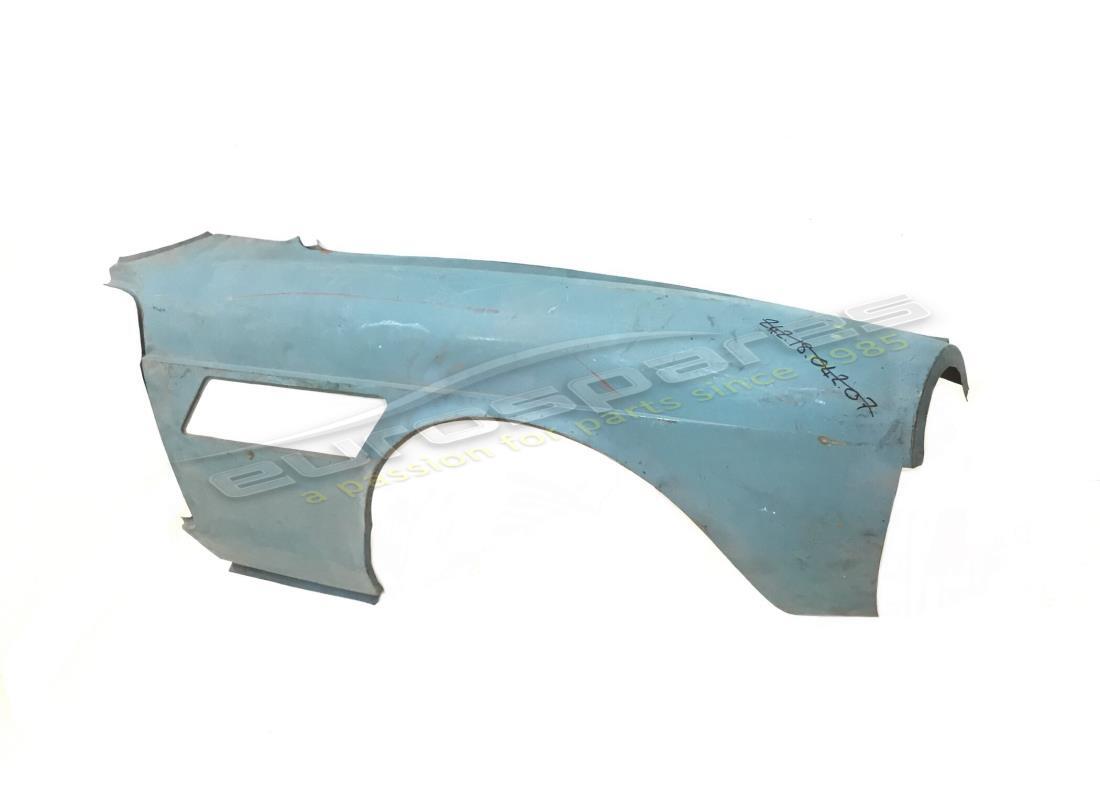

      # 001
      MPN: 243-18-040-07
      RIVESTIM.LAT.ANT.D. CPL.
      FVN.300
      from £6,232.55
      from £6,232.55

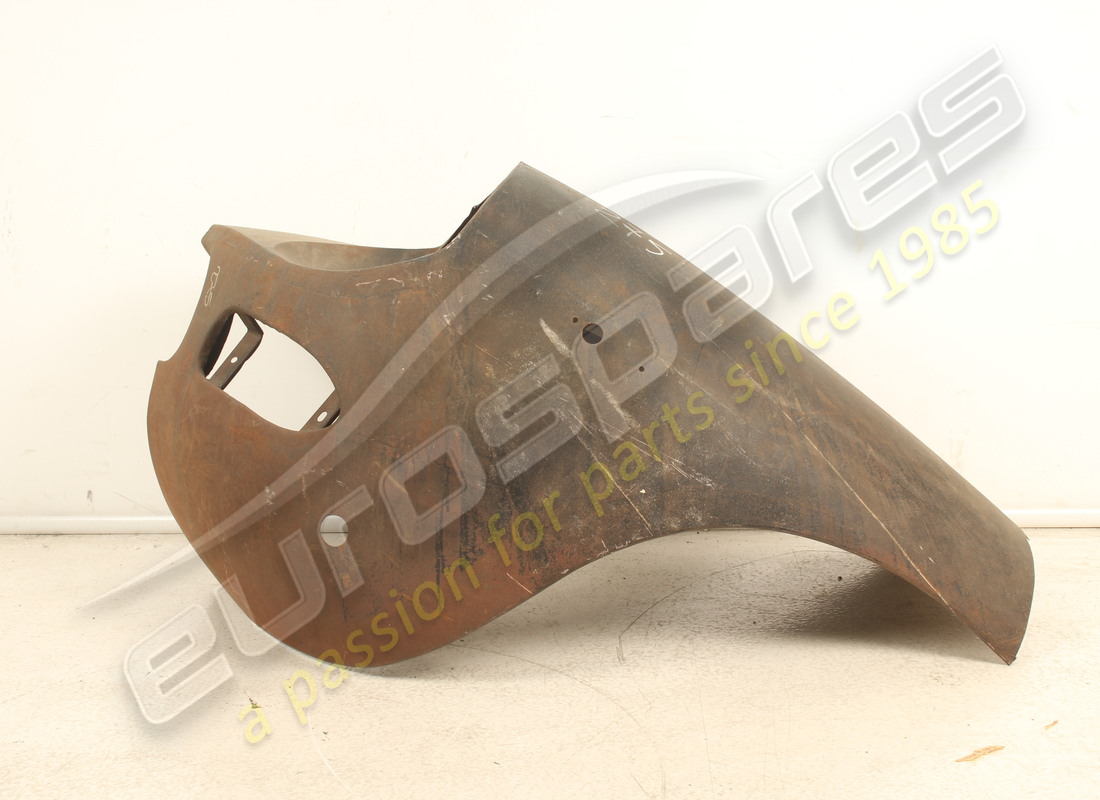

      # 001
      MPN: 243-18-041-07
      RIVESTIM.LAT.RENT.S.CPL.
      FVN.300
      from £6,232.55
      from £6,232.55
      # 002
      MPN: 243-18-150-07
      RIVESTIM.SUP.COFANO FISSO PER G.S.
      from £137.37
      from £137.37
      # 003
      MPN: 243-16-190-07
      MUSONE ANT.CPL.
      # 004
      MPN: 243-18-800-07
      PRESSA ARIA D.SMONT.LAT. CPL.
      FVN.300
      # 004
      MPN: 243-18-801-07
      PRESSA ARIA S.SMONT.LAT. CPL.
      FVN.300
      from £42.67
      from £42.67
      # 005
      MPN: 243-18-160-07
      ELEMENTO POST.GOCCIOLATOIO VANO COF.
      PER G.S.F.V.N 81 - PER G.D.F.V.N. 8
      # 006
      MPN: 243-18-820-01
      PARASASSO ANT. D. PASSARUOTA ANT.
      FVN.200
      # 006
      MPN: 243-18-821-01
      PARASASSO ANT. S. PASSARUOTA ANT.
      FVN.200
      # 007
      MPN: 243-18-850-01
      PARSAASSO NPOSTERIORE D.PASSARUOTA ANT.
      FVN.200
      # 007
      MPN: 243-18-851-01
      PARA BASCO POSTORIORE S. PASSARUOTA ANT.
      FVN.200
      # 008
      MPN: 243-18-880-01
      BAVOTTA SOTTO MUSONE
      FVN.200
      from £148.54
      from £148.54
      # 009
      MPN: 243-44-700-02
      GUCRRIZIONE POR PRASA ARIA D.
      F.V.U. 300
      from £279.23
      from £279.23
      # 009
      MPN: 243-44-701-02
      GUORNIZIONO PER PRESA ARIA S.
      F.V.N. 300
      # 010
      MPN: 243-18-894-00
      GUSRNIZIORO PER BAVETTA SOTTO MUSONE
      FVN.250

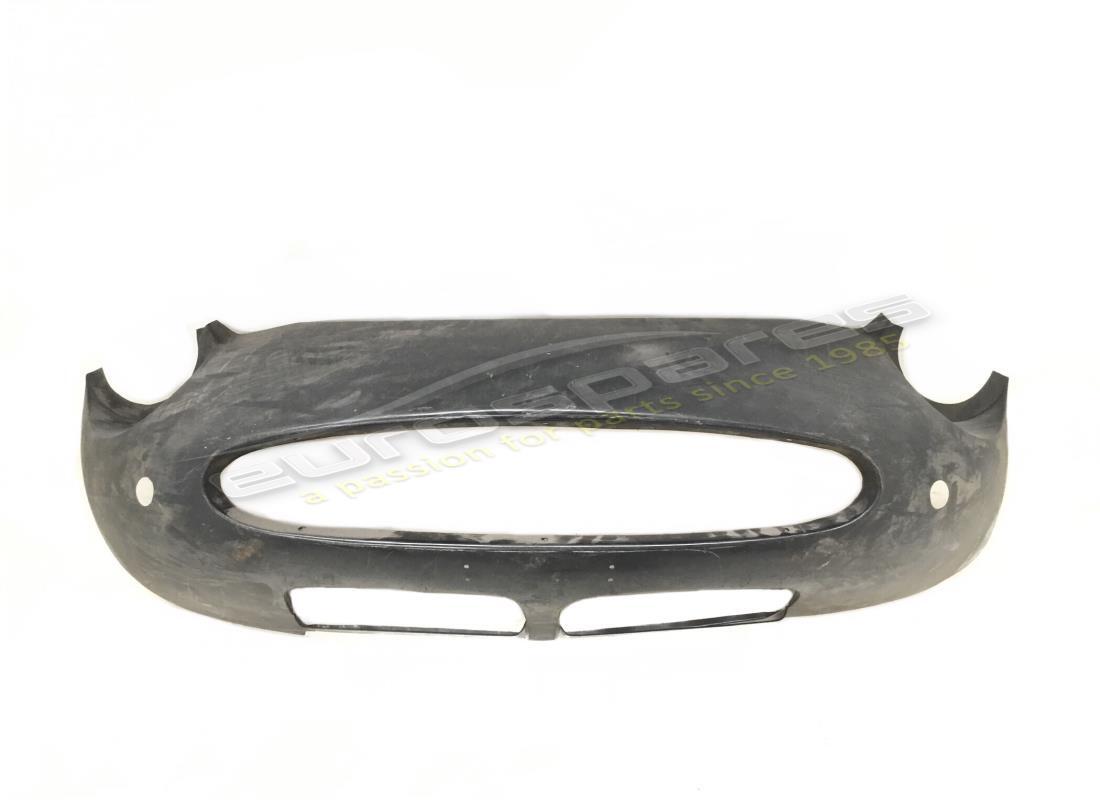

      # 012
      MPN: 246-18-190-07
      MUSONO ANT.CPL.
      DVI.201
      from £4,060.59
      from £4,060.59
      # 013
      MPN: 246-18-820-07
      PARASASSO ANT. D PASSARUOTA ANT.
      DVN.201
      # 013
      MPN: 246-18-821-07
      PARASASSO ANT. S PASSARUOTA ANT.
      DVT.201
      # 014
      MPN: 246-18-850-01
      PARASASSO POST.D PASSARUOTA ANT.
      DVN.201
      # 014
      MPN: 246-18-851-01
      PARASASSO POST.S PASSARUOTA ANT.
      DVI.201
      # 015
      MPN: 246-18-880-10
      Bavotta sotto musone in fiberglass
      DVN.201
      from £97.78
      from £97.78
