ferrari 275 (pininfarina coachwork) gruppo paraurto anteriore parts diagram

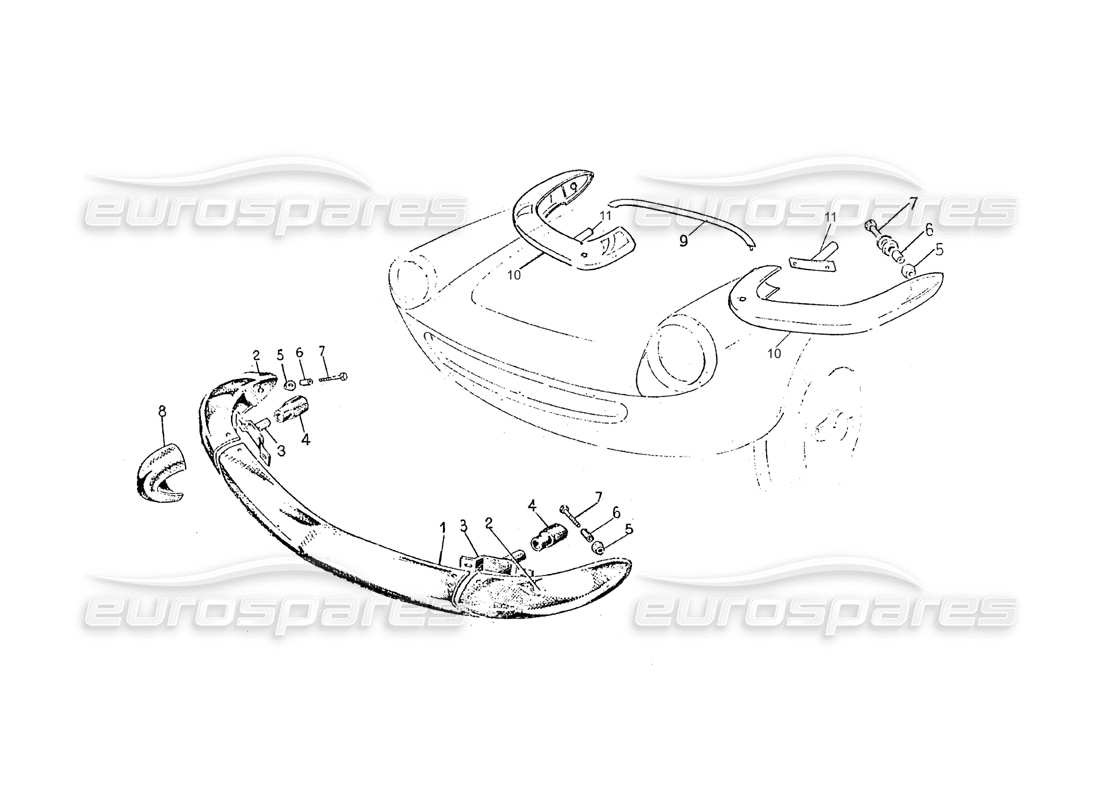

008 - Gruppo paraurto Anteriore

Ferrari 275 (Pininfarina Coachwork) Gruppo paraurto Anteriore Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price

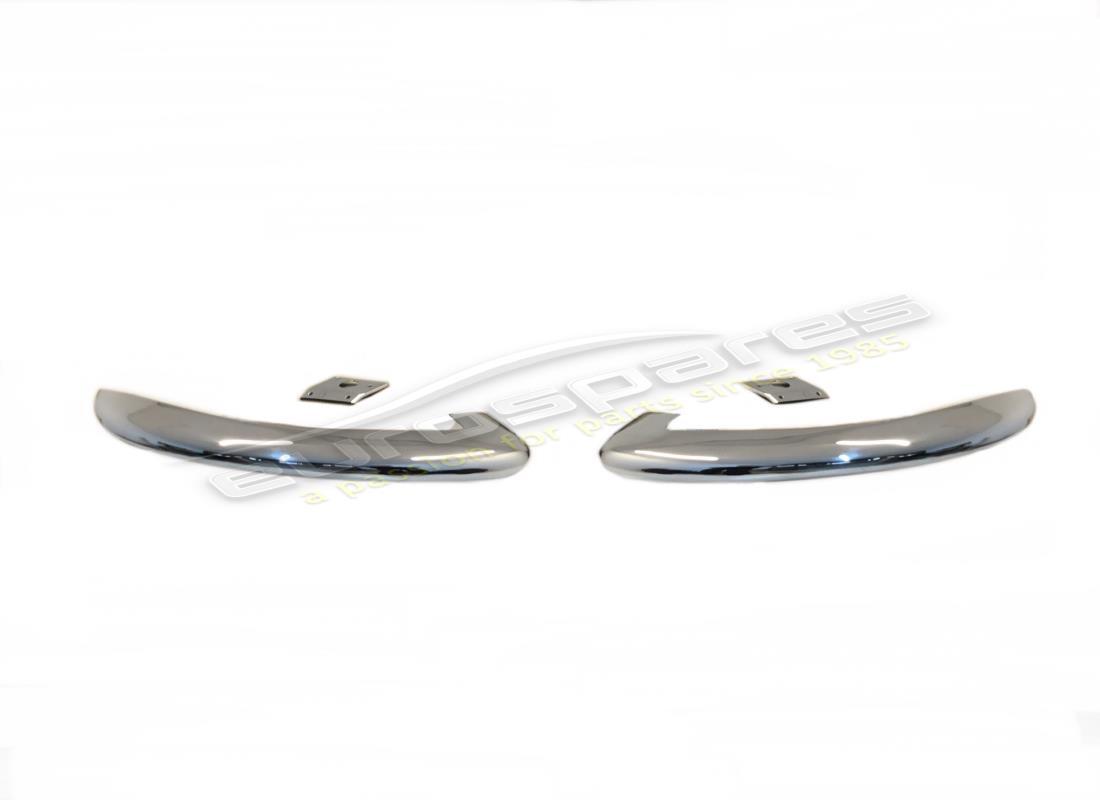

                # 000
                MPN: 246-36-010-000
                PAIR FRONT CHROME BUMPERS
                from £1,989.75
                from £1,989.75
                # 001
                MPN: 243-36-006-02
                ELEMENTO CENTRALO PARAURTO ANT.COMPL.
                FVN.200
                from £1,377.46
                from £1,377.46
                # 002
                MPN: 243-36-010-02
                ELOMANTO LAT.D. PARAURTO ANT. COMPL.
                FVN.200
                from £483.55
                from £483.55
                # 002
                MPN: 243-36-011-02
                ELEMENTO LAT.S. PARAURTO ANT. COMPL.
                FVN.200
                from £483.55
                from £483.55
                # 003
                MPN: 243-36-102-01
                RHS BRACKET
                from £78.75
                from £78.75
                # 003
                MPN: 243-36-103-01
                LHS BRACKET
                from £78.75
                from £78.75
                # 004
                MPN: 242-36--152-2
                MANICOTTO D. GUORNIZ.ATTAO.CENTR.PARAURTO
                FVN.200
                # 004
                MPN: 242-36-753-02
                MANICOTTO S. GUORNIZ.ATTAO.CENTR.PARAURTO
                FVN.200
                # 005
                MPN: 400-36-190-00
                TASSELLO DISTANZIALO LAT.TRA PARAUMANT.E SCOCCA
                from £50.21
                from £50.21
                # 006
                MPN: 400-36-192-01
                DISTANZIALE FISS.LAT. PARAURTO ANTERIORE
                # 007
                MPN: 0-918-1-082-1
                VITO TE 8X1,5X45 FISS.ELM.A.LAT.PARAURTO ANT.
                # 008
                MPN: 243-36-250-02
                FREGIO D. POR PARAURTO ANTERIORE.
                FVN.200
                from £441.84
                from £441.84
                # 008
                MPN: 243-36-251-02
                FREGIO S. POR PARAURTO ANTERIORE.
                FVN.200
                from £2,220.27
                from £2,220.27
                # 009
                MPN: 246-36-006-02
                BUMPER MID CONNECTOR
                # 010

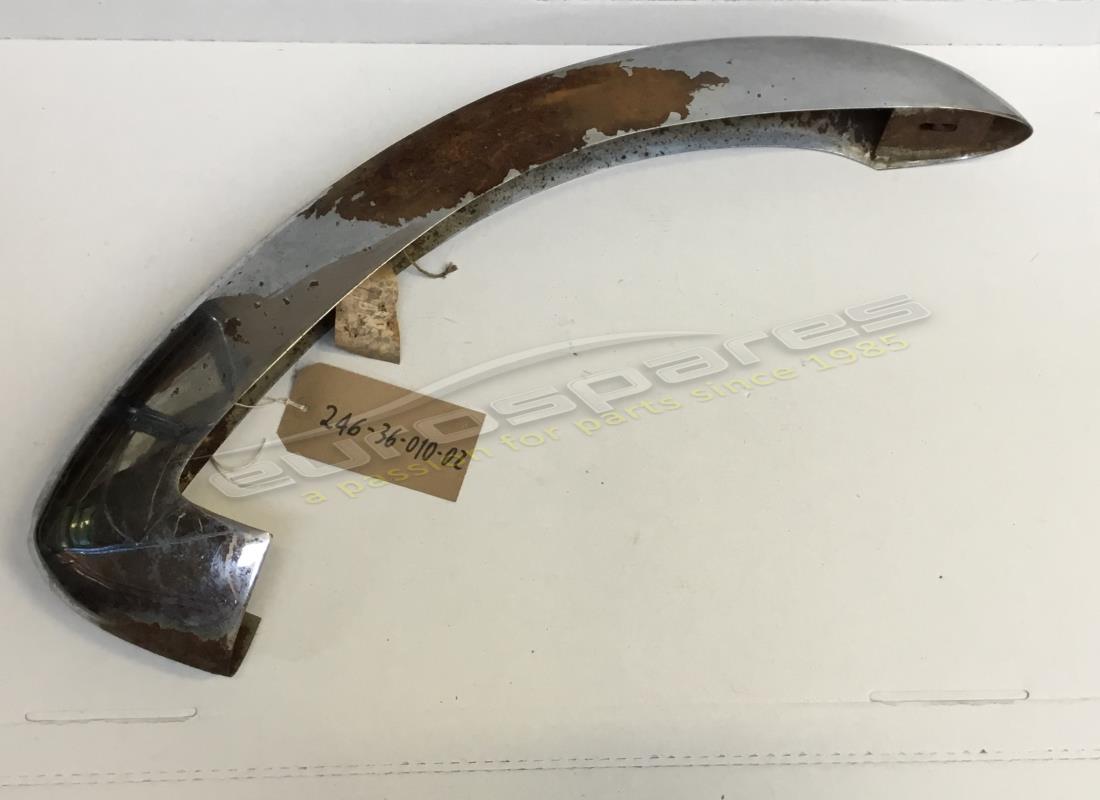

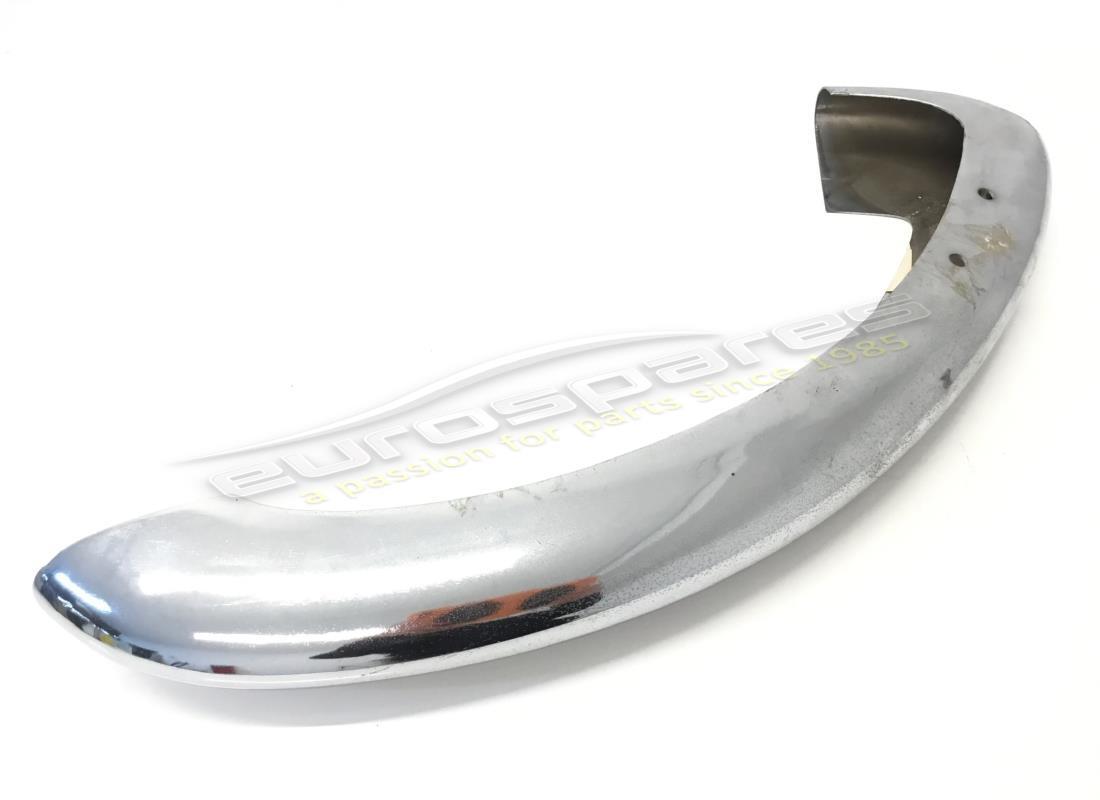

                MPN: 246-36-010-02
                RH FRONT CHROME BUMPER
                from £414.37
                from £414.37
                # 010
                MPN: 246-36-011-02
                LH FRONT CHROME CORNER BUMPER
                from £939.75
                from £939.75
                # 011
                MPN: 246-36-102-01
                BRACKET / SUPPORT
                FVN.201
                from £25.04
                from £25.04
                # 011
                MPN: 246-36-103-01
                BRACKET / SUPPORT
                FVN.201
                from £25.04
                from £25.04
