ferrari 275 (pininfarina coachwork) instrument panel group parts diagram

020.1 - Instrument Panel Group

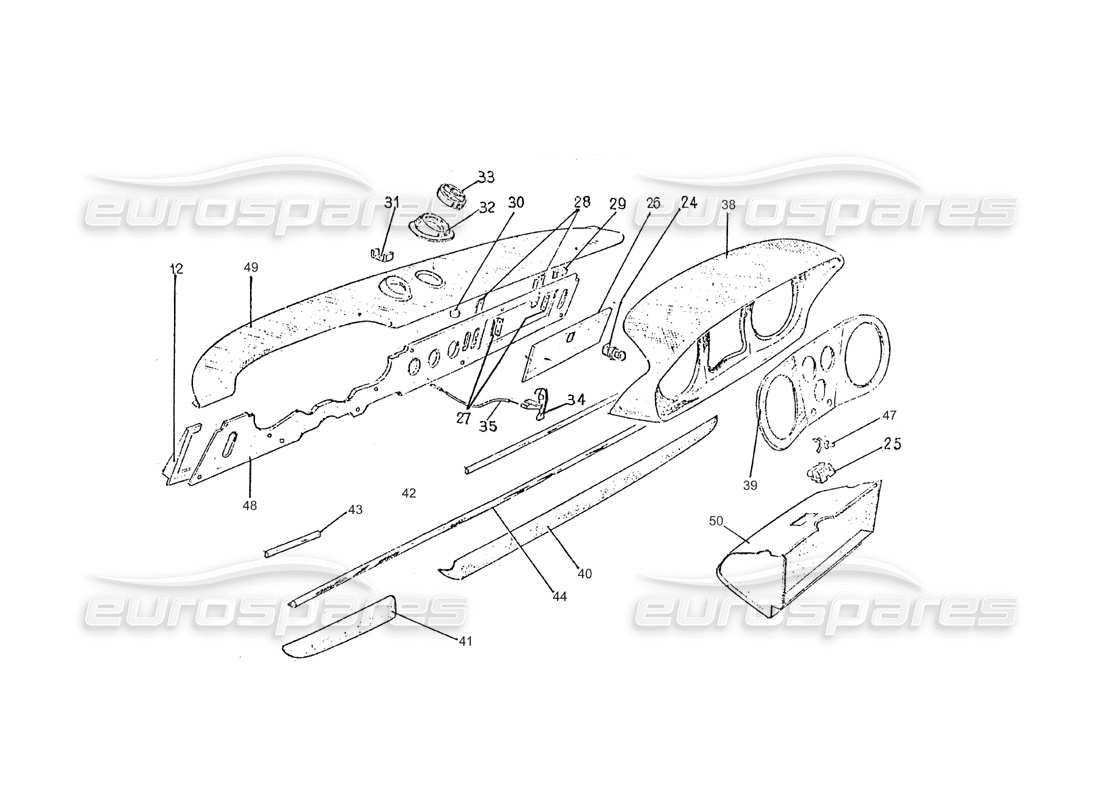

Ferrari 275 (Pininfarina Coachwork) Gruppo Plancia Portastrumenti Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 243-76-006-00
          VERTICAL PART OF THE DASHBOARD ELEMENT
          # 001
          MPN: 247-76-082-09
          LLEMONTO PARTO VORTICALO PLANCIA
          solo per G.S FVN 19
          # 002
          MPN: 247-76-008-00
          ELEMENTO SUPESIORE PLANCIA
          solo per G.S FVN 181
          # 003
          MPN: 243-76-012000
          CUPOLOTTO PLANCIA PORTASTRUM.COMPLESS.
          Valid For Late 275 4 Cam
          from £840.00
          from £840.00
          # 004
          MPN: 243-76-014-00
          ELC&ONCO VERT. CUPOLOTTO
          FVN. 200
          # 005
          MPN: 243-76-018-00
          IMBOTTITURA INFER. PLANCIA COMPL
          FVN. 200
          # 005
          MPN: 247-76-018-00
          IMBOTTITURA INFER. PLANCIA COMPL
          solo per G.S FVN 181
          # 006
          MPN: 243-76-019-00
          IMBOTTITURA INFER. PORTA INTERRUT. LATO GUIDA PLANCIA PORTASTRUM. COMPL.
          solo per G.S FVN 20
          # 006
          MPN: 247-76-019-00
          IMBOTTITURA INFER. PORTA INTERR. LATO GUIDA PLANCIA PORTASTRUMENTI. COMPL.
          solo per G.S FVN 19
          # 007
          MPN: 243-76-160-02
          MOLURA PER GUARNIZ. VANO APPARECCHIO SU PLANCIA
          FVN 200
          # 008
          MPN: 243-76-1?4-02
          MOLURA SUP. D. PARTS VERTIO. PLANCIA
          FVN 75
          # 009
          MPN: 243-76-115-02
          MOLURA SUP. S. PASTE VERTIO. PLANCIA
          FVN 75
          # 010
          MPN: 243-76-166-02
          MOLURA INFER. D. PARTS VERTIO. PLANCIA
          FVN 75
          # 011
          MPN: 243-76-187-02
          MOLURA INFER. S. PARTS VERTIO. PLANCIA
          FVN 200
          # 012
          MPN: 243-76-214-06
          ANGOLARI FISS. LAT. PLANCIA PORTASTR.D.
          # 012
          MPN: 243-76-215-06
          ANGOLARI FISS. LATT. PLANCIA PORTASTR.S.
          # 013
          MPN: 400-76-332-02
          FROGIO SU MOSTRINO PER RICOPR.VANO RADIO
          FVN 181
          # 014
          MPN: 241-76-522-00
          POMELLO PER ROOSTATO ILLUM.STRUM. CON LET.P
          FVN 200
          from £168.00
          from £168.00
          # 015
          MPN: 242-76-524-00
          POMELLO PER INTERRUT.TERGICRIST CON LET.W
          FVN 200
          from £168.00
          from £168.00
          # 016
          MPN: 241-76-526-00
          POMELLO PER INTERRUTTORE AUTOPULSE CON LETT.A
          FVN. 200
          from £168.00
          from £168.00
          # 017
          MPN: 243-76-528-00
          POMELLO PER INTERRUTBRE LUCE FARICON LETT.I
          FVN. 200
          from £173.25
          from £173.25
          # 018
          MPN: 241-76-532-00
          POMELLO PER INTERRUTTORA RISCALDAT. CON LETT.D
          FVN. 200
          from £168.00
          from £168.00
          # 019
          MPN: 243-76-678-08
          KOSTRINA PER RADIO
          FVN. 200
          # 020
          MPN: 243-76-680-00
          NOSTRINA RICOPRIM.VANO RADIO
          FVN. 200
          # 021
          MPN: 243-76-802-00
          CASSOTTO SOTTO PLANCIA COMPS.
          FVN. 200
          # 022
          MPN: 243-76-822-02
          SCONTRINO PER SERRATURA OASSETTO
          FVN. 200
          # 023
          MPN: 243-76-820-09
          INTELAIATURA SOST.CASSETTO SOTTO PLANCIA COMPLOCS.
          FVN. 200
          # 024
          MPN: 800-46-840-02
          BLOCCHETTO, PER CHIUS.PULSANTE CASSOTTO
          # 025
          MPN: 241-80-814-00
          DASHBOARD DRAWER CEILING LIGHT
          DVN.201
          # 026
          MPN: 246-76-890-00
          DOOR FOR DASHBOARD DRAWER
          DVN.201
          # 027
          MPN: 242-76-110-12
          DASHBOARD DRAWER DOOR HINGE
          DVN.201
          # 027
          MPN: 246-76-111-02
          DASHBOARD DRAWER DOOR HINGE S
          DVN.201
          # 028
          MPN: 246-76-832-06
          BRACKET / SUPPORT
          DVN. 201
          # 028
          MPN: 246-76-833-06
          BRACKET / SUPPORT
          DVN. 201
          # 029
          MPN: 134-76-266-00
          TASSELLO DISTANZIALE PARTS SUP.PLANCIA
          DVN. 201
          # 030
          MPN: 239-36-790-0o
          WASHER
          DVN. 201
          # 031
          MPN: 243-76-264-00
          PONTICELLO FISS.PARTE SUP.PLANCIA A TRAV. INF.PARABREZZA
          DVN. 201
          # 032
          MPN: 246-76-064-00
          SUPPORT FOR ROTARY DIFFUSER
          DVN. 301
          # 032
          MPN: 246-76-065-00
          SOPPORTO PER DIFFUSORS ROTANTE S
          DVN. 301
          # 033
          MPN: 20103800
          DIFFUSER
          DVN. 301
          from £403.95
          from £403.95
          # 034
          MPN: 251-76-550-01
          COMPLESSIVO COMANDO STARTER PER GD
          DVN. 22
          from £395.00
          from £395.00
          # 034
          MPN: 252-76-551-01
          COMPLESSIVO COMANDO STARTER PER GS
          DVN. 301
          from £9.09
          from £9.09
          # 035
          MPN: 246-76-562-00
          CAVO COMANDO STARTER
          # 036
          MPN: 246-76-004-00
          PARTE VERTICALS PLANCIA
          GS - DVN.182-FVN.300
          # 036
          MPN: 248-76-004-09
          PARTE VERTICALS PLANCIA
          GS - DVN.20-FVN.21
          # 037
          MPN: 246-76-008-00
          PARTE SUP.PLANCIA
          GS - DVN.182-FVN.300
          # 037
          MPN: 248-76-008-00
          PARTS SUP.PLANCIA
          GS - DVN.20-FVN.21
          # 038
          MPN: 246-76-012-00
          CUPOLOTTO PLANCIA PORTA-STRUMENTI CPL.
          DVN. 201
          # 039
          MPN: 246-76-014-00
          ELEM.VERT.CUPOLOTTO
          DVN. 201
          from £519.75
          from £519.75
          # 040
          MPN: 246 676 -0180
          INBOTT.INF.PLARCIA CPL.
          GS - DVN.182
          # 040
          MPN: 248-76-018-00
          INBOTT.INF.PLARCIA CPL.
          CD - DVN. 21
          # 041
          MPN: 246-76-019-00
          IMBOTT.INF.PLANCIA LATO GUIDA
          GS - DVN.182
          # 041
          MPN: 248-76-019-00
          IMBOTT.INF.PLANCIA LATO GUIDA
          CD - DVN. 21
          # 042
          MPN: 246-76-174-08
          MOLURA SUP. D PARTE VERT.PLANCIA GD
          DVN.76
          # 042
          MPN: 248-76-174-08
          MOLURA SUP. D PARTS VERT.PLANCIA GD
          DVN.76
          # 043
          MPN: 246-76-175-08
          MOLURA SUP. S PARTE VERT.PLANCIA GS
          DVN.76
          # 043
          MPN: 248-760175-08
          MOLURA SUP. S PARTE VERT.PLANCIA GD
          DVN.76
          # 044
          MPN: 246-76-186-08
          MOLURA INF. PLANCIA GS
          DVN.76
          # 044
          MPN: 248-76-186-08
          MOLURA INF. PLANCIA CD
          DVN.76
          # 045
          MPN: 20043105/E
          Dicitura Pininfarina su paraf.ant.
          # 046
          MPN: 246-76-802-00
          CASSETTO SOTTO PLANCIA CPL.
          DVN.201 - FVN.300
          # 047
          MPN: 242-76-120-16
          DRAWER LOCK BUTTON STOP
          DVN.201
          # 048
          MPN: 246-76-004-10
          PARTS VERT.PLANCIA GS
          DVN. 301
          # 048
          MPN: 248-76-004-16
          PARTE VERT..PLANCIA GD
          DVN. 22
          from £1,989.75
          from £1,989.75
          # 049
          MPN: 246-76-008-10
          PARTS SUP.PLANCIA CPL. GS
          DVN. 301
          # 049
          MPN: 248-76-008-10
          PARTS SUP.PLANCIA CPL. CD
          DVN. 22
          # 050
          MPN: 246-76-802-10
          CASSETTO SOTTO PLANCIA CPL.
          DVN. 301
