019 - Blow - By System

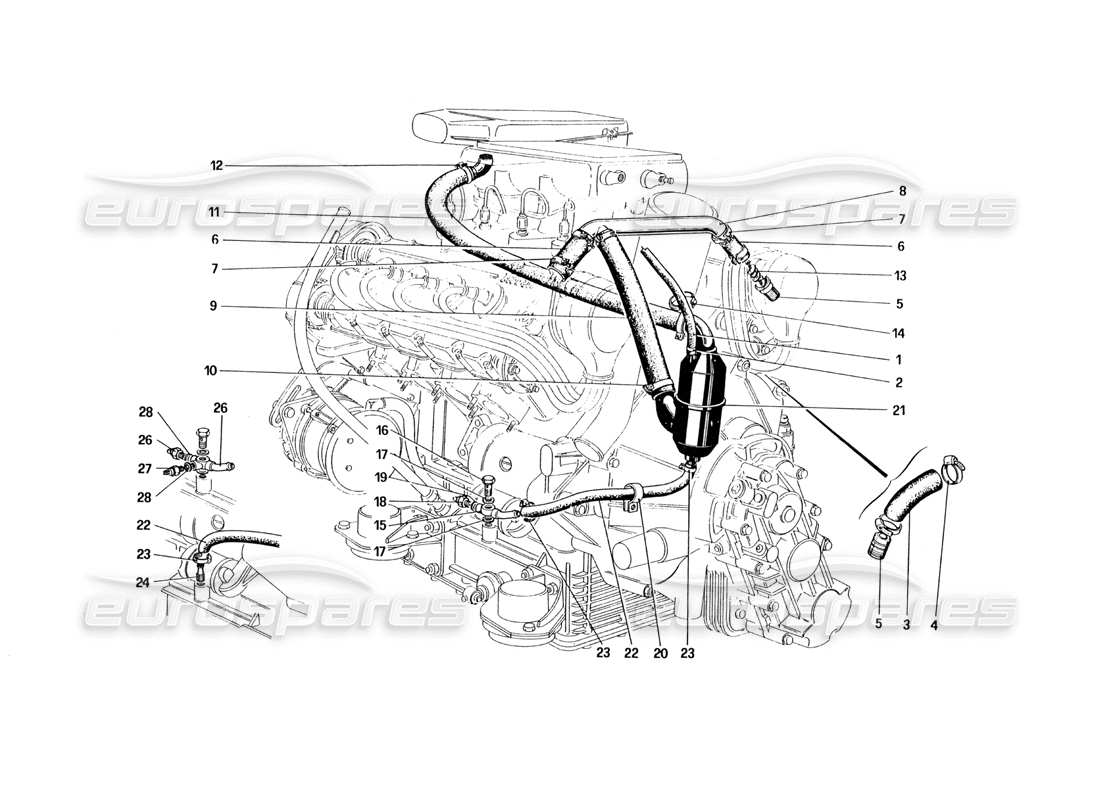

Ferrari 328 (1985) Blow - By System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 111188
HOSE FROM SEPARATOR TO AIR INTAKE
Not for U.S. Version
Supersession
Supersession
This part replaces part number 101057
# 001
MPN: 129109
HOSE FROM VAPOR SEPARATOR TO AIR DELIVERY PIPE
For U.S. Version
from £8.91
from £8.91
# 002
MPN: 12171080
CLAMP
# 003
MPN: 118216
SLEEVE
from £58.89
from £58.89
# 004
MPN: 10176280
CLAMP
# 005
MPN: 118238
UNION
# 006
MPN: 116783
OIL BREATHER HOSE
from £31.64
from £31.64
This part replaces part number 106335
# 007
MPN: 10176190
CLAMP
from £0.75
from £0.75
# 008
MPN: 118312
3 WAY PIPE
from £74.70
from £74.70
# 009
MPN: 118958
TUBE FROM VAPOR SEPARATOR TO OIL SUMP
Supersession
Supersession
# 010
MPN: 10176280
CLAMP
# 011
MPN: 118958
TUBE FROM VAPOR SEPARATOR TO OIL SUMP
Supersession
Supersession
# 012
MPN: 10176280
CLAMP
# 013
MPN: 118237
SPLASH SCREEN
# 014
MPN: 14560287
CLAMP
Supersession
Supersession
# 015
MPN: 121842
REVOLVING DEVICE
Not for CH
from £86.13
from £86.13
# 016
MPN: 121424
UNION
from £9.72
from £9.72
# 017
MPN: 10282460
GASKET
from £0.47
from £0.47
# 018
MPN: 115652
BIMETAL THERMOSTAT
Not for CH
from £50.47
from £50.47
# 019
MPN: 10260068
GASKET-
Not for CH
# 020
MPN: 10480480
PIPE SECURING CLAMP
# 021
MPN: 128532
OIL VAPOUR SEPARATOR
from £83.06
from £83.06
# 022
MPN: 106338
HOSE FROM VAPOR SEPARATOR
Supersession
Supersession
# 023
MPN: 12178480
CLAMP
# 024
MPN: 115834
UNION
Not for CH and U.S. Version
# 025
MPN: 128650
REVOLVING DEVICE
For CH
# 026
MPN: 125857
THERMOSTAT
For CH
from £81.66
from £81.66
# 027
MPN: 127155
THERMOSTAT
For CH
from £12.98
from £12.98
# 028
MPN: 10260060
GASKET
For CH
from £0.79
from £0.79
