024 - Clutch and Controls
Ferrari 328 (1988) Clutch and controls Parts Diagram

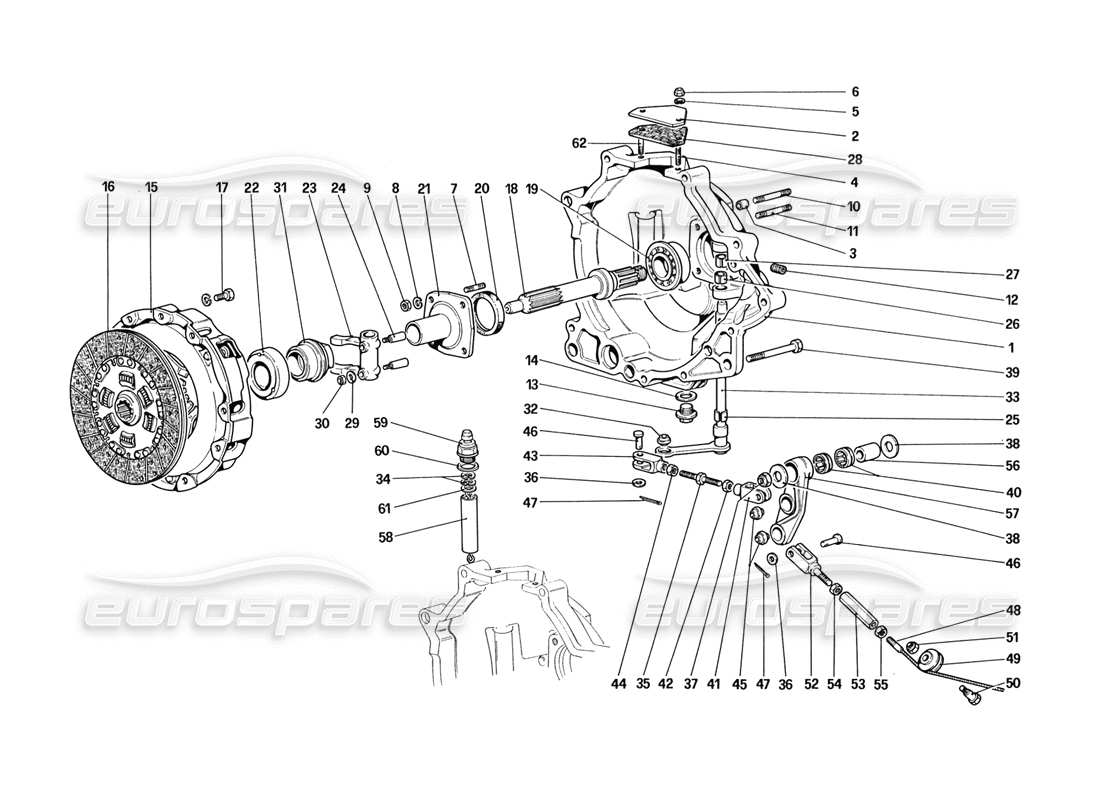

View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 126025
CLUTCH HOUSING - WITH ASSEMBLY NO. 127752
from £958.81
from £958.81
# 001
MPN: 127752
CLUTCH HOUSING
from £935.57
from £935.57
This part replaces part number 116801 - and 1 more. Click to view details
# 002
MPN: 109404
INSPECTION COVER
from £36.46
from £36.46
This part replaces part number 40361107
# 003
MPN: 102704
CENTERING DOWEL
from £1.59
from £1.59
This part replaces part number 500805
# 004
MPN: 11000921
STUD
from £2.00
from £2.00
# 005
MPN: 12601171
WASHER
Supersession
Supersession
# 006
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 007
MPN: 13516521
STUD
Supersession
Supersession
This part replaces part number 102682 - and 1 more. Click to view details
# 008
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 - and 2 more. Click to view details
# 009
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
# 010
MPN: 13517621
STUD
from £9.04
from £9.04
# 011
MPN: 13517521
STUD
from £6.77
from £6.77
# 012
MPN: 14326150
THREADED PLUG
from £0.53
from £0.53
This part replaces part number 12326150
# 013
MPN: 14326540
OIL DRAIN PLUG
from £35.89
from £35.89
# 014
MPN: 10261860
GASKET
from £0.53
from £0.53
This part replaces part number 10279550 - and 1 more. Click to view details
# 015
MPN: 121562
CLUTCH PRESSURE PLATE
from £138.99
from £138.99
This part replaces part number 101533 - and 5 more. Click to view details
# 015
MPN: 134997
CLUTCH ½ (NOT FOR SPARE)
# 015
MPN: FCLK001
Clutch Kit - 3 Piece
Pressure plate & bearing (121562-110558-100849)
# 015
MPN: FCLK001
CLUTCH KIT
use : FCLK001
# 016

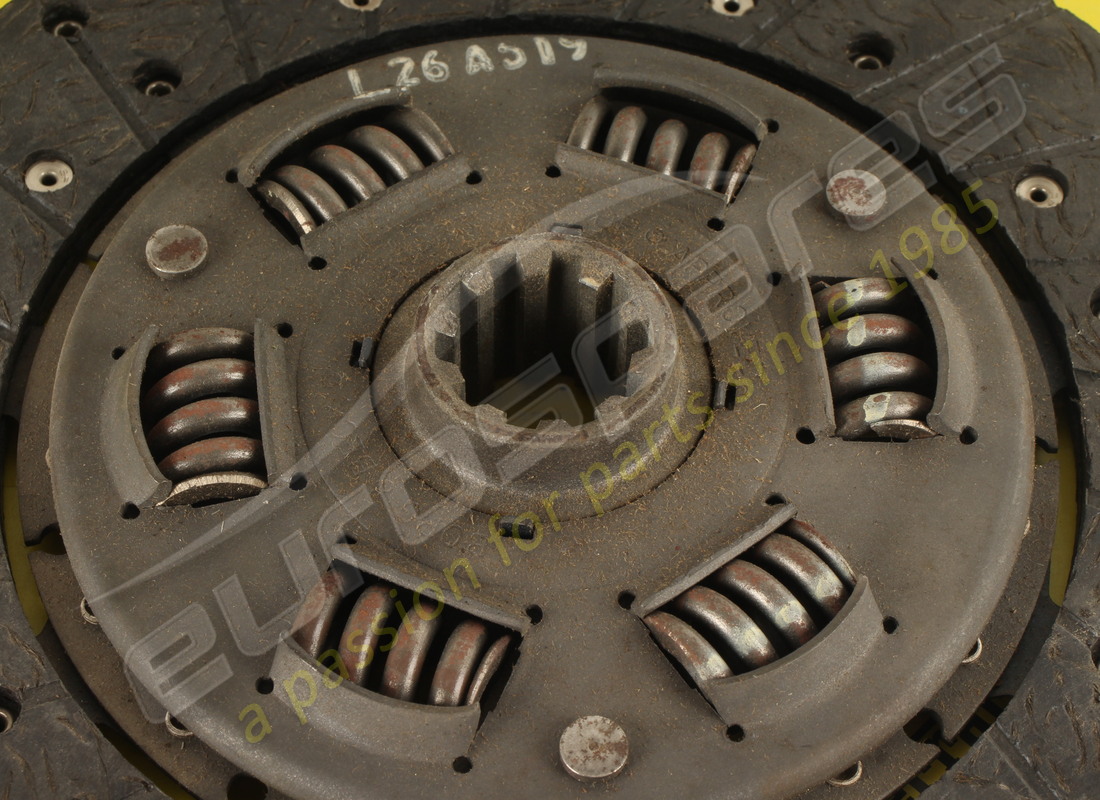

MPN: 110558
CLUTCH DISC
Replaces 134996
from £224.14
from £224.14
This part replaces part number 105709 - and 4 more. Click to view details
# 016
MPN: 120482
CLUTCH DISC
not as spare part - use part number: 110558
Supersession
Supersession
# 016
MPN: 134996
CLUTCH DISC
Not as spare part - Replaced by 110558
Supersession
Supersession
This part replaces part number 110294 - and 3 more. Click to view details
# 017
MPN: 13825821
BOLT
Supersession
Supersession
# 017
MPN: 13825821
BOLT
Supersession
Supersession
# 018
MPN: 133398
CLUTCH SHAFT
from £735.94
from £735.94
This part replaces part number 126815
# 019
MPN: 103042
BEARING
from £153.66
from £153.66
# 020
MPN: 134714
OIL SEALS
from £10.35
from £10.35
This part replaces part number 110314
# 021
MPN: 105136
FLANGE WITH SLEEVE
from £199.66
from £199.66
# 022
MPN: 100849
THRUST BEARING
from £45.00
from £45.00
This part replaces part number 100845 - and 3 more. Click to view details
# 023
MPN: 108428
CLUTCH CONTROL LEVER - WITH ASSEMBLY NO. 116327
from £871.24
from £871.24
# 024
MPN: 108429
PIN
from £44.52
from £44.52
# 025
MPN: 103226
OUTER BUSH
from £2.38
from £2.38
# 026
MPN: 103227
INNER BUSH
from £2.48
from £2.48
# 027
MPN: 106500
INNER BUSH
from £5.85
from £5.85
# 028
MPN: 109405
GASKET FOR COVER
from £9.48
from £9.48
# 029
MPN: 108430
WASHER
from £4.61
from £4.61
# 030
MPN: 12574121
NUT
Supersession
Supersession
This part replaces part number 12574111 - and 2 more. Click to view details
# 031
MPN: 116326
BUSHING FOR BEARING
from £256.02
from £256.02
# 032
MPN: 100860
BALL JOINT
from £66.39
from £66.39
This part replaces part number SERIE SS6
# 033
MPN: 116327
LEVER AND CONTROL SHAFT
from £170.96
from £170.96
# 034
MPN: 12604571
WASHER
Supersession
Supersession
# 035
MPN: 116329
TIE ROD
from £20.74
from £20.74
This part replaces part number 103999 which we have in stock - and 2 more. Click to view details
# 036
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 037
MPN: 148020
NUT
from £2.57
from £2.57
This part replaces part number 102825 - and 3 more. Click to view details
# 038
MPN: 108939
SPACER FOR LEVER
from £23.25
from £23.25
# 039
MPN: 15541121
SCREW
from £0.57
from £0.57
# 040
MPN: 103223
ROLLER CAGE
from £44.75
from £44.75
# 041
MPN: 100855
FORK. LH THREAD
from £47.25
from £47.25
This part replaces part number 500631
# 042
MPN: 100862
NUT. LH THREAD
from £5.20
from £5.20
This part replaces part number 100861
# 043
MPN: 10-32-38
FORK
from £20.64
from £20.64
This part replaces part number 500599 - and 1 more. Click to view details
# 044
MPN: 100861
LOCKNUT
Supersession
Supersession
This part replaces part number 100862 which we have in stock
# 045
MPN: 100860
BALL JOINT
from £66.39
from £66.39
This part replaces part number SERIE SS6
# 046
MPN: 103218
PIN
from £16.94
from £16.94
This part replaces part number 100857 - and 1 more. Click to view details
# 047
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 048
MPN: 106745
CLUTCH CONTROL CABLE
LHD (RHD = 108342)
from £45.47
from £45.47
# 049
MPN: 157557
SHEAVE
from £11.42
from £11.42
This part replaces part number 105665 - and 3 more. Click to view details
# 050
MPN: 10902621
BOLT
Supersession
Supersession
This part replaces part number 10902611
# 051
MPN: 12575411
NUT
Supersession
Supersession
# 052
MPN: 138523
FORK
from £26.19
from £26.19
# 053
MPN: 10091014
SLEEVE
from £25.40
from £25.40
This part replaces part number 10091011 - and 1 more. Click to view details
# 054
MPN: 10725911
LOCKNUT
Supersession
Supersession
This part replaces part number 95900403
# 055
MPN: 10727311
LOCKNUT (LH THREAD)
Supersession
Supersession
This part replaces part number 95560
# 056
MPN: 107437
BUSHING FOR LEVER
from £39.86
from £39.86
# 057
MPN: 116472
CLUTCH CONTROL LEVER
from £541.62
from £541.62
This part replaces part number 106750
# 058
MPN: 126044
PIPE
from £203.83
from £203.83
# 059
MPN: 126046
PLUG FOT BREATHER
# 060
MPN: 10263460
GASKET
from £0.47
from £0.47
This part replaces part number 95119
# 061
MPN: 12625201
SPACER
from £1.67
from £1.67
# 062
MPN: 11001121
STUD
from £0.47
from £0.47
-part-diagram-025.webp "FERRARI 328 (1988) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 328 (1988) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 328 (1988) GEARBOX - DIFFERENTIAL HOUSING AND OIL PUMP PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 328 (1988) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 328 (1988) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 328 (1988) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 328 (1988) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 328 (1988) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 328 (1988) PEDAL BOARD - BRAKE AND CLUTCH CONTROLS (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 328 (1988) CLUTCH HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 328 (1988) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 328 (1988) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 328 (1988) ANTI SKID SYSTEM PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 328 (1988) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 328 (1988) HAND - BRAKE CONTROLL PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 328 (1988) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 328 (1988) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 328 (1988) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 328 (1988) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 328 (1988) FRONT SUSPENSION - WISHBONES (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 328 (1988) FRONT SUSPENSION - WISHBONES (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 328 (1988) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 328 (1988) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 328 (1988) REAR SUSPENSION - WISHBONES (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 328 (1988) REAR SUSPENSION - WISHBONES (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 328 (1988) WHEELS (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 328 (1988) WHEELS (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 328 (1988) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI 328 (1988) ELECTRIC GENERATING SYSTEM PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI 328 (1988) AIR CONDITIONING COMPRESSOR AND CONTROLS (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI 328 (1988) AIR CONDITIONING COMPRESSOR AND CONTROLS (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI 328 (1988) TOOL KIT & CAR COVER PARTS DIAGRAM")
-part-diagram-057.webp "FERRARI 328 (1988) THROTTLE CONTROLL (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-058.webp "FERRARI 328 (1988) PEDAL BOARD - CLUTCH CONTROLL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-059.webp "FERRARI 328 (1988) PEDAL BOARD - CLUTCH CONTROLL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-060.webp "FERRARI 328 (1988) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-061.webp "FERRARI 328 (1988) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 328 (1988) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 328 (1988) FRONT BUMPERS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 328 (1988) REAR BUMPERS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS (NOT FOR AUS - US - SA - J - CH87 - CH88) PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS (FOR AUS AND CH87 AND CH88) PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS (FOR US - SA - J) PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (UNTILL CAR NO. 66965 - NOT FOR US - AUS - CH87 - SA - J) PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FROM CAR NO. 66967 - NOT FOR US - AUS - CH87 - SA - J) PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR US - AUS - SA - J) PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR CH87 - CH88) PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 328 (1988) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 328 (1988) REAR BONNET AND LUGGAGE COMPARTMENT COVERING PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 328 (1988) DOORS (UNTILL CAR NO. 71595) PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 328 (1988) DOORS (FROM CAR NO. 71597) PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 328 (1988) DOORS (FROM CAR NO. 71597) PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 328 (1988) DOORS (FROM CAR NO. 75929) PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 328 (1988) GLASSES PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 328 (1988) INTERIOR TRIM, ACCESSORIES AND SEATS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 328 (1988) SEAT PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 328 (1988) TUNNEL AND ROOF PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 328 (1988) INSTRUMENTS PANEL (UNTILL CAR NO. 71595) PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 328 (1988) INSTRUMENTS PANEL (FROM CAR NO. 71597) PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 328 (1988) INSTRUMENTS AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 328 (1988) ELECTRICAL SYSTEM - CABLES PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI 328 (1988) ELECRRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI 328 (1988) EXTERNAL LIGHTS AND MOULDING PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI 328 (1988) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI 328 (1988) WINDSHIELD WIPER, WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI 328 (1988) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI 328 (1988) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 328 (1988) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 328 (1988) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 328 (1988) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 328 (1988) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 328 (1988) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 328 (1988) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 328 (1988) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 328 (1988) TIMING SYSTER - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 328 (1988) AIR INJECTION (FOR CH86 AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 328 (1988) AIR INJECTION (FOR USA AND CH88 VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 328 (1988) ANTIEVAPORATIVE EMISSION CONTROLL SYSTEM (FOR USA - SA AND CH88 VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 328 (1988) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 328 (1988) FUEL DISTRIBUTORS LINES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 328 (1988) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 328 (1988) FUEL DISTRIBUTORS LINES (FOR CH88 VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 328 (1988) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 328 (1988) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 328 (1988) EXHAUST SYSTEM (NOT FOR US - SA - CH87 AND CH88 VERSION) PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 328 (1988) EXHAUST SYSTEM (FOR US - SA - CH87 AND CH88 VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 328 (1988) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 328 (1988) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 328 (1988) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 328 (1988) WATER PUMP AND PIPINGS PARTS DIAGRAM")
