ferrari 330 gt 2+2 countershaft parts diagram

020 - Countershaft

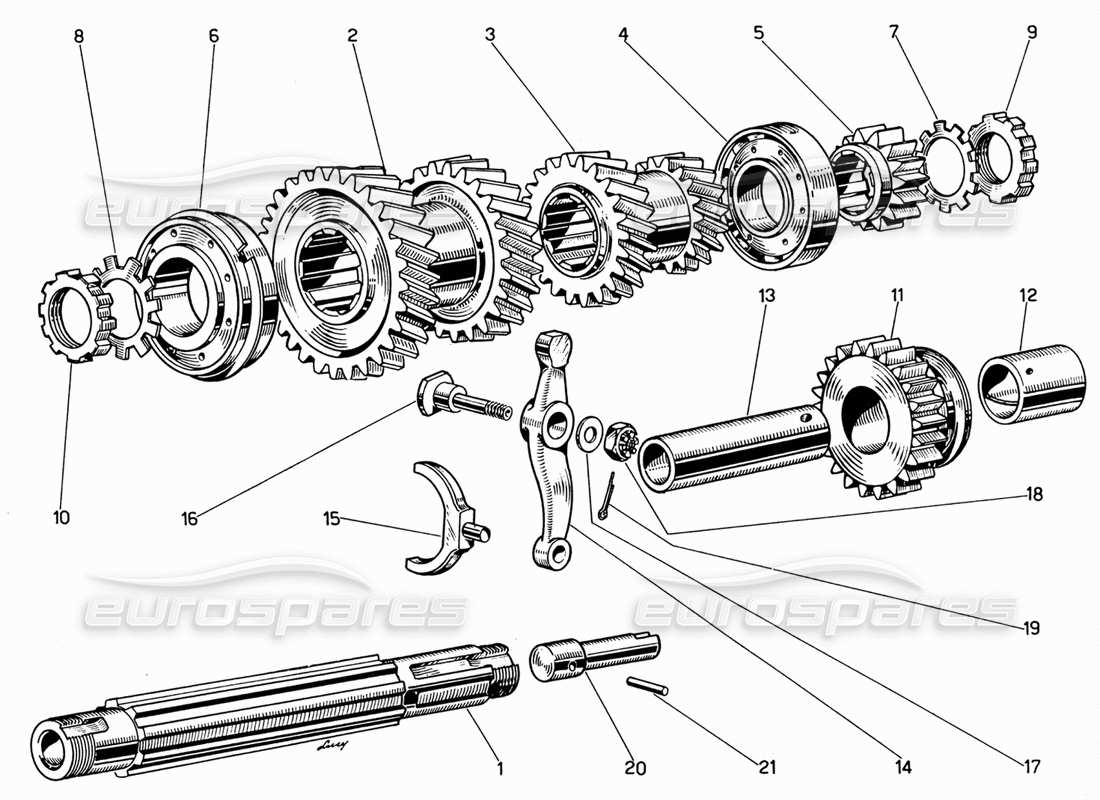

Ferrari 330 GT 2+2 Countershaft Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 520484
                                            ALBERO SECONDARIO .
                                            from £345.74
                                            from £345.74
                                            # 002
                                            MPN: 520486
                                            INGRANAGGIO RINVIO SECONDARIO E RINVIO 33 VELOCITA
                                            from £315.29
                                            from £315.29
                                            # 003
                                            MPN: 55076
                                            INGRANAGGIO RINVIO 1 E 2 VELOCITA
                                            from £2,179.16
                                            from £2,179.16
                                            # 004
                                            MPN: 95892323
                                            CUSCINETTO POSTERIORE ALBERO SECONDARIO
                                            from £263.40
                                            from £263.40
                                            This part replaces part number 94875
                                            # 005
                                            MPN: 520487
                                            INGRANAGGIO R.M. SUL SECONDARIO
                                            from £55.03
                                            from £55.03
                                            # 006
                                            MPN: 33298
                                            CUSCINETTO ANT. SUPPORTO ALBERO SECONDARIO
                                            # 008
                                            MPN: 33305
                                            WASHER
                                            Supersession
                                            Supersession
                                            # 009
                                            MPN: 93327
                                            GHIERA FISSAGGIO CUSCINETTO POSTERIORE ALBERO SECONDARIO
                                            from £128.21
                                            from £128.21
                                            # 010
                                            MPN: 93325
                                            GHIERA FISSAGGIO CUSCINETTO ANTERIORE ALBERO SECONDARIO
                                            from £151.94
                                            from £151.94
                                            # 011
                                            MPN: 55083
                                            INGRANAGGIO COMANDO R.M
                                            from £172.49
                                            from £172.49
                                            # 013
                                            MPN: 53063
                                            PIVOT
                                            from £47.94
                                            from £47.94
                                            # 014
                                            MPN: 55086
                                            LEVER
                                            from £54.34
                                            from £54.34
                                            # 015
                                            MPN: 53111
                                            SELECTOR FORK REVERSE
                                            from £34.80
                                            from £34.80
                                            # 016
                                            MPN: 53113
                                            PIVOT
                                            from £31.96
                                            from £31.96
                                            # 018
                                            MPN: 92638
                                            NUT
                                            from £2.99
                                            from £2.99
                                            # 020
                                            MPN: 55769
                                            PIVOT
                                            from £66.39
                                            from £66.39
                                            # 021
                                            MPN: 55774
                                            PIN
                                            from £2.66
                                            from £2.66
