024 - Differential Case

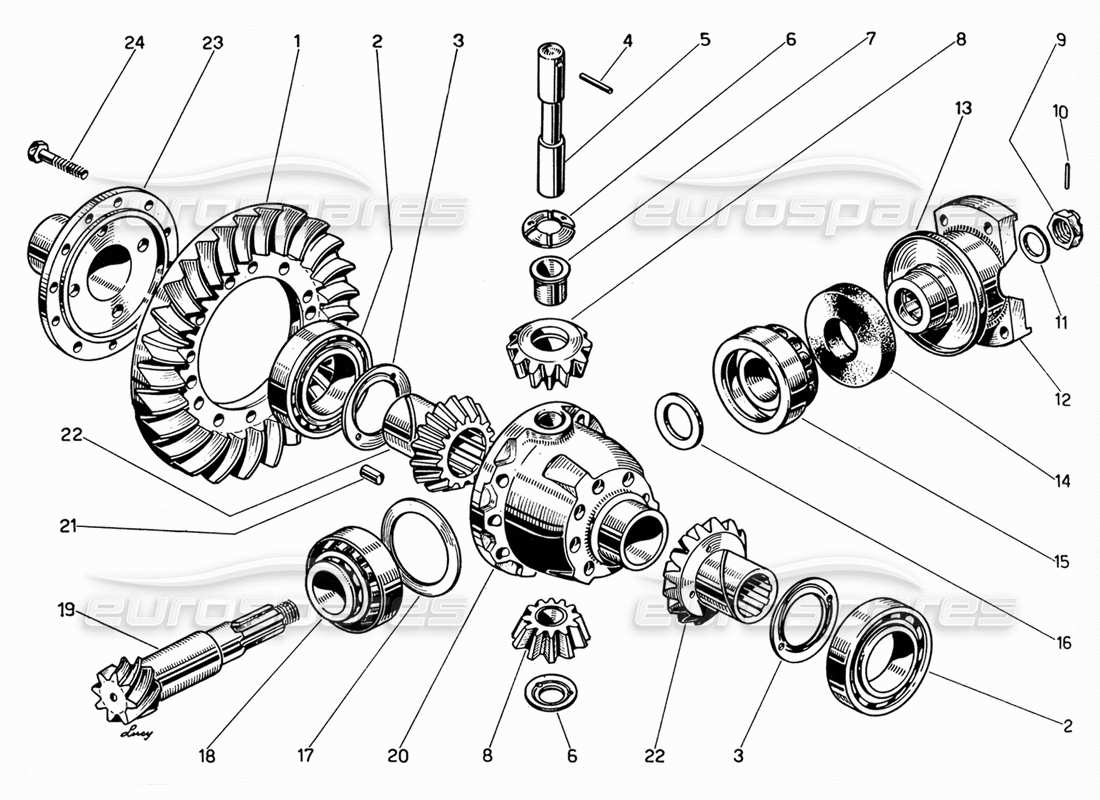

Ferrari 330 GT 2+2 Differential Case Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 59433
CORONA PER COPPIA CONICA R-8 X 34
Supersession
Supersession
# 002
MPN: 368 A - 362 A
CUSCINETTO PER SCATOLA DIFFERENZIALE A RULLI CONICI
# 003
MPN: 59108
WASHER
from £35.62
from £35.62
# 004
MPN: 94625
PIN
from £1.64
from £1.64
# 005
MPN: 59105
PIVOT
# 006
MPN: 59111
SEDE PER SATELLITI
from £15.49
from £15.49
# 007
MPN: 59110
BUSH
from £54.64
from £54.64
# 008
MPN: 59107
SATELLITE PER DIFFERENZIALE R=12/17
Supersession
Supersession
# 009
MPN: 580129
NUT
# 010
MPN: C I
COPIGLIA PER DADO FISSAGGIO FLANGIA
# 011
MPN: 59225
WASHER
# 012
MPN: 580091
FLANGIA PER GIUNTO DI TRASMISSIONE
from £653.54
from £653.54
# 013
MPN: 580086
PROTEZIONE ANTIPOLVERE SCATOLA PONTE
# 014
MPN: 95850311

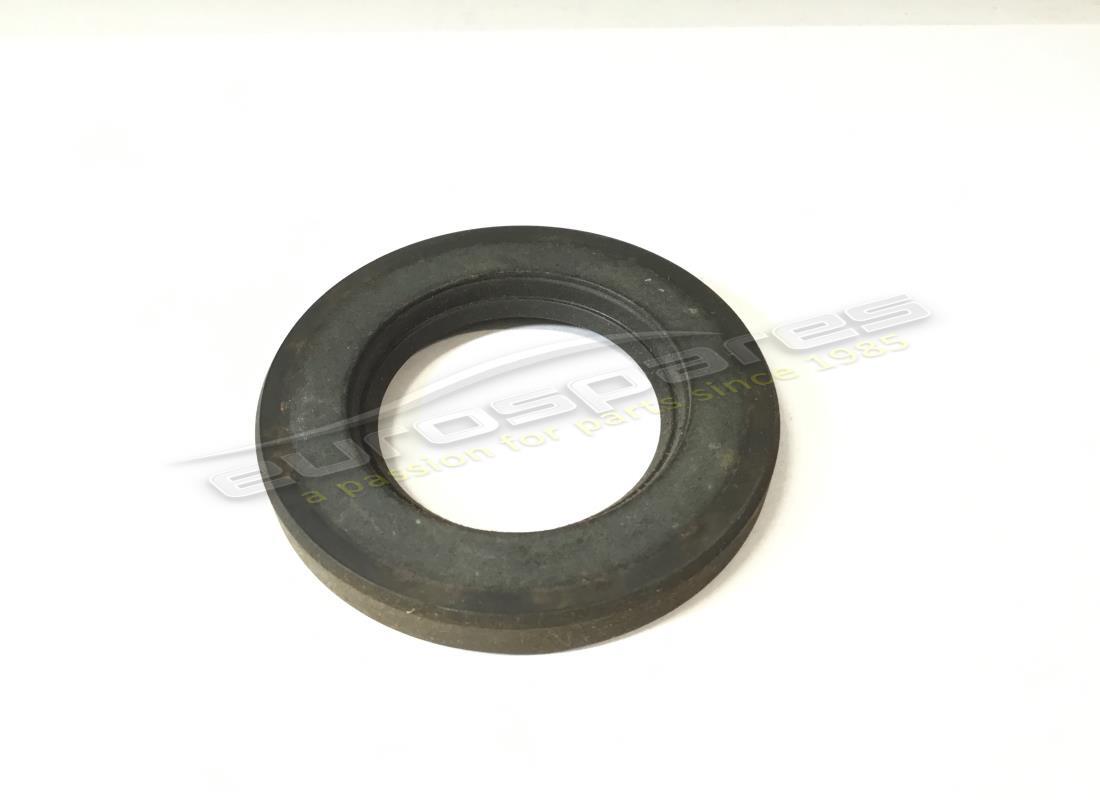

SEALING RING
42-72-10
from £12.45
from £12.45
# 015
MPN: 95890004
CUSCINETTO ANTERIORE PIGNONE A RULLI CONICI
from £24.78
from £24.78
# 016
MPN: 580074
DISTANZIALE FRA CUSCINETTO E PIGNONE
from £4.06
from £4.06
# 017
MPN: 580075
DISTANZIALE FRA CUSCINETTO E SCATOLA PONTE
from £5.72
from £5.72
# 018
MPN: 95890006
CUSCINETTO POSTERIORE PIGNONE A RULLI CONICI
from £53.64
from £53.64
# 019
MPN: 580068
PIGNONE PER COPPIA CONICA R-8 X 34
# 020
MPN: 580082
SCATOLA DIFFERENZIALE
from £395.96
from £395.96
# 021
MPN: 94267
GRANO CENTRAGGLO COPERCHIO ALLA SCATOLA
from £4.46
from £4.46
# 022
MPN: 59463
PLANETARIO DIFFERENZIALE R=12/17
from £68.29
from £68.29
# 023
MPN: 580077
COVER
from £115.42
from £115.42
# 024
MPN: 580079
(A RICHIESTA (DA COSTRUIRE))
Pigone per coppia conica R = 9 x 34
# 024
MPN: 580090
(A RICHIESTA (DA COSTRUIRE))
Pigone per coppia conica R = 8 x 32
# 024
MPN: 59417
(A RICHIESTA (DA COSTRUIRE))
Corona per coppia conica R = 9 x 34
# 024
MPN: 59427
BOLT
from £12.33
from £12.33
# 024
MPN: 59501
(A RICHIESTA (DA COSTRUIRE))
Corona per coppia conica R = 8 x 32
