![Ferrari 365 GT4 2+2 (1973) Clutch and Controls Parts Diagram Ferrari 365 GT4 2+2 (1973) Clutch and Controls Parts Diagram](/images/catalogues/73/Large/019.jpg)
019 - Clutch and Controls

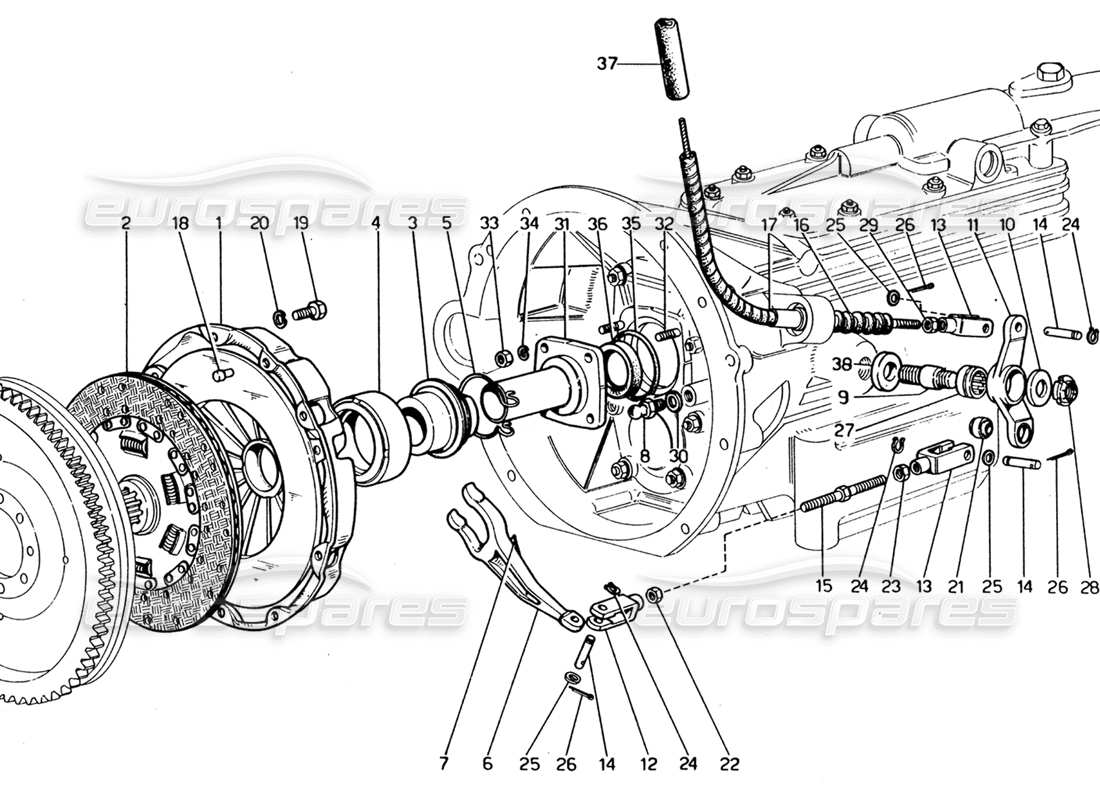

Ferrari 365 GT4 2+2 (1973) Clutch and Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: FCLK002
3PC CLUTCH KIT
INCLUDES 109382, 110558, 100849
# 001
MPN: 109382
CLUTCH PRESSURE PLATE
from £295.00
from £295.00
This part replaces part number 105708 - and 2 more. Click to view details
# 001
MPN: 109382
CLUTCH PRESSURE PLATE
from £295.00
from £295.00
This part replaces part number 105708 - and 2 more. Click to view details
# 001
MPN: 109382
CLUTCH PRESSURE PLATE
from £295.00
from £295.00
This part replaces part number 105708 - and 2 more. Click to view details
# 002
MPN: 110558
CLUTCH DISC
Replaces 105709
from £226.08
from £226.08
This part replaces part number 105709 - and 4 more. Click to view details
# 002
MPN: 110558
DISCO FRIZIONE
not as spare part - use part number: 110558
from £226.08
from £226.08
This part replaces part number 105709 - and 4 more. Click to view details
# 003
MPN: 100848
BUSH
from £152.19
from £152.19
This part replaces part number 100845 - and 3 more. Click to view details
# 004
MPN: 100849
CLUTCH CONTROL BUSH AND BEARING ASSEMBLY
not as spare part - use part number: 100849
from £45.00
from £45.00
This part replaces part number 100845 - and 3 more. Click to view details
# 004
MPN: 100849
CUSCINETTO REGGISPINTA
from £45.00
from £45.00
This part replaces part number 100845 - and 3 more. Click to view details
# 005
MPN: 100850
SPRING
Supersession
Supersession
# 006
MPN: 100846
CLUTCH CONTROL LEVER AND SPRING ASSEMBLY
from £580.83
from £580.83
This part replaces part number 500489
# 006
MPN: 100847
LEVER
from £20.93
from £20.93
# 007
MPN: 100851
SPRING
from £48.33
from £48.33
This part replaces part number 500192
# 008
MPN: 100852
SPHERICAL PIVOT
from £44.46
from £44.46
This part replaces part number 500515 - and 1 more. Click to view details
# 009
MPN: 101601
PIVOT
from £113.60
from £113.60
This part replaces part number 500757
# 009
MPN: 105286
PIVOT
# 010
MPN: 100853
WASHER
from £15.36
from £15.36
This part replaces part number 105688 - and 1 more. Click to view details
# 011
MPN: 100854
LEVER
from £148.42
from £148.42
This part replaces part number 500494
# 012
MPN: 100856
FORK
from £28.66
from £28.66
This part replaces part number 500600 - and 1 more. Click to view details
# 013
MPN: 100855
FORK
from £47.25
from £47.25
This part replaces part number 500631
# 014
MPN: 100857
PIVOT
Supersession
Supersession
# 015
MPN: 101566
REGISTRO
from £29.50
from £29.50
This part replaces part number 103217
# 016
MPN: 100858
SOFFIETTO PROTEZIONE CAVO
from £21.30
from £21.30
This part replaces part number 500551 - and 1 more. Click to view details
# 017
MPN: 110020
HOSE FOR MECHANICAL CLUTCH CONTROL
from £54.97
from £54.97
This part replaces part number 100859 - and 1 more. Click to view details
# 018
MPN: 101535
DOWEL
from £22.69
from £22.69
This part replaces part number 94892 - and 1 more. Click to view details
# 019
MPN: 105297
WASHER
from £21.25
from £21.25
# 019
MPN: 16043430
BOLT
Supersession
Supersession
# 020
MPN: 127496
WASHER
from £0.47
from £0.47
This part replaces part number 10516671 - and 2 more. Click to view details
# 021
MPN: 100860
BEARING
from £66.39
from £66.39
This part replaces part number SERIE SS6
# 022
MPN: 100861
NUT
Supersession
Supersession
This part replaces part number 100862 which we have in stock
# 023
MPN: 100862
NUT
from £5.20
from £5.20
This part replaces part number 100861
# 024
MPN: 11065474
SEEGER RING
Supersession
Supersession
This part replaces part number 11065476
# 025
MPN: 13550221
WASHER
from £0.47
from £0.47
# 026
MPN: 10734101
SPLIT PIN
from £1.55
from £1.55
This part replaces part number C1
# 027
MPN: 100864
CUSCINETTO A RULLINI
from £36.86
from £36.86
# 028
MPN: 100865
RING NUT
from £9.91
from £9.91
# 029
MPN: 100861
NUT
Supersession
Supersession
This part replaces part number 100862 which we have in stock
# 030
MPN: 12601471
WASHER
Supersession
Supersession
# 031
MPN: 100863
FLANGIA CON MANICOTTO
# 032
MPN: 11500030
THREADED STUD
from £0.47
from £0.47
# 033
MPN: 15896221
NUT
from £0.71
from £0.71
This part replaces part number 15896225
# 034
MPN: 10516471
WASHER
Supersession
Supersession
# 035
MPN: 101615
SEALING RING
from £2.32
from £2.32
# 036
MPN: 101614
SEALING RING
Supersession
Supersession
# 037
MPN: 102508
SHEATH PROTECTION TUBE
from £26.19
from £26.19
# 038
MPN: 105297
SPACER
from £21.25
from £21.25
