003 - RH cylinder head

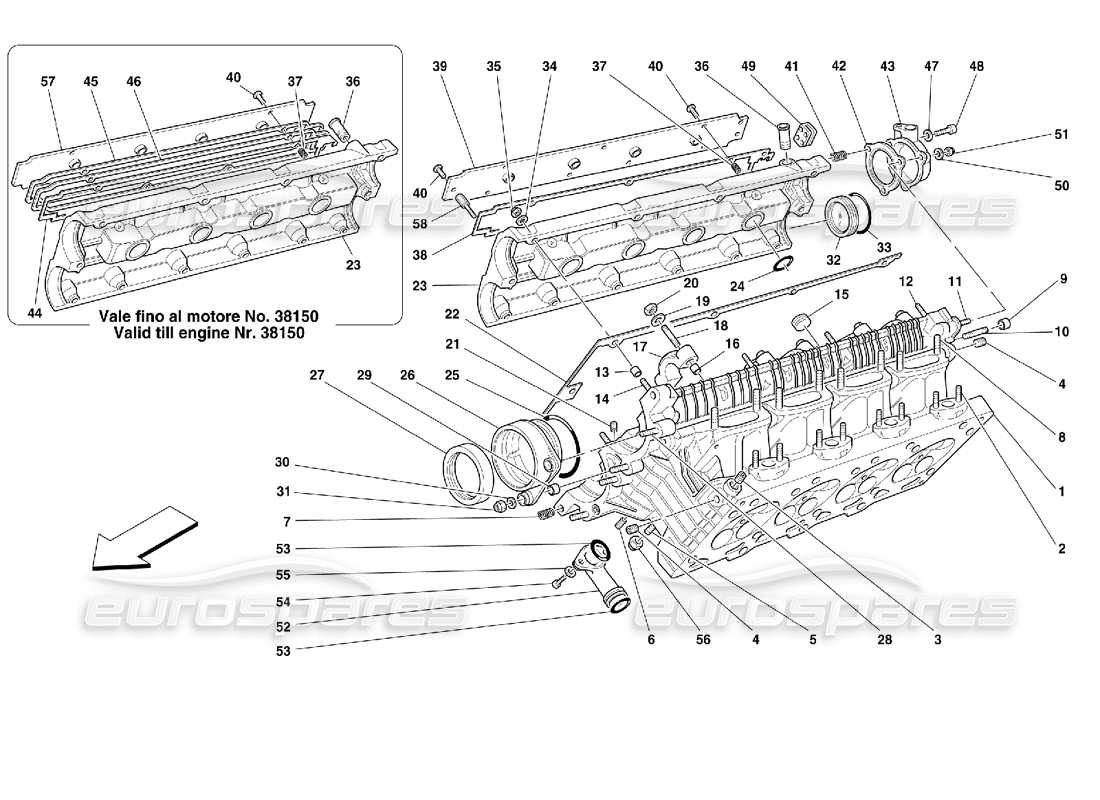

Ferrari 355 (2.7 Motronic) R.H. Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 164038
COMPLETE RH CYLINDERS HEAD
-Valid till engine Nr. 38150 - Not as spare part now - Replaced by 166452
Supersession
Supersession
This part replaces part number 154014 which we have in stock
# 000
MPN: 166452
COMPLETE RH CYLINDERS HEAD
-Valid from engine Nr. 38151
from £3,039.75
from £3,039.75
This part replaces part number 164038 - and 5 more. Click to view details
# 001
MPN: 154014
RH HEAD
-Valid till engine Nr. 38150 - Not as spare part - With the complete cylinders head 164038
from £2,362.50
from £2,362.50
# 001
MPN: 164882
RH HEAD
-Valid from engine Nr. 38151 - Not as spare part - With the complete cylinders head 166452
Supersession
Supersession
# 002
MPN: 11500224
STUD
from £0.47
from £0.47
This part replaces part number 11500221 - and 1 more. Click to view details
# 003
MPN: 14326150
THREADED PLUG
from £0.51
from £0.51
This part replaces part number 12326150
# 004
MPN: 14326050
THREADED PLUG
from £1.00
from £1.00
# 005
MPN: 13543324
STUD
from £0.89
from £0.89
This part replaces part number 13543321
# 006
MPN: 13525270
THREADED INSERT
from £0.47
from £0.47
# 007
MPN: 13525470
THREADED INSERT
from £0.51
from £0.51
This part replaces part number 107333
# 008
MPN: 13516924
STUD
from £1.31
from £1.31
This part replaces part number 13516921
# 009
MPN: 102725
DOWEL
from £0.67
from £0.67
# 010
MPN: 13541324
STUD
from £1.03
from £1.03
This part replaces part number 13541321
# 011
MPN: 13541424
STUD
from £0.53
from £0.53
This part replaces part number 13541421
# 012
MPN: 13541124
STUD
-Till engine Nr. 38150 q.ty 10
from £12.35
from £12.35
This part replaces part number 13541121
# 013
MPN: 102725
DOWEL
from £0.67
from £0.67
# 014
MPN: 11500624
STUD
from £0.51
from £0.51
This part replaces part number 11500621 which we have in stock
# 015
MPN: 127635
THREADED PLUG
from £1.51
from £1.51
This part replaces part number 183447
# 016
MPN: 102725
DOWEL
from £0.63
from £0.63
# 017
-
CAP
-Not as spare part-With the complete cylinders head
# 018
MPN: 13541424
STUD
from £0.48
from £0.48
This part replaces part number 13541421
# 019
MPN: 11197774
WASHER
from £0.51
from £0.51
This part replaces part number 11197770 - and 3 more. Click to view details
# 020
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 021
MPN: 141563
THREADED PLUG
from £0.92
from £0.92
This part replaces part number 194493
# 022
MPN: FCCG006
CAM COVER GASKET SET
Gaskets with spark plug seals only
from £48.12
from £48.12
# 022
MPN: FCCG006/A

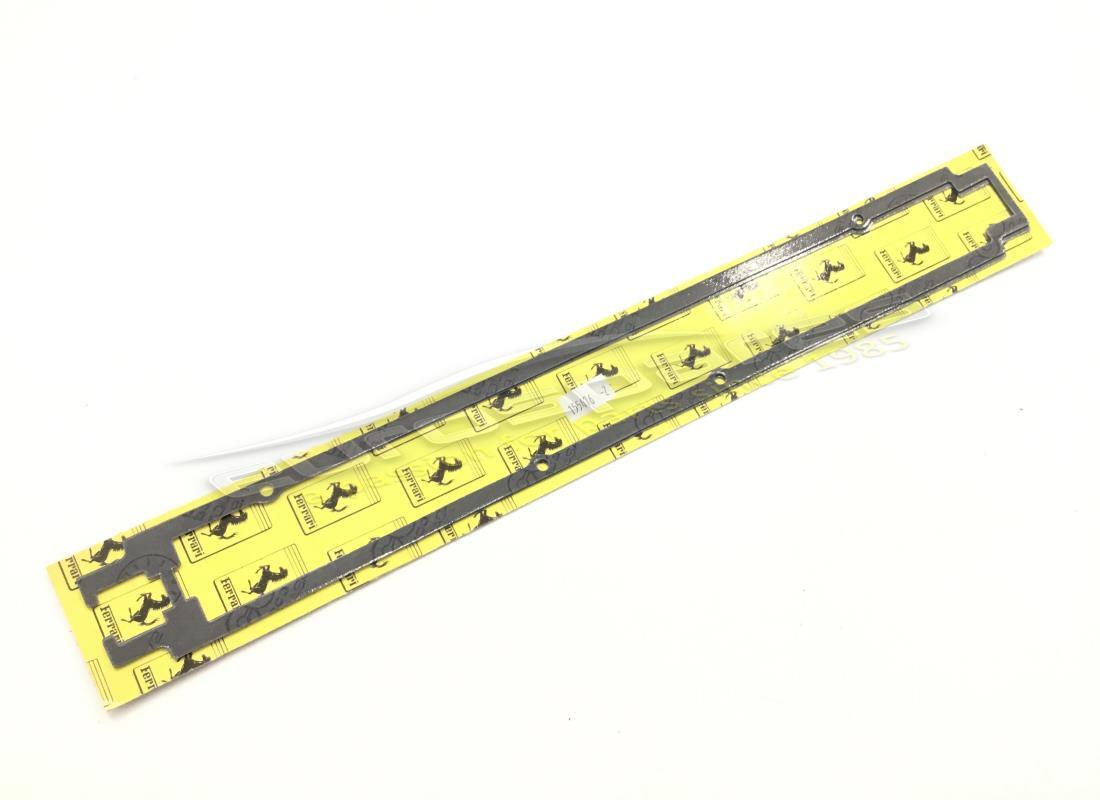

Cam Cover Gasket & Seal kit
Includes FCCG006 & Seals - x2 117275 / x4 163987 / x8 149554 / x4 158349.
# 023
MPN: 154653
RH CYLINDERS HEAD COVER
-Valid till engine Nr. 38150 - Not as spare part - With the complete cylinders head 164038
# 023
MPN: 163623
RH CYLINDERS HEAD COVER
-Valid from engine Nr. 38151 - Not as spare part - With the complete cylinders head 166452
# 024
MPN: 149554
O.R. GASKET
from £1.69
from £1.69
# 025
MPN: 158349
O.R. GASKET
from £2.51
from £2.51
# 026
MPN: 158330
FRONT SMALL COVER
from £571.68
from £571.68
# 027
MPN: 163987
SEALING RING
from £9.95
from £9.95
This part replaces part number 136526
# 028
MPN: 11500424
STUD
from £0.48
from £0.48
This part replaces part number 11500421
# 029
MPN: 102725
DOWEL
from £0.66
from £0.66
# 030
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 031
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 032
MPN: 148023
REAR SMALL COVER
from £13.20
from £13.20
# 033
MPN: 117275
O.R. GASKET
from £2.93
from £2.93
# 034
MPN: 12604274
WASHER
-Till engine Nr. 38150 q.ty 12
from £0.52
from £0.52
This part replaces part number 12604271 - and 1 more. Click to view details
# 035
MPN: 100044
NUT
-Till engine Nr. 38150 q.ty 12
from £0.53
from £0.53
This part replaces part number 151230
# 036
MPN: 154525
UNION
from £26.85
from £26.85
# 037
MPN: 13525170
THREADED INSERT
-Till engine Nr. 38150 q.ty 4
from £0.48
from £0.48
# 038
MPN: 163621
GASKET
-Valid from engine Nr. 38151
from £5.40
from £5.40
# 039
MPN: 163607
COVER
-Valid from engine Nr. 38151
from £483.45
from £483.45
# 040
MPN: 160784
SCREW
-Till engine Nr. 38150 q.ty 4
from £0.61
from £0.61
# 041
MPN: 13525470
THREADED INSERT
from £0.53
from £0.53
This part replaces part number 107333
# 042
MPN: 140787
GASKET
(minimum order quantity = 4)
from £7.13
from £7.13
# 043
MPN: 151275
RH PHASE SENSOR SUPPORT
from £437.83
from £437.83
# 044
MPN: 155476
GASKET
from £5.06
from £5.06
# 044
MPN: 164261
GASKET
-Valid till engine Nr. 38150 - Not as spare part now - Replaced by 168703
Supersession
Supersession
# 044
MPN: 168703
GASKET
-Valid till engine Nr. 38150 - Replaced by 164261
from £149.92
from £149.92
This part replaces part number 164261 - and 2 more. Click to view details
# 045
MPN: 164917
UPPER GASKET
-Not as spare part
Supersession
Supersession
# 046
MPN: 164918
LOWER GASKET
-Not as spare part
Supersession
Supersession
# 047
MPN: 12604274
WASHER
from £0.54
from £0.54
This part replaces part number 12604271 - and 1 more. Click to view details
# 048
MPN: 14305521
SCREW
from £0.53
from £0.53
# 049
MPN: 163861
CABLE GROMMET
-Valid from engine Nr. 38151
from £41.52
from £41.52
# 050
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 051
MPN: 12575411
NUT
Supersession
Supersession
# 052
MPN: 151485
OIL EXHAUST DUCTING
from £203.53
from £203.53
# 053
MPN: 147278
O.R. GASKET
from £0.98
from £0.98
# 054
MPN: 14304224
SCREW
from £0.50
from £0.50
# 055
MPN: 12601174
WASHER
from £0.53
from £0.53
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 056
MPN: 138392
NUT
(minimum order quantity = 25)
from £0.61
from £0.61
# 057
MPN: 155470
COVER
-Valid till engine Nr. 38150
from £495.00
from £495.00
# 058
MPN: 163582
COVERS FIXING PIN
-Valid from engine Nr. 38151
from £25.47
from £25.47
-part-diagram-004.webp "FERRARI 355 (2.7 MOTRONIC) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 355 (2.7 MOTRONIC) TIMING - TAPPETS AND SHIELDS PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 355 (2.7 MOTRONIC) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 355 (2.7 MOTRONIC) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 355 (2.7 MOTRONIC) AIR INJECTION DEVICE PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 355 (2.7 MOTRONIC) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 355 (2.7 MOTRONIC) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 355 (2.7 MOTRONIC) FUEL TANK PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 355 (2.7 MOTRONIC) ANTIEVAPORATION DEVICE PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 355 (2.7 MOTRONIC) AIR BOXES PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 355 (2.7 MOTRONIC) AIR INTAKE PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 355 (2.7 MOTRONIC) THROTTLE HOLDERS AND CONTROLS PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 355 (2.7 MOTRONIC) ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 355 (2.7 MOTRONIC) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 355 (2.7 MOTRONIC) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 355 (2.7 MOTRONIC) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 355 (2.7 MOTRONIC) PUMPS AND OIL SUMP PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 355 (2.7 MOTRONIC) COOLING SYSTEM - NOURICE PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 355 (2.7 MOTRONIC) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 355 (2.7 MOTRONIC) WATER PUMP AND OIL-WATER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 355 (2.7 MOTRONIC) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 355 (2.7 MOTRONIC) GEARBOX - DIFFERENTIAL HOUSING AND INTERMEDIATE CASING PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 355 (2.7 MOTRONIC) GEARBOX COVERS AND LUBRICATION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 355 (2.7 MOTRONIC) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 355 (2.7 MOTRONIC) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 355 (2.7 MOTRONIC) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 355 (2.7 MOTRONIC) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 355 (2.7 MOTRONIC) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 355 (2.7 MOTRONIC) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC SYSTEM FOR ABS PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 355 (2.7 MOTRONIC) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 355 (2.7 MOTRONIC) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 355 (2.7 MOTRONIC) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC STEERING BOX PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 355 (2.7 MOTRONIC) MECHANICAL STEERING BOX PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 355 (2.7 MOTRONIC) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 355 (2.7 MOTRONIC) HYDRAULIC STEERING PUMP PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 355 (2.7 MOTRONIC) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 355 (2.7 MOTRONIC) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 355 (2.7 MOTRONIC) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 355 (2.7 MOTRONIC) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 355 (2.7 MOTRONIC) WHEELS PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 355 (2.7 MOTRONIC) CURRENT GENERATOR - STARTING MOTOR - BATTERY PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 355 (2.7 MOTRONIC) AIR CONDITIONING COMPRESSOR PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 355 (2.7 MOTRONIC) TOOLS EQUIPMENT PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 355 (2.7 MOTRONIC) SPARE WHEEL AND EQUIPMENT - OPTIONAL- PARTS DIAGRAM")
-part-diagram-100.webp "FERRARI 355 (2.7 MOTRONIC) BODY - GENERAL UNITS PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 355 (2.7 MOTRONIC) BODY - UNITS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 355 (2.7 MOTRONIC) FRONT PART STRUCTURES PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 355 (2.7 MOTRONIC) CENTRAL PART STRUCTURES PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 355 (2.7 MOTRONIC) FRAME - REAR PART ELEMENTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 355 (2.7 MOTRONIC) ROOF - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 355 (2.7 MOTRONIC) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 355 (2.7 MOTRONIC) BODY - SHIELDS AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 355 (2.7 MOTRONIC) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 355 (2.7 MOTRONIC) FRONT COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 355 (2.7 MOTRONIC) ROOF TRIMS PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 355 (2.7 MOTRONIC) ROOF TRIMS PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 355 (2.7 MOTRONIC) TOP PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 355 (2.7 MOTRONIC) TOP HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 355 (2.7 MOTRONIC) FRONT HOOD PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 355 (2.7 MOTRONIC) OPENING DEVICE FOR FRONT HOOD PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 355 (2.7 MOTRONIC) REAR HOOD PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 355 (2.7 MOTRONIC) OPENING DEVICES FOR REAR HOOD AND GAS DOOR PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - FRAMEWORK AND REAR MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - GLASS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 355 (2.7 MOTRONIC) DOORS - INNER TRIMS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 355 (2.7 MOTRONIC) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI 355 (2.7 MOTRONIC) REAR BUMPER PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI 355 (2.7 MOTRONIC) GLASSES AND GASKETS PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI 355 (2.7 MOTRONIC) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI 355 (2.7 MOTRONIC) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-132.webp "FERRARI 355 (2.7 MOTRONIC) DASHBOARD PARTS DIAGRAM")
-part-diagram-133.webp "FERRARI 355 (2.7 MOTRONIC) DASHBOARD PARTS DIAGRAM")
-part-diagram-134.webp "FERRARI 355 (2.7 MOTRONIC) AIR-BAGS PARTS DIAGRAM")
-part-diagram-135.webp "FERRARI 355 (2.7 MOTRONIC) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-136.webp "FERRARI 355 (2.7 MOTRONIC) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-137.webp "FERRARI 355 (2.7 MOTRONIC) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-138.webp "FERRARI 355 (2.7 MOTRONIC) WINDSHIELD WIPER AND CONTROLS PARTS DIAGRAM")
-part-diagram-139.webp "FERRARI 355 (2.7 MOTRONIC) GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-140.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-141.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL BOARDS - PASSENGERS COMPARTMENT PARTS DIAGRAM")
-part-diagram-142.webp "FERRARI 355 (2.7 MOTRONIC) ELECTRICAL BOARDS AND DEVICES - FRONT PART PARTS DIAGRAM")
-part-diagram-143.webp "FERRARI 355 (2.7 MOTRONIC) EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATION PARTS DIAGRAM")
-part-diagram-144.webp "FERRARI 355 (2.7 MOTRONIC) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 355 (2.7 MOTRONIC) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 355 (2.7 MOTRONIC) CRANKSHAFT, CONRODS AND PISTONS PARTS DIAGRAM")
