006 - timing - controls

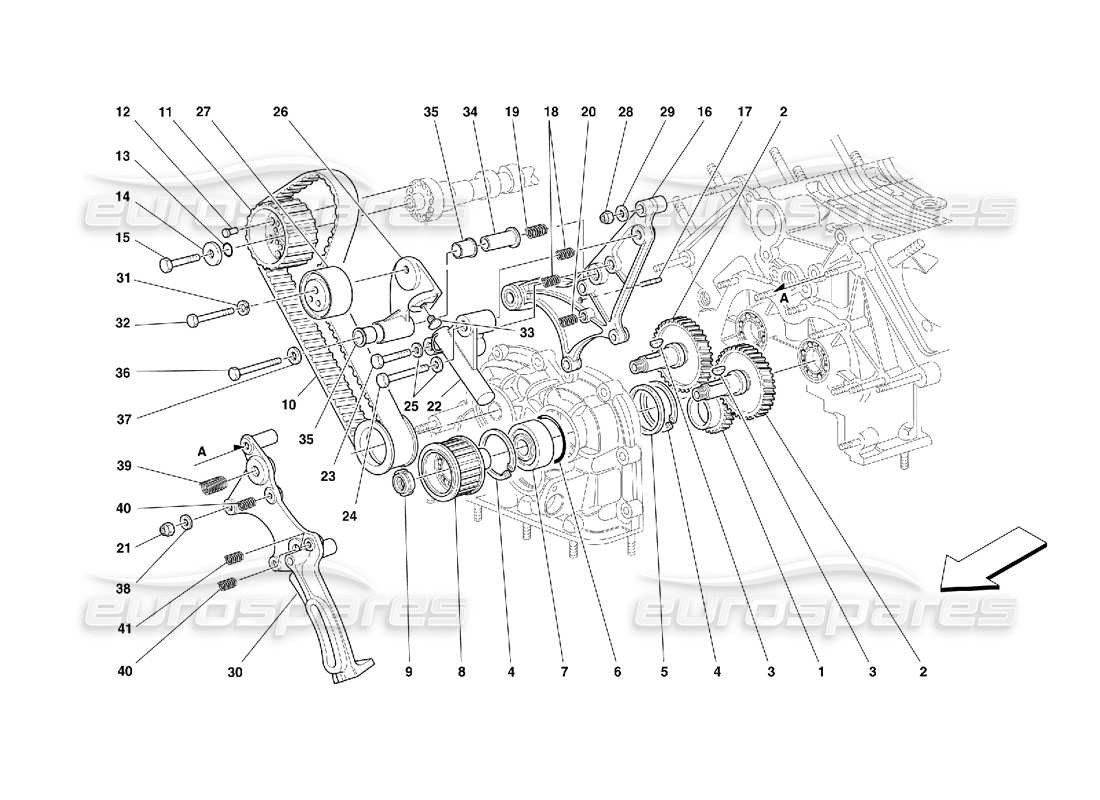

Ferrari 355 (5.2 Motronic) Timing - Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 163949
DRIVING GEAR
from £231.22
from £231.22
This part replaces part number 154353
# 002
MPN: 163950
DRIVEN GEAR
from £957.80
from £957.80
This part replaces part number 154354
# 003
MPN: 10206320
DISC KEY
from £0.89
from £0.89
# 004
MPN: 11060576
SEEGER RING
from £1.17
from £1.17
This part replaces part number 11060575
# 005
MPN: 133377
WASHER
from £9.14
from £9.14
# 006
MPN: 136140
O.R. GASKET
from £0.76
from £0.76
# 007
MPN: 170787
BEARING
from £67.25
from £67.25
This part replaces part number 144690
# 007
MPN: 170787
BEARING
-Valid after stock exhaustion of 144690
from £67.25
from £67.25
This part replaces part number 144690
# 008
MPN: 154238
DRIVING PULLEY
from £176.48
from £176.48
# 009
MPN: 104919
RING NUT
from £3.20
from £3.20
# 010
MPN: 184986
TIMING CONTROL BELT
from £37.02
from £37.02
This part replaces part number 181610
# 011
MPN: 157705
DRIVEN PULLEY
from £262.60
from £262.60
# 012
MPN: 106203
DOWEL
from £3.65
from £3.65
# 013
MPN: 114808
SEAL RING
from £2.58
from £2.58
# 014
MPN: 117274
WASHER
from £1.84
from £1.84
# 015
MPN: 146540
SCREW
from £13.48
from £13.48
This part replaces part number 16326431 - and 3 more. Click to view details
# 016
MPN: 157393
GENERATOR SUPPORT UPPER COMPLETE BRACKET
from £120.97
from £120.97
# 017
MPN: 11499924
STUD
from £8.32
from £8.32
This part replaces part number 11499921 which we have in stock
# 018
MPN: 13525870
THREADED INSERT
from £1.59
from £1.59
This part replaces part number 105510
# 019
MPN: 13526170
THREADED INSERT
from £4.28
from £4.28
This part replaces part number 105197
# 020
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
# 021
MPN: 104030
NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 022
MPN: 157356
HYDRAULIC TIGHTENER
from £201.83
from £201.83
# 023
MPN: 205693
SCREW
from £34.27
from £34.27
# 024
MPN: 16044224
SCREW
from £0.53
from £0.53
This part replaces part number 16044221 which we have in stock
# 025
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 026
MPN: 158098
BELT TIGHTENER SUPPORT
from £93.11
from £93.11
# 027
MPN: 167464
BELT TIGHTENING PULLEY
(price each)
from £210.00
from £210.00
This part replaces part number 158157
# 028
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 029
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 030
MPN: 178256
COMPRESSOR SUPPORT COMPLETE BRACKET
-See also Pos. 4 Table 54
from £528.52
from £528.52
This part replaces part number 162947
# 031
MPN: 127497
WASHER
from £0.54
from £0.54
This part replaces part number 10516871 - and 2 more. Click to view details
# 032
MPN: 11307024
SCREW
from £2.54
from £2.54
# 033
MPN: 158156
PAWL
from £141.56
from £141.56
# 034
MPN: 158138
BUSHING
from £47.18
from £47.18
# 035
MPN: 159425
BUSHING
from £1.29
from £1.29
# 036
MPN: 11288034
SCREW
from £0.68
from £0.68
This part replaces part number 11288031
# 037
MPN: 12626224
WASHER
from £0.54
from £0.54
This part replaces part number 12626221
# 038
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 039
MPN: 13526170
THREADED INSERT
from £4.28
from £4.28
This part replaces part number 105197
# 040
MPN: 13525870
THREADED INSERT
from £1.59
from £1.59
This part replaces part number 105510
# 041
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
