007 - injection device - ignition

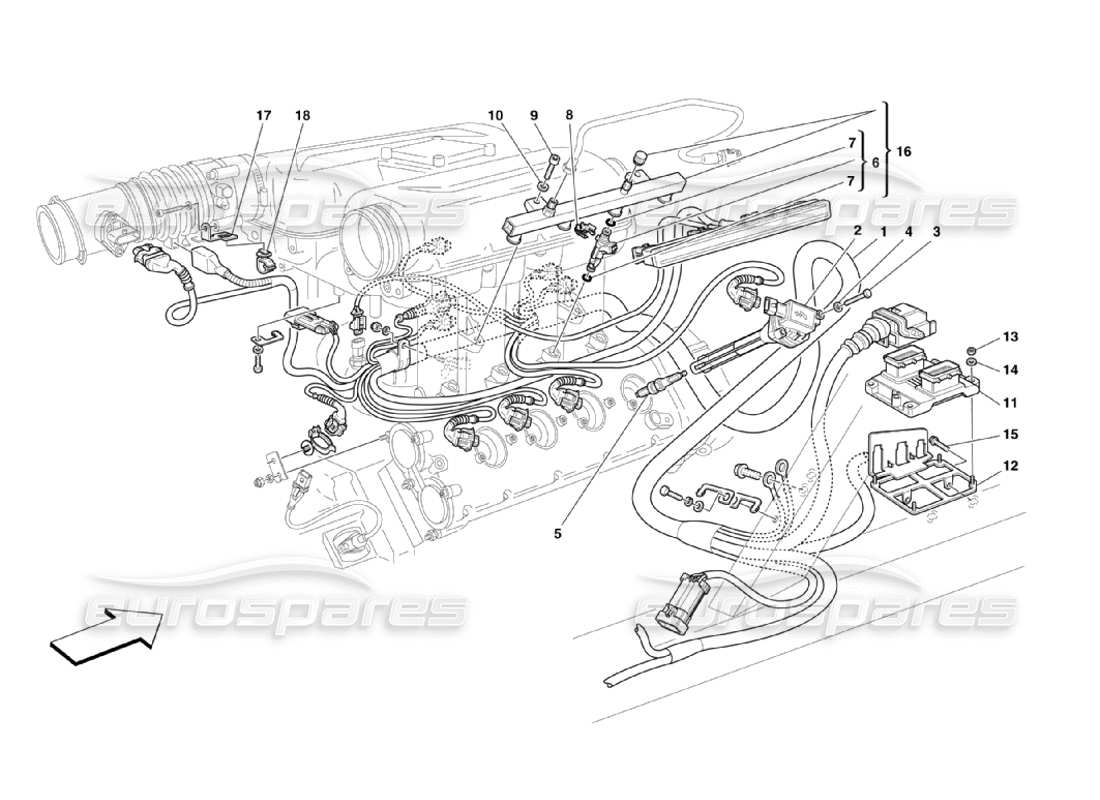

Ferrari 360 Challenge Stradale Injection Device - Ignition Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 199873
RH SIDE ENGINE INJECTION CABLES
-Not for USA and CDN
from £555.24
from £555.24
This part replaces part number 192449
# 001
MPN: 199874
LH SIDE ENGINE INJECTION CABLES
-Not for USA and CDN
from £367.50
from £367.50
This part replaces part number 192450 - and 1 more. Click to view details
# 001
MPN: 199875
RH SIDE ENGINE INJECTION CABLES
-Valid for USA and CDN
from £528.52
from £528.52
This part replaces part number 192451
# 001
MPN: 199876
LH SIDE ENGINE INJECTION CABLES
-Valid for USA and CDN
from £528.52
from £528.52
This part replaces part number 192452
# 002
MPN: 177074

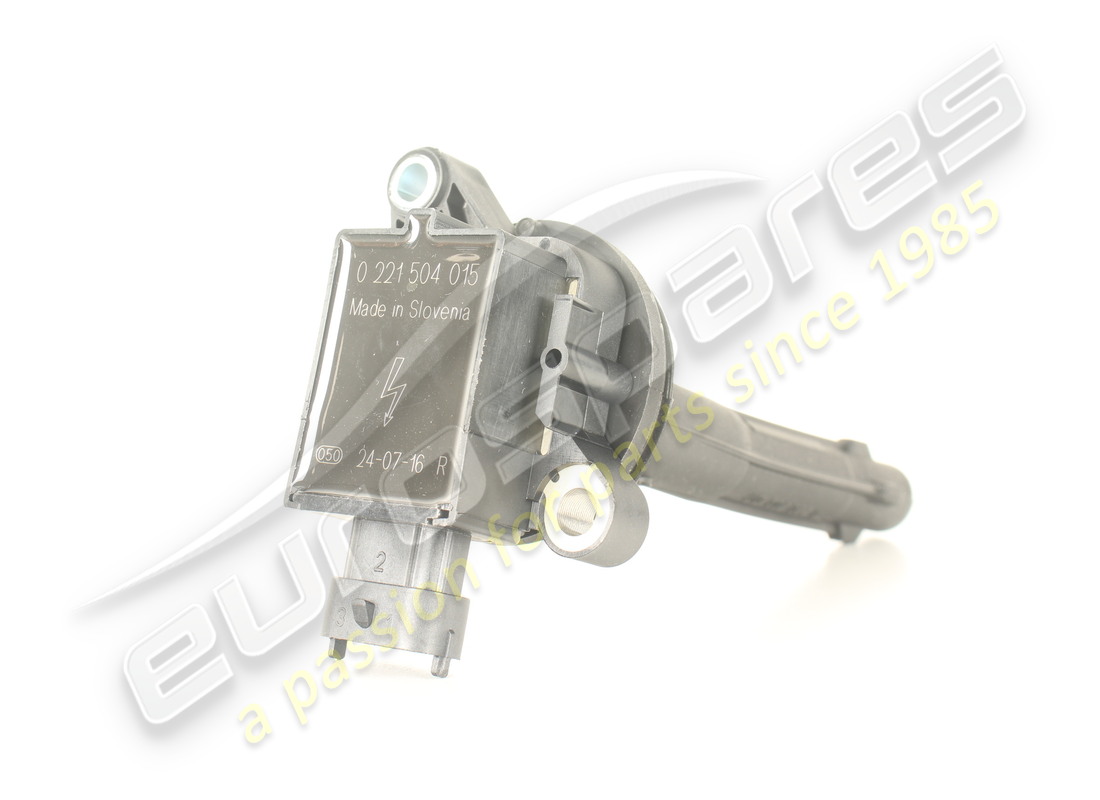

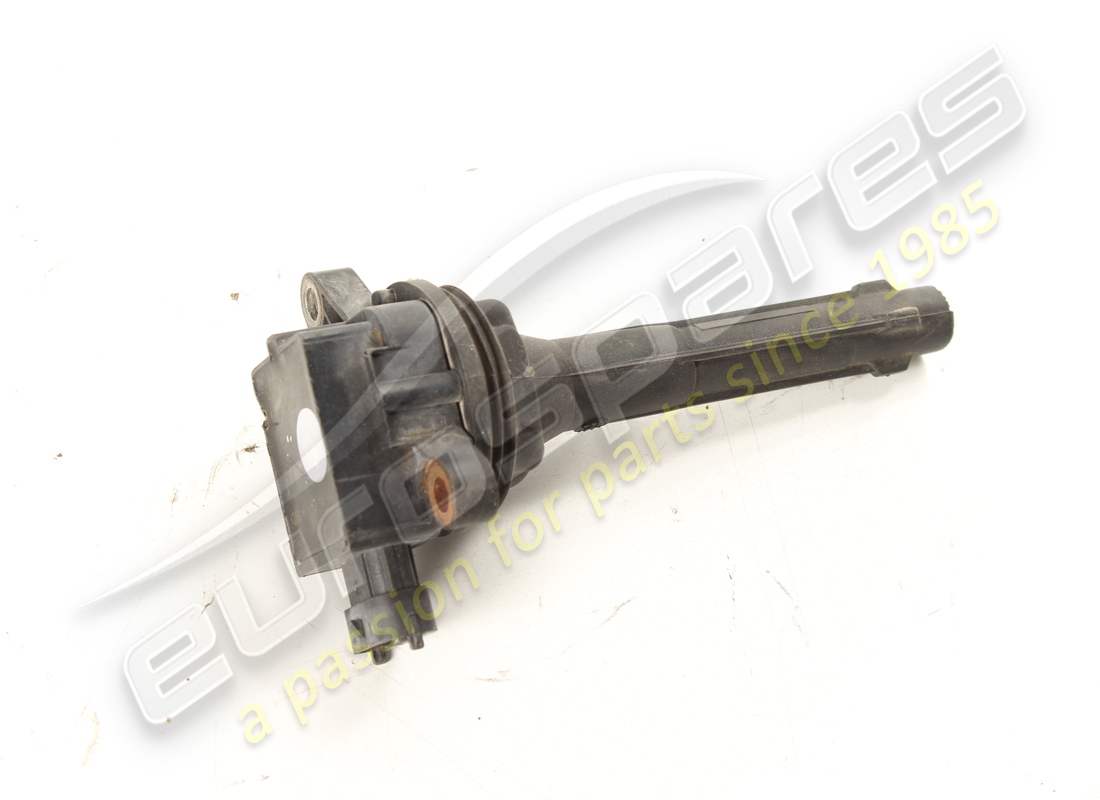

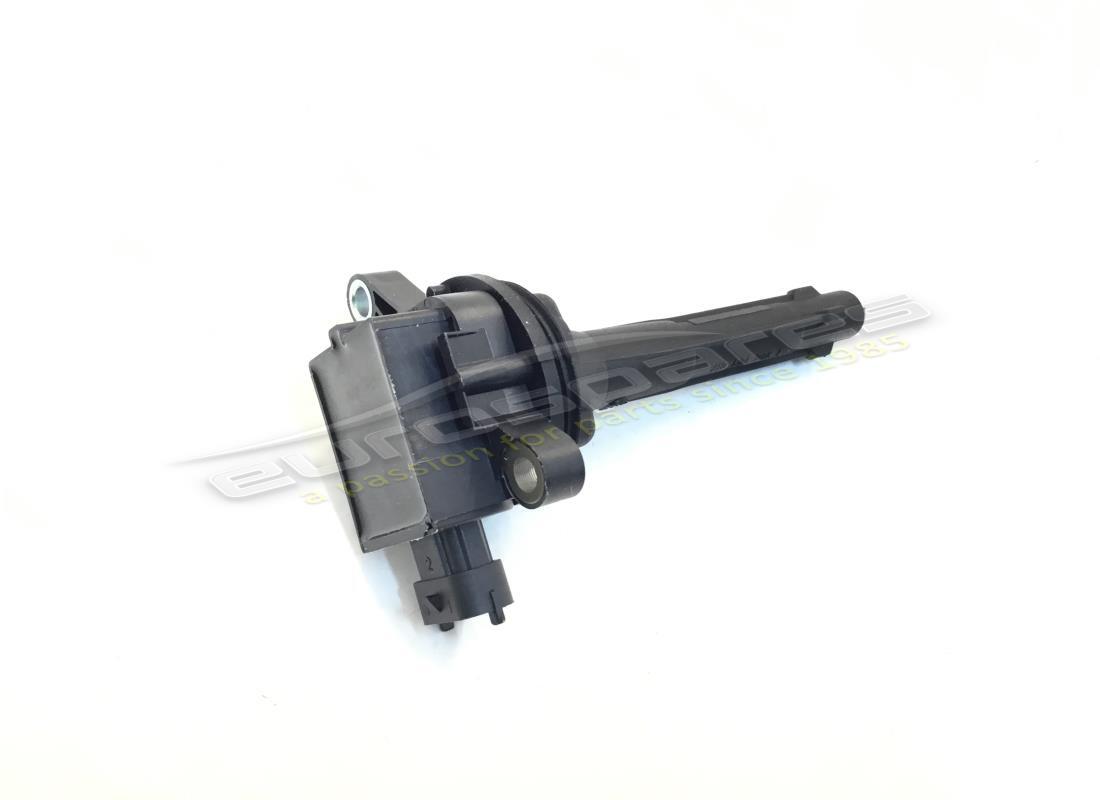

SINGLE IGNITION COIL
from £105.40
from £105.40
# 003
MPN: 10902534
SCREW
from £0.48
from £0.48
# 004
MPN: 12601274
WASHER
from £0.48
from £0.48
This part replaces part number 12601221 - and 5 more. Click to view details
# 005
MPN: 192637
SPARK PLUG
from £17.99
from £17.99
This part replaces part number 168325
# 005
MPN: 192637/A

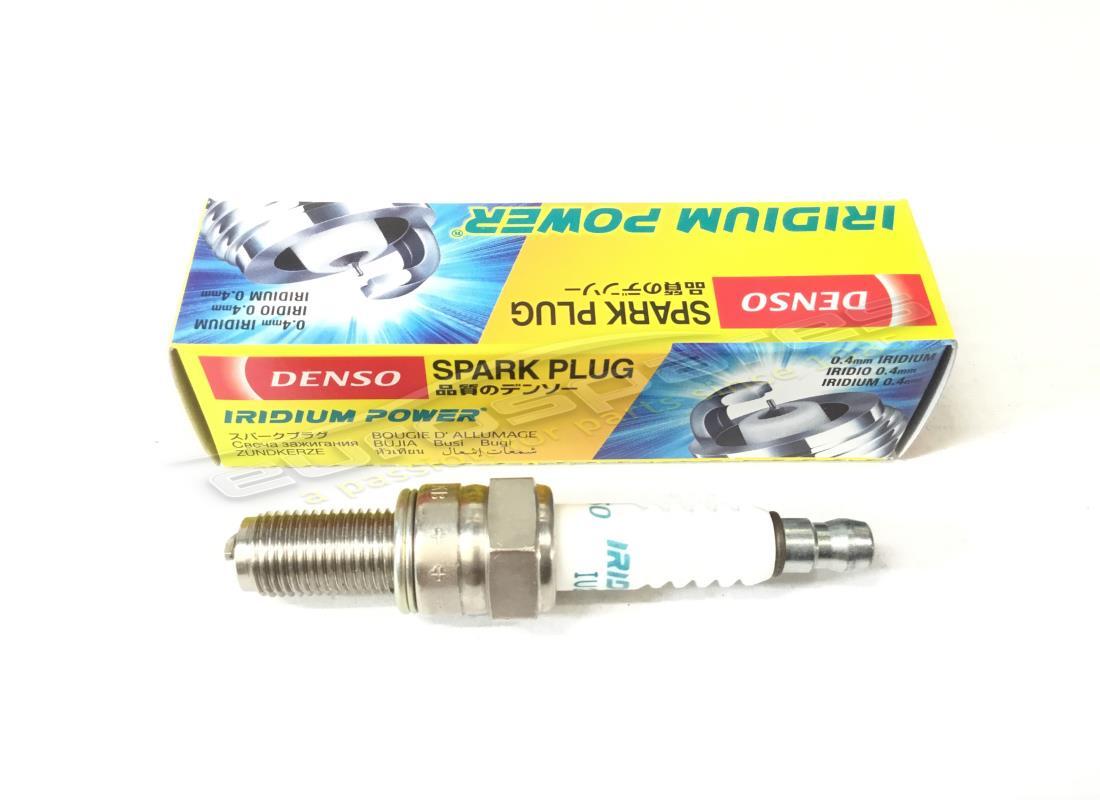

SPARK PLUG
Uprated Denso Iridum Spark Plug
from £12.84
from £12.84
# 006
MPN: 197808
ELECTRO-INJECTOR
from £156.91
from £156.91
This part replaces part number 171723
# 007
MPN: 133902
GASKET
from £3.29
from £3.29
# 008
MPN: 144730
INJECTORS RETAINING CLIP
from £2.24
from £2.24
# 009
MPN: 14306424
SCREW
from £0.51
from £0.51
This part replaces part number 14306324 - and 2 more. Click to view details
# 010
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 011
MPN: 198309
CONTROL UNIT IGNITION
-Not for USA, CDN and J - Valid till Ass. Nr.55319
Supersession
Supersession
# 011
MPN: 200182
CONTROL UNIT IGNITION
-Valid for USA, CDN and J
from £3,002.51
from £3,002.51
# 011
MPN: 210116
CONTROL UNIT IGNITION
-Not for USA, CDN and J - Valid from Ass. Nr.55320
from £2,001.67
from £2,001.67
This part replaces part number 198309
# 012
MPN: 174956
LH PLATE
from £7.05
from £7.05
# 012
MPN: 189978
RH PLATE
from £11.41
from £11.41
# 013
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.82
from £0.82
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 014
MPN: 12604174
WASHER
from £0.47
from £0.47
This part replaces part number 12604179 - and 1 more. Click to view details
# 015
MPN: 16286024
SCREW
from £0.51
from £0.51
# 016
MPN: 198347

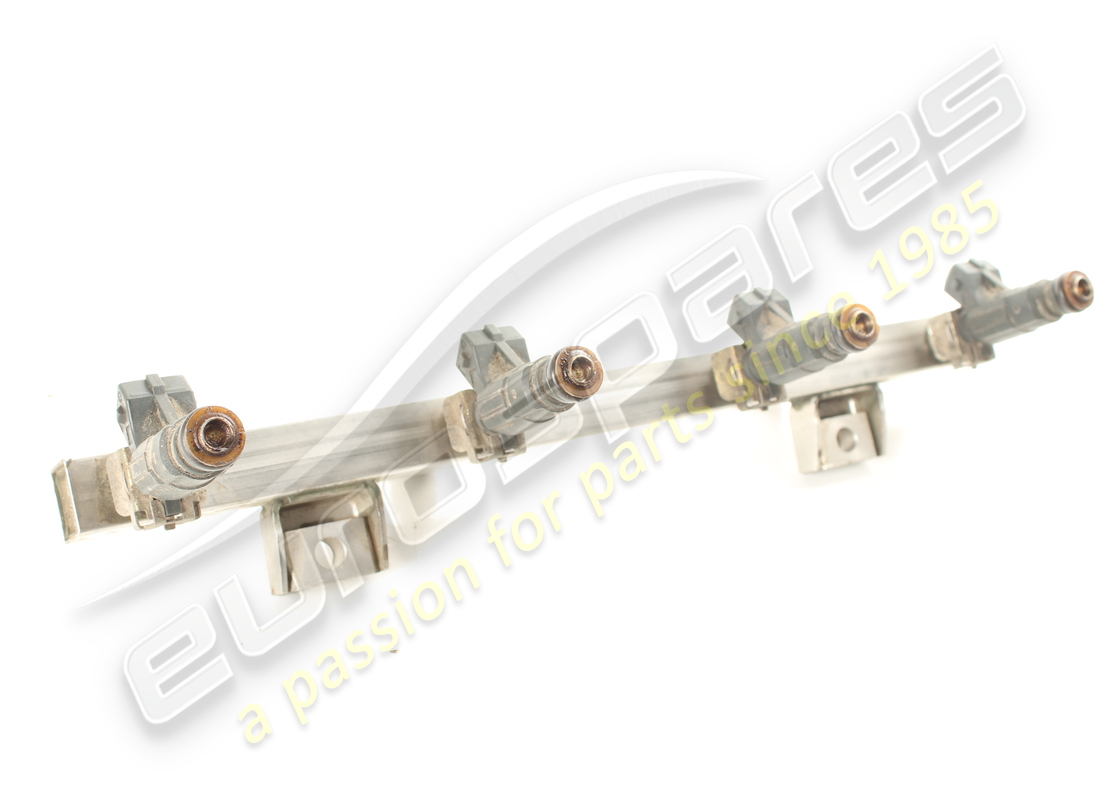

RH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS
from £511.57
from £511.57
This part replaces part number 178482 - and 1 more. Click to view details
# 016
MPN: 198348

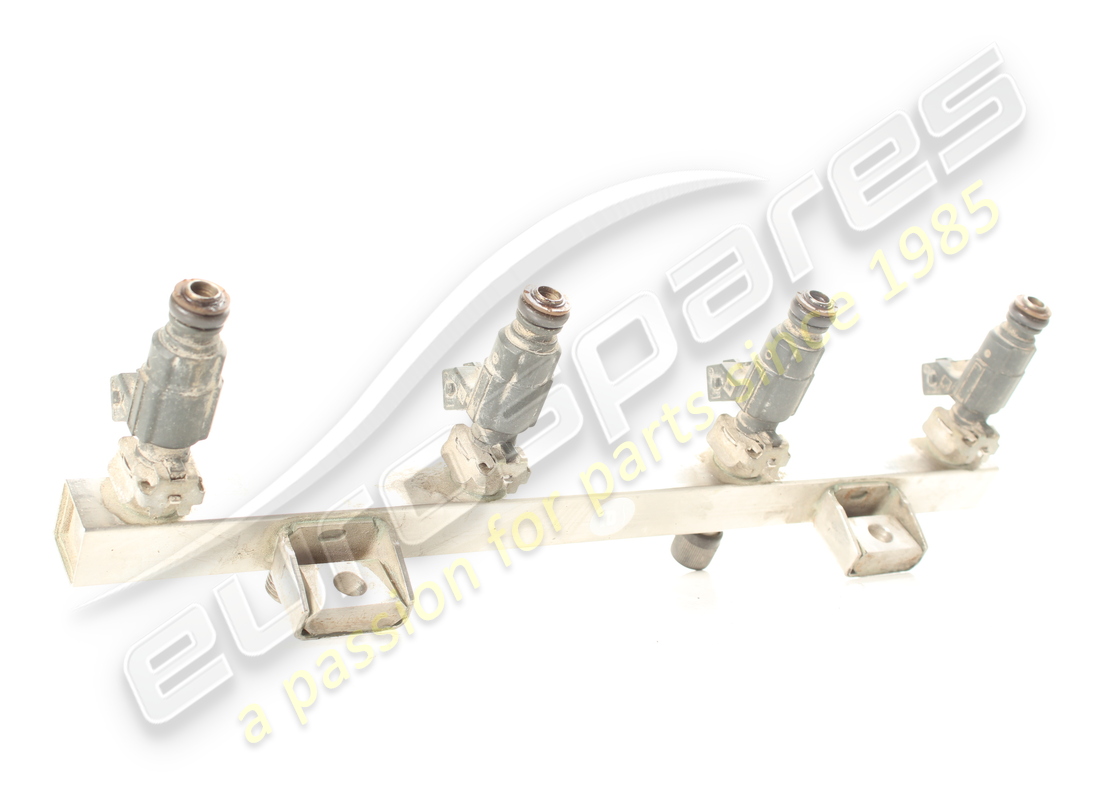

LH COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS
from £592.15
from £592.15
This part replaces part number 178494 - and 1 more. Click to view details
# 017
MPN: 179243
SMALL PLATE
from £2.69
from £2.69
# 018
MPN: 178430
FIXING CLIP
from £0.53
from £0.53
