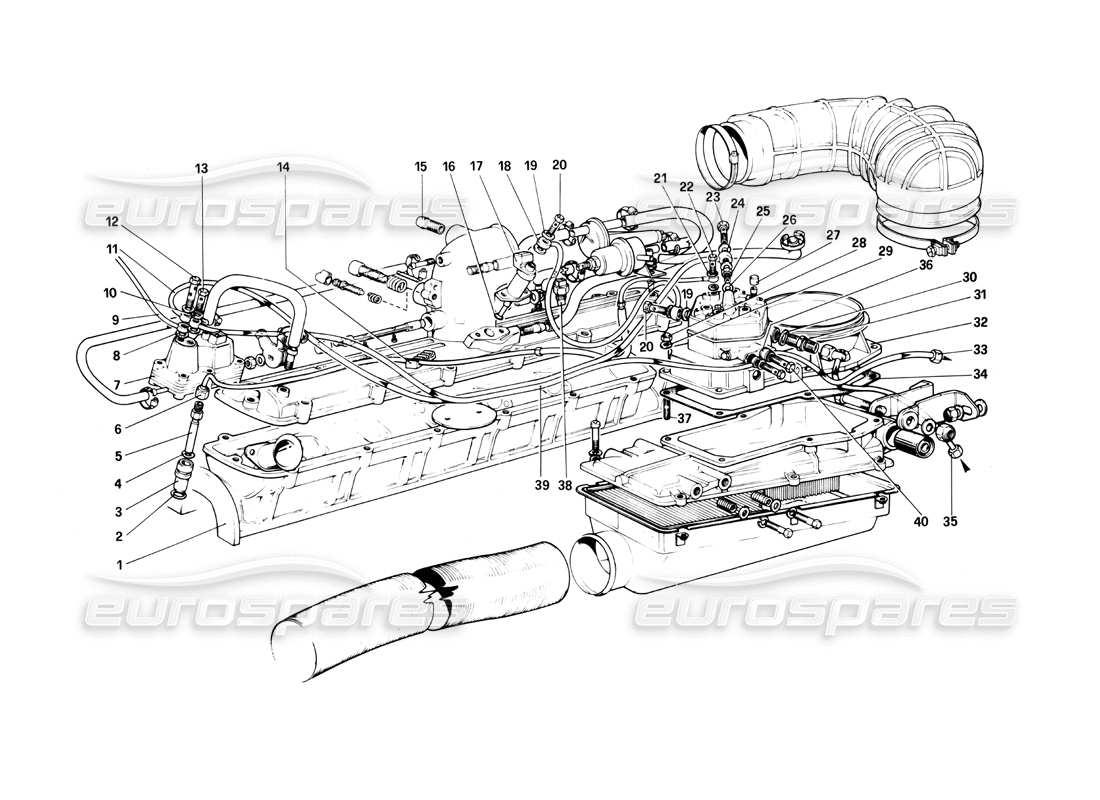

Ferrari 400i (1983 Mechanical) Fuel Injection System - Fuel Distributors, Lines Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 113939
COVER
from £757.44
from £757.44
# 001
MPN: 113940
COVER
from £699.51
from £699.51
# 002
MPN: 101031
RING
from £1.41
from £1.41
# 003
MPN: 113309
INJECTOR HOLDER BUSH
from £199.02
from £199.02
This part replaces part number 123936
# 004
MPN: 113570
SEALING RING
from £3.36
from £3.36
# 005
MPN: 113975
INIETTORE
from £62.13
from £62.13
This part replaces part number 113975/OE - and 3 more. Click to view details
# 006
MPN: 113624
INJECTOR HOSE N.1
from £49.70
from £49.70
# 006
MPN: 113625
INJECTOR HOSE N.2
from £52.19
from £52.19
# 006
MPN: 113626
INJECTOR HOSE N.3
from £52.19
from £52.19
# 006
MPN: 113627
INJECTOR HOSE N.4
from £67.62
from £67.62
# 006
MPN: 113628
INJECTOR HOSE N.5
# 006
MPN: 113629
INJECTOR HOSE N.6
from £49.70
from £49.70
# 006
MPN: 113630
INJECTOR HOSE N.7
from £52.19
from £52.19
# 006
MPN: 113631
INJECTOR HOSE N.8
from £154.74
from £154.74
# 006
MPN: 113632
INJECTOR HOSE N.9
from £52.19
from £52.19
# 006
MPN: 113633
INJECTOR HOSE N.10
from £52.19
from £52.19
# 006
MPN: 113634
INJECTOR HOSE N.11
from £52.19
from £52.19
# 006
MPN: 113635
INJECTOR HOSE N.12
from £98.47
from £98.47
# 007
MPN: 113973
REGOLATORE FASE RISCALDAMENTO
from £1,368.52
from £1,368.52
# 008
MPN: 10260160
WASHER
from £0.50
from £0.50
This part replaces part number 10260170
# 009
MPN: 113925
FUEL HOSE ASSEMBLY FOR REGULATOR CONNECTION
from £164.25
from £164.25
# 010
MPN: 14330260
GASKET OR SEAL
from £0.47
from £0.47
# 011
MPN: 113927
PETROL DELIVERY PIPE ASSEMBLY FROM THE METER TO THE REGULATOR
from £121.53
from £121.53
# 012
MPN: 114018
UNION
from £21.96
from £21.96
# 013
MPN: 113664
UNION
Supersession
Supersession
# 014
MPN: 113896
MORSETTO
from £3.83
from £3.83
This part replaces part number 117279
# 015
MPN: 109798
UNION
from £9.72
from £9.72
# 016
MPN: 103039
SEALING RING
(minimum order quantity = 10)
from £1.62
from £1.62
This part replaces part number 95860041
# 017
MPN: 113979
INIETTOREAVVIAMENTO
from £253.40
from £253.40
# 018
MPN: 113920
FUEL PIPE ASSEMBLY FROM THE METER TO THE LEFT STARTING INJECTOR.
from £125.45
from £125.45
# 018
MPN: 116619
FUEL PIPE ASSEMBLY FROM THE METER TO THE RIGHT STARTING INJECTOR.
from £161.61
from £161.61
# 019
MPN: 14330260
WASHER
from £0.47
from £0.47
# 020
MPN: 113664
UNION
Supersession
Supersession
# 021
MPN: 14330260
WASHER
from £0.47
from £0.47
# 022
MPN: 113664
UNION
Supersession
Supersession
# 023
MPN: 113664
UNION
Supersession
Supersession
# 024
MPN: 14330260
GASKET OR SEAL
from £0.47
from £0.47
# 025
MPN: 113660
UNION
from £10.00
from £10.00
# 026
MPN: 14330260
WASHER
from £0.47
from £0.47
# 027
MPN: 114480
CAPPUCCIO PER INVIOLABILITA
from £2.05
from £2.05
# 028
MPN: 101239
SELF LOCKING NUT
from £1.60
from £1.60
This part replaces part number 92310
# 029
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 030
MPN: 11270160
WASHER
from £0.90
from £0.90
# 031
MPN: 115498
UNION
from £189.93
from £189.93
# 032

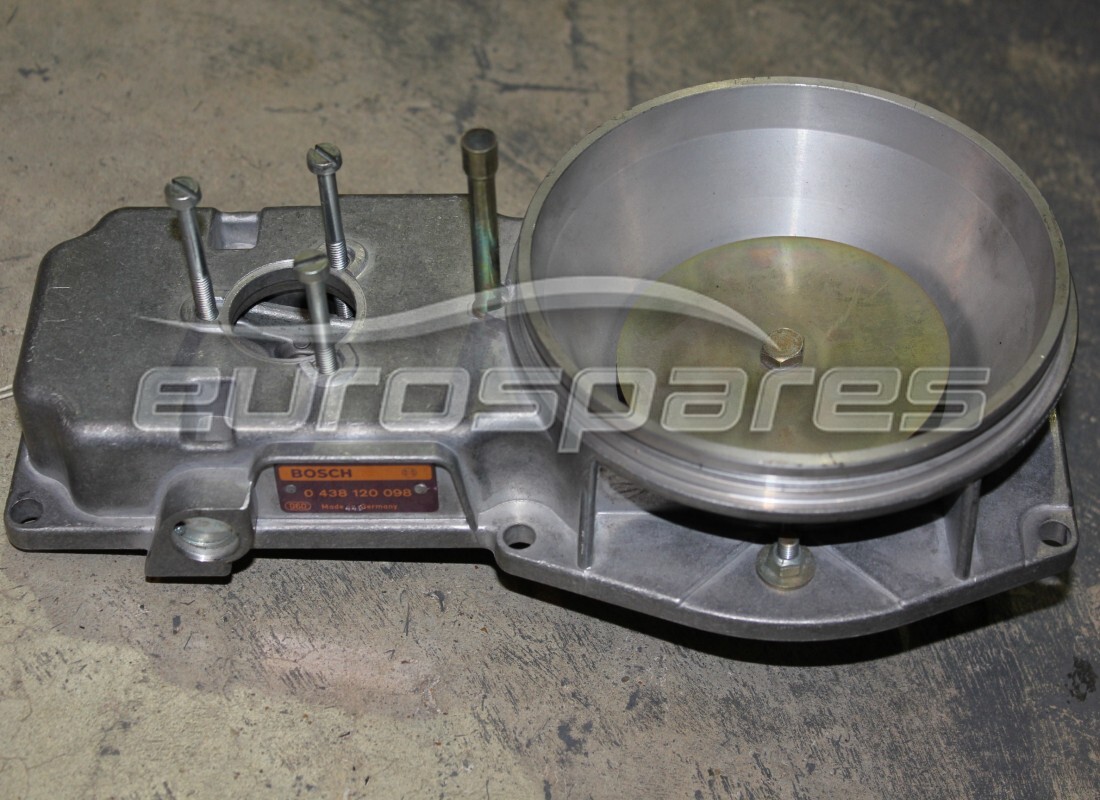

MPN: 113972
METERING HEAD
WITHOUT FUEL DISTRIBUTION UNIT, BOSCH 0438120098
from £1,044.75
from £1,044.75
# 033
MPN: 114925
ASSIEME TUBAZIONE DIRIFLUSSO DAL DOSATORE
from £122.83
from £122.83
# 034
MPN: 113565
GASKET
Supersession
Supersession
# 035
MPN: 115490
FUEL DELIVERY PIPE FROM THE METER
from £116.98
from £116.98
# 036
MPN: 11270160
GASKET OR SEAL
from £0.87
from £0.87
# 037
MPN: 13540921
THREADED STUD
Supersession
Supersession
# 038
MPN: 113980
INTERRUTTORE TERMICO A TEMPO
Supersession
Supersession
# 039
MPN: 113923
RETURN PIPE ASSEMBLY FROM THE REGULATOR
from £117.41
from £117.41
# 040
MPN: 111644
BANJO BOLT
from £6.38
from £6.38
