016 - Lubrication Circuit and Filters

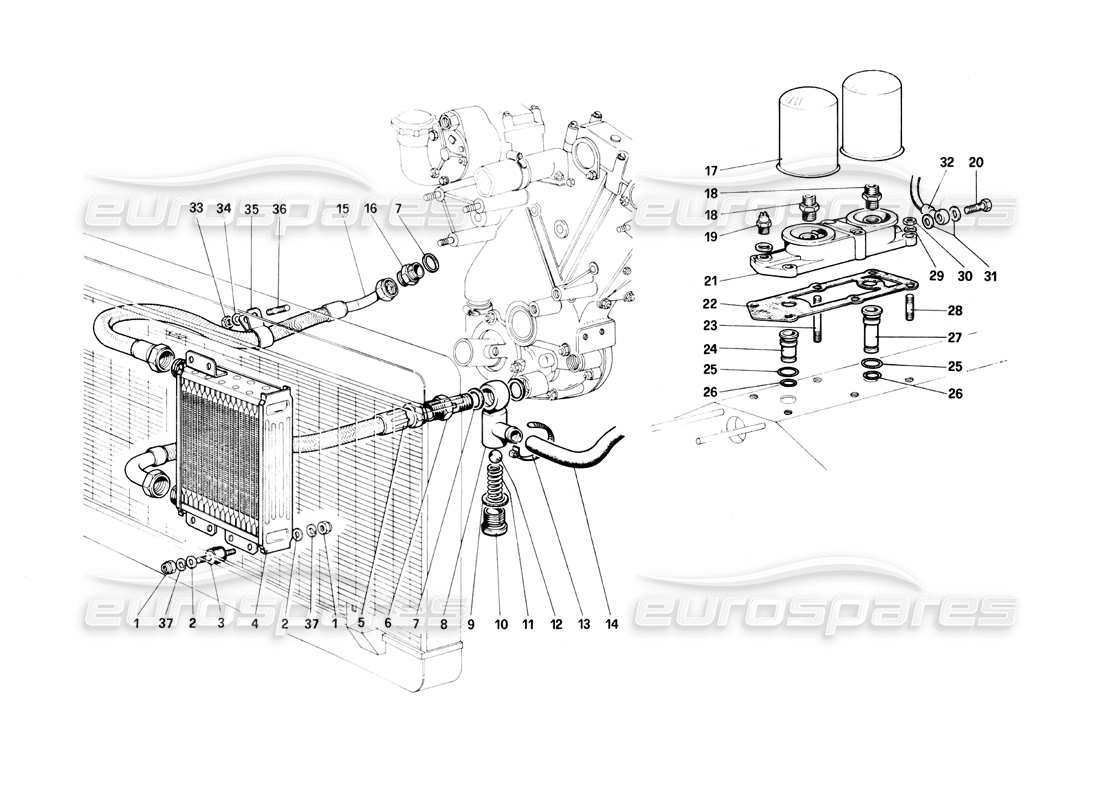

Ferrari 400i (1983 Mechanical) Lubrication Circuit and Filters Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210
# 002
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 003
MPN: 102947
SUPPORT
from £6.17
from £6.17
This part replaces part number 102007 - and 14 more. Click to view details
# 004
MPN: 145712
OIL RADIATOR
from £674.51
from £674.51
This part replaces part number 106965 - and 1 more. Click to view details
# 005
MPN: 114813
TUBO DALLA POM PA AL RADIATORE
from £404.60
from £404.60
# 006
MPN: 111626
UNION
from £56.98
from £56.98
# 007
MPN: 10263460
GASKET
from £0.47
from £0.47
This part replaces part number 95119
# 008
MPN: 111621
PRESSURE RELIEF VALVE
from £126.78
from £126.78
# 009
MPN: 10257460
GASKET
from £0.47
from £0.47
This part replaces part number 94702
# 010
MPN: 111625
CAP FOR RELIEF VALVE
from £20.77
from £20.77
# 011
MPN: 111624
SPRING
from £3.65
from £3.65
# 012
MPN: 109972
BALL FOR RELIEF VALVE
from £1.73
from £1.73
# 013
MPN: 13000490
JUBILEE CLIP
from £0.53
from £0.53
This part replaces part number 10169090 - and 3 more. Click to view details
# 014
MPN: 111627
HOSE FROM RELIEF VALVE TO FITTING ON PUMP
from £47.96
from £47.96
# 015
MPN: 114814
TUBO DAL RADIATORE AL BASAMENTO
from £422.70
from £422.70
# 016
MPN: 100305
UNION
from £22.62
from £22.62
# 017
MPN: 100325/OE
OIL FILTER (FULL FLOW)
from £46.95
from £46.95
# 018
MPN: 100327
UNION
from £42.00
from £42.00
This part replaces part number 240216
# 019
MPN: 110664
MINIMUM OIL PRESSURE SWITCH
from £11.73
from £11.73
# 020
MPN: 102580
UNION
from £34.43
from £34.43
This part replaces part number 220627
# 021
MPN: 110458

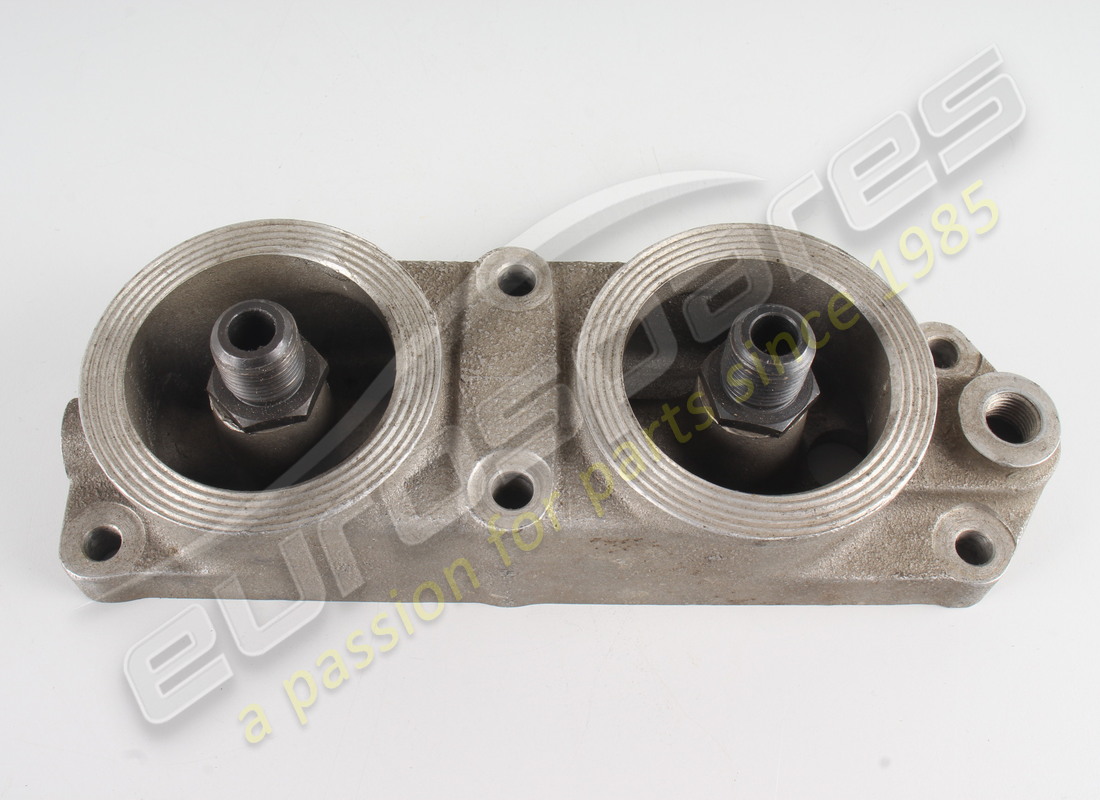

OIL FILTER BASE
from £206.46
from £206.46
# 022
MPN: 147640
GASKET
from £15.41
from £15.41
This part replaces part number 103527 - and 1 more. Click to view details
# 023
MPN: 13544221
THREADED STUD
Supersession
Supersession
This part replaces part number 13517820 - and 1 more. Click to view details
# 024
MPN: 100334
UNION
from £66.93
from £66.93
# 025
MPN: 101033
RING
from £3.48
from £3.48
# 026
MPN: 101034
SEALING RING
from £0.70
from £0.70
# 027
MPN: 100335
UNION
from £84.37
from £84.37
This part replaces part number 9100842
# 028
MPN: 13543621
STUD
Supersession
Supersession
# 029
MPN: 11198074
WASHER
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 030
MPN: 16100821
NUT
from £0.71
from £0.71
This part replaces part number 16100825 which we have in stock
# 031
MPN: 10260160
GASKET
from £0.47
from £0.47
This part replaces part number 10260170
# 032
MPN: 110459
PIPE CONNECTING FILTERS BASE TO THE DEPRESSOR
from £210.66
from £210.66
# 033
MPN: 12574211
NUT
from £0.71
from £0.71
# 034
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 035
MPN: 10441990
JUBILEE CLIP
from £0.47
from £0.47
# 036
MPN: 111163
THREADED STUD
from £14.67
from £14.67
# 037
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
