ferrari 400i (1983 mechanical) outside gearbox controls (400 automatic) parts diagram

022 - Outside Gearbox Controls (400 Automatic)

Ferrari 400i (1983 Mechanical) Outside Gearbox Controls (400 Automatic) Parts Diagram

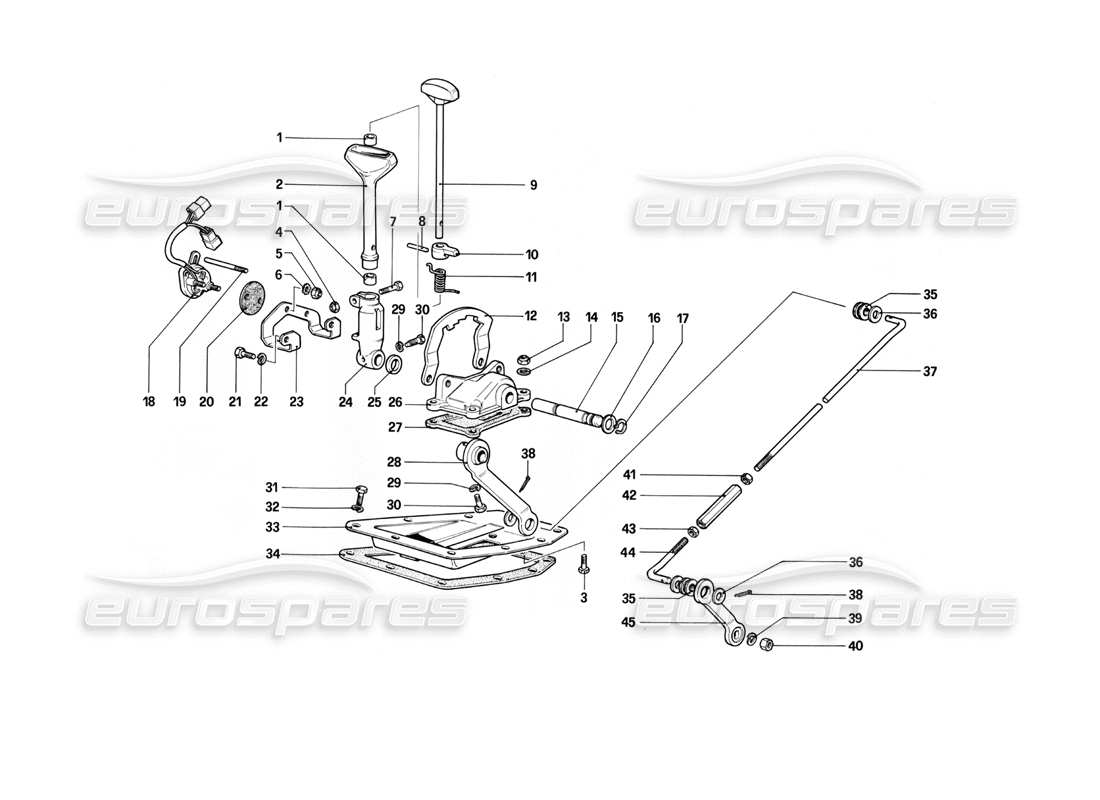

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 109202
                                                                                  BUSH
                                                                                  from £5.03
                                                                                  from £5.03
                                                                                  # 002
                                                                                  MPN: 109201
                                                                                  HANDLE FOR LEVER
                                                                                  from £28.17
                                                                                  from £28.17
                                                                                  # 003
                                                                                  MPN: 10902621
                                                                                  SCREW
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 10902611 which we have in stock
                                                                                  # 004
                                                                                  MPN: 12574221
                                                                                  NUT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                  # 005
                                                                                  MPN: 10725911
                                                                                  NUT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 95900403
                                                                                  # 006
                                                                                  MPN: 12605371
                                                                                  WASHER
                                                                                  from £0.48
                                                                                  from £0.48
                                                                                  # 007
                                                                                  MPN: 10903031

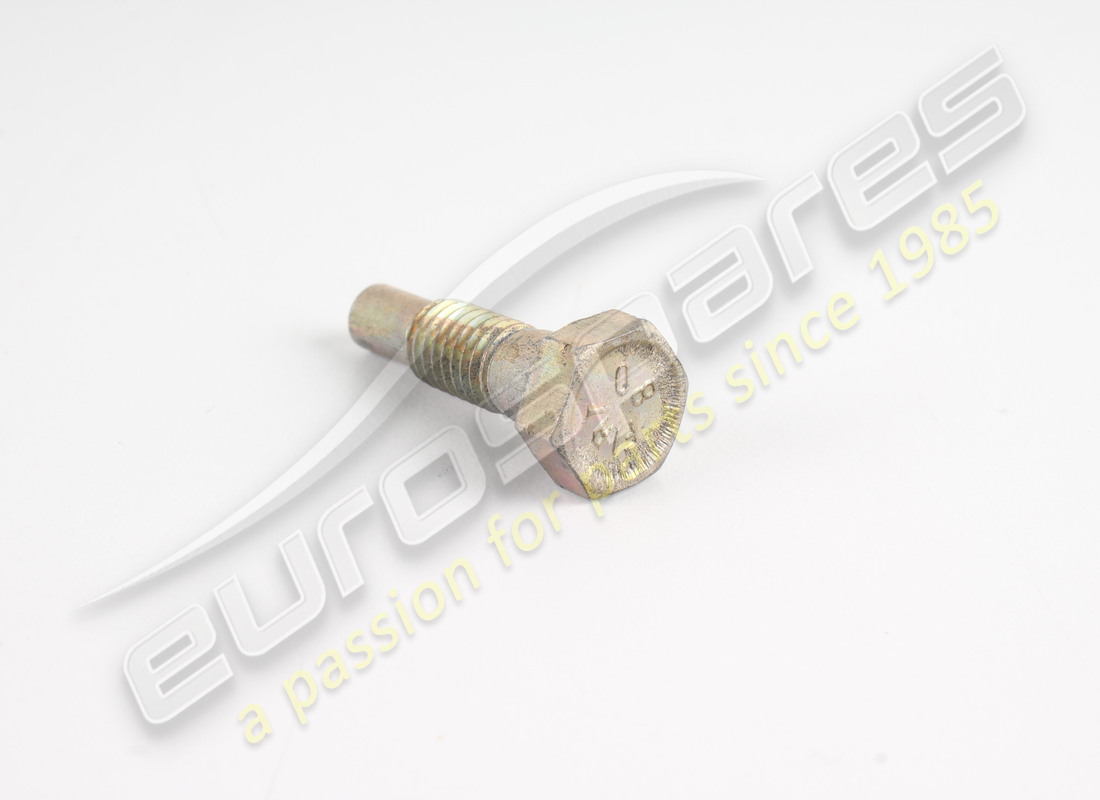

                                                                                  BOLT
                                                                                  from £0.87
                                                                                  from £0.87
                                                                                  # 009
                                                                                  MPN: 109247
                                                                                  LEVER KNOB
                                                                                  from £21.10
                                                                                  from £21.10
                                                                                  # 010
                                                                                  MPN: 109205
                                                                                  SELECTOR PAWL
                                                                                  from £44.20
                                                                                  from £44.20
                                                                                  # 011
                                                                                  MPN: 109206
                                                                                  SPRING
                                                                                  from £2.54
                                                                                  from £2.54
                                                                                  # 012
                                                                                  MPN: 109212
                                                                                  SELETTORE MARCE
                                                                                  from £73.27
                                                                                  from £73.27
                                                                                  # 013
                                                                                  MPN: 12574211
                                                                                  NUT
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 014
                                                                                  MPN: 12639701
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 12639704
                                                                                  # 015
                                                                                  MPN: 109199
                                                                                  PIVOT
                                                                                  from £19.38
                                                                                  from £19.38
                                                                                  # 016
                                                                                  MPN: 109218
                                                                                  WASHER
                                                                                  from £0.84
                                                                                  from £0.84
                                                                                  # 017
                                                                                  MPN: 11066475
                                                                                  SEEGER RING
                                                                                  # 018
                                                                                  MPN: 109215
                                                                                  COMMUTATORE COMANDO AWIAMENTO
                                                                                  Dopo esaurimento vale n. 118277
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 019
                                                                                  MPN: 120764
                                                                                  PIVOT
                                                                                  from £4.29
                                                                                  from £4.29
                                                                                  # 020
                                                                                  MPN: 109214
                                                                                  PLATE
                                                                                  from £1.64
                                                                                  from £1.64
                                                                                  # 021
                                                                                  MPN: 16043421
                                                                                  BOLT
                                                                                  from £2.69
                                                                                  from £2.69
                                                                                  This part replaces part number 95524
                                                                                  # 022
                                                                                  MPN: 127496
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                  # 023
                                                                                  MPN: 109213
                                                                                  BRACKET / SUPPORT
                                                                                  from £9.79
                                                                                  from £9.79
                                                                                  # 024
                                                                                  MPN: 109200
                                                                                  BODY FOR HAND LEVER
                                                                                  from £167.99
                                                                                  from £167.99
                                                                                  # 025
                                                                                  MPN: 109216
                                                                                  SPACER
                                                                                  from £1.34
                                                                                  from £1.34
                                                                                  # 026
                                                                                  MPN: 109198
                                                                                  SUPPORT
                                                                                  from £62.76
                                                                                  from £62.76
                                                                                  # 027
                                                                                  MPN: 109223
                                                                                  GASKET OR SEAL
                                                                                  from £4.44
                                                                                  from £4.44
                                                                                  # 028
                                                                                  MPN: 109319
                                                                                  LEVER
                                                                                  from £150.97
                                                                                  from £150.97
                                                                                  # 029
                                                                                  MPN: 127496
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                  # 030
                                                                                  MPN: 109217
                                                                                  BOLT
                                                                                  from £1.65
                                                                                  from £1.65
                                                                                  # 031
                                                                                  MPN: 10902321
                                                                                  BOLT
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 032
                                                                                  MPN: 106850
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                  # 033
                                                                                  MPN: 109222
                                                                                  LEVER GROUP SUPPORT PLATE
                                                                                  from £27.64
                                                                                  from £27.64
                                                                                  # 034
                                                                                  MPN: 109230
                                                                                  GASKET OR SEAL
                                                                                  from £50.38
                                                                                  from £50.38
                                                                                  # 035
                                                                                  MPN: 109211
                                                                                  BUSH
                                                                                  from £7.22
                                                                                  from £7.22
                                                                                  # 036
                                                                                  MPN: 12625201
                                                                                  WASHER
                                                                                  from £1.08
                                                                                  from £1.08
                                                                                  # 037
                                                                                  MPN: 109220
                                                                                  TERMINATE
                                                                                  Filetto Sx.
                                                                                  from £13.70
                                                                                  from £13.70
                                                                                  # 038
                                                                                  MPN: 10796440
                                                                                  SPLIT PIN
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  This part replaces part number 10796401 - and 1 more. Click to view details
                                                                                  # 039
                                                                                  MPN: 127497
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                  # 040
                                                                                  MPN: 100965
                                                                                  NUT
                                                                                  from £0.80
                                                                                  from £0.80
                                                                                  # 041
                                                                                  MPN: 16102911
                                                                                  NUT
                                                                                  Filetto Sx.
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 042
                                                                                  MPN: 10092511
                                                                                  ADJUSTMENT SLEEVE
                                                                                  from £5.25
                                                                                  from £5.25
                                                                                  # 043
                                                                                  MPN: 16102311
                                                                                  NUT
                                                                                  Filetto Dx.
                                                                                  from £0.42
                                                                                  from £0.42
                                                                                  This part replaces part number 16102315
                                                                                  # 044
                                                                                  MPN: 109221
                                                                                  TERMINALE
                                                                                  Filetto Dx.
                                                                                  from £7.54
                                                                                  from £7.54
                                                                                  # 045
                                                                                  MPN: 109219
                                                                                  LEVER
                                                                                  from £35.43
                                                                                  from £35.43
