025 - Clutch Release Control (400 GT - Valid for RHD Versions)

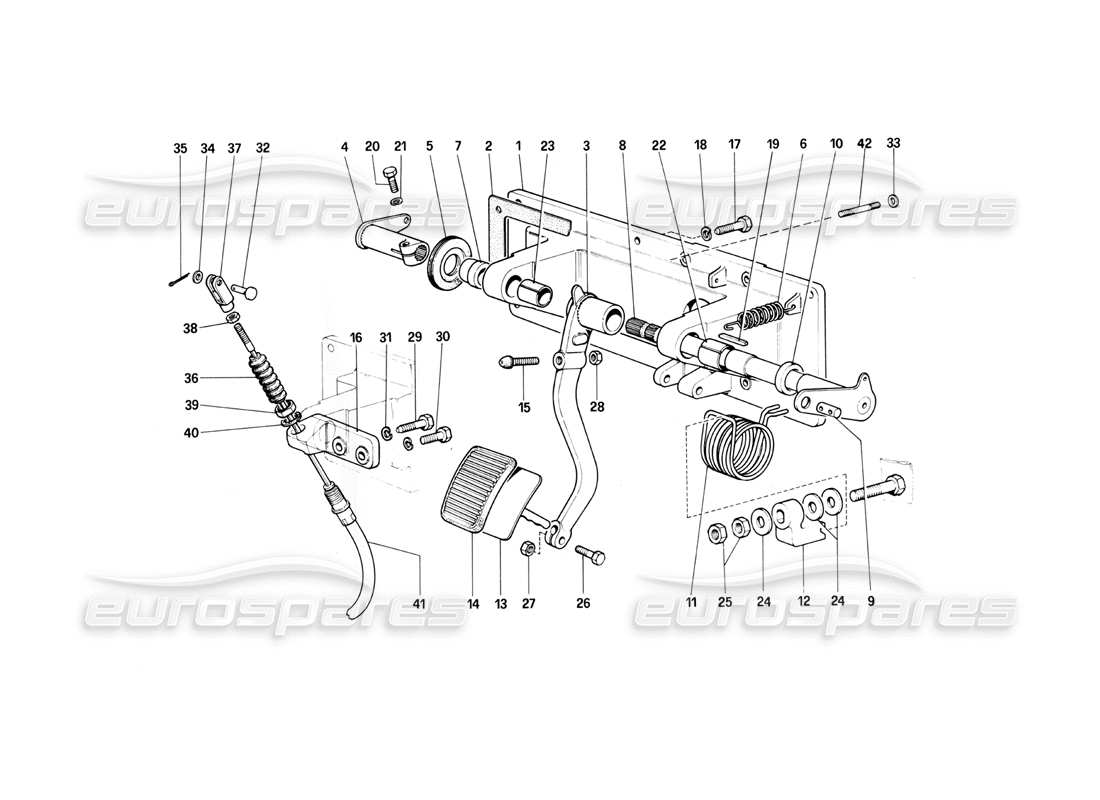

Ferrari 400i (1983 Mechanical) Clutch Release Control (400 GT - Valid for RHD Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 114039
SUPPORT
from £928.55
from £928.55
# 002
MPN: 102395
GASKET
from £10.56
from £10.56
This part replaces part number 660912
# 003
MPN: 102365
LEVER AND SLEEVE ASSEMBLY
from £777.91
from £777.91
This part replaces part number 660920
# 004
MPN: 102367
LEVER AND SLEEVE ASSEMBLY FOR FLEXIBLE HOSE
from £264.25
from £264.25
This part replaces part number 660985
# 005
MPN: 101325
GASKET
Supersession
Supersession
This part replaces part number 660686
# 006
MPN: 106344
SPRING
from £4.29
from £4.29
This part replaces part number 661122
# 007
MPN: 102371
SPACER
from £43.15
from £43.15
This part replaces part number 660921
# 008
MPN: 103965
J SHAFT AND ASSIST LEVER ASSEMBLY
from £979.59
from £979.59
# 009
MPN: 101321
TASSELLO ANCORAGGIO MOLLA
from £75.91
from £75.91
This part replaces part number 500648
# 010
MPN: 102372
SPACER
from £33.60
from £33.60
This part replaces part number 661052
# 011
MPN: 106148
SPRING
from £176.34
from £176.34
This part replaces part number 105724 - and 1 more. Click to view details
# 012
MPN: 106334
BRACKET / SUPPORT
from £78.79
from £78.79
This part replaces part number 102373 - and 1 more. Click to view details
# 013
MPN: 102358
PEDAL ASSEMBLY
from £89.92
from £89.92
This part replaces part number 600435 - and 1 more. Click to view details
# 014
MPN: 102366
PEDAL COVER
# 015
MPN: 101317
PEDAL ADJUSTMENT
from £36.15
from £36.15
This part replaces part number 660344
# 016
MPN: 102394
SUPPORT
from £87.11
from £87.11
# 017
MPN: 16135921
BOLT
Supersession
Supersession
This part replaces part number 95563
# 018
MPN: 12601371
WASHER
Supersession
Supersession
# 019
MPN: 10616320
Key
# 020
MPN: 16043621
BOLT
from £1.07
from £1.07
# 021
MPN: 166652
WASHER
# 022
MPN: 102368
BUSH
from £17.63
from £17.63
# 023
MPN: 100787
BUSH
from £5.48
from £5.48
This part replaces part number 101315 - and 1 more. Click to view details
# 024
MPN: 100774
WASHER
from £19.95
from £19.95
This part replaces part number 105334 - and 2 more. Click to view details
# 025
MPN: 16101521
NUT
from £0.57
from £0.57
This part replaces part number 16101520
# 026
MPN: 101308
BOLT
from £7.92
from £7.92
This part replaces part number 95192
# 027
MPN: 101309
NUT
from £0.93
from £0.93
# 028
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 029
MPN: 16136221
BOLT
from £0.47
from £0.47
# 030
MPN: 16043821
BOLT
from £0.71
from £0.71
# 031
MPN: 12601371
WASHER
Supersession
Supersession
# 032
MPN: 103218
PIVOT
from £25.41
from £25.41
This part replaces part number 100857 - and 1 more. Click to view details
# 033
MPN: 107835
WASHER
from £7.82
from £7.82
# 034
MPN: 13550221
WASHER
from £0.47
from £0.47
# 035
MPN: 10734101
SPLIT PIN
from £1.55
from £1.55
This part replaces part number C1
# 036
MPN: 100858
PROTECTIVE BELLOWS
from £21.30
from £21.30
This part replaces part number 500551 - and 1 more. Click to view details
# 037
MPN: 108575
FORK
from £33.34
from £33.34
# 038
MPN: 100861
LOCKNUT
Supersession
Supersession
This part replaces part number 100862 which we have in stock
# 039
MPN: 100867
NUT
Supersession
Supersession
This part replaces part number 95426
# 040
MPN: 12609670
WASHER
# 041
MPN: 110020
HOSE FOR CLUTCH CONTROL
from £54.97
from £54.97
This part replaces part number 100859 - and 1 more. Click to view details
# 042
MPN: 13449521
STUD
from £9.25
from £9.25
