ferrari 400i (1983 mechanical) brakes hydraulic controll (400 automatic - valid for lhd versions) parts diagram

033 - Brakes Hydraulic Controll (400 Automatic - Valid for LHD Versions)

Ferrari 400i (1983 Mechanical) Brakes Hydraulic Controll (400 Automatic - Valid for LHD Versions) Parts Diagram

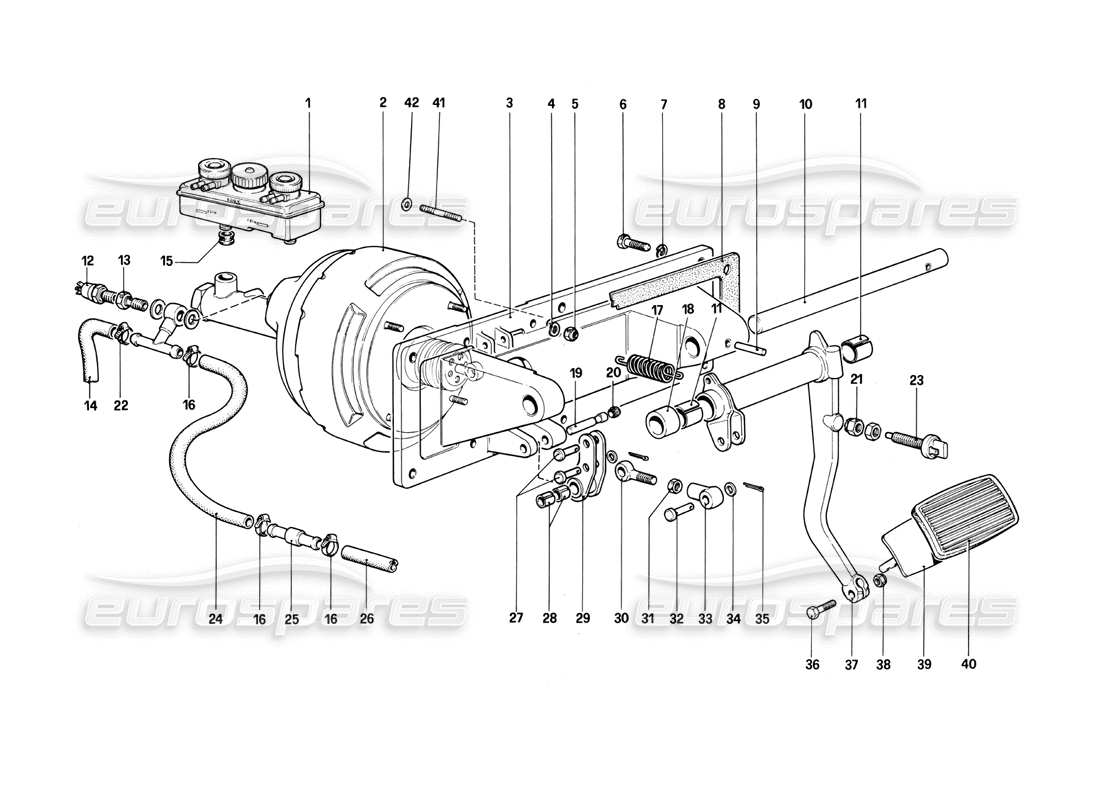

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 000
                                                                                      MPN: 308BMRK
                                                                                      BRAKE MASTER SEAL KIT
                                                                                      Rebuild Kit
                                                                                      # 001
                                                                                      MPN: 95691500
                                                                                      BRAKE FLUID RESERVOIR
                                                                                      from £395.00
                                                                                      from £395.00
                                                                                      This part replaces part number 101388
                                                                                      # 002
                                                                                      MPN: 110792
                                                                                      Brake Servo
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 003
                                                                                      MPN: 113698
                                                                                      SUPPORT
                                                                                      from £1,450.43
                                                                                      from £1,450.43
                                                                                      # 004
                                                                                      MPN: 12601371
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 005
                                                                                      MPN: 101139
                                                                                      NUT
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 16104425
                                                                                      # 006
                                                                                      MPN: 16135921
                                                                                      BOLT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 95563
                                                                                      # 007
                                                                                      MPN: 12601371
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 008
                                                                                      MPN: 100975
                                                                                      GASKET
                                                                                      from £43.49
                                                                                      from £43.49
                                                                                      This part replaces part number 660870
                                                                                      # 009
                                                                                      MPN: 13942870
                                                                                      PIN
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 010
                                                                                      MPN: 109142
                                                                                      PIVOT SUPPORT
                                                                                      from £61.75
                                                                                      from £61.75
                                                                                      # 011
                                                                                      MPN: 100787
                                                                                      BUSH
                                                                                      from £5.48
                                                                                      from £5.48
                                                                                      This part replaces part number 101315 - and 1 more. Click to view details
                                                                                      # 012
                                                                                      MPN: 110768
                                                                                      MINIMUM VACUUM SIGNAL VALVE
                                                                                      # 013
                                                                                      MPN: 11076.5
                                                                                      UNION
                                                                                      from £18.52
                                                                                      from £18.52
                                                                                      # 014
                                                                                      MPN: 111024
                                                                                      HOSE FROM THE DEPRESSOR TO THE BRAKE SERVO
                                                                                      from £9.91
                                                                                      from £9.91
                                                                                      # 015
                                                                                      MPN: 175189
                                                                                      SEALING RING
                                                                                      from £13.70
                                                                                      from £13.70
                                                                                      This part replaces part number 106625
                                                                                      # 016
                                                                                      MPN: 13000390
                                                                                      JUBILEE CLIP
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                      # 017
                                                                                      MPN: 101305
                                                                                      SPRING
                                                                                      from £5.43
                                                                                      from £5.43
                                                                                      This part replaces part number 660343
                                                                                      # 018
                                                                                      MPN: 109143
                                                                                      SPACER
                                                                                      from £28.83
                                                                                      from £28.83
                                                                                      # 019
                                                                                      MPN: 100957
                                                                                      PIVOT
                                                                                      from £29.02
                                                                                      from £29.02
                                                                                      This part replaces part number 660865
                                                                                      # 020
                                                                                      MPN: 100962
                                                                                      RING
                                                                                      from £6.44
                                                                                      from £6.44
                                                                                      # 021
                                                                                      MPN: 101662
                                                                                      NUT
                                                                                      from £2.53
                                                                                      from £2.53
                                                                                      This part replaces part number 660523
                                                                                      # 022
                                                                                      MPN: 13000490
                                                                                      JUBILEE CLIP
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                      # 023
                                                                                      MPN: 101663
                                                                                      STOP LIGHT SWITCH (2 TERMINALS)
                                                                                      from £23.05
                                                                                      from £23.05
                                                                                      This part replaces part number 4177124 - and 13 more. Click to view details
                                                                                      # 024
                                                                                      MPN: 110746
                                                                                      HOSE CONNECTING NON-RETURN VALVE TO THE BRAKE SENSOR
                                                                                      from £32.60
                                                                                      from £32.60
                                                                                      # 025
                                                                                      MPN: 128435
                                                                                      VALVOLA DI NON RITORNO
                                                                                      from £148.52
                                                                                      from £148.52
                                                                                      This part replaces part number 101538 - and 3 more. Click to view details
                                                                                      # 026
                                                                                      MPN: 110747
                                                                                      PIPE FROM VALVE DOES NOT RETURN TO MANIFOLD
                                                                                      from £31.46
                                                                                      from £31.46
                                                                                      # 027
                                                                                      MPN: 100961
                                                                                      PIVOT
                                                                                      from £26.35
                                                                                      from £26.35
                                                                                      This part replaces part number 660864
                                                                                      # 028
                                                                                      MPN: 100958
                                                                                      BUSH
                                                                                      from £7.98
                                                                                      from £7.98
                                                                                      This part replaces part number 660866
                                                                                      # 029
                                                                                      MPN: 100951
                                                                                      LEVER
                                                                                      from £37.75
                                                                                      from £37.75
                                                                                      This part replaces part number 660861 - and 1 more. Click to view details
                                                                                      # 030
                                                                                      MPN: 100959
                                                                                      TIE ROD
                                                                                      from £86.27
                                                                                      from £86.27
                                                                                      This part replaces part number 660860
                                                                                      # 031
                                                                                      MPN: 100965
                                                                                      LOCKNUT
                                                                                      from £0.80
                                                                                      from £0.80
                                                                                      # 032
                                                                                      MPN: 100963
                                                                                      PIVOT
                                                                                      from £30.30
                                                                                      from £30.30
                                                                                      This part replaces part number 660859
                                                                                      # 033
                                                                                      MPN: 100960
                                                                                      ADJUSTMENT FOR BRAKE LEVER
                                                                                      from £97.47
                                                                                      from £97.47
                                                                                      This part replaces part number 660858
                                                                                      # 034
                                                                                      MPN: 100964
                                                                                      WASHER
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 035
                                                                                      MPN: 10734301
                                                                                      SPLIT PIN
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      # 036
                                                                                      MPN: 101308
                                                                                      BOLT
                                                                                      from £7.92
                                                                                      from £7.92
                                                                                      This part replaces part number 95192
                                                                                      # 037
                                                                                      MPN: 109138
                                                                                      LEVER
                                                                                      from £371.26
                                                                                      from £371.26
                                                                                      # 038
                                                                                      MPN: 101309
                                                                                      NUT
                                                                                      from £0.93
                                                                                      from £0.93
                                                                                      # 039
                                                                                      MPN: 109135
                                                                                      PEDALE FRENO
                                                                                      from £45.65
                                                                                      from £45.65
                                                                                      # 040
                                                                                      MPN: 109141
                                                                                      GOMMINO PROTEZIONE PEDALE
                                                                                      from £4.51
                                                                                      from £4.51
                                                                                      # 041
                                                                                      MPN: 13449521
                                                                                      STUD
                                                                                      from £9.25
                                                                                      from £9.25
                                                                                      # 042
                                                                                      MPN: 108735
                                                                                      WASHER
                                                                                      from £265.10
                                                                                      from £265.10
