ferrari 400i (1983 mechanical) brakes hydraulic controll (400 automatic - valid for rhd versions) parts diagram

034 - Brakes Hydraulic Controll (400 Automatic - Valid for RHD Versions)

Ferrari 400i (1983 Mechanical) Brakes Hydraulic Controll (400 Automatic - Valid for RHD Versions) Parts Diagram

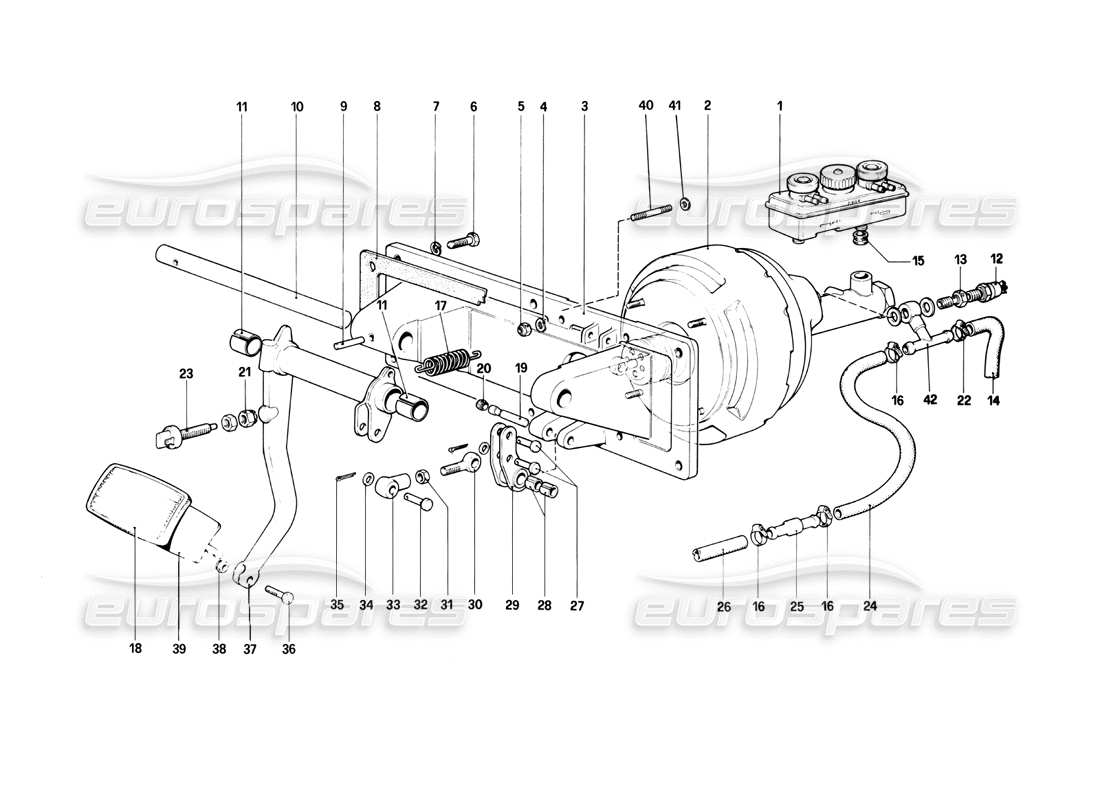

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 000
                                                                                    MPN: 308BMRK
                                                                                    BRAKE MASTER SEAL KIT
                                                                                    Rebuild Kit
                                                                                    # 001
                                                                                    MPN: 95691500
                                                                                    BRAKE FLUID RESERVOIR
                                                                                    from £395.00
                                                                                    from £395.00
                                                                                    # 002
                                                                                    MPN: 110794
                                                                                    Brake Servo
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 003
                                                                                    MPN: 114040
                                                                                    SUPPORT
                                                                                    RHD
                                                                                    from £472.50
                                                                                    from £472.50
                                                                                    # 004
                                                                                    MPN: 12601371
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 005
                                                                                    MPN: 101139
                                                                                    NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 16104425
                                                                                    # 006
                                                                                    MPN: 16135921
                                                                                    BUILONE FISSAGGIO SUPPORTO
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 95563
                                                                                    # 007
                                                                                    MPN: 12601371
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 008
                                                                                    MPN: 102395
                                                                                    GASKET
                                                                                    from £10.56
                                                                                    from £10.56
                                                                                    This part replaces part number 660912
                                                                                    # 009
                                                                                    MPN: 13942870
                                                                                    PIN
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 010
                                                                                    MPN: 110196
                                                                                    PIVOT SUPPORT
                                                                                    from £52.87
                                                                                    from £52.87
                                                                                    # 011
                                                                                    MPN: 100787
                                                                                    BUSH
                                                                                    from £5.48
                                                                                    from £5.48
                                                                                    This part replaces part number 101315 - and 1 more. Click to view details
                                                                                    # 012
                                                                                    MPN: 110766
                                                                                    MINIMUM VACUUM SIGNAL VALVE
                                                                                    from £56.45
                                                                                    from £56.45
                                                                                    # 013
                                                                                    MPN: 11076.5
                                                                                    UNION
                                                                                    from £18.52
                                                                                    from £18.52
                                                                                    # 014
                                                                                    MPN: 111291
                                                                                    HOSE FROM BRAKE SERVO TO VALVE
                                                                                    from £61.64
                                                                                    from £61.64
                                                                                    # 015
                                                                                    MPN: 175189
                                                                                    SEALING RING
                                                                                    from £13.70
                                                                                    from £13.70
                                                                                    This part replaces part number 106625
                                                                                    # 016
                                                                                    MPN: 13000390
                                                                                    JUBILEE CLIP
                                                                                    from £0.52
                                                                                    from £0.52
                                                                                    This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                    # 017
                                                                                    MPN: 101305
                                                                                    SPRING
                                                                                    from £8.07
                                                                                    from £8.07
                                                                                    This part replaces part number 660343
                                                                                    # 018
                                                                                    MPN: 109141
                                                                                    GOMMINO PROTEZIONE PEDALE
                                                                                    from £4.51
                                                                                    from £4.51
                                                                                    # 019
                                                                                    MPN: 100957
                                                                                    PIVOT
                                                                                    from £29.02
                                                                                    from £29.02
                                                                                    This part replaces part number 660865
                                                                                    # 020
                                                                                    MPN: 100962
                                                                                    RING
                                                                                    from £6.44
                                                                                    from £6.44
                                                                                    # 021
                                                                                    MPN: 101662
                                                                                    NUT
                                                                                    from £2.53
                                                                                    from £2.53
                                                                                    This part replaces part number 660523
                                                                                    # 022
                                                                                    MPN: 13000490
                                                                                    JUBILEE CLIP
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                    # 023
                                                                                    MPN: 101663
                                                                                    STOP LIGHT SWITCH (2 TERMINALS)
                                                                                    from £23.05
                                                                                    from £23.05
                                                                                    This part replaces part number 4177124 - and 13 more. Click to view details
                                                                                    # 024
                                                                                    MPN: 110746
                                                                                    HOSE CONNECTING VALVE NOT RETURN TO BRAKE SERVO
                                                                                    from £32.60
                                                                                    from £32.60
                                                                                    # 025
                                                                                    MPN: 128435
                                                                                    VALVOLA DI NON RITORNO
                                                                                    from £148.52
                                                                                    from £148.52
                                                                                    This part replaces part number 101538 - and 3 more. Click to view details
                                                                                    # 026
                                                                                    MPN: 110748
                                                                                    PIPE FROM VALVE DOES NOT RETURN TO INTAKE MANIFOLD
                                                                                    from £38.89
                                                                                    from £38.89
                                                                                    # 027
                                                                                    MPN: 100961
                                                                                    PIVOT
                                                                                    from £26.35
                                                                                    from £26.35
                                                                                    This part replaces part number 660864
                                                                                    # 028
                                                                                    MPN: 100958
                                                                                    BUSH
                                                                                    from £7.98
                                                                                    from £7.98
                                                                                    This part replaces part number 660866
                                                                                    # 029
                                                                                    MPN: 100951
                                                                                    LEVER
                                                                                    from £37.75
                                                                                    from £37.75
                                                                                    This part replaces part number 660861 - and 1 more. Click to view details
                                                                                    # 030
                                                                                    MPN: 100959
                                                                                    TIE ROD
                                                                                    from £86.27
                                                                                    from £86.27
                                                                                    This part replaces part number 660860
                                                                                    # 031
                                                                                    MPN: 100965
                                                                                    LOCKNUT
                                                                                    from £0.80
                                                                                    from £0.80
                                                                                    # 032
                                                                                    MPN: 100963
                                                                                    PIVOT
                                                                                    from £30.30
                                                                                    from £30.30
                                                                                    This part replaces part number 660859
                                                                                    # 033
                                                                                    MPN: 100960
                                                                                    ADJUSTMENT FOR BRAKE LEVER
                                                                                    from £97.47
                                                                                    from £97.47
                                                                                    This part replaces part number 660858
                                                                                    # 034
                                                                                    MPN: 100964
                                                                                    WASHER
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 035
                                                                                    MPN: 10734301
                                                                                    SPLIT PIN
                                                                                    from £0.52
                                                                                    from £0.52
                                                                                    # 036
                                                                                    MPN: 101308
                                                                                    BOLT
                                                                                    from £7.92
                                                                                    from £7.92
                                                                                    This part replaces part number 95192
                                                                                    # 037
                                                                                    MPN: 110193
                                                                                    LEVER
                                                                                    from £313.65
                                                                                    from £313.65
                                                                                    # 038
                                                                                    MPN: 101309
                                                                                    NUT
                                                                                    from £0.93
                                                                                    from £0.93
                                                                                    # 039
                                                                                    MPN: 109135
                                                                                    PEDALE FRENO
                                                                                    from £45.65
                                                                                    from £45.65
                                                                                    # 040
                                                                                    MPN: 13449521
                                                                                    STUD
                                                                                    from £9.25
                                                                                    from £9.25
                                                                                    # 041
                                                                                    MPN: 107835
                                                                                    WASHER
                                                                                    from £7.82
                                                                                    from £7.82
                                                                                    # 042
                                                                                    MPN: 103567
                                                                                    TRE VIE
                                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
