ferrari 400i (1983 mechanical) calipers for front and rear brakes parts diagram

039 - Calipers for Front and Rear Brakes

Ferrari 400i (1983 Mechanical) Calipers for Front and Rear Brakes Parts Diagram

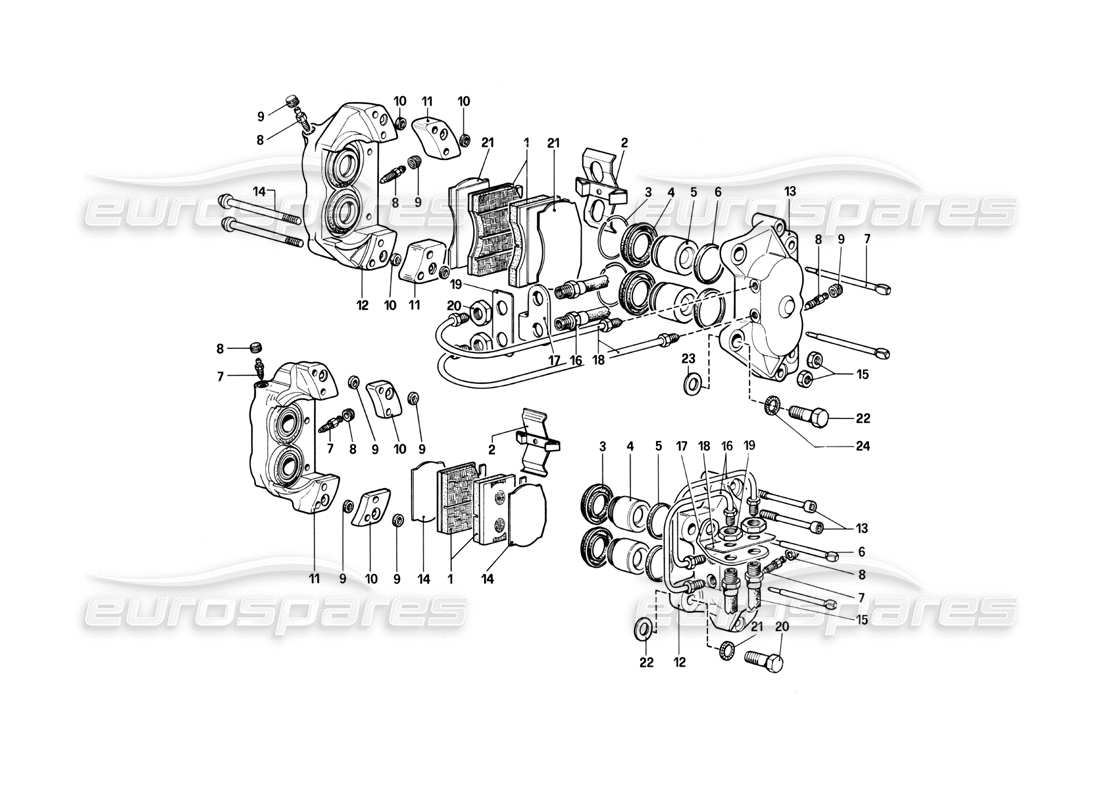

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 000
                  MPN: 108074
                  RHS REAR CALIPER
                  This part replaces part number 105106
                  # 000
                  MPN: 108075
                  LHS REAR CALIPER
                  This part replaces part number 105107
                  # 000
                  MPN: 120830
                  RHS FRONT CALIPER
                  from £493.28
                  from £493.28
                  This part replaces part number 109892
                  # 000
                  MPN: 120831
                  LHS FRONT CALIPER
                  from £691.67
                  from £691.67
                  This part replaces part number 109893
                  # 001
                  MPN: 108073
                  FRONT BRAKE PADS
                  from £52.08
                  from £52.08
                  This part replaces part number 101258 - and 2 more. Click to view details
                  # 001
                  MPN: 108076
                  REAR BRAKE PADS
                  from £75.00
                  from £75.00
                  This part replaces part number 101268 - and 3 more. Click to view details
                  # 001
                  MPN: 134848
                  FRONT BRAKE PADS
                  not as spare part - use part number: 134848
                  from £109.17
                  from £109.17
                  This part replaces part number 108073 which we have in stock - and 4 more. Click to view details
                  # 002
                  MPN: 95691531
                  FRONT CALIPER REPAIR KIT (ONE CALIPER ONLY)
                  Per 1 caliper
                  from £68.28
                  from £68.28
                  This part replaces part number MC3051/1
                  # 002
                  MPN: 95691532
                  REAR CALIPER REPAIR KIT
                  (per caliper)
                  from £69.30
                  from £69.30
                  This part replaces part number MC3081/1
                  # 002
                  MPN: ATE
                  SPRING
                  They are not supplied as a spare but with the assemblies 120830 and 120831
                  # 002
                  MPN: ATE
                  SPRING
                  They are not supplied as spare parts but with the total numbers 108074 and 108075
                  # 003
                  MPN: ATE
                  RING
                  Col kit n. 95691531
                  # 003
                  MPN: ATE
                  RING
                  Col kit n. 95691 532
                  # 004
                  MPN: ATE
                  RING
                  Col kit n. 95691 531
                  # 004
                  MPN: ATE
                  CILINDRETTO
                  They are not supplied as spare parts but with the total numbers 108074 and 108075
                  # 005
                  MPN: ATE
                  CILINDRETTO
                  They are not supplied as a spare but with the assemblies 120830 and 120831
                  # 005
                  MPN: ATE
                  SEAL
                  Col kit n. 95691 532
                  # 006
                  MPN: ATE
                  SEAL
                  Col kit n. 95691 531
                  # 006
                  MPN: ATE
                  PIN
                  Col kit n. 95691 532
                  # 007
                  MPN: ATE
                  PIN
                  Col kit n. 95691 531
                  # 007
                  MPN: ATE
                  VALVOLA DI SPURGO
                  They are not supplied as spare parts but with the total numbers 108074 and 108075
                  # 008
                  MPN: ATE
                  VALVOLA DI SPURGO
                  They are not supplied as a spare but with the assemblies 120830 and 120831
                  # 008
                  MPN: ATE
                  BLEED VALVE CAP
                  They are not supplied as spare parts but with the total numbers 108074 and 108075
                  # 009
                  MPN: ATE
                  BLEED VALVE CAP
                  They are not supplied as a spare but with the assemblies 120830 and 120831
                  # 009
                  MPN: ATE
                  SEAL
                  They are not supplied as spare parts but with the total numbers 108074 and 108075
                  # 010
                  MPN: ATE
                  SEAL
                  They are not supplied as a spare but with the assemblies 120830 and 120831
                  # 010
                  MPN: ATE
                  SPACER
                  They are not supplied as spare parts but with the total numbers 108074 and 108075
                  # 011
                  MPN: ATE
                  SPACER
                  They are not supplied as a spare but with the assemblies 120830 and 120831
                  # 011
                  MPN: ATE
                  CORPO ESTERNO CILINDRETTI
                  They are not supplied as spare parts but with the total numbers 108074 and 108075
                  # 012
                  MPN: ATE
                  CORPO ESTERNO CILINDRETTI
                  They are not supplied as a spare but with the assemblies 120830 and 120831
                  # 012
                  MPN: ATE
                  CORPO INTERNE CILINDRETTI
                  They are not supplied as spare parts but with the total numbers 108074 and 108075
                  # 013
                  MPN: ATE
                  CORPO INTERNO CILINDRETTI
                  They are not supplied as a spare but with the assemblies 120830 and 120831
                  # 013
                  MPN: ATE
                  BOLT
                  They are not supplied as spare parts but with the total numbers 108074 and 108075
                  # 014
                  MPN: 105054

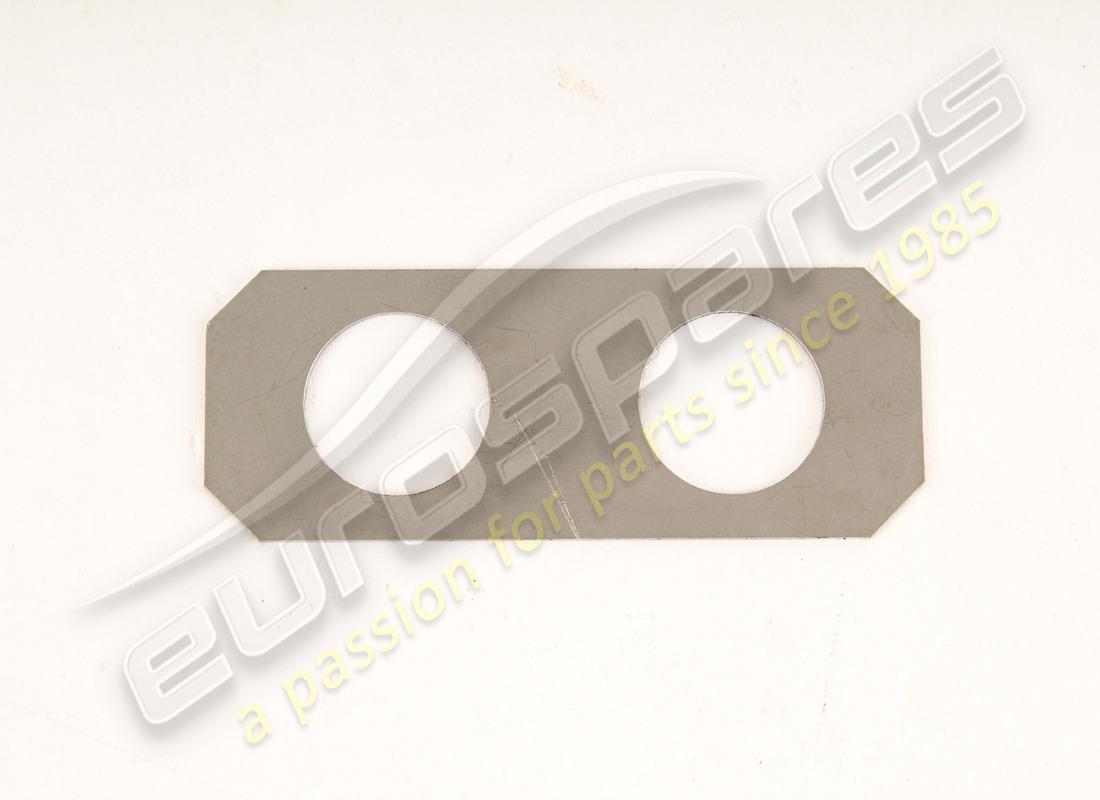

                  PLATE
                  from £14.64
                  from £14.64
                  This part replaces part number 680759
                  # 014
                  MPN: ATE
                  BOLT
                  They are not supplied as a spare but with the assemblies 120830 and 120831
                  # 015
                  MPN: 101393
                  REAR BRAKE HOSE
                  from £37.76
                  from £37.76
                  This part replaces part number 680666
                  # 015
                  MPN: ATE
                  DADI PER BULLONI
                  They are not supplied as a spare but with the assemblies 120830 and 120831
                  # 016
                  MPN: 101393
                  FRONT BRAKE HOSES
                  from £37.76
                  from £37.76
                  This part replaces part number 680666
                  # 016
                  MPN: 101401
                  HOSE FROM CALIPER TO FLEXIBLE
                  Supersession
                  Supersession
                  This part replaces part number 680675
                  # 017
                  MPN: 101402
                  SQUADRETTA SUL FUSO (SINISTRO)
                  from £4.69
                  from £4.69
                  This part replaces part number 680903
                  # 017
                  MPN: 101410
                  SQUADRETTA SUL PORTAMOZZO SX.
                  from £11.61
                  from £11.61
                  This part replaces part number 680904
                  # 017
                  MPN: 105276
                  SQUADRETTA SUL PORTAMOZZO DX.
                  from £6.09
                  from £6.09
                  This part replaces part number 681066
                  # 017
                  MPN: 105277
                  SQUADRETTA SUL FUSO (DESTRO)
                  from £6.09
                  from £6.09
                  This part replaces part number 681069
                  # 018
                  MPN: 101401
                  HOSE FROM CALIPER TO FLEXIBLE
                  Supersession
                  Supersession
                  This part replaces part number 680675
                  # 018
                  MPN: 101412
                  PLATE
                  from £7.41
                  from £7.41
                  This part replaces part number 95442
                  # 019
                  MPN: 101412
                  PLATE
                  from £7.41
                  from £7.41
                  This part replaces part number 95442
                  # 019
                  MPN: 101413
                  NUT
                  from £18.56
                  from £18.56
                  This part replaces part number 94630
                  # 020
                  MPN: 101264
                  BOLT
                  from £16.92
                  from £16.92
                  This part replaces part number 95393
                  # 020
                  MPN: 101413
                  NUT
                  from £18.56
                  from £18.56
                  This part replaces part number 94630
                  # 021
                  MPN: 101255
                  WASHER
                  from £0.56
                  from £0.56
                  # 021
                  MPN: 112698
                  PLATE
                  Supersession
                  Supersession
                  # 022
                  MPN: 103837
                  BOLT
                  from £28.97
                  from £28.97
                  This part replaces part number 680632 - and 1 more. Click to view details
                  # 022
                  MPN: 108023
                  WASHER
                  Di eventuate montaggio
                  # 022
                  MPN: 108024
                  WASHER
                  Di eventuate montaggio
                  # 022
                  MPN: 108922
                  WASHER
                  Di eventuate montaggio
                  Supersession
                  Supersession
                  # 022
                  MPN: 156260
                  WASHER
                  Di eventuate montaggio
                  from £0.84
                  from £0.84
                  This part replaces part number 108918
                  # 022
                  MPN: 156261
                  WASHER
                  Di eventuate montaggio
                  from £2.97
                  from £2.97
                  This part replaces part number 108919
                  # 022
                  MPN: 156262
                  WASHER
                  Di eventuate montaggio
                  from £0.84
                  from £0.84
                  This part replaces part number 108920
                  # 022
                  MPN: 156263
                  WASHER
                  Di eventuate montaggio
                  from £0.86
                  from £0.86
                  This part replaces part number 108921
                  # 023
                  MPN: 108922
                  WASHER
                  Di eventuale montaggio
                  Supersession
                  Supersession
                  # 023
                  MPN: 156260
                  WASHER
                  Di eventuale montaggio
                  from £0.84
                  from £0.84
                  This part replaces part number 108918
                  # 023
                  MPN: 156261
                  WASHER
                  Di eventuale montaggio
                  from £2.97
                  from £2.97
                  This part replaces part number 108919
                  # 023
                  MPN: 156262
                  WASHER
                  Di eventuale montaggio
                  from £0.84
                  from £0.84
                  This part replaces part number 108920
                  # 023
                  MPN: 156263
                  WASHER
                  Di eventuale montaggio
                  from £0.86
                  from £0.86
                  This part replaces part number 108921
                  # 023
                  MPN: 156265
                  WASHER
                  Di eventuale montaggio
                  from £1.56
                  from £1.56
                  This part replaces part number 108923
                  # 023
                  MPN: 156266
                  WASHER
                  Di eventuale montaggio
                  from £0.84
                  from £0.84
                  This part replaces part number 108924
                  # 024
                  MPN: 101255
                  WASHER
                  from £0.56
                  from £0.56
