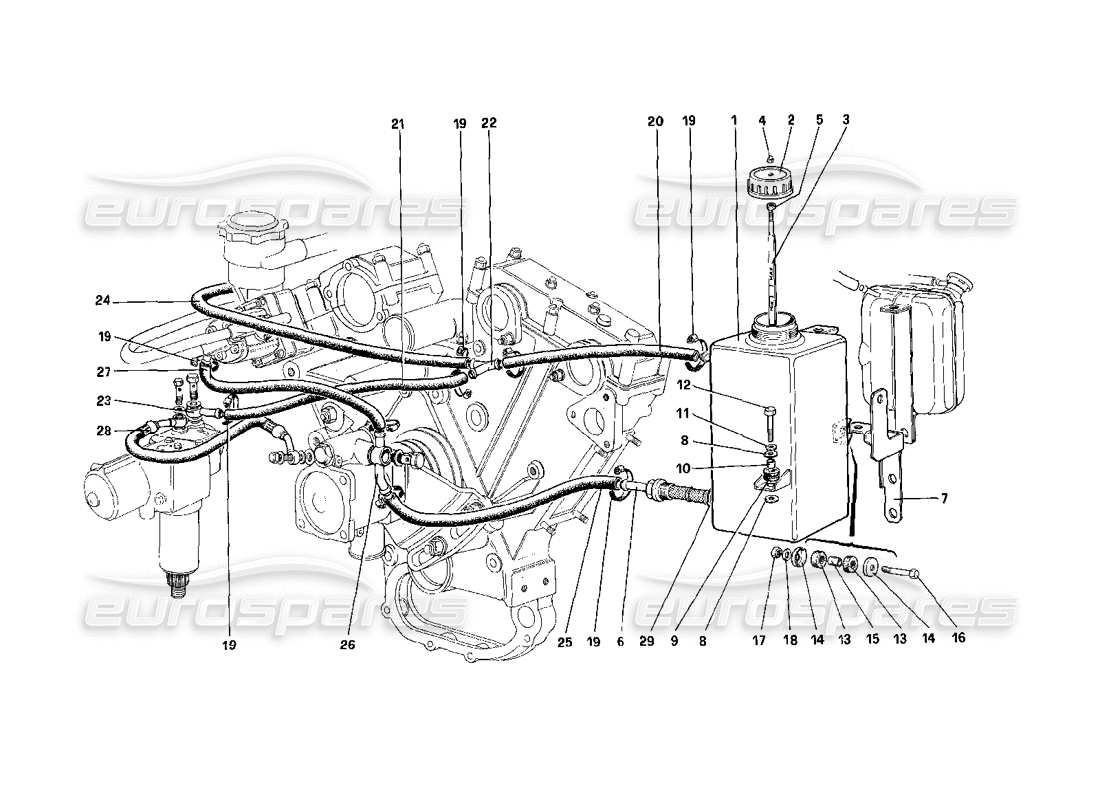

042 - Power Steering Oil Tank - Oil Pneumatic Self Levelling Devices (Valid for RHD Versions)
Ferrari 400i (1983 Mechanical) Power Steering Oil Tank - Oil Pneumatic Self Levelling Devices (Valid for RHD Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 120406
SERBATOIO OLIO
from £324.63
from £324.63
# 002
MPN: 126141
OIL FILLER CAP
(Reqs 101242 & 126142)
from £61.85
from £61.85
This part replaces part number 109719
# 003
MPN: 120408
ASTA LIVELLO
from £52.38
from £52.38
# 004
MPN: 100044
CAP NUT
from £0.26
from £0.26
This part replaces part number 151230 - and 1 more. Click to view details
# 005
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210
# 006
MPN: 120410
FILTER AND OIL TANK DRAINER
from £60.86
from £60.86
# 007
MPN: 120413
BRACKET / SUPPORT
from £149.01
from £149.01
# 008
MPN: 106744
WASHER
from £4.91
from £4.91
# 009
MPN: 103549
RUBBER BUSH
from £0.71
from £0.71
# 010
MPN: 103550
BUSH
from £1.94
from £1.94
This part replaces part number 4130913
# 011
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 012
MPN: 10902721
SCREW
from £0.47
from £0.47
# 013
MPN: 107978
PAD
from £1.10
from £1.10
# 014
MPN: 107979
CAP
from £1.11
from £1.11
# 015
MPN: 107978
PAD
from £1.10
from £1.10
# 016
MPN: 10643921
SCREW
from £0.47
from £0.47
# 017
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 018
MPN: 10519601
WASHER
from £0.53
from £0.53
# 019
MPN: 13000390
JUBILEE CLIP
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 020
MPN: 120399
3 WAY TANK HOSE
from £6.90
from £6.90
# 021
MPN: 120398
PIPE FROM 3 WAY TO GUIDE BOX
from £6.28
from £6.28
# 022
MPN: 120401
UNION 3-WAY
from £25.57
from £25.57
# 023
MPN: 113314
ADJUSTABLE ON STEERING BOX
from £31.80
from £31.80
# 024
MPN: 120400
PIPE FROM 3 WAY TO SELF-LEVELING VALVE
from £7.25
from £7.25
# 025
MPN: 119137
HOSE FROM TANK TO SERVO PUMP
from £19.13
from £19.13
# 026
MPN: 120396
ADJUSTABLE
from £58.28
from £58.28
# 027
MPN: 120414
PUMP HOSE HYDRAULIC GUIDE TO SELF-LEVELING PUMP
from £4.88
from £4.88
# 028
MPN: 101170
PIPE FROM HYDRAULIC GUIDE PUMP TO STEERING BOX
from £506.94
from £506.94
This part replaces part number 740488
# 029
MPN: 102645
GASKET OR SEAL
from £3.63
from £3.63
This part replaces part number 104283 - and 2 more. Click to view details
