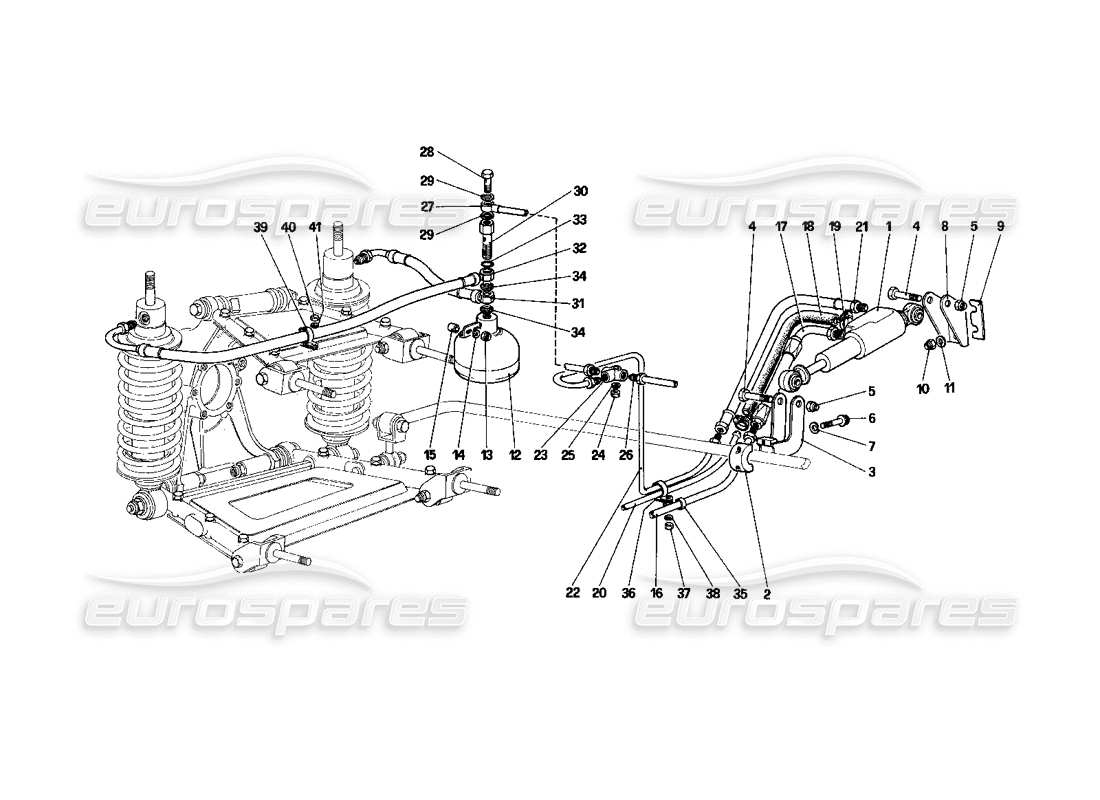

048 - Rear Suspension - Self Leveling Valve and Oil Lines
Ferrari 400i (1983 Mechanical) Rear Suspension - Self Leveling Valve and Oil Lines Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 117737
VALVOLA AUTOLIVELLANTE
from £1,137.48
from £1,137.48
# 002
MPN: 117741
CAVALLOTTO FISSAGGIO LEVA ALIA BARRA
from £22.90
from £22.90
# 003
MPN: 117744
LEVER
from £31.78
from £31.78
# 004
MPN: 16044121
SCREW
from £0.71
from £0.71
This part replaces part number 11101220
# 005
MPN: 16104411
NUT
from £0.53
from £0.53
# 006
MPN: 10902821
SCREW
from £1.07
from £1.07
This part replaces part number 10902801 - and 1 more. Click to view details
# 007
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 008
MPN: 117745
BRACKET / SUPPORT
from £7.93
from £7.93
# 009
MPN: 118148
SPESSORE DI RASAMENTO SPESSORE 1 MM.
Di eventuale montaggio
from £5.44
from £5.44
# 009
MPN: 118149
IDEM SPESSORE 2 MM.
Di eventuale montaggio
from £5.44
from £5.44
# 009
MPN: 118150
IDEM SPESSORE 3 MM.
Di eventuale montaggio
from £5.44
from £5.44
# 010
MPN: 12574211
NUT
from £0.71
from £0.71
# 011
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 012
MPN: 117736
ACCUMULATOR
Dopo esaurimento vale n. 119922
Supersession
Supersession
# 013
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 014
MPN: 10519624
WASHER
Di eventuale montaggio - Con accumulatoren. 119922
from £0.53
from £0.53
This part replaces part number 10519601 - and 3 more. Click to view details
# 015
MPN: 13605711
SPACER
With accumulator n. 119922
from £0.65
from £0.65
# 016
MPN: 117783
PIPE CONNECTING PUMP AND SELF-LEVELING VALVE
from £185.80
from £185.80
# 017
MPN: 117926
OIL DELIVERY HOSE FROM THE PUMP TO THE SELF-LEVELING VALVE
from £302.95
from £302.95
# 018
MPN: 117776
PIPE / TUBE / HOSE
from £24.72
from £24.72
# 019
MPN: 12579590
JUBILEE CLIP
# 020
MPN: 118852
TUBO INTERMEDIO
from £213.24
from £213.24
# 021
MPN: 117740
PIPE CONNECTING VALVE TO 3 WAY
from £114.93
from £114.93
# 022
MPN: 105855
PIPE CONNECTION PIPE TO 3 WAY
from £15.15
from £15.15
# 023
MPN: 101394
TRE VIE
from £26.78
from £26.78
This part replaces part number 680980 - and 7 more. Click to view details
# 024
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 025
MPN: 10516471
WASHER
Supersession
Supersession
# 026
MPN: 117789
TUBO DAL 3 VIE ALL'ACCUMULATORE SX.
from £40.79
from £40.79
# 027
MPN: 117819
PIPE FROM 3 WAY TO THE RIGHT ACCUMULATOR.
from £31.29
from £31.29
# 028
MPN: 113664
UNION
Supersession
Supersession
# 029
MPN: 14330260
WASHER
from £0.47
from £0.47
# 030
MPN: 117735
UNION
from £103.41
from £103.41
# 031
MPN: 117739
PIPE FROM ACCUMULATOR TO REAR SHOCK ABSORBER
from £657.47
from £657.47
# 032
MPN: 117738
PIPE FROM ACCUMULATOR TO FRONT SHOCK ABSORBER
from £178.76
from £178.76
# 033
MPN: 118018
RING
from £1.84
from £1.84
# 034
MPN: 118024
RING
from £2.46
from £2.46
# 035
MPN: 10441290
JUBILEE CLIP
from £0.53
from £0.53
# 036
MPN: 10441490
JUBILEE CLIP
from £0.53
from £0.53
# 037
MPN: 12575411
NUT
Supersession
Supersession
# 038
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 039
MPN: 10441490
JUBILEE CLIP
from £0.51
from £0.51
# 040
MPN: 12575411
NUT
Supersession
Supersession
# 041
MPN: 10441490
WASHER
from £0.51
from £0.51
